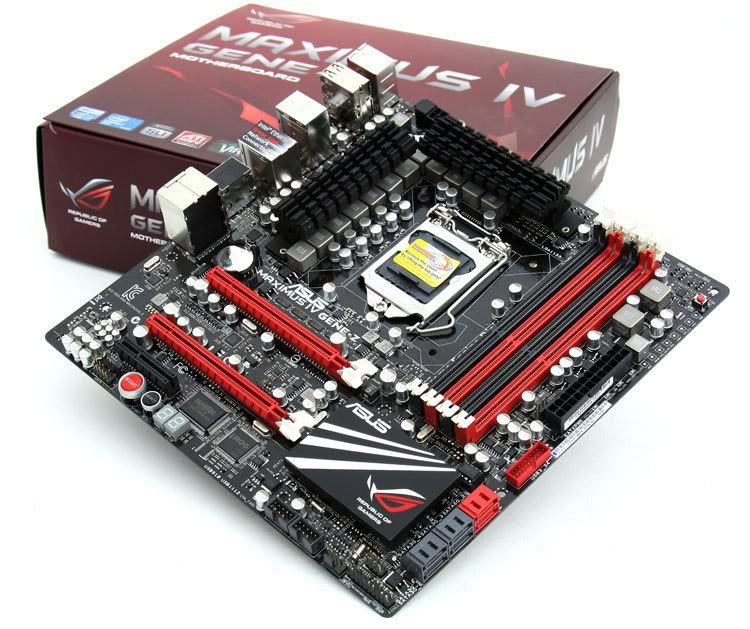

[Officia]l ASUS ROG Maximus IV GENE-Z68 & Z68(Gen3) Owners Club

post #1 of 7108
Thread Starter
Out Now At Select Retailers!
This first started as a rumor, and now is confirmed. Here's the original post to this thread with the rumor:
Originally Posted by Kvjavs
Heya all, so I was posting on the ASUS ROG forums and got this as a reply about a Maximus IV GENE:
Originally Posted by Brian@ASUS
Originally Posted by Kvjavs
Would love to see a Crosshair V GENE or a Maximus IV GENE. Not sure how hard the Maximus IV GENE could be, the P8P67-M Pro has the perfect layout already for it. Just slap some red and black on there, some more phases and ROG logos and you're good to go! Also the onboard X-FI

you should be seeing something of this nature coming soon. thats pretty much all i can really say.

Source    Can't wait!  . . .                                                                               Followed by a news article on NordicHardware.


Now OFFICIAL on ASUS website, ASUS ROG Maximus IV GENE-Z68 HomePage.

Now OFFICIAL on ASUS website, ASUS ROG Maximus IV GENE-Z68/Gen3 HomePage.



75



>>> ASUS MAXIMUS IV GENE-Z68 SPECIFICATIONS SHEET <<< (Click to show)

>>> DOWNLOADS = Bios, Drivers, Utilities, Manual, QVL <<< (Click to show)
Quote:

IMPORTANT NOTE - The Maximus IV Gene Z68 and Maximus IV Gene Z68 Gen 3 DO NOT share the same Official BIOS Release from Asus !

Please be sure you use the proper updated BIOS for your board, as using the wrong one can resut in conflicts and a faulty System.



Maximus IV Gene-Z68



OFFICIAL ASUS Maximus IV Gene-Z68 = Download Page



PRODUCT LINK
Manual / Memory QVL (Qualified Vendors List)



BIOSVersion # 3402  - MOST RECENT BIOS  as of 6/13/2012


>>> ASUS Maximus IV GENE Z68 , BIOS REVISIONS <<< (Click to show)

BIOS



Version 3402 Changelog: (Click to show)

- Improve system stability.
- Enhance compatibility with some USB devices.
- Support new CPUs.

- MOST RECENT BIOS    as of  6/13/2012


Version 3305 Changelog: (Click to show)

- Updated Intel RST ROM.


Version 3203 Changelog: (Click to show)

- Improve system stability.
- Improve memory compatibility.
- Support new CPUs.


Internal Beta Version 3202

Internal Beta Version 1001

Version 0902 Changelog: (Click to show)

- Enable support for Next Gen 22nm Processor.



ASUS OFFICIAL Version #0208

Bios #0208 changelog: (Click to show)
- Original First Release.
- Build Release Date 06/24/2011

Internal BETA Version #0650 Bios #0650 changelog: (Click to show)
- Improves system stability.
- Build Release Date 07/08/2011.


NOTE - Bios Build #0650 BETA has been cancelled by Asus, DO NOT USE. 07/08/2011.

Internal BETA Version #0603 Bios #0603 changelog: (Click to show)
- "Xtreme Tweaking" option for 3D01 in BIOS.

Internal BETA Version #0498 Bios #0498 changelog: (Click to show)
- Fixed some bugs.

Internal BETA Version #0496 Bios #0496 changelog: (Click to show)
- Tweaked for 3DMark2001.

ASUS OFFICIAL Version #0403 Bios #0403 changelog: (Click to show)
- Build Release Date 07/29/2011
- Enable the support of Intel Rapid Storage Technology version 10.6.0.1002 Release.
- Update Intel Raid Option ROM.
- Improve DRAM compatibility.
- Improve System stability.
- Improve compatiblity with some Raid card model.
- Increase IGD share memory size to 512MB.


Note: For proper operation, please ensure to update Intel Rapid Storage Technology driver to version 10.6.0.1002 and BIOS to version 0403 before enabling Intel Smart Response Technology.

Update procedure for users needing Intel Smart Response Technology:
(1) Enter OS, and ensure Intel Smart Response Technology has been turned off under Intel Rapid Storage Technology interface.
(2) Install version Intel Rapid Storage Technology driver to version 10.6.0.1002.
(3) Reboot the system, and update BIOS to version 0403, then reboot.
(4) Enter the BIOS setup screen, press F5 to load BIOS default, then change the Intel SATA Port to RAID mode.
(5) Boot into OS, and re-enable Intel Smart Response Technology under Intel Rapid Storage Technology.

ASUS OFFICIAL Version #0902 {New} Bios #0902 changelog: (Click to show)
- Build Release Date 09/19/2011 / update on 10/06/2011 / update on 11/1/2011
- Enable support for Next Gen3 22nm Processor.
- This # 0902 BIOS supposedly also patches the S3 resume issue when using PLL Overvolt.
- Update ? / - Improve ? / - Increase ?


Note: Has just been Re-Classified as a 'BETA' version on 10/6/2011, Re-Re-Classified as a 'OFFICIAL' version on 11/1/2011

ASUS Version #0706 {REMOVED} Bios #0706 changelog: (Click to show)
- Build Release Date 10/10/2011 = REMOVED from ASUS Download Page Nov/1/2011
- Improve memory compatibility
- Improve system stability
- Support new CPUs. Please refer to our website at: http://support.asus.com/cpusupport/cpusupport.aspx?SLanguage=en-us


Notes: This BIOS should be available on Asus Download page on October 12,2011.
=================================================================
Quick Guide on how to go from Bios #0902 to Bios #0706;

- Completely close the Asus AI suite and any security programs (A/V, anti-malware, etc).
- If your overclock isn't 110% stable, reboot and set stock settings in the BIOS.
- Then download Aptio, unzip it, and run "AFUWINx64.exe". It's in /amiflash/aptio/afuwin64.
- Point Aptio to your #0706 rom and hit flash. You shouldn't need to adjust any of the other options available.
- Your computer will appear to freeze/lag and you may see crazy temperature/voltage readings and/or hear corrupted audio coming from the speakers; this is normal.
- When it's done, you can power down and reboot to be running Bios #0706 again.
Credit & Thank you to
MrLinky
=================================================================




Maximus IV Gene-Z68 / Gen 3



OFFICIAL ASUS Maximus IV Gene-Z68 Gen 3 = Download Page



PRODUCT LINK
Manual / Memory QVL



BIOS Version # 3305  - MOST RECENT BIOS as of  5/9/2012



>>> ASUS Maximus IV Gene-Z68 / Gen 3 , BIOS REVISIONS <<< (Click to show)
BIOS

Version # 3305  Changelog:

- Updated Intel RST ROM.
- MOST RECENT BIOS as of 5/9/2012

Version # 3203  Changelog:

- Improve system stability.
- Improve memory compatibility.
- Support new CPUs.


Internal Beta Version # 3202

Version # 0402  Changelog:

- First release

– ORIGINAL MaxIVGeneZ68 / Gen 3 BIO



==============================================================



IMPORTANT NOTE - The Maximus IV Gene Z68 and Maximus IV Gene Z68 Gen 3 DO NOT share the same Official BIOS Release from Asus !

Please be sure you use the proper updated BIOS for your board, as using the wrong one can resut in conflicts and a faulty System.



The other remaining Drivers below, should be universal and work for EITHER motherboard.

==============================================================

INTEL®  Z-68  CHIPSET Drivers

  • Intel® INF Driver:  9.3.0.1021  (Updated 7/24/2012)
  • Intel® ME 8: Management Engine Driver: 8.1.0.1248   (Updated 8/3/2012)  ME8 is designed for Windows 8, Ivy-Bridge CPU's and 7 series chipsets, but is Backwards Compatible w/ Win7, SB and the Z68.
    • Intel® ME 7: Management Engine Driver: 7.1.40.1161  (Updated 4/16/2012)  ME7 was designed for Win 7, Sandy-Bridge CPU's and our Z68 series chipsets.



VIDEO / VGA Graphics  Drivers

  • Lucid Virtu Software:  1.2.114.21767  (Updated 4/24/2012)
  • Intel® HD Graphics Media Accelerator Driver
    • Windows 8 (WHQL) :
      • (32-bit) - 9.17.10.2792  (ver #15.28.0.2792)
      • (64-bit) - 9.17.10.2792  (ver #15.28.0.2792(Updated 7/11/2012)
    • Windows 7 / Vista :
      • (32-bit) - 8.15.10.2761 (ver #15.26.12.2761)
      • (64-bit) - 8.15.10.2761 (ver #15.26.12.2761) (Updated 5/24/2012)



AUDIO / On-Board Sound Drivers

  • Realtek High Definition Audio Driver:  6.0.1.6662  (R2.70)  (Updated 6/22/2012)
  • Sound Blaster X-Fi 2 Software Emulation Audio Driver / Utility Package   v1.0 (R11)  (Updated 6/09/2011)



INTEL® Network Interface ( LAN / ETHERNET ) Drivers

  • Intel® Gigabit Ethernet Driver:  17.3 (NEW 8/23/2012)  17.2  (Updated 7/27/2012)



USB 3.0 Drivers

  • ASMedia USB 3.0 Driver:  1.16.1.0 (Updated 8/11/2012)  1.14.10.0  (Updated 7/26/2012)
  • USB 3.0 Boost Package: 1.00.05  (Updated 10/12/2011)



SATA CONTROLLER / RAID  Drivers

  • JMicron JMB36X Controller Driver:  R1.17.63.1  /alternate link  R1.17.63.1 (Updated 6/15/2011)
  • Intel® Rapid Storage Technology (RST) Driver: 11.2.0.1006   (Updated 6/11/2012) Needed for Intel RAID and/or SSD Cache
  • ASUS  IRST  Smart Update  Utility:  1.00.02  (Updated 7/29/2011)



UTILITIES

  • ASUS  AI  Suite II  v 1.02.25  (Updated 4/20/2012)
    • Asus Ai Charger+  1.00.06
    • Mobilink 1.00.40
    • Asus Update  1.02.03
    • BT Go! 1.00.34
    • Asus DIGI+ VRM 1.01.10
    • DrvResource
    • Asus EPU-6 Engine 1.02.14
    • Asus FAN Xpert 1.00.47
    • ImageResource
    • Asus GPU Boost 1.01.05
    • Matrix 1.02.42
    • Asus MyLogo 1.01.18
    • Asus PC Probe II 1.00.30
    • Asus System Information 1.00.29
    • Asus TurboV EVO 1.00.86
    • Asus USB 3.0 Boost  1.02.06



  • ASUS PC Diagnostics Utility: 1.2.0 (Updated 3/27/2012)







  • The ASUS ROG Windows 7 Theme Add-On  (NEW  Updated 4/19/2012)
    • A Windows 7 Desktop theme
    • A ROG screensaver
    • A ROG start button
    • A ROG wallpapers
    • A ROG My Computer icon on the desktop
    • A ROG Mouse cursor
Open to see examples of the Asus ROG Windows 7 Themed Desktop ... (Click to show)



LINK = http://rog.asus.com/105212012/news/the-rog-windows-7-theme/



There’s been several ROG forum threads asking for an ROG Windows 7 theme and some of our awesome fans have already contributed various additions, like start button replacements and other theme replacements. The ROG team has been working on its own version, and has now whipped up a full ROG Windows 7 theme you can download here.

Installing is easy – simply click the setup file and the rest is done for you.



ROG Theme Install



This creates:



  • A Windows 7 theme
ROG Windows 7 Theme

  • Installs an ROG screensaver (disabled by default)
ROG Screensaver

  • Updates your start button
ROG Start button

ROG Wallpapers

  • Updates your Computer icon on the desktop
ROG Computer Icon

  • And updates your mouse curser
ROG Mouse








Confused about what to download?

- Automatically detect and update your Intel drivers and software with the Intel Driver Update UtilityNot sure this functions properly for our MoBo ?

- Automatically detect and update your Asus drivers and software with the Asus Driver Update Utility. = $29.95  NOT an official Asus Program, Not something I would use, but if you're an idiot and need help.

Additional sources for Drivers = ( http://www.station-drivers.com/page/drivers.htm / windrivers.com / update-your-drivers.com / opendrivers.com / mrdrvier.com / driversupdate.org / driverskit.com / drivermax.com / driverguide.com / driverfiles.net )



This Section Last Updated on 8/29/2012, by LAKF
Thanks to SimpleTech for the Design/layout and Info



Asus Z68 Series Information Thread (drivers, BIOSes, overclocking, reviews), Thanks to SimpleTech
ASUS Maximus IV GENE-Z68 MoBo / Driver UPDATES Thanks to LA_Kings_Fan



OFFICIAL ASUS Maximus IV Gene-Z68 = Download Page

OFFICIAL ASUS Maximus IV Gene-Z68 Gen 3 = Download Page



 Beginers Guide to OS & Drivers Installation, Thanks to LA_Kings_Fan and Others

=================================================================
Beginers Guide to Getting your Newly Built System actually Up and Running ;
- Assemble just the BASIC / Minimal System to TEST that your new MotherBoard will POST / Boot Up, before doing a complete assembly.
(This means just the MoBo, CPU, PSU, and 1 stick of RAM, we just want to see it POST and show AA in the DeBug LED Code, some even do this OutSide of the Case)
- Assemble your complete system, at this time only conecting up 1 SDD/HDD for your BOOT / OS drvie, and leave the Internet disconected for now.
- Turn ON / Boot Up your system, and Enter the BIOS (Delete Key) and make sure you can Boot from Blu-Ray/DVD/CD Rom Drive.
- While in BIOS, make sure you Update the DATE and TIME, otherwise you will get a Windows Activation period expired ERROR Code.
- We ONLY do 100% CLEAN FRESH Installations of WIN 7 (or OS of your choice), DO NOT COPY over OLD OS from another HDD/SSD.
- install the Intel NIC / LAN drivers from Asus Support CD
- Plug in and NOW Connect to the INTERNET & run ALL Windows (OS) updates as needed.
- Review and decide about which BIOS / driver / Apps you want to install from the Asus Support CD, or get the more recent updates off the Asus Support Website
- Review MY >>> DOWNLOADS = Bios, Drivers, Utilities, Manual, QVL <<< section for the MOST UP TO DATE BIOS & DRIVERS LIST and Installation LINKS
- NOTE: IF you'll be using the ONBOARD Sound ... Install the RealTek HD Audio Driver first, and then the SoundBlaster X-Fi Software Emulation Audio Driver.

Credit & Thank you to LA_Kings_Fan & Others
=================================================================



BIOS / ME / GbE - Upgrade/Downgrade/ReFlashing Utility Tool & Guide, Thanks to CodeRush

=================================================================

CodeRush 's BIOS/ME/GbE - upgrading/downgrading/reflashing Utility tool   thumb.gif



Originally Posted by CodeRush View Post

I have made a new version of FTK toolkit, now upgrading/downgrading/reflashing BIOS/ME/GbE are one click ahead.
There are three new command files, that make things simple:
upd_all.bat makes BIOS backup, transfers individual board data from backup to supplied BIOS file and updates all BIOS regions including BIOS, ME and GbE.
upd_me.bat updates ME region only.
upd_gbe.bat updates GbE region only.
To use this command files under Windows, you need BIOS file of any version downloaded from your board page under asus.com, unpack it from the archive, rename to bios.bin and copy into FTK/Win32 or FTK/Win64 folder, depending on your Windows version.
Now launch the command file as administrator by clicking right mouse button on them and selecting "Run as Administrator".
Please wait a while, if you see green "FPT Operation Passed" status - it's good. If not - post the error message or screenshot here, I will help to solve the issue.

Power the PC off, remove power completelly for about 30 seconds to reset Management Engine and power the PC back on.
Go to BIOS, look at BIOS version and ME version on Main tab. Both mustn't be N/A.
Now you have updated/reflashed/downgraded BIOS.
Flashing with this method can solve numerous problems such as missing Turbo-ratios in BIOS, ME version N/A, NVRAM issues, bugs with OC profiles and many more.
All above has been tested by forums.overclockers.ru community and works only on ASUS P67/Z68/Z77-based boards.
The latest version of all tools you can find here in my Google-translated forum post.
If you have any questions, meanings, results or something - I'm ready to listen it here.
It isn't only a proper way to downgrade, but a proper way to upgrade too.
Our boards doesn't have BIOSes with updated ME and GbE for now on, which Z77-based boards already have.
Funny thing about it, that there are no ASUS utility able to flash ME and GbE from BIOS image to flash chip!
To address that issue, ASUS have just released ME Update Software for Z77-based boards (that is actually only a .NET-GUI to Intel MEUpdate Utility aka FwUpdLcl).
It works and the ability to update ME with ASUS tools is somehow restored.
But GbE update can only be installed with Intel Flash Programming Tool manually or using FTK, that uses Intel FPT internally.



Credit & Thank you to CodeRush
=================================================================



* Info Updated Often, But also check the above links for Recent Changes + Past Revisions *


>>> VIDEOS <<< (Click to show)
Video courtesy techinstyle


ASUS ROG Maximus IV Gene-Z UNBOXING Video courtesy ASUS ROG


Maximus IV Gene-Z Un-Boxing Video courtesy Cyrekk

Check out Cyrekk's OCN thread, Unboxed: Asus Maximus IV Gene-Z - HERE



ASUS ROG Maximus IV Extreme/Gene OVER-CLOCKING Video courtesy NewEgg TV & ASUS ROG


ASUS Maximus IV Gene-Z - UEFI BIOS - Video courtesy HardwareHeavenVideos



Video courtesy pcomshop




Asus Maximus IV Gene-Z Liquid Cooling System Video courtesy LJCH4E


Video courtesy WiseWithinX298


Armando mi PC / Unboxing (Asus Maximus IV Gene-Z / en Español) Video courtesy Geekeros


>>> PHOTO GALLERY <<< (Click to show)

>>> REVIEWS <<< (Click to show)
>>> Available for PURCHASE @ These Locations <<< (Click to show)
North America

New Egg / USA = $169.99 US*

* $159.99 w/ $10 off w/ promo code ASUS121319, ends 12/19/2011 + $7.87 Shipping

Edit Dec 19th GEN3 NOW IN STOCK @ NEWEGG = http://www.newegg.com/Product/Product.aspx?Item=N82E16813131806 =$189.99 + $9.48 Shipping



TigerDirect / USA = $184.99 US
NCIX / USA = $186.98 US
Amazon.com / USA = $169.99 US + FREE Shipping
Asus List of USA Resellers w/ Links

New Egg / Canada = $179.99 CAD
NCIX / Canada = $192.09 CAD



Europe
Alternate.nl / Netherlands, Belgium most of Europe = 167,90 €
Twenga.nl / Netherlands & Belgium = 123,00 €
HighFlow.nl / Netherlands = 154,95 €
Alternate.de / Germany = 167,90 €  / 174,90 € for GEN3 edition
MediaCenter / Sweden = 1844 kr
Komplett.no / Norway = 1390 kr
Amazon.fr / France = 186,51 €
topachat.com / France = 159,00 €
Materiel.net / France = 167,99 €
neox.fr / France = 184,95 €
PC Componentes.com / Spain = 161,00 €

South America
Info Needed.
Africa
Info Needed.
Asia, Australia & Pacific Islands
PCCaseGear.com / Australia = $249.99 AUD
International / Global

SuperBiiz.com / Global = $174.99 US
BUY.com / Global = $185.00 US + Free Shipping
EXcaliberPC.com / International = $175.96 US + Shipping




>>>  Gen 3.0 BOARD NOW IN STOCK IN USA  <<<



Edit Dec 19th NOW IN STOCK @ NEWEGG = http://www.newegg.com/Product/Product.aspx?Item=N82E16813131806 =$189.99 + $9.48 Shipping



70 Units IN STOCK @ ExcaliberPC = $191.65 + Shipping from $10.50 on up ( http://www.excaliberpc.com/611331/asus-maximus-iv-gene-z-gen3.html )



Additional Online Sourses

http://www.airetechit.co.uk/e-shop/int/ROW/products.php?85634&currency=USD&livemode=1 = Price: $225.28 USD

http://automatedwebhosting.net/product_info.php?products_id=134252 = Price: $191.51 USD

http://accessories.eracks.com/product/maximus-iv-gene-z-gen3/ = Price: $198.70 USD




* PM me to add Link where YOU bought your GENE-Z68 Board around the Globe.



>>> WATERCOOLING ACCESSORIES <<< (Click to show)

EK-MOSFET Max IV Gene - Acetal+EN (Nickel) file_29_2.jpg


http://www.mips-computer.com/ mch4447_k.jpg





Look For Purchase @ =

http://www.aquatuning.us/advanced_search_result.php?keywords=asus%20maximus%20IV%20gene%20z





Asus Maximus IV Gene-Z Liquid Cooling System Video courtesy LJCH4E

Snorkle.gifMore Coming Soon Snorkle.gif

>>> OVERCLOCKING INFORMATION <<< (Click to show)



3 step Simple Guide to OverClocking your Maximus IV Gene-Z,  Thanks to  Rhialto

How did I OC? | CPU Level Up = 4.6 | Ai Overclock Tuner = X.M.P. | That's it! Simple as that! biggrin.gif
To enable voltage drop on idle:
* Go under Digi+ VRM/POWER Control
--- set VCore Load-line Calibration to 75% or 100% and VCore Phase Control to Optimized
* Go back to main menu
--- set CPU Voltage to Offset Mode



10 Step GUIDE to More COMPLEX Over-Clocking of Asus Z68 series MotherBoards, Thanks to SimpleTech
[Info] - Intel 2500k/2600k Overclocking Tips,
Thanks to $ilent
OCN Official Sandy Stable Club **Benchmarks, Stable Rigs & GUIDES** Inc SPREADSHEET,
Thanks to munaim1
***Sandy Bridge Overclocking Guide [OCN Members Only],
Thanks to Sin0822
Overclocking & Choosing RAM for Sandybridge Z68,
Thanks to munaim1
*5.0 GHz + Overclock Club*,
Thanks to alancsalt
[New] 6.0 GHz+ OC Club!,
Thanks to xxbassplayerxx










Overclocking The Intel Core i5 2500K w/ a Maximus IV GENE-Z To An Easy 4.4GHz from DAGMAR @ ROG HQ on the ROG Forums

Maximus IV GENE-Z BIOS & Detailed Overclocking Guide from Raja@ASUS on ROG Forums

Maximus IV GENE-Z UEFI Overclocking Guide / TIPS from MarshallR@ASUS on ROG Forums

Overclocking Guide Using Offset Mode for CPU Core Voltage from Raja@ASUS on ROG Forums

ASUS Rampage IV Extreme - Easy Overclock Guide from Raja@ASUS on ROG Forums (Fast Link to in thread post on it)

Rampage IV Extreme - Detailed & Easy Overclock Guide from Raja@ASUS on OCN (Yes I know it's the RAMPAGE board, but it's similar OC'ing)





ASUS Rog Maximus IV Extreme/Gene OVER-CLOCKING Video courtesy NewEgg TV & ASUS ROG

devil.gifMore Coming Soon devil.gif



>>> HELP & ASSISTANCE <<< (Click to show)

ASUS ROG Maximus IV GENE-Z68 HomePage
Asus Global On-Line Support Service Home Page
Asus Contact Us Page
Asus Self-Diagnostics Page
Asus VIP Support Forums


New ASUS Republic of Gamers - USA & Canada Warranty/RMA Guide, by Mason@Asus


ASUS Maximus IV Gene-Z KnowledgeBase Support Page

ASUS Republic Of Gamers Forums
Raja@ASUS
= ROG Forums, TeamROG Moderator - North America
Brian@ASUS = ROG Forums, Senior Marketing Specialist - Republic of Gamers, USA, Fremont
Mason@ASUS = ROG Forums, ASUS representative - California
Gary Key@ASUS = ROG Forums, Technical Marketing Manager - Texas
MarshallR@ASUS = ROG Forums, ASUS HQ Marketing - ASUS HQ Taiwan


* More Coming Soon *



>>> FIXES For KNOWN PROBLEMS + ISSUE'S <<< (Click to show)



ASUS Maximus IV Gene-Z KnowledgeBase Support Page

Official ASUS Response to Resume/Hibernate Problem with Internal PLL Voltage Enabled,
Thanks to Gary Key@Asus

The # 0902 BIOS and above supposedly patches the S3 resume issue when using PLL Overvolt



Random Freezes Related to RAM, Thanks to Snow-Okami
AI Suite II Installation Problems, Thanks to Rhialto







New Build, Can't get System to Post / Boot Up ? , Thanks to Raja@Asus

=================================================================
Having difficulties getting your New Rig up and Running ? ;
- check to be sure your CPU Chip is seated properly.
- check to be sure your memory modules are seated properly.
- memory modules shopuld be 1.5v max (voltage above that CAN potentially cause issues with Sandy-Bridge)
- check to be sure your GPU card is seated properly and/or the PCI-E power cables are securly plugged in TIGHT to the card.
- check to be sure ALL your Sata power Cable connections to HDD, Optical Drive, etc. are secure.
- Double check ALL PSU power connections.
IF ALL ELSE FAILS ...
- Remove the CPU from the socket and clear CMOS (must do with the CPU out)
- Place a single memory module in the slot furthest from the CPU
- Remove all USB devices (Mouse, Drives, etc.) apart from the keyboard also.
- See if the board will at least POST.
- IF Board will not POST, contact Asus about RMA'ing your Board.

Credit & Thank you to Raja@Asus
=================================================================



Beginers Guide to OS & Drivers Installation, Thanks to LA_Kings_Fan and Others

=================================================================
Beginers Guide to Getting your Newly Built System actually Up and Running ;
- Assemble just the BASIC / Minimal System to TEST that your new MotherBoard will POST / Boot Up, before doing a complete assembly.
(This means just the MoBo, CPU, PSU, and 1 stick of RAM, we just want to see it POST and show AA in the DeBug LED Code, some even do this OutSide of the Case)
- Assemble your complete system, at this time only conecting up 1 SDD/HDD for your BOOT / OS drvie, and leave the Internet disconected for now.
- Turn ON / Boot Up your system, and Enter the BIOS (Delete Key) and make sure you can Boot from Blu-Ray/DVD/CD Rom Drive.
- While in BIOS, make sure you Update the DATE and TIME, otherwise you will get a Windows Activation period expired ERROR Code.
- We ONLY do 100% CLEAN FRESH Installations of WIN 7 (or OS of your choice), DO NOT COPY over OLD OS from another HDD/SSD.
- install the Intel NIC / LAN drivers from Asus Support CD
- Plug in and NOW Connect to the INTERNET & run ALL Windows (OS) updates as needed.
- Review and decide about which BIOS / driver / Apps you want to install from the Asus Support CD, or get the more recent updates off the Asus Support Website
- Review MY >>> DOWNLOADS = Bios, Drivers, Utilities, Manual, QVL <<< section for the MOST UP TO DATE BIOS & DRIVERS LIST and Installation LINKS
- NOTE:  IF you'll be using the ONBOARD Sound ... Install the RealTek HD Audio Driver first, and then the SoundBlaster X-Fi Software Emulation Audio Driver.

Credit & Thank you to LA_Kings_Fan & Others
=================================================================



Slow POST / BOOT Times, Thanks to LA_Kings_Fan

=================================================================
The POST/BOOT TIME Issue has been talked about SEVERAL times before ...
- a search back in the thread and some reading might find some answers.
- you can also try some of these SUGGESTIONS from GaryKeys@Asus, thou for P67 boards, they still apply on our Z68 as well
- If during boot up of system, ASUS logo screen pops up twice ... go to the Boot menu under BIOS, manually set Option ROM Messages to "Keep Current".
- If you're experiencing a double POST on your Gene-Z68 motherboard whereupon after powering on the system from a cold boot, the board will power on and then immediately reset itself before it actually POSTs and shows any display on the screen, then To fix the most common additional reset (double POST when powering on from off state), enter UEFI BIOS -> go to ‘Advanced’ tab -> go down to ‘APM’, press Enter -> enable the “Power on by PCIe.” function. Then press F10 to save & exit. After save & exit, let the system boot into Windows or other OS, then perform a proper shutdown: Start button -> Shut down. You will no longer have the double POST.
- Disable any controllers {Jmicron, JMB, Marvell} you're not using, for unused USB ports (example the JMB Storage controller {for the e-Sata} will cause system to double Post)
- check that your SSD firmware is current
- check that your Gene-Z MoBo BIOS is current, version #0902 as of this date
- Make sure BCLK is set to 100

In general most of us seem to be getting between 20-30 seconds give or take, before you reach windows.

Credit & Thank you to LA_Kings_Fan & Others
=================================================================





RAM not running at expected Speed Frequencies ? , Thanks to Raja@Asus

=================================================================
Is your 1600 MHz RAM showing up as running @ 1333 MHz in the BIOS ? ;
- Enter BIOS and Set AI Tweaker to XMP
- Select the XMP Profile if neeed
- Set VCCSA/IO to around 1.15V-

Credit & Thank you to Raja@Asus
=================================================================



Debuging Error Code 34, Thanks to LA_Kings_Fan

=================================================================
Debuging Error Code 34, post codes 32-36: CPU post-memory initialization;
- check to be sure your CPU Chip is seated properly.
- check to be sure your memory modules are seated properly.
- memory modules shopuld be 1.5v max (voltage above that CAN potentially cause issues with Sandy-Bridge)
- check to be sure your GPU card is seated properly and/or the PCI-E power cables are securly plugged in TIGHT to the card.
- check to be sure ALL your Sata power Cable connections to HDD, Optical Drive, etc. are secure.
- Double check ALL PSU power connections.
- Be sure you are running the most current OFFICIAL ASUS BIOS ... currently Bios #0902.

Credit & Thank you to LA_Kings_Fan & Others
=================================================================



Quick Guide on how to go from Bios #0902 BACKWARDS to Bios #0706, Thanks to MrLinky

=================================================================
Quick Guide on how to go from Bios #0902 to Bios #0706;
- Completely close the Asus AI suite and any security programs (A/V, anti-malware, etc).
- If your overclock isn't 110% stable, reboot and set stock settings in the BIOS.
- Then download Aptio, unzip it, and run "AFUWINx64.exe". It's in /amiflash/aptio/afuwin64.
- Point Aptio to your #0706 rom and hit flash. You shouldn't need to adjust any of the other options available.
- Your computer will appear to freeze/lag and you may see crazy temperature/voltage readings and/or hear corrupted audio coming from the speakers; this is normal.
- When it's done, you can power down and reboot to be running Bios #0706 again.

Credit & Thank you to MrLinky
=================================================================



Quick Guide on how to downgrade BIOS, FULL instructions, Thanks to Tyreal

=================================================================
Quick Instructional Guide on how to do a Bios Downgrade ;
How-To properly downgrade aka force flash your bios after upgrading/inducing failure to the newer "ivy microcode" bios updates.
Symptoms of a bad flash:
  • Check the "Main" tab in bios and look at the "ME" version. (0 or N/A means its buggered)
  • Computer doesnt Post.
  • Erroneous post codes and reboots.
  • Unable to change any bios settings without being greeted by "Overclock Failed... Press F1"
  • AO post code
  • Sluggish system
  • Unusually high Vcore
  • Other random weirdness, instabilities and BSOD's

Ok so I used Linux Mint 12 full 64bit because I had that burnt to dvd already, worked flawlessly and is pretty dang noob friendly, so i'll be giving instructions for Linux Mint 12 full 64bit.
You can grab Linux Mint 12 here.


Burn that to a dvd then boot from it (Press F8 repeatedly while computer is posting which will bring up the Asus boot menu, choose the dvd drive and boot Linux Mint).
note: clear cmos for 20 seconds before booting Linux Mint to flash.
In Linux Mint open terminal. (there is the main menu sort of like the windows start menu tongue.gif its right there, click Terminal icon)
Type sudo apt-get install flashrom (this will download and install Flashrom for you)
Test flashrom to see if it properly detects your chipset (Z68)
Type sudo flashrom (shows deteced platform and help options)
Working? Great! (Might say un-tested platform, this is OK)
Now open up Firefox (main menu like in windows) and grab the appropriate bios for the motherboard, when complete click extract, and extract it to desktop.
Go to destop and rename the downloaded and extraced Bios file to something easy. ex: 0402.rom (right click re-name. Note: when typing to Flashrom in terminal it case sensitive)
Open terminal again and type cd Desktop (case sensitive)
Type sudo flashrom --read backupbios.rom (This will save a backup as backupbios.rom and is a good test if Flashrom can read the image from the flash chip)
Time to flash. smile.gif
Type sudo flashrom --write 0402.rom (this will do a full erase and write of the new bios image to bios chip)
In terminal, hopefully it says successful, you should be good to power down via the upper right menu on the desktop of linux mint, remove cd and restart the computer.
NOTE: If it says failed take note of the message, and DO NOT POWER DOWN SYSTEM OR RESTART.
If failed ask for assistance via Flashrom IRC chat or email them
NOTE: On next power up if the screen greets you with a "Press F1..." (not overclock failed press F1, just the normal Press F1 to configure) the flash was successful, Grats!
Go in and load optimized defaults, also check out the "Main" tab and check ME version, if it shows a string of numbers you flashed successfully and you will now have a fully functional mobo, that doesnt freak when you change ram speed or try to overclock lol
NOTE: Generally when it says press F1 overclock failed, it wasnt successful, and you have to try it again.

Please dont heckle me if you failed to do this successfully, it is the method I personally used when I flashed those damn new double hybrid Ivy bios' IT WORKS
If you dont understand anything ask here or at Flashrom.org thumb.gif
Credit & Thank you to Tyreal
=================================================================



BIOS / ME / GbE - Upgrade/Downgrade/ReFlashing Utility Tool & Guide, Thanks to CodeRush

=================================================================

CodeRush 's BIOS/ME/GbE - upgrading/downgrading/reflashing Utility tool thumb.gif



Originally Posted by CodeRush View Post

I have made a new version of FTK toolkit, now upgrading/downgrading/reflashing BIOS/ME/GbE are one click ahead.
There are three new command files, that make things simple:
upd_all.bat makes BIOS backup, transfers individual board data from backup to supplied BIOS file and updates all BIOS regions including BIOS, ME and GbE.
upd_me.bat updates ME region only.
upd_gbe.bat updates GbE region only.
To use this command files under Windows, you need BIOS file of any version downloaded from your board page under asus.com, unpack it from the archive, rename to bios.bin and copy into FTK/Win32 or FTK/Win64 folder, depending on your Windows version.
Now launch the command file as administrator by clicking right mouse button on them and selecting "Run as Administrator".
Please wait a while, if you see green "FPT Operation Passed" status - it's good. If not - post the error message or screenshot here, I will help to solve the issue.
Power the PC off, remove power completelly for about 30 seconds to reset Management Engine and power the PC back on.
Go to BIOS, look at BIOS version and ME version on Main tab. Both mustn't be N/A.
Now you have updated/reflashed/downgraded BIOS.
Flashing with this method can solve numerous problems such as missing Turbo-ratios in BIOS, ME version N/A, NVRAM issues, bugs with OC profiles and many more.
All above has been tested by forums.overclockers.ru community and works only on ASUS P67/Z68/Z77-based boards.
The latest version of all tools you can find here in my Google-translated forum post.
If you have any questions, meanings, results or something - I'm ready to listen it here.
It isn't only a proper way to downgrade, but a proper way to upgrade too.
Our boards doesn't have BIOSes with updated ME and GbE for now on, which Z77-based boards already have.
Funny thing about it, that there are no ASUS utility able to flash ME and GbE from BIOS image to flash chip!
To address that issue, ASUS have just released ME Update Software for Z77-based boards (that is actually only a .NET-GUI to Intel MEUpdate Utility aka FwUpdLcl).
It works and the ability to update ME with ASUS tools is somehow restored.
But GbE update can only be installed with Intel Flash Programming Tool manually or using FTK, that uses Intel FPT internally.



Credit & Thank you to CodeRush
=================================================================





* More Coming Soon *


>>> Other Useful Posts & Links <<< (Click to show)

Maximus IV GENE-Z BIOS & Overclocking Guide
Thanks to
 Raja@ASUS on ROG Forums
Maximus IV GENE-Z Detailed Layout & Product Overview
Thanks to Mason@ASUS on ROG Forums
ASUS ROG Maximus IV GENE-Z Home Page / Overview
ASUS ROG Maximus IV GENE-Z INTERACTIVE Overview Page
Asus ROG Forums
Asus ROG News
Asus ROG YouTube Channel



Asus VIP Support Forums
Asus Maximus IV Gene-Z68 FACEBOOK Page
Official ASUS Z68 Chipset Motherboards - Support Thread (@ [H]ard|Forum),
Thanks to Raja@Asus
Official ASUS BIOS and Program Updates - Support Thread (@ [H]ard|Forum),
Thanks to Gary Key@Asus
Official ASUS P67 Tips and Tricks (@ [H]ard|Forum),
Thanks to Gary Key@Asus {Eventhough it's P67, some Tips and Tricks will work on Z68 Boards}
ASUS Official Z68 Chipset Motherboards - Support Thread (@ XtremeSystems.org forums),Thanks to Raja@Asus







THE Untitled-1f.png GUIDE By Sean Webster



Windows 7 SSD install/optimization guide, Thanks to Sean Webster

Windows7 SSD's Setup & Secrets, Thanks to Enigma8750
 3 step Guide to OverClocking your MaxIVGene-Z, Thanks to Rhialto
Asus Z68 Series Information Thread (drivers, BIOSes, overclocking, reviews), Thanks to SimpleTech
Useful Links & Info on Case-Fan's, Thanks to LA_Kings_Fan
Useful Links & Info on PCI-e extension/riser cables, Thanks to LA_Kings_Fan
Guide on picking RAM for your Maximus IV GENE-Z, Thanks to LA_Kings_Fan



GUIDE: Mac OSX install on your Asus Maximus IV Gene Z, Thanks to jonboyuk

Jonboyuk's MAC OSX installation Guide (Click to show)
Originally Posted by jonboyuk;15461810
Okay some of you might want to boot Lion as your main/secondary OS and I can confirm it's rock solid with this motherboard. Some of these instructions are from my own experiences and others I have pinched from insanelymac. Without further ado, here are the instructions:

To boot MacOS, you need an EFI loader (like iBoot) and a genuine OSX disc - or you can make use of a 'distro' like iAtkos L1. However, the latter is indeed illegal so for obvious reasons I will not be discussing that matter in this forum.

Steps

1. Update your BIOS settings.

Extreme Tweaker

AI Overclock Tuner = Manual
Turbo ratio = By number of active cores mode
For i7 2600K (you'll need to get the correct settings for your CPU):
1-Core Ratio Limit = 38
2-Core Ratio Limit = 37
3-Core Ratio Limit = 36
4-Core Ratio Limit = 35
Internal PLL Overvoltage = Disabled

Advanced\CPU Configuration

CPU Ratio = Auto
CPU C1E=Enabled
C3 Report=Enabled
C6 Report=Enabled
Package C State Limit=No Limit

Advanced\USB Configuration

EHCI Hand-Off=Enabled

2. Burn EFI to disk, so download iBoot as it's one of the newest and has Sandybridge support.

3. Boot your machine and ensure that the optical device is your primary boot, it will load a splash screen for iBoot. Stick your OSX disc in and press F5, and when the OSX install disc appears, move over it and press enter.

4. In theory, OSX install menu should load and you can install OSX. Make sure you format your drive or partition into MacOS Journaled. Install, reboot and boom!

Additional installation notes
  • If at step 4 the install doesn't load properly, go back to step 3, and before you press return to load the menu, enter -x then press return. This is a version of safe mode for MacOS and should help the install to go through.
  • After you've installed it, you will still need the iBootDVD to load the OS. You will need to install Chamelon R2 to the HDD to load it without the CD (do this in MacOS). The easiest option is to use a seperate HDD, but you can partition it if you need.
  • When you've loaded MacOS, it will not have all the drivers you need (or Kexts as they are called in MacOS). Your job is to find them and add them to the system. Most things work out of the box, but things like Sleep, Sound etc need some help.

Now, to ensure power management works properly, you need to flash the BIOS which has been tweaked. Use Revoboot as the boot loader with the attached miniSSDT in /Extra/ACPI. Please read the Revoboot thread to find out how to compile this for your system, everyone's will be different according to their CPU/graphics card combo. You'll need to make sure:

You have correct efi-injection for sound to work.

You are using MacMini5,3 as model identifier

Have also attached ethernet kext (64-bit only) and sound kext.

DOWNLOAD from insanelymac

I take no thanks for this BIOS as it was compiled by DGSGA of InsanelyMac and I also take no responsibility for you flashing this - it is completely at your own risk.

As it happens I have Lion running fine and I haven't flashed this BIOS, but I know that power management will not be working 100%. It depends how perfect you want your install to be.

I think that's all - so good luck smile.gif





* More Coming Soon *



Asus ROG Banner.jpg



ASUS Maximus IV GENE-Z & GENE-Z/GEN3 Owners Club : *



227   Members in the owners Group so far !    ====================================================

NOTE: IF your Spreadsheet Info Line is GRAYED OUT, this means you filled in the 'New Owner Sign Ups Pop-Up Form' but that I haven't had the chance to Verify and Officially Approve you just yet, I'll usuall get to this within 48 hrs or sooner of you posting, but if it's been longer than that, please PM me, THANK YOU.


>>> NEW Owner Sign Ups - Click HERE & Fill out Pop-Up Form, Thank You. <<<



* Actual Owners please provide  proof.gif  by posting your CPU-Z &/or photo proof of ownership. Preferably photos for teh hawtness, to be added to the owner club.

The group will ALWAYS be a work in progress AND suggestions and help is appreciated biggrin.gif







Signature:  devil-smiley-019.gif ASUS Maximus IV GENE-Z Owners Club (<----no more colors wth.gif thanks to the NEW OCN)

COPY & PASTE THIS CODE INTO YOUR SIGNATURE:  devil-smiley-019.gif ASUS Maximus IV GENE-Z68 Owners Club  Devil Icon Optional



[url=http://www.overclock.net/t/1004219/showthread.php?s=bd8d1313c09af4210eda3f9b5ad8a046&t=1004219]ASUS [COLOR=850B00]Maximus IV[/COLOR] [COLOR=000B00]GENE-Z[/COLOR] Owners Club[/url]




NOTE: This Page is BEST viewed using the "Full Width View" option in Forum Preferences ...
Click on ->  700 , to open the Forum Preferences Pop-Up Window and then,

Click "YES" on View Forums Full Width / Constrain Threads to Constant Width / Compact Thread List Page / Hide Right Column / and Remove nested Quotes in Replies








LG/Google NEXUS 5
(10 items)

CPUMotherboardGraphicsRAM
Q9650 Yorkfield Quad-Core Asus IPIBL-LB (HP Benicia-GL8E) Sapphire TOXIC HD6950 {UnLocked 1536 shaders} 8 GB G. Skill Pi Black DDR2
Hard DriveOptical DriveCoolingOS
SeaGate Barracuda 1TB 32MB Cache HP - DVD/CD combo Drive Cooler Master  MS Vista Home Premium 64 bit
MonitorKeyboardPowerCase
HP w2207h Widescreen HP Stock BFG Tech LS-680 HP Pavilion
Mouse
HP stock
CPUMotherboardGraphicsRAM
Quad Core Krait 400 @ 2.30GHz  Qualcomm MSM8974(Snapdragon 800) Adreno 330 2GB LPDDR3-1600
Hard DriveOSMonitorKeyboard
32GB NAND Android 4.4 Kitkat 4.95" 1080X1920 IPS Display Swiftkey
PowerAudio
2300 mAh Battery Stereo Speakers
  hide details
Reply

LG/Google NEXUS 5
(10 items)

CPUMotherboardGraphicsRAM
Q9650 Yorkfield Quad-Core Asus IPIBL-LB (HP Benicia-GL8E) Sapphire TOXIC HD6950 {UnLocked 1536 shaders} 8 GB G. Skill Pi Black DDR2
Hard DriveOptical DriveCoolingOS
SeaGate Barracuda 1TB 32MB Cache HP - DVD/CD combo Drive Cooler Master  MS Vista Home Premium 64 bit
MonitorKeyboardPowerCase
HP w2207h Widescreen HP Stock BFG Tech LS-680 HP Pavilion
Mouse
HP stock
CPUMotherboardGraphicsRAM
Quad Core Krait 400 @ 2.30GHz  Qualcomm MSM8974(Snapdragon 800) Adreno 330 2GB LPDDR3-1600
Hard DriveOSMonitorKeyboard
32GB NAND Android 4.4 Kitkat 4.95" 1080X1920 IPS Display Swiftkey
PowerAudio
2300 mAh Battery Stereo Speakers
  hide details
Reply
post #2 of 7108
I got an e-mail saying mid May.

I CAN'T WAIT!!!!
Eysenck Box
(12 items)


CPUMotherboardGraphicsRAM
Ryzen 1600 Asus B350M-A XFX AMD Vega RX 64 8GB 2x4GB DDR4 2400mhz
Hard DriveCoolingOSMonitor
128GB Intel M.2 SSD Stock Windows 10 Pro x64 LG 27UD58 4K
KeyboardPowerCaseMouse
Razer Blackwidow (Cherry Blue) Corsair TX550 Silverstone TJ08-E Logitech G403
  hide details
Reply
Eysenck Box
(12 items)


CPUMotherboardGraphicsRAM
Ryzen 1600 Asus B350M-A XFX AMD Vega RX 64 8GB 2x4GB DDR4 2400mhz
Hard DriveCoolingOSMonitor
128GB Intel M.2 SSD Stock Windows 10 Pro x64 LG 27UD58 4K
KeyboardPowerCaseMouse
Razer Blackwidow (Cherry Blue) Corsair TX550 Silverstone TJ08-E Logitech G403
  hide details
Reply
post #3 of 7108
Will it still have the NF200 chip on it?
Gaming Rig
(19 items)


New Custom Case
(3 photos)
CPUMotherboardGraphicsGraphics
8350 Asus 990fx Sabertooth Diamond hd7970 Diamond HD7970
RAMHard DriveHard DriveHard Drive
Gskill Ripjaws OCZ Agility 3  2Tb Seagate Sata3 3Tb Western Digital Green Drive
Optical DriveCoolingCoolingCooling
LG Bluray Burner Swiftech HD Koolance MVR-100 Koolance CHC-125
CoolingCoolingCoolingOS
Swiftech MC35x2 with dual top Feser Triple 120 Radiator Corsair SP120 Quiet x 3 Windows 7 Ultimate x64
PowerCase
Corsair AX750 CaseLabs M8
  hide details
Reply
Gaming Rig
(19 items)


New Custom Case
(3 photos)
CPUMotherboardGraphicsGraphics
8350 Asus 990fx Sabertooth Diamond hd7970 Diamond HD7970
RAMHard DriveHard DriveHard Drive
Gskill Ripjaws OCZ Agility 3  2Tb Seagate Sata3 3Tb Western Digital Green Drive
Optical DriveCoolingCoolingCooling
LG Bluray Burner Swiftech HD Koolance MVR-100 Koolance CHC-125
CoolingCoolingCoolingOS
Swiftech MC35x2 with dual top Feser Triple 120 Radiator Corsair SP120 Quiet x 3 Windows 7 Ultimate x64
PowerCase
Corsair AX750 CaseLabs M8
  hide details
Reply
post #4 of 7108
No idea, I dont think so.

The ASUS guy couldnt give me any details... :/
Eysenck Box
(12 items)


CPUMotherboardGraphicsRAM
Ryzen 1600 Asus B350M-A XFX AMD Vega RX 64 8GB 2x4GB DDR4 2400mhz
Hard DriveCoolingOSMonitor
128GB Intel M.2 SSD Stock Windows 10 Pro x64 LG 27UD58 4K
KeyboardPowerCaseMouse
Razer Blackwidow (Cherry Blue) Corsair TX550 Silverstone TJ08-E Logitech G403
  hide details
Reply
Eysenck Box
(12 items)


CPUMotherboardGraphicsRAM
Ryzen 1600 Asus B350M-A XFX AMD Vega RX 64 8GB 2x4GB DDR4 2400mhz
Hard DriveCoolingOSMonitor
128GB Intel M.2 SSD Stock Windows 10 Pro x64 LG 27UD58 4K
KeyboardPowerCaseMouse
Razer Blackwidow (Cherry Blue) Corsair TX550 Silverstone TJ08-E Logitech G403
  hide details
Reply
post #5 of 7108
Quote:
Originally Posted by Nutty Pumpkin View Post
I got an e-mail saying mid May.

I CAN'T WAIT!!!!
Mind sharing?

I been aching to upgrade but am trying not to... besides the fact of Mother's Day, my Mom's birthday, and brother's birthday coming up, I been waiting for this board to come out.
Intel Computer
(13 items)


CPUMotherboardGraphicsRAM
[i5 2500k] [ASRock Z77 Extreme4-M] [EVGA GTX 560] [Kingston HyperX 8GB]
Hard DriveOptical DriveOSMonitor
[Samsung F4 320gb] [Lite-On 24x Combo] [Windows 7 Ultimate 64bit] [Samsung SyncMaster 941bw]
KeyboardPowerCaseMouse
[Microsft ANB-00001] [SeaSonic 520w M12II] [ASRock Z77 Extreme4-M Box] [Logitech G700]
Mouse Pad
[Walmart Brand - Cloth Black]
  hide details
Reply
Intel Computer
(13 items)


CPUMotherboardGraphicsRAM
[i5 2500k] [ASRock Z77 Extreme4-M] [EVGA GTX 560] [Kingston HyperX 8GB]
Hard DriveOptical DriveOSMonitor
[Samsung F4 320gb] [Lite-On 24x Combo] [Windows 7 Ultimate 64bit] [Samsung SyncMaster 941bw]
KeyboardPowerCaseMouse
[Microsft ANB-00001] [SeaSonic 520w M12II] [ASRock Z77 Extreme4-M Box] [Logitech G700]
Mouse Pad
[Walmart Brand - Cloth Black]
  hide details
Reply
post #6 of 7108
hot diggity dog, I'm burnin' for this mobo to come out

I want it!! so.... bad...... now..... I'll fold before resisting the temptation, lol.... I know I should wait until BD and Ivy with what I have already, but it's just so hard to wait,
Longshot r4.2
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k Maximus IV GENE-Z eVGA GTX780 Ti 3GB Sniper 8GB 1600 1.25V
Hard DriveOptical DriveOSMonitor
M4 256GB + C300 128GB + WD Red 4TB LG Blu-ray RW external Windows 10 U2711
KeyboardPowerCaseMouse
Ducky Shine 3 AX850 FT03b Logitech G9x
Mouse PadAudio
Bubbles Pad NR1604 + RB-51 II
  hide details
Reply
Longshot r4.2
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k Maximus IV GENE-Z eVGA GTX780 Ti 3GB Sniper 8GB 1600 1.25V
Hard DriveOptical DriveOSMonitor
M4 256GB + C300 128GB + WD Red 4TB LG Blu-ray RW external Windows 10 U2711
KeyboardPowerCaseMouse
Ducky Shine 3 AX850 FT03b Logitech G9x
Mouse PadAudio
Bubbles Pad NR1604 + RB-51 II
  hide details
Reply
post #7 of 7108
This is awesome. Maybe a new build for me.
post #8 of 7108
good news. Might have to sell my UD4-B3 for this sweet one!
My System
(13 items)


CPUMotherboardGraphicsRAM
i5-2500K @ 4.5Ghz Gigabyte P67A-UD4 XFX R9 280X Corsair XM3 4x2GB DDR3-1600
Hard DriveOSMonitorKeyboard
Vertex 2 60GB Boot Drive+ Seagate 250GB Storage Windows 7 Ultimate x64 Dell U2713HM Logitech G110
PowerCaseMouse
Corsair HX750W Corsair 650D Logitech G700
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
i5-2500K @ 4.5Ghz Gigabyte P67A-UD4 XFX R9 280X Corsair XM3 4x2GB DDR3-1600
Hard DriveOSMonitorKeyboard
Vertex 2 60GB Boot Drive+ Seagate 250GB Storage Windows 7 Ultimate x64 Dell U2713HM Logitech G110
PowerCaseMouse
Corsair HX750W Corsair 650D Logitech G700
  hide details
Reply
post #9 of 7108
Any news if this mobo is out now? thanks

CPUMotherboardGraphicsRAM
Q9550 @4GHz Asus Striker II Extreme ASUS GTX460 SLI Corsair Dominator 2x2GB
Hard DriveOptical DriveOSMonitor
OCZ VERTEX 2 - 120GB PANASONIC BD WINDOWS 7 PROFESSIONAL x64 Retail SONY BRAVIA 40"
KeyboardPowerCaseMouse
MICROSOFT SIDEWINDER X4 Silverstone Strider Series 600W COOLERMASTER 690 II Advanced MICROSOFT SIDEWINDER X5
Mouse Pad
MICROSOFT
  hide details
Reply

CPUMotherboardGraphicsRAM
Q9550 @4GHz Asus Striker II Extreme ASUS GTX460 SLI Corsair Dominator 2x2GB
Hard DriveOptical DriveOSMonitor
OCZ VERTEX 2 - 120GB PANASONIC BD WINDOWS 7 PROFESSIONAL x64 Retail SONY BRAVIA 40"
KeyboardPowerCaseMouse
MICROSOFT SIDEWINDER X4 Silverstone Strider Series 600W COOLERMASTER 690 II Advanced MICROSOFT SIDEWINDER X5
Mouse Pad
MICROSOFT
  hide details
Reply
post #10 of 7108

LGA2011 - SERVER
(16 items)

CPUMotherboardGraphicsRAM
3960X : 3151B743 - 5GHZ - 1.488v RIVE (3) EVGA Titan (2) CMGTX3
Hard DriveHard DriveHard DriveOptical Drive
(1) Neutron GTX 240GB LSI M5015 w/ BBU (8) Force GT 120GB - Raid 5 WH14NS40
CoolingCoolingCoolingOS
(4) NF-R8 on DIMMs (2) FBA12G12U on H100i H100i 7 Ult
MonitorKeyboardPowerCase
(3) ASUS PB236Q Roccat Isku FX Antec HCP 1200 800D
MouseMouse PadAudioAudio
Roccat Kone XTD Propus 380 (2) KRK Rokit 8 G2 (2) KRK Rokit 5 G2
Audio
KRK Rokit 10S
CPUMotherboardGraphicsRAM
Pentium D GA-8i945GMF EVGA GTX 580 SC OCZ Reaper - rev. 2
Hard DriveOptical DriveCoolingOS
Western Digital 1TB 2.5" LG DVD-R Corsair H100i 7 Ultimate
PowerCaseMouseMouse Pad
Custom Mod Corsair C70 Army Green Roccat Lua Mionix Propus 380
Audio
Sound Blaster ZxR
CPUMotherboardGraphicsRAM
3930K : L241C090 RIV Gene (2) EVGA GTX 580 (4) BLT2KIT4G3D1869DT2TXRG (Red LED)
Hard DriveHard DriveOptical DriveCooling
(4) Agility 3 - 120GB - Raid 5 (1) WD RE4 - 500GB WH14NS40 - Internal Mount H100i w/ (2) NF-P12-1300
CoolingOSMonitorKeyboard
(4) NF-S12B case fans Server 2012 Samsung 60" TV Lycosa
PowerCaseMouseAudio
AX1200 Air 540 Lua Supreme III FX
  hide details
Reply

LGA2011 - SERVER
(16 items)

CPUMotherboardGraphicsRAM
3960X : 3151B743 - 5GHZ - 1.488v RIVE (3) EVGA Titan (2) CMGTX3
Hard DriveHard DriveHard DriveOptical Drive
(1) Neutron GTX 240GB LSI M5015 w/ BBU (8) Force GT 120GB - Raid 5 WH14NS40
CoolingCoolingCoolingOS
(4) NF-R8 on DIMMs (2) FBA12G12U on H100i H100i 7 Ult
MonitorKeyboardPowerCase
(3) ASUS PB236Q Roccat Isku FX Antec HCP 1200 800D
MouseMouse PadAudioAudio
Roccat Kone XTD Propus 380 (2) KRK Rokit 8 G2 (2) KRK Rokit 5 G2
Audio
KRK Rokit 10S
CPUMotherboardGraphicsRAM
Pentium D GA-8i945GMF EVGA GTX 580 SC OCZ Reaper - rev. 2
Hard DriveOptical DriveCoolingOS
Western Digital 1TB 2.5" LG DVD-R Corsair H100i 7 Ultimate
PowerCaseMouseMouse Pad
Custom Mod Corsair C70 Army Green Roccat Lua Mionix Propus 380
Audio
Sound Blaster ZxR
CPUMotherboardGraphicsRAM
3930K : L241C090 RIV Gene (2) EVGA GTX 580 (4) BLT2KIT4G3D1869DT2TXRG (Red LED)
Hard DriveHard DriveOptical DriveCooling
(4) Agility 3 - 120GB - Raid 5 (1) WD RE4 - 500GB WH14NS40 - Internal Mount H100i w/ (2) NF-P12-1300
CoolingOSMonitorKeyboard
(4) NF-S12B case fans Server 2012 Samsung 60" TV Lycosa
PowerCaseMouseAudio
AX1200 Air 540 Lua Supreme III FX
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Intel Motherboards
Overclock.net › Forums › Intel › Intel Motherboards › [Officia]l ASUS ROG Maximus IV GENE-Z68 & Z68(Gen3) Owners Club
