how does this work?

post #1 of 4
Thread Starter

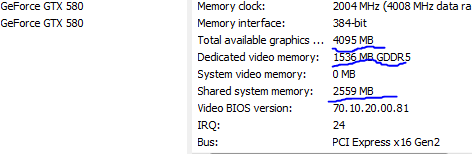

how does the total video graphics memory works it saids i have 4095MB
what is shared system memory 2559MB? how does this play alone with my 1536mb of dedicated memory i have?

does both card shared memory 1.5gb since they are in sli?


Edited by -javier- - 5/8/11 at 11:46am
My Current Rig.
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7-3930K Sandy Bridge-E @ 4.8Ghz (C2) ASUS Rampage IV Extreme EVGA GeForce GTX580 SLI CORSAIR Vengeance 16GB
Hard DriveOptical DriveOSMonitor
SSD Corsair Force Series 3 120GB 500GB Window 7 Pro 64 bit SamSung 26' 1920x1200
KeyboardPowerCaseMouse
MERC STEEL SERIES Antec High Current Pro HCP-1200 1200W Power Supply  ThermalTake - Custom WaterCooled System Logitech G9X
Audio
Sound Blaster X-Fi Titanium Fatal1ty Profession...
  hide details
Reply
My Current Rig.
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i7-3930K Sandy Bridge-E @ 4.8Ghz (C2) ASUS Rampage IV Extreme EVGA GeForce GTX580 SLI CORSAIR Vengeance 16GB
Hard DriveOptical DriveOSMonitor
SSD Corsair Force Series 3 120GB 500GB Window 7 Pro 64 bit SamSung 26' 1920x1200
KeyboardPowerCaseMouse
MERC STEEL SERIES Antec High Current Pro HCP-1200 1200W Power Supply  ThermalTake - Custom WaterCooled System Logitech G9X
Audio
Sound Blaster X-Fi Titanium Fatal1ty Profession...
  hide details
Reply
post #2 of 4
Yes the total available graphics memory is 4095 MB. The dedicated memory that can be used from the cards is 1536mb. With any sli or crossfire configuration, any 2 cards share only the lowest possible ram available. Shared system memory is everything that will be using the ram.
Edited by Captain1337 - 5/8/11 at 11:57am
PC
(7 items)


CPUMotherboardGraphicsRAM
i5 2500K Asrock p67 extreme4 gen3 Gigabyte GTX 970 G1 Corsair 8 GB
Hard DriveCoolingCase
M4 128 GB 212+ evo  Corsair 600T SE
  hide details
Reply
PC
(7 items)


CPUMotherboardGraphicsRAM
i5 2500K Asrock p67 extreme4 gen3 Gigabyte GTX 970 G1 Corsair 8 GB
Hard DriveCoolingCase
M4 128 GB 212+ evo  Corsair 600T SE
  hide details
Reply
post #3 of 4
Your computer allows 2.5gb of your normal ram to be used by your graphics cards. It's significantly slower than the memory on the graphics cards though, and it's basically just overflow.

The 1.5GB is mirrored on the two cards, they do not share it.
The Obelisk
(19 items)


CPUMotherboardGraphicsGraphics
i7 2600k Asus Maximus IV Extreme-Z (Z68) Asus GTX 570 DirectCU II  EVGA 9800GT ECO
RAMHard DriveHard DriveHard Drive
8GB Corsair Vengeance 1600mhz  WD Black 1TB OCZ Vertex 2 90GB OCZ Agility 4 128GB
Hard DriveOSMonitorMonitor
Samsung 840 128GB Windows 7 Professional 64-bit ViewSonic VX2250 Asus VE248
KeyboardPowerCaseMouse
Logitech G110 Corsair AX850 Corsair 800D Logitech G600
Mouse PadAudio
C4 NGen Logitech G930 Headset
  hide details
Reply
The Obelisk
(19 items)


CPUMotherboardGraphicsGraphics
i7 2600k Asus Maximus IV Extreme-Z (Z68) Asus GTX 570 DirectCU II  EVGA 9800GT ECO
RAMHard DriveHard DriveHard Drive
8GB Corsair Vengeance 1600mhz  WD Black 1TB OCZ Vertex 2 90GB OCZ Agility 4 128GB
Hard DriveOSMonitorMonitor
Samsung 840 128GB Windows 7 Professional 64-bit ViewSonic VX2250 Asus VE248
KeyboardPowerCaseMouse
Logitech G110 Corsair AX850 Corsair 800D Logitech G600
Mouse PadAudio
C4 NGen Logitech G930 Headset
  hide details
Reply
post #4 of 4
Here's what you need to understand in all this:

Your setup has 1.5GB of effective vram capacity, as all the data needed to render an entire frame gets duplicated onto the memory of both cards.

If you exceed this usage by any significant amount, your performance will start to tank.

Use the OSD capability in Afterburner or Precision to monitor your vram usage in real-time while you play. If you start to see your memory usage in the 1.5GB range and at the same time you start to get choppy performance, then you should try lowering settings to try to get the vram usage down.

The primary settings that impact the vram usage are:
1) Resolution (of course)
2) AA level
3) Texture Size/Quality/Resolution ... however the game expresses it.

Note that Afterburner/Precision won't ever show a vram usage number higher than your physical memory capacity, but a game can still USE more than that ... it'll be using system RAM, though, which will tank the performance.
