post #71 of 103
Thread Starter
Ill likely be doing the test this weekend. But it's not urgent, so it can wait.

To anyone who has a NH-D14 and doesn't have it installed or is reseating it, could you check the bottom where the heatpipes go in and compare it to these pictures?

post #72 of 103
I'm back after participating in this thread around when it started.

I had what I think is a somewhat defective NH-D14 on an i7 950 (95C highest core at 1.31v with NZXT Phantom at default fan configuration). I finally got Noctua to admit mine was defective and to send me a new one through RMA. It hasn't arrived yet but I will update with temps once it does.

I have also been scouring the net to find out why, and one poster at overclock3d.net mentioned that Noctua uses an expensive, more effective soldering technique in the NH-D14 which is probably the reason the heatsink is so efficient. It's also more difficult to apply and could be the source of inconsistencies in the manufacturing process. (He also mentioned that there are rumors that the solder has recently changed to something cheaper and that could cause worse temps, but there's no way to be sure about that.)

I'll try to take some pictures of base and heatpipes when the new one arrives. Been waiting 14 days already...
post #73 of 103
Quote:
Originally Posted by Mumbles37 View Post
I'm back after participating in this thread around when it started.

I had what I think is a somewhat defective NH-D14 on an i7 950 (95C highest core at 1.31v with NZXT Phantom at default fan configuration). I finally got Noctua to admit mine was defective and to send me a new one through RMA. It hasn't arrived yet but I will update with temps once it does.

I have also been scouring the net to find out why, and one poster at overclock3d.net mentioned that Noctua uses an expensive, more effective soldering technique in the NH-D14 which is probably the reason the heatsink is so efficient. It's also more difficult to apply and could be the source of inconsistencies in the manufacturing process. (He also mentioned that there are rumors that the solder has recently changed to something cheaper and that could cause worse temps, but there's no way to be sure about that.)

I'll try to take some pictures of base and heatpipes when the new one arrives. Been waiting 14 days already...
Lucky purchase on your motherboard: with Gigabyte boards you can set your automatic fan control to Voltage instead of PWM. That way your Noctua fans will respond automatically to temp changes.

Just go in BIOS and look in PC Health for the Smartfan settings.
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
post #74 of 103
Quote:
Originally Posted by ehume View Post
Lucky purchase on your motherboard: with Gigabyte boards you can set your automatic fan control to Voltage instead of PWM. That way your Noctua fans will respond automatically to temp changes.

Just go in BIOS and look in PC Health for the Smartfan settings.
Ah right, nice, thanks! I usually connect the fans to 12V but sometimes I do have a fan connected to a mobo fan header.

Actually right now since I'm waiting for my Noctua to arrive I'm stuck using the stock fan on my new CPU, so it could come in handy...
post #75 of 103
Quote:
Originally Posted by Mumbles37 View Post
Ah right, nice, thanks! I usually connect the fans to 12V but sometimes I do have a fan connected to a mobo fan header.

Actually right now since I'm waiting for my Noctua to arrive I'm stuck using the stock fan on my new CPU, so it could come in handy...
Stock fan is likely PWM. As for connecting a fan to a header, the D14 comes with a Y-cable and the fans draw little current so you can hook them both up to your CPU_FAN header.
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
post #76 of 103
Another advantage of a Gigabyte board is that you can test your overclock fully, then simply do a bit of math (stock vcore + x = stable vcore) to determine the value for a feature called "dynamic vcore". It allows you to re-enable EIST flawlessly even when overclocked, in result saving power, lowering chip temperatures (for ultimate silence with 'voltage' option) and allowing a longer life for chips running at higher voltages.

I'm using it right now with my overclock; the vcore goes down to 1.05v @ 1700mhz when idle and seamlessly jumps back to 1.28v @ 4ghz when running intense apps.
Current i5 Rig
(14 items)


CPUMotherboardGraphicsRAM
Core i5-760 (4.0ghz @ 1.28v) GIGABYTE P55-USB3 Asus GTX 770 DirectCU II OC 2GB 4GB DDR3 (XMS3 1600)
Hard DriveOptical DriveCoolingOS
Corsair Force 3 120gb + 2.5TB HDDs LG Noctua NH-D14 Windows 7 Home Premium x64
MonitorKeyboardPowerCase
23" Acer X233H + 19" GNR Logitech G110 OCZ ModXStream Pro 700W Coolermaster 690
MouseMouse Pad
Logitech G500 Razer Sphex
  hide details
Reply
Current i5 Rig
(14 items)


CPUMotherboardGraphicsRAM
Core i5-760 (4.0ghz @ 1.28v) GIGABYTE P55-USB3 Asus GTX 770 DirectCU II OC 2GB 4GB DDR3 (XMS3 1600)
Hard DriveOptical DriveCoolingOS
Corsair Force 3 120gb + 2.5TB HDDs LG Noctua NH-D14 Windows 7 Home Premium x64
MonitorKeyboardPowerCase
23" Acer X233H + 19" GNR Logitech G110 OCZ ModXStream Pro 700W Coolermaster 690
MouseMouse Pad
Logitech G500 Razer Sphex
  hide details
Reply
post #77 of 103
Thread Starter
Quote:
Originally Posted by Mumbles37 View Post
I finally got Noctua to admit mine was defective and to send me a new one through RMA.
So how did you do that?
post #78 of 103
Quote:
Originally Posted by nawon72 View Post
So how did you do that?
Persistence and hard data. Took a long time to do, though.
post #79 of 103
Thread Starter
This might look sloppy but here is the data from this test.

For both tests:
Ambient: 20*C
Case fans on high(2 AP181's 1200RPM)
Prime95 Small FFT 45min
1.33Vcore

Test 1:
First, some background info. After taking this picture, i put the heatsink back on without changing the thermal paste, thus creating some air bubbles and what not. Then i left it that way when i did this test. So the temps are a little higher than they would be prior to taking the picture.
Average NF-P14 RPM: approx. 1295RPM

Results: The average core temp was 65.773*C so 66*C.

Reseating of heatsink:

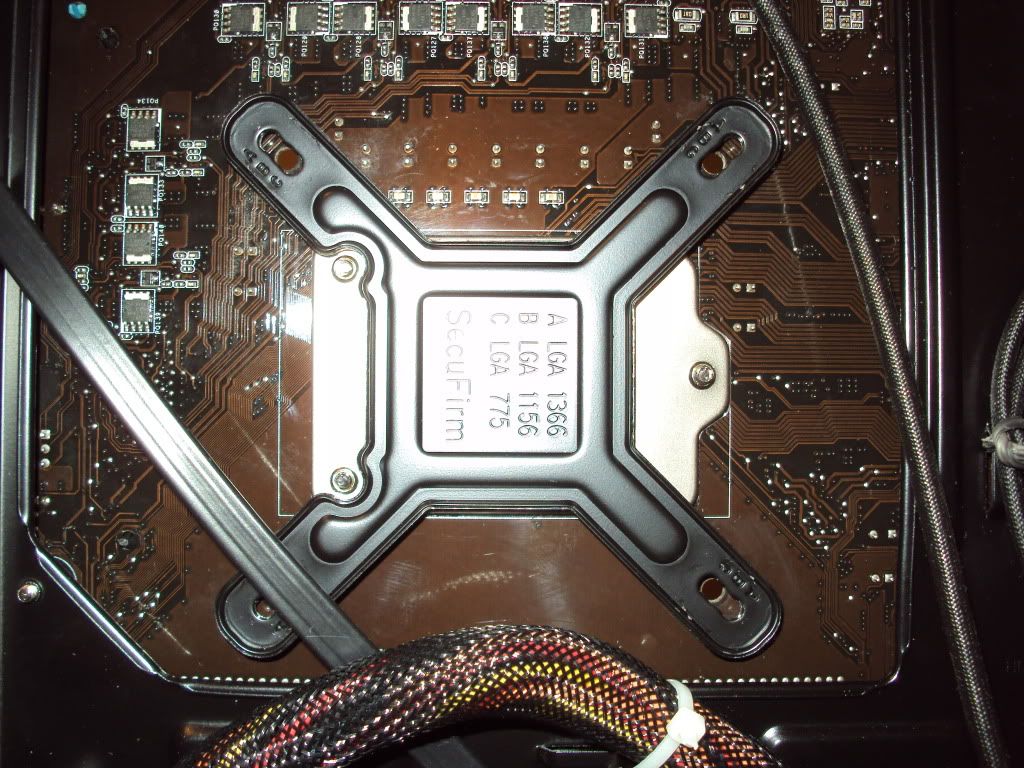

As you can see, the backplate is stuck to the motherboard. This did happen the last time i reseated as well. My case was in its normal position when I took the picture. I might be stuck because of the amount of pressure from screwing the mounting brackets tightly.

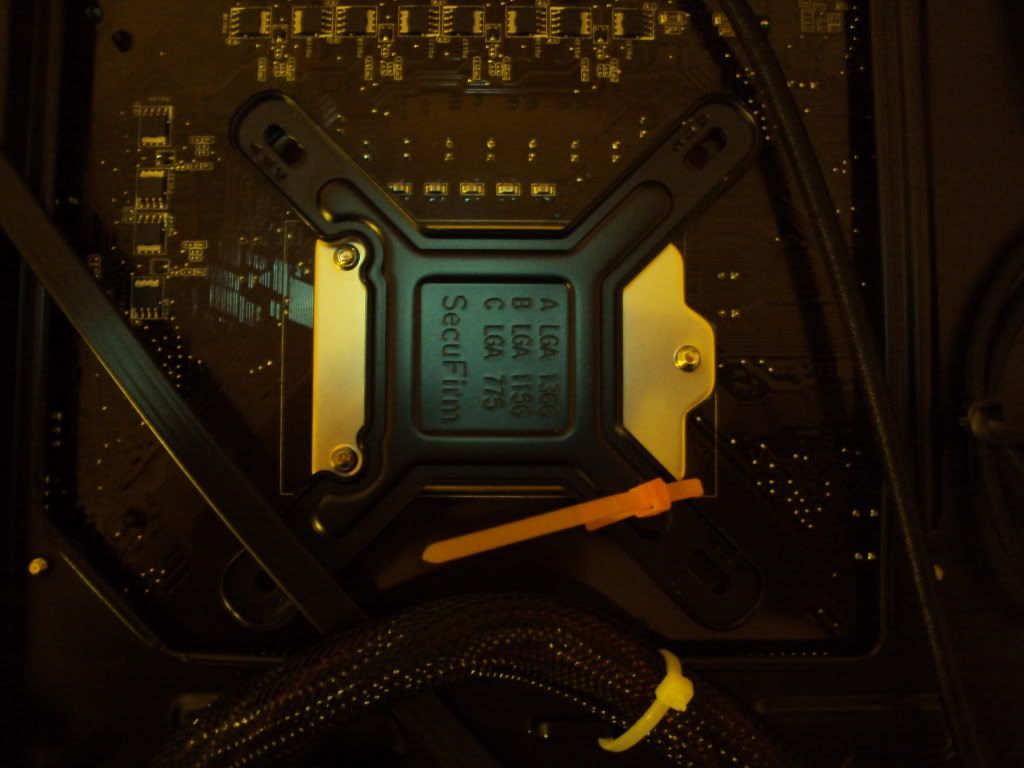

Pulling with my hand didnt seem to work so I pushed a ziptie through the the backplate to get a good grip on it. It took more force than i expected for taking of a backplate. About the same as the last time it was stuck.

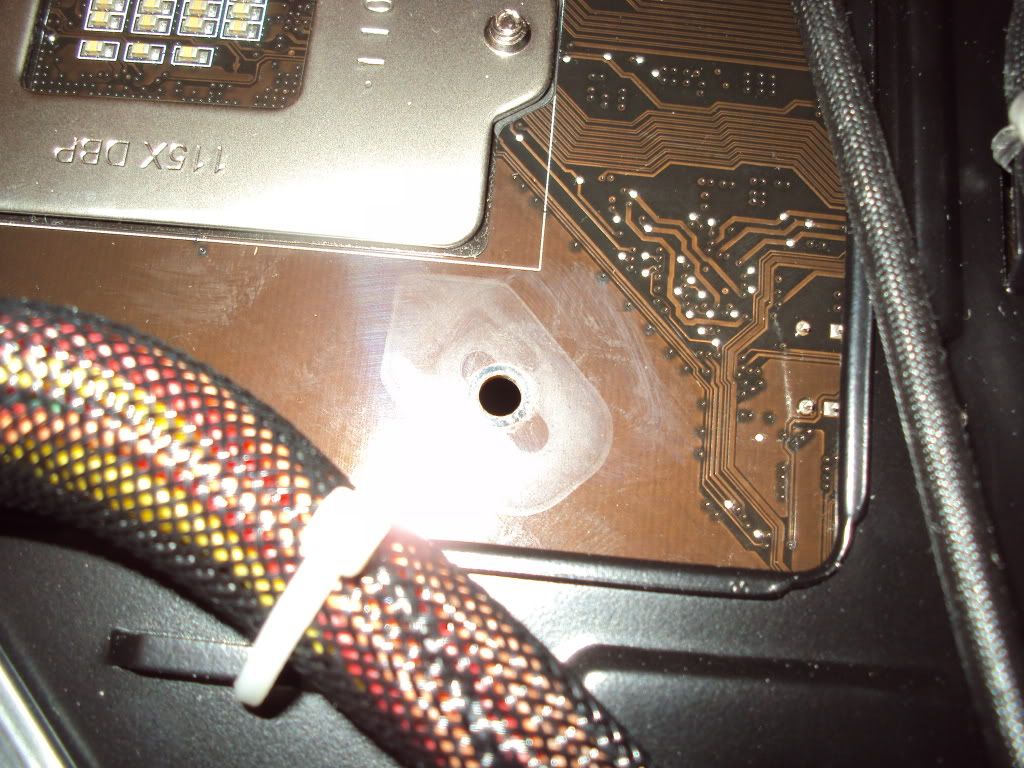

Here you can see the mark left on my motherboard by the foam feet of the backplate.
I then re-installed the backplate and mounting brackets.

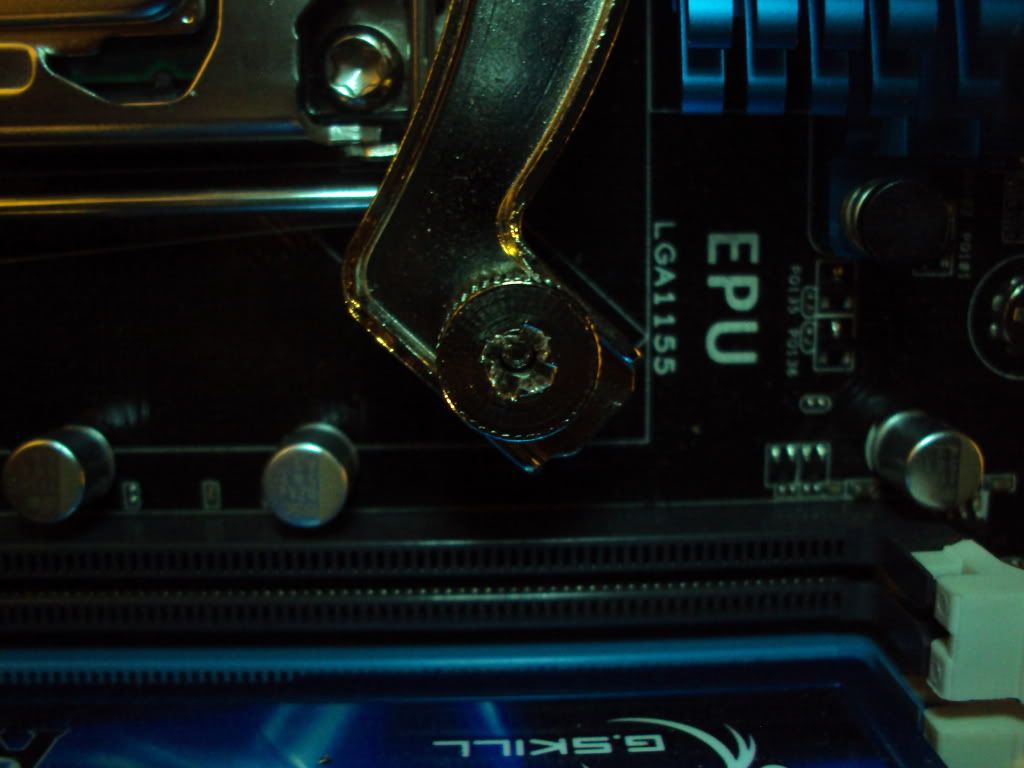

If there's one thing i need contact Noctua for, it's this screw i somehow stripped the first time I installed my NH-D14. It has gotten so bad that i don't think I could use it again if i remove it.

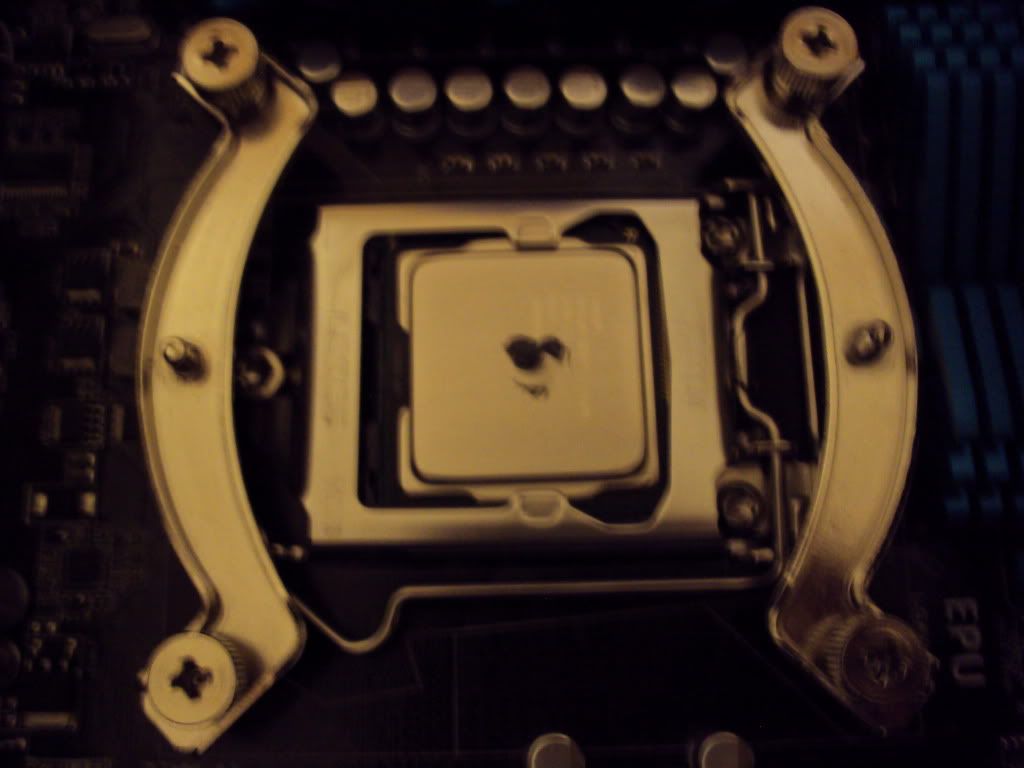

I couldn't get a clear picture of the NH-D14 base, so ill have to explain what i saw. The bottom of the base had an outline of the IHS almost entirely on the sides with the spring loaded screws. It didn't clean off, so it is definitely a "dent" and is caused by a lot of pressure. This must mean that the NH-D14 is getting enough pressure on the IHS, or that it is getting most of the pressure and contact on the sides with the spring loaded screws.
