increasing cpu voltage

post #1 of 9
Thread Starter
Im new to overclocking and im currently overclocking my i7 950 and im wondering if i should keep the cpu voltage at 1.25 and keep increasing the the cpu host frequency would this be an ideal way to overclock?
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
post #2 of 9
Quote:
Originally Posted by dacheungmeister View Post
Im new to overclocking and im currently overclocking my i7 950 and im wondering if i should keep the cpu voltage at 1.25 and keep increasing the the cpu host frequency would this be an ideal way to overclock?
This will help you as i find it describes the overclocking step by step



http://www.clunk.org.uk/forums/overc...beginners.html
Chewy's Chomper
(14 items)


CPUMotherboardGraphicsRAM
Intel I7 6700k Asis Z170 Deluxe MSI GTX 1080 Gaming x 16GB Corsair vengence DDR4 3200
Hard DriveCoolingOSMonitor
Samsung M2 256gb nvme Custom loop, 360+120 rads Windows 10 64bit Asus 28" MG28UQ 4K
PowerCase
Seasonic X series 750w gold Corsair 400c
  hide details
Reply
Chewy's Chomper
(14 items)


CPUMotherboardGraphicsRAM
Intel I7 6700k Asis Z170 Deluxe MSI GTX 1080 Gaming x 16GB Corsair vengence DDR4 3200
Hard DriveCoolingOSMonitor
Samsung M2 256gb nvme Custom loop, 360+120 rads Windows 10 64bit Asus 28" MG28UQ 4K
PowerCase
Seasonic X series 750w gold Corsair 400c
  hide details
Reply
post #3 of 9
Thread Starter

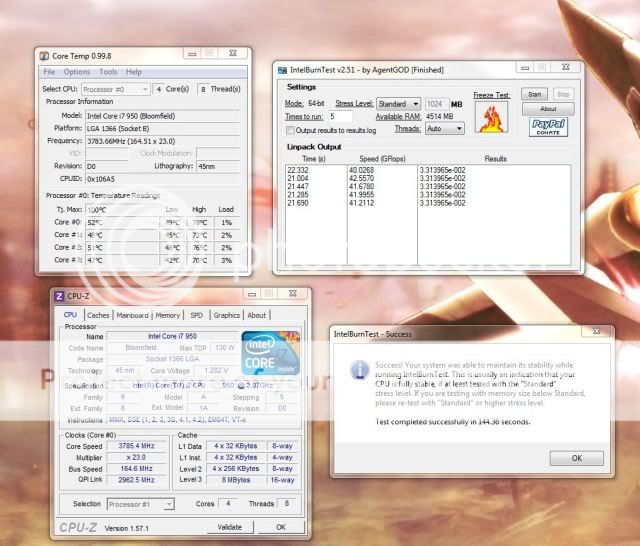

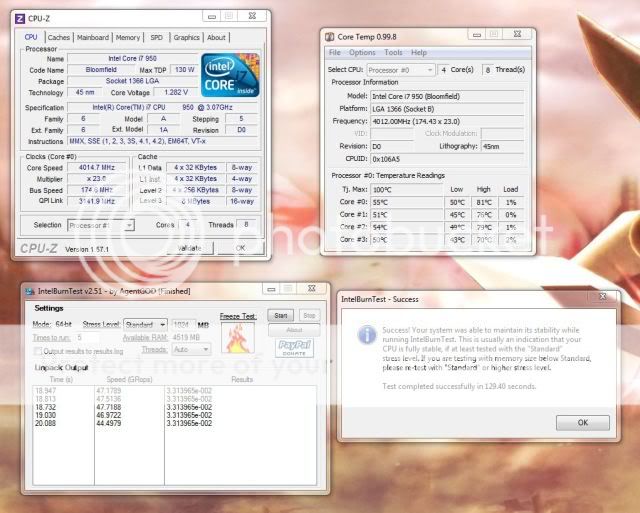

would these two be safe overclocks



RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
post #4 of 9
Utilizing only 1GB of RAM is not a good way of testing your overclock. Make IBT use all the RAM available, it will find errors better. Also I would recommend using 20 passes. Your vcore looks a little high, but all chips vary.
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
post #5 of 9
Thread Starter
Is vcore voltage???
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
post #6 of 9
Yes it's the CPU's voltage. 1.28v seems a little over average at 4Ghz, perhaps try lowering it. And as said above, test it with all your available RAM.

Also, your mobo is capable of much higher BCLK. Use a 21x multiplier instead of 23x, if you're staying at 4Ghz.
Stainless Stance
(13 items)


CPUMotherboardGraphicsRAM
i7 920 (3930A226) 4.4 GHz | Lapped | 1.36v | HT on Gigabyte EX58-UD3R | Rev 1.6 | FJ18 Asus GTX470 | 900c 1878m | 1.15v 3x2GB Corsair XMS3 | 1680 MHz
Hard DriveOSMonitorKeyboard
Samsung Spinpoint F1 1TB Windows 7 Ultimate x64 SP1 LG Flatron W2252TQ Microsoft Sidewinder X6
PowerCaseMouseMouse Pad
XFX 850W Core Edition Antec 902 | 3x AP-14 intake Logitech G5 Razer eXactMat
  hide details
Reply
Stainless Stance
(13 items)


CPUMotherboardGraphicsRAM
i7 920 (3930A226) 4.4 GHz | Lapped | 1.36v | HT on Gigabyte EX58-UD3R | Rev 1.6 | FJ18 Asus GTX470 | 900c 1878m | 1.15v 3x2GB Corsair XMS3 | 1680 MHz
Hard DriveOSMonitorKeyboard
Samsung Spinpoint F1 1TB Windows 7 Ultimate x64 SP1 LG Flatron W2252TQ Microsoft Sidewinder X6
PowerCaseMouseMouse Pad
XFX 850W Core Edition Antec 902 | 3x AP-14 intake Logitech G5 Razer eXactMat
  hide details
Reply
post #7 of 9
Thread Starter
i set it to 1.25 in the bios however whats the point of getting a 950 if i just use a 920's multiplier???

also what would be considered a high temp when running prime95 / intel burn test?
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
post #8 of 9
Quote:
Originally Posted by dacheungmeister View Post
i set it to 1.25 in the bios however whats the point of getting a 950 if i just use a 920's multiplier???

also what would be considered a high temp when running prime95 / intel burn test?
When stress testing, I would try keeping it below 85 at the most, but my target is <80C.

Your voltage is fine for 4GHz... takes my i7 1.36V for 4GHz (191x21)
Sandyman
(14 items)

Lenovo Y500
(8 items)


CPUGraphicsRAMHard Drive
i7 3630QM GT 650M SLI 2x4GB DDR3 1600 MHz Sandisk Extreme II 240GB
Optical DriveOSMonitorMouse
None Windows 8 15.6" 1080p Steelseries Sensei RAW
  hide details
Reply
Sandyman
(14 items)

Lenovo Y500
(8 items)


CPUGraphicsRAMHard Drive
i7 3630QM GT 650M SLI 2x4GB DDR3 1600 MHz Sandisk Extreme II 240GB
Optical DriveOSMonitorMouse
None Windows 8 15.6" 1080p Steelseries Sensei RAW
  hide details
Reply
post #9 of 9
Thread Starter
Would it bettrer if I bumped the multiplier down and increased the bclk????
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
RedHotIce
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4ghz 24/7 Evga x58 sli3 2x Gts 250 sli CORSAIR 6GB 1333 ddr3
Hard DriveOSMonitorPower
2x ocz 30gb ssd win 7 64bit 24" acer, 19" dell antec 750 watt
Case
Haf X
  hide details
Reply
