Wat fitting for this situation (no 56k)

post #1 of 6
Thread Starter

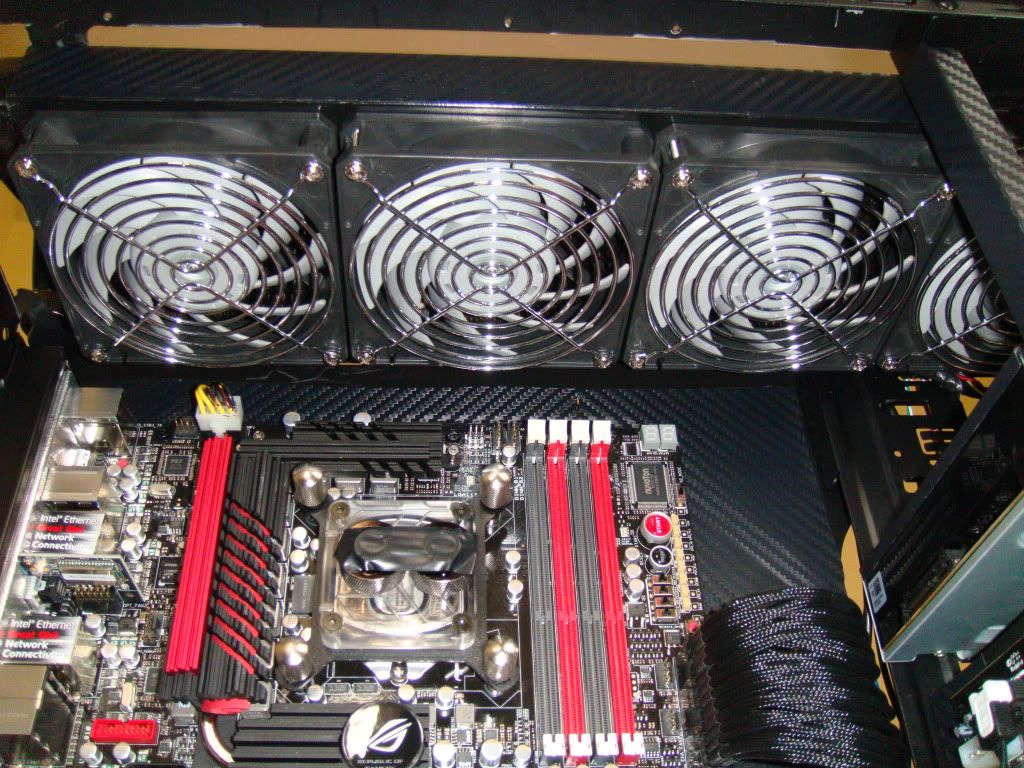

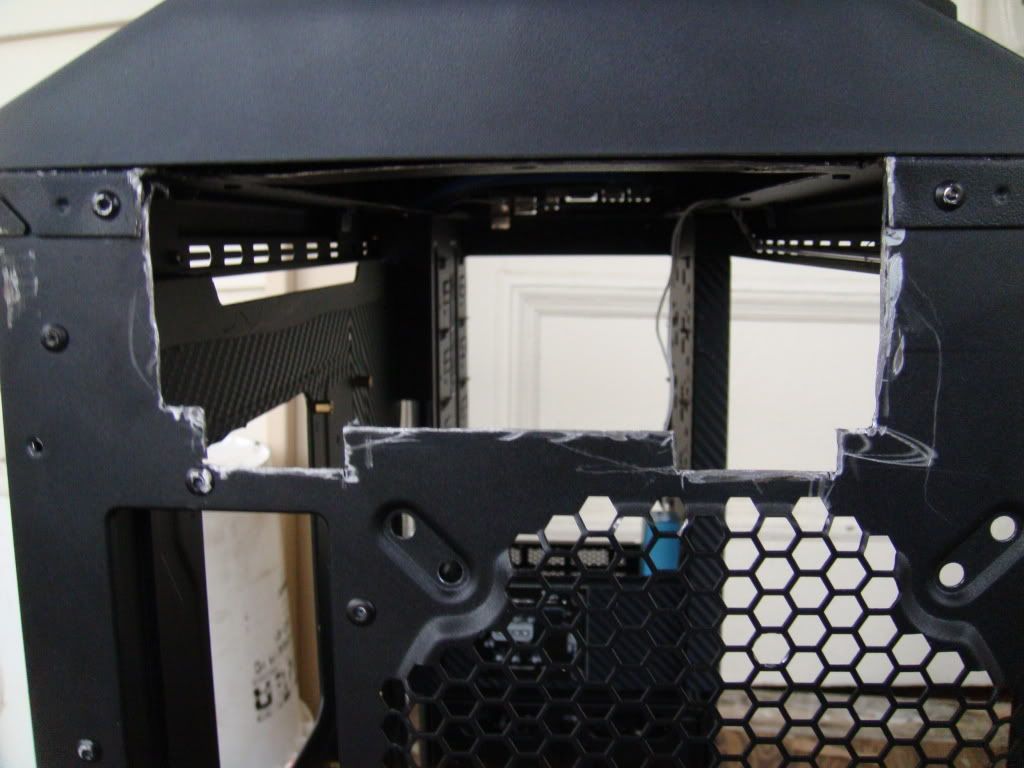

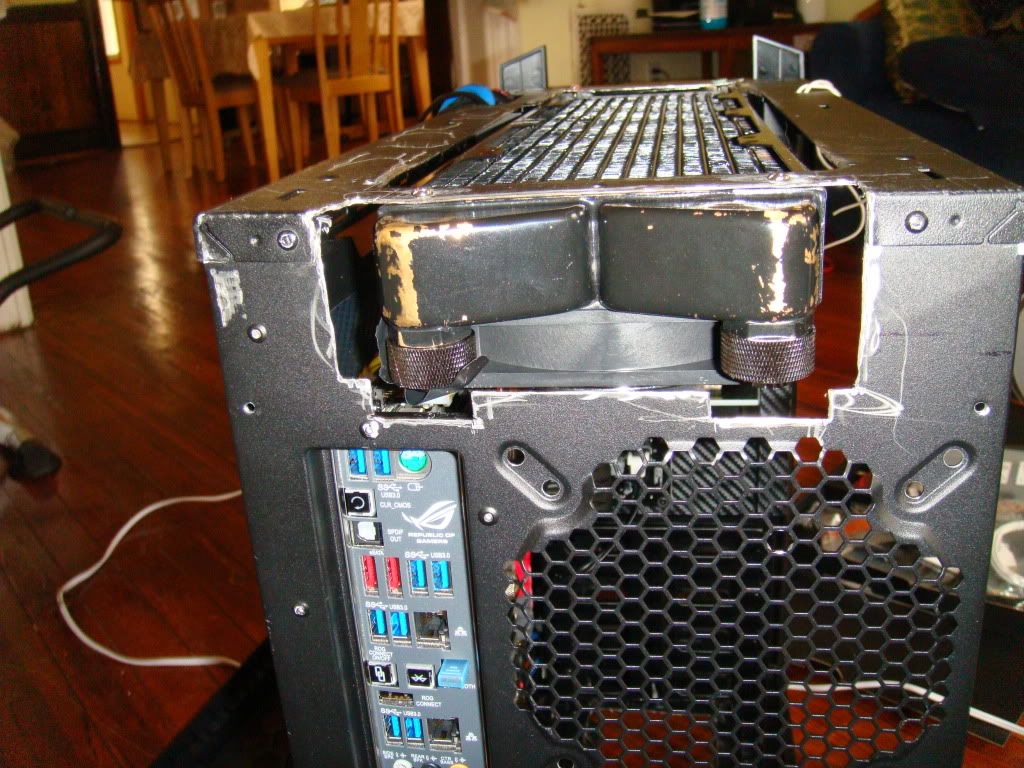

hey guys, i am currently in the process of putting a 480 rad on the top of my haf x like this

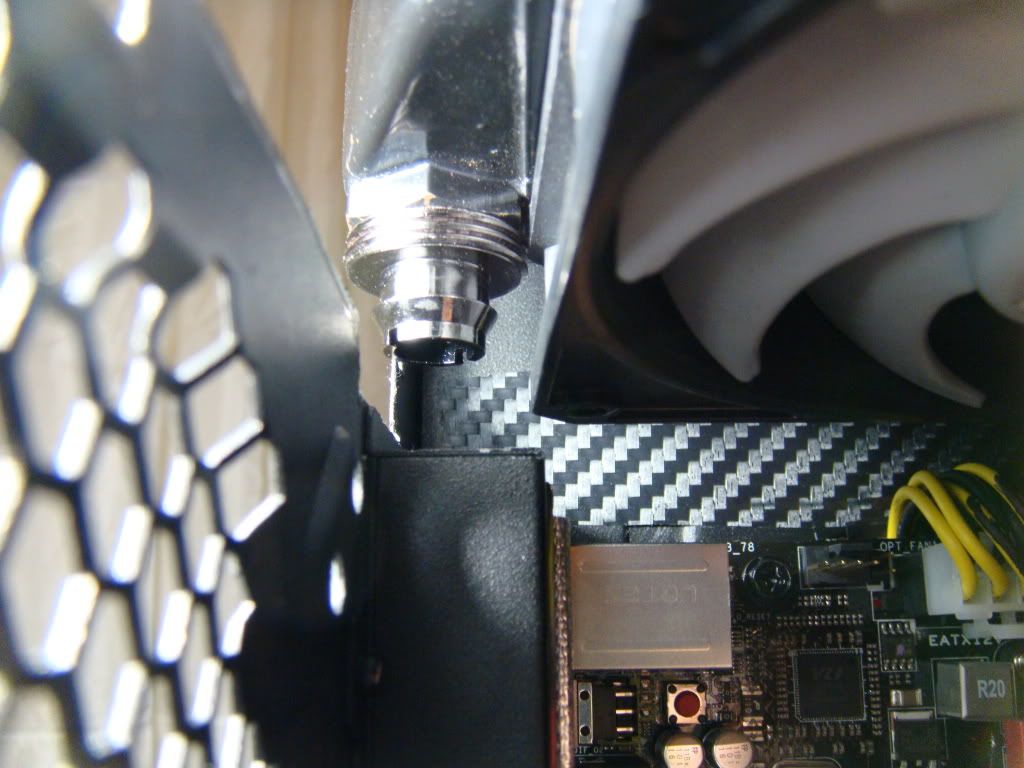

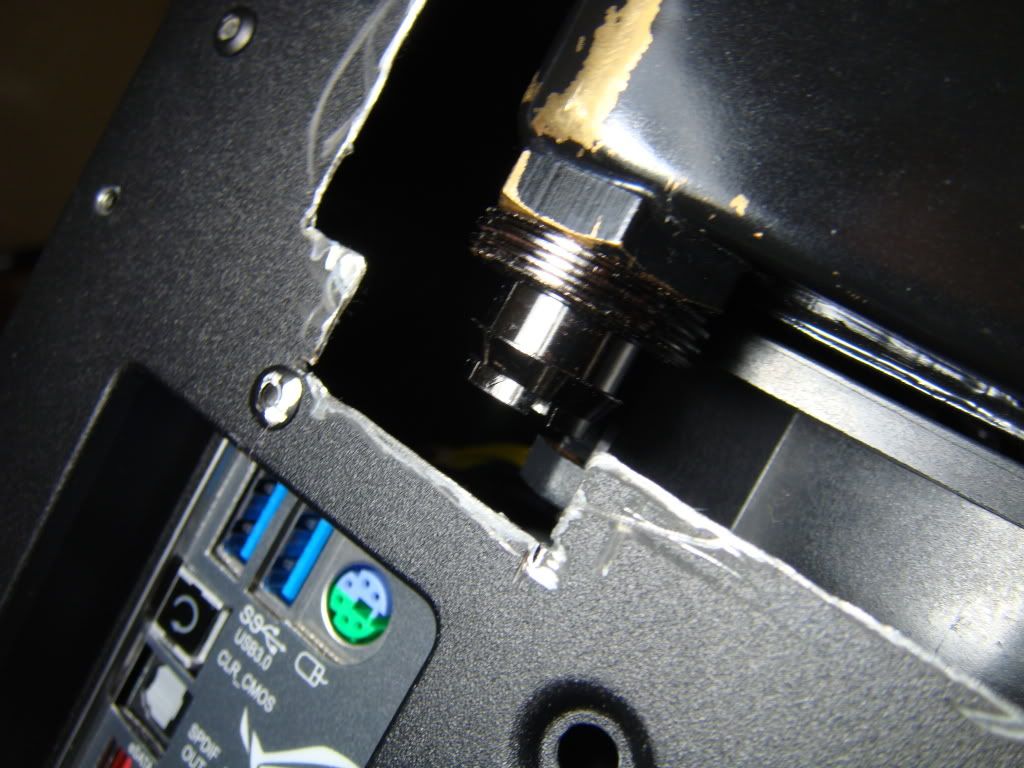

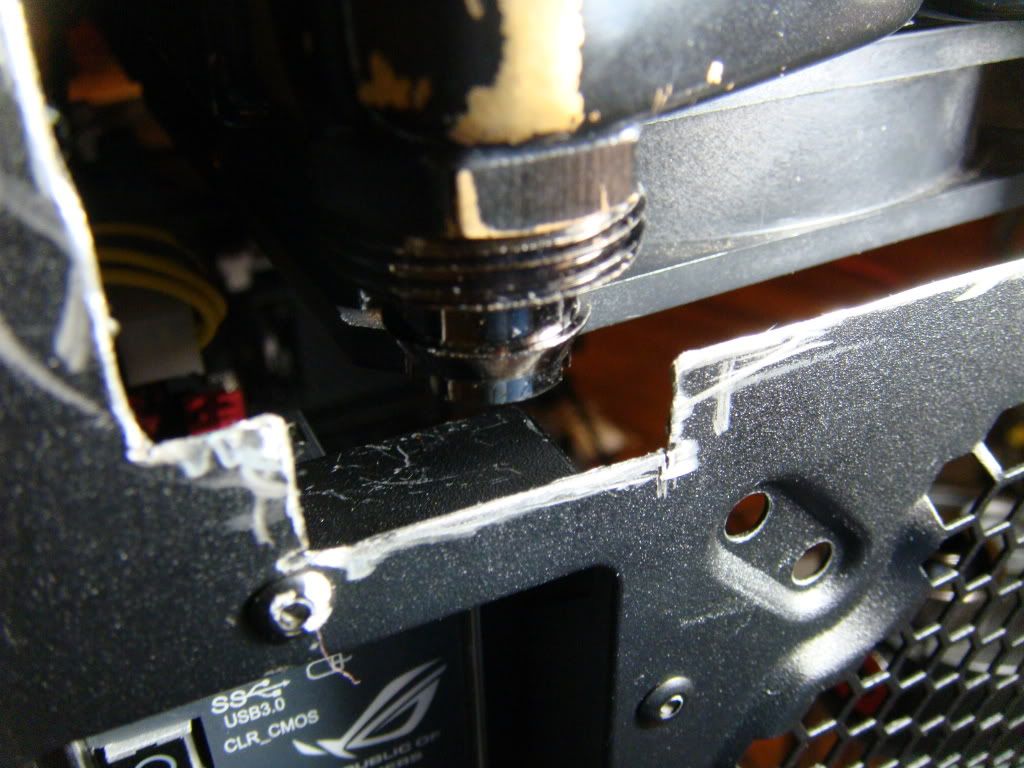

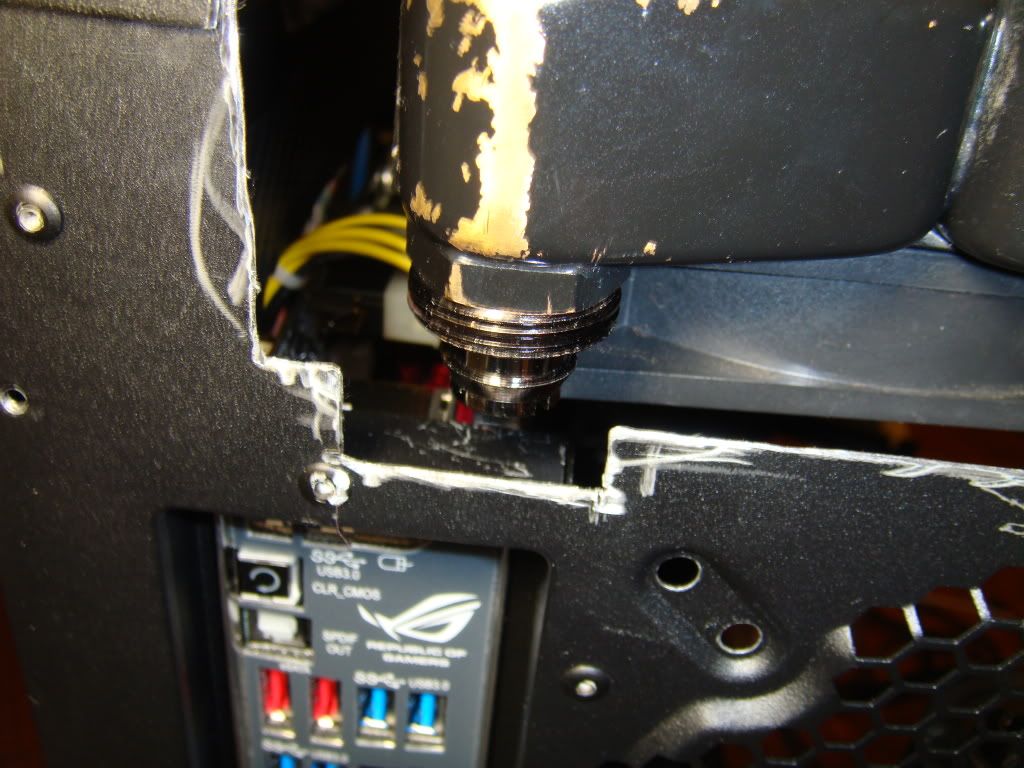

problem is, this totally passed me . the fitting to the left on the last picture, i cant get the tube to fit in because its directly on top of the mobo backplate












so now i need to get another fitting, possibly a 2 90's or something similar, how should i do this?? wat fitting should i use?
The New Baby
(13 items)


CPUMotherboardGraphicsRAM
Intel core i7 2600k Asus Maximus IV Extreme Sapphire 6990 w. EK block G.SKILL Ripjaws X 1600 4gb
Hard DriveOptical DriveOSMonitor
Vertex 3 MAX ED 120gb, Samsung f3 1tb Samsung BD Windows 7 64bit Dell u2410 and Samsung 32 inch for movies
KeyboardPowerCaseMouse Pad
Logitech g19 Corsair hx1000 (replaced w. gt ap15) Haf X (white led lights)(480 rad and 240 mod) Ripper xxl
