[Official] Gigabyte GA-990FXA-Series Owners Thread/Club - Page 954

post #9531 of 12377
Interesting. I told you about HW monitor. I don't think there is anything wrong with the program, it just doesn't work well with the AMD Gigabyte boards. I think the polling rate is to high and can cause malfunctions in temperature reporting. Open Hardware Monitor doesn't have this issue for me.

Quickest way to test if airflow is causing heat build up, is to simply remove the side panel.

Also for those waiting for my how-to on the motherboard back plate. I should have it posted by Saturday night.
Silent But Deadly
(16 items)


CPUMotherboardGraphicsRAM
Amd Ryzen 7 1700 Asus ROG Crosshair Hero VI Asus Rx 480 Corsair Dominator Platinum DDR4 3000
Hard DriveHard DriveOptical DriveCooling
Mushkin Reactor 1TB Seagate BarraCuda ST4000DM005 4TB x2 Lg hd-dvd/blu ray combo XSPC EX 240 + AlphaCool xt45 280+ Thermal Take ...
OSMonitorKeyboardPower
Windows 10 Pro  SAMSUNG 40" UN40KU6300 Func Kb 460 SeaSonic X Series X-850
CaseMouseMouse PadAudio
Fractal Arc Midi Logitech MX 518 Razor Vespula Pioneer SC-63
  hide details
Reply
Silent But Deadly
(16 items)


CPUMotherboardGraphicsRAM
Amd Ryzen 7 1700 Asus ROG Crosshair Hero VI Asus Rx 480 Corsair Dominator Platinum DDR4 3000
Hard DriveHard DriveOptical DriveCooling
Mushkin Reactor 1TB Seagate BarraCuda ST4000DM005 4TB x2 Lg hd-dvd/blu ray combo XSPC EX 240 + AlphaCool xt45 280+ Thermal Take ...
OSMonitorKeyboardPower
Windows 10 Pro  SAMSUNG 40" UN40KU6300 Func Kb 460 SeaSonic X Series X-850
CaseMouseMouse PadAudio
Fractal Arc Midi Logitech MX 518 Razor Vespula Pioneer SC-63
  hide details
Reply
post #9532 of 12377
Quote:
Originally Posted by ebduncan View Post

Interesting. I told you about HW monitor. I don't think there is anything wrong with the program, it just doesn't work well with the AMD Gigabyte boards. I think the polling rate is to high and can cause malfunctions in temperature reporting. Open Hardware Monitor doesn't have this issue for me.

Quickest way to test if airflow is causing heat build up, is to simply remove the side panel.

Also for those waiting for my how-to on the motherboard back plate. I should have it posted by Saturday night.

It's a crazy difference in temp reading.
Actually I leave the side casing door removed in order to get the most fresh air in. If I close the side and front doors the temp rises considerably.
I really need better cooling...the top fan is not that bad, it's drawing air out but it's not that warm so it means it's not sucking enough heat out?!

And the issue with the front large fan is that it sends air but too low in the middle of the casing. You can barely feel it's air passing beyond the RAM so there is little to none cool air at the NB point
post #9533 of 12377
I am redoing my OC for my 690 III build.

I am wondering if the following is OK. Mind you I do have all energy saving features on. I believe, if it is what I want to run every day, I should test with them on as well.



post #9534 of 12377
Ok. Well as promised I was cleaning my computer out today and decided to repeat the process I did to make a back plate for the VRM section of the board.

Note: If you use Aluminum bar that is only 1/2" wide you will not have to grind anything, I had 3/4" wide bar laying around so that is what I used.

Materials used

-Aluminum bar 1/8" thick, 3/4" wide, roughly 95mm Long
-0.5mm thermal pad 95mm long x 2
-Two Nuts and Bolts (forget the exact size)
-Thermal Paste (NON CONDUCTIVE!)
-Electrical Tape
-Permanent marker ( I used blue)

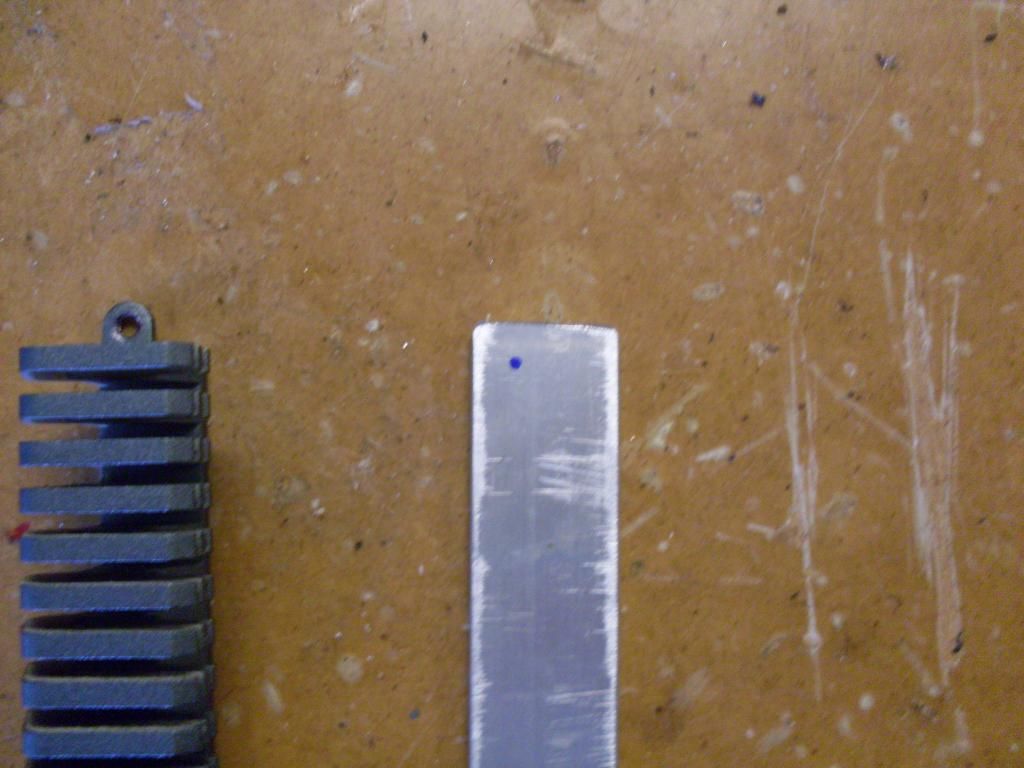

Step one. You will have to cut the Aluminum bar It needs to be at least 95mm long, and no longer than 100mm.

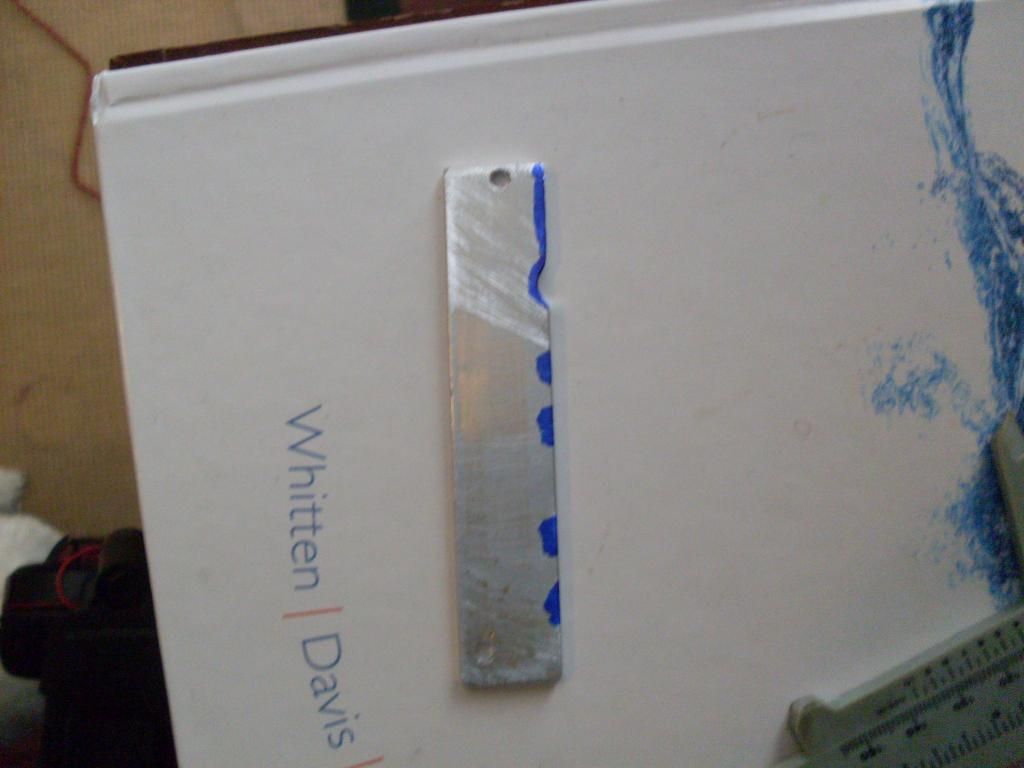

Step two. Place the Stock VRM heatsink on top of the Aluminum plate and mark the holes for drlling. Drill the holes. Test fit the screws to make sure you have proper fitment.

Step 3. Place the Plate on the back of the motherboard. You will see solder points that you don't want this aluminum plate to touch. Mark your plate in the areas where there is contact or where the plate gets a little to close for comfort.

Step 4. Use a file or grinder or sorts to grind the spots you marked. I used a dremel with a (9901 Tungsten Carbide Cutter)

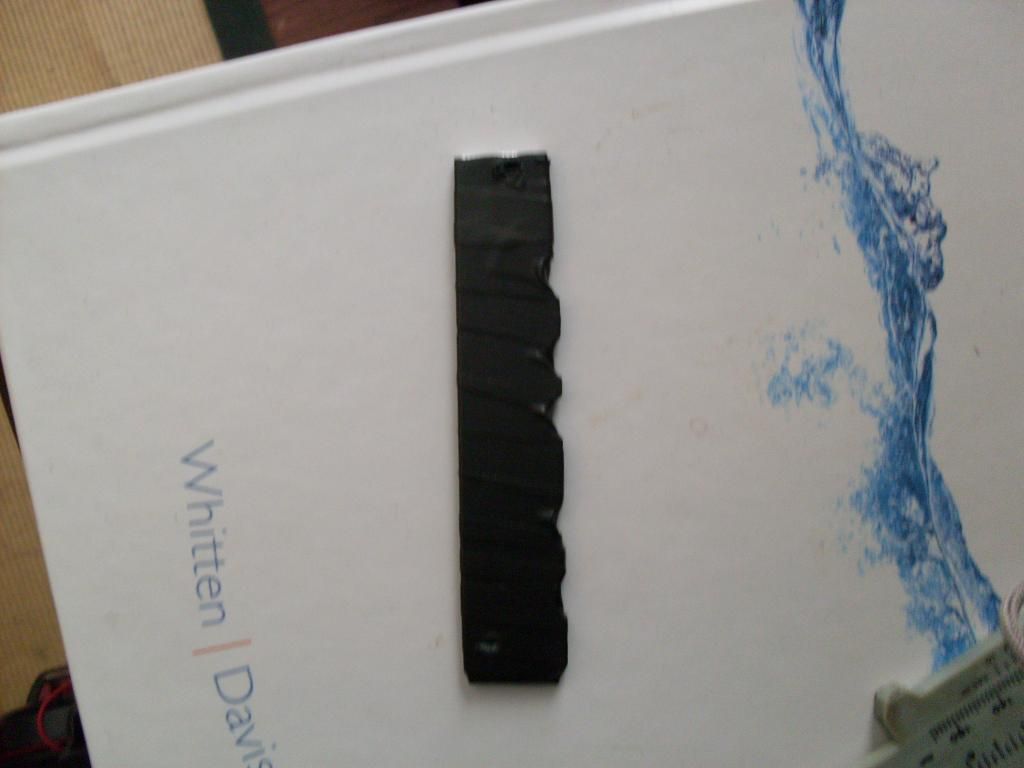

Step 5. Test fit, if everything looks ok then proceed to wrap the plate in electrical tape (I recommend this, though it may not be needed) I certainly didn't want to take any chances when it comes to having this short the motherboard out. (I used one layer)
Step 6. Clean your VRMs, I used a old toothbrush to remove any dust. Then some q-tips dipped in rubbing alcohol to get anything left over. Apply small drop of thermal paste on each VRM mosfet. NOTE YOU MUST USE NON CONDUCTIVE Thermal Paste. You don't need to use the thermal paste if you don't want to, but this helps the thermal transfer.

Step 7. Put a thermal pad on both the aluminum plate and on the vrm heatsink. Put back together. Make sure you tighten the nuts and bolts well. If your motherboard is warped this is critical.

Step 8. Your done. Enjoy the better passive cooling on the VRM, also say goodbye to the motherboard being warped in this area.
Edited by ebduncan - 3/22/14 at 3:12pm
