MSI Afterburner Clock Readings

post #1 of 8
Thread Starter
I have an nVidia GTX 260M and I'm having an issue with MSI Afterburner.

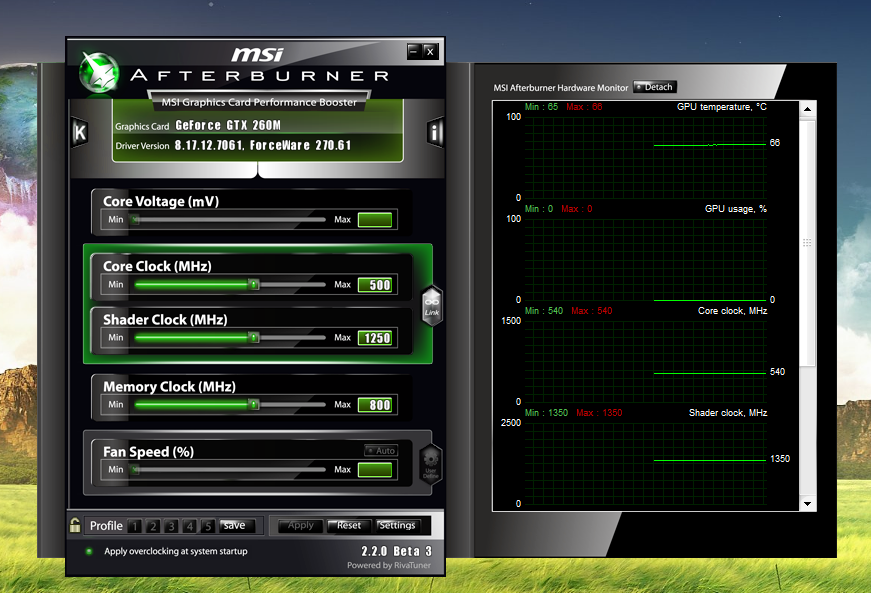

Look at the image, at stock speeds it says 500 MHz, but if you look on the clock speed on the right it says 540. Is there any reason? As I increase my clock speed on the slider, my clock goes up even higher. When I set it to "540" it changes it to like 567 or something.

I'm using 2.2.0 Beta 3, and I was having the same issue with 2.1.0
post #2 of 8
That is the strap you are on set it to what is stated on the right. Link below states GT200 straps and what they are:

http://www.overclock.net/nvidia/4976...er-straps.html

Quote:
List of straps and where they fall in:

Green= Requested speed
Red= Actual speed

Most 8800, 9600, 9800, & GTX 2xx 65nm
1216-1269=1242
1270-1323=1296
1324-1377=1350
1378-1431=1404
1432-1485=1458
1486-1539=1512
1540-1593=1566
1594-1647=1620
1648-1701=1674
1702-1755=1728
1756-1809=1782
1810-1863=1836
1864-1917=1890
1918-1971=1944
1972-2025=1998
2026-2079=2052

GTX 2xx 55nm
1242-1271=1242
1272-1315=1296
1316-1342=1332
1343-1364=1350
1365-1385=1368
1386-1423=1404
1424-1451=1440
1452-1467=1458
1468-1494=1476
1495-1532=1512
1533-1559=1548
1560-1576=1566
1577-1603=1584
1604-1641=1620
1642-1668=1656
1669-1685=1674
1686-1712=1692
1713-1750=1728
1751-1772=1764
1773-1791=1782
1792-1817=1800
1818-1854=1836
1855-1880=1872
1881-1899=1890
1900-1925=1908
1926-????=1944
Might actually be a issue with the mobile version of the 260 gpu now I look again.
Edited by Rick Arter - 5/22/11 at 10:43pm

CPUMotherboardGraphicsRAM
AMD FX-8320 3.6GHz 1.152v Gigabyte 990FXA-UD5 EVGA GTX 960 SSC 4GB 8GB G. Skill DDR3-1333 CL9 1.5v
Hard DriveOptical DriveCoolingOS
WD 1TB SATA3 + 4TB Storage External USB Thermalright Archon Win 7 Pro x64
MonitorKeyboardPowerCase
Samsung 27 inch LED 1920x1080 HD Logitech K120 Seasonic X-760 Modular Fractal Define R4
MouseAudio
Logitech Altec Lansing 2.1
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD FX-8320 3.6GHz 1.152v Gigabyte 990FXA-UD5 EVGA GTX 960 SSC 4GB 8GB G. Skill DDR3-1333 CL9 1.5v
Hard DriveOptical DriveCoolingOS
WD 1TB SATA3 + 4TB Storage External USB Thermalright Archon Win 7 Pro x64
MonitorKeyboardPowerCase
Samsung 27 inch LED 1920x1080 HD Logitech K120 Seasonic X-760 Modular Fractal Define R4
MouseAudio
Logitech Altec Lansing 2.1
  hide details
Reply
post #3 of 8
Thread Starter
I'm saying on the right my core clock is reading at "540" but I have it SET to "500"

If I increase it to 540 now it reads 583 in my hardware monitor.

Edit: you added a link; oh okay. let me read up on this thread, never heard of ''straps'' before Oo
Edited by Korpsicle - 5/22/11 at 10:45pm
post #4 of 8
40Mhz seems a little high for straps but I havent played with a GTX 2xx for a while and I may be wrong.

Load up GPU Z and see what that says

http://majorgeeks.com/GPU-Z_d5796.html

Your shader clock is about 100Mhz higher as well.... :
Edited by Sethy666 - 5/22/11 at 10:49pm
post #5 of 8
Quote:
Originally Posted by Korpsicle View Post
I'm saying on the right my core clock is reading at "540" but I have it SET to "500"

If I increase it to 540 now it reads 583 in my hardware monitor.

Edit: you added a link; oh okay. let me read up on this thread, never heard of ''straps'' before Oo
Have you tried any other software? Drivers?

CPUMotherboardGraphicsRAM
AMD FX-8320 3.6GHz 1.152v Gigabyte 990FXA-UD5 EVGA GTX 960 SSC 4GB 8GB G. Skill DDR3-1333 CL9 1.5v
Hard DriveOptical DriveCoolingOS
WD 1TB SATA3 + 4TB Storage External USB Thermalright Archon Win 7 Pro x64
MonitorKeyboardPowerCase
Samsung 27 inch LED 1920x1080 HD Logitech K120 Seasonic X-760 Modular Fractal Define R4
MouseAudio
Logitech Altec Lansing 2.1
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD FX-8320 3.6GHz 1.152v Gigabyte 990FXA-UD5 EVGA GTX 960 SSC 4GB 8GB G. Skill DDR3-1333 CL9 1.5v
Hard DriveOptical DriveCoolingOS
WD 1TB SATA3 + 4TB Storage External USB Thermalright Archon Win 7 Pro x64
MonitorKeyboardPowerCase
Samsung 27 inch LED 1920x1080 HD Logitech K120 Seasonic X-760 Modular Fractal Define R4
MouseAudio
Logitech Altec Lansing 2.1
  hide details
Reply
post #6 of 8
Thread Starter
I had tried using RivaTuner before but was kinda lost with that one (too impatient I suppose). I have gone through 3 driver updates since I started playing with my clocks, although this strap thing appears to be what it is. Still strange though.

497-540
508-555
515-558
518-562

It's an odd increment.

Now I'm using GPU-Z 0.5.1 (was already installed, idk if that's the newest one)
note; these are the same base clocks I used in MSI, not just when they bump higher.

497 - 500
508 - 514
515 - 516
518 - 520

Sooo, who do I believe? MSI or GPU-Z. I'm inclined to believe GPU-Z
Edited by Korpsicle - 5/22/11 at 10:59pm
post #7 of 8
Id trust GPU Z.

It may be a combination of a mobile card and a Beta Afterburner...

Rollback Afterburner to 2.1 and see what it reads.

http://downloads.guru3d.com/Afterbur...load-2562.html


You aready did that
Edited by Sethy666 - 5/22/11 at 11:08pm
post #8 of 8
Thread Starter
It was telling me the same readings in official release of 2.1.0, I just updated to the Beta not an hour or 2 ago just to see if it would change my results. Oh well, I guess for some reason MSI Afterburner's HW is bugged, at least with my card/rig.

Mark as /solved please.
