Possible to have the output on the same side as the input on crossfire cards?

post #1 of 7
Thread Starter
Not sure how to word it but I want the water to enter the first card go through the second card and then back out the first card. Would make my loop a lot neater but im not sure if its pssible. Thoughts?
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
post #2 of 7
Quote:
Originally Posted by Blindsay View Post
Not sure how to word it but I want the water to enter the first card go through the second card and then back out the first card. Would make my loop a lot neater but im not sure if its pssible. Thoughts?
run them in parallel not series. problem solved.
The 775 Legend
(13 items)


CPUMotherboardGraphicsRAM
E8600 @ 5.8 -- 1.736v Rampage Formula! GTX550ti Vmod! OCZ D9's @ 1200+ cas 5
OSMonitorPowerCase
XPEEEEEEEEEEEEEEEEEEEEEEE XGA 800x600 TR2-RX 850W Neoprene sheet
  hide details
Reply
The 775 Legend
(13 items)


CPUMotherboardGraphicsRAM
E8600 @ 5.8 -- 1.736v Rampage Formula! GTX550ti Vmod! OCZ D9's @ 1200+ cas 5
OSMonitorPowerCase
XPEEEEEEEEEEEEEEEEEEEEEEE XGA 800x600 TR2-RX 850W Neoprene sheet
  hide details
Reply
post #3 of 7
Thread Starter
Quote:
Originally Posted by wumpus View Post
run them in parallel not series. problem solved.

How do I set that up. I have compression fittings on the input and output but im using fesser sli fittings between the cards
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
post #4 of 7
In series, short answer: no. Just draw it out...

How could fresh water come in the input of card 1, exit the output of card 1, go in the input of card 2, go out the output of card 2, go back to card 1 (and connect to what?), and exit a different output of card 1 than the one that is already outputting to card 2?

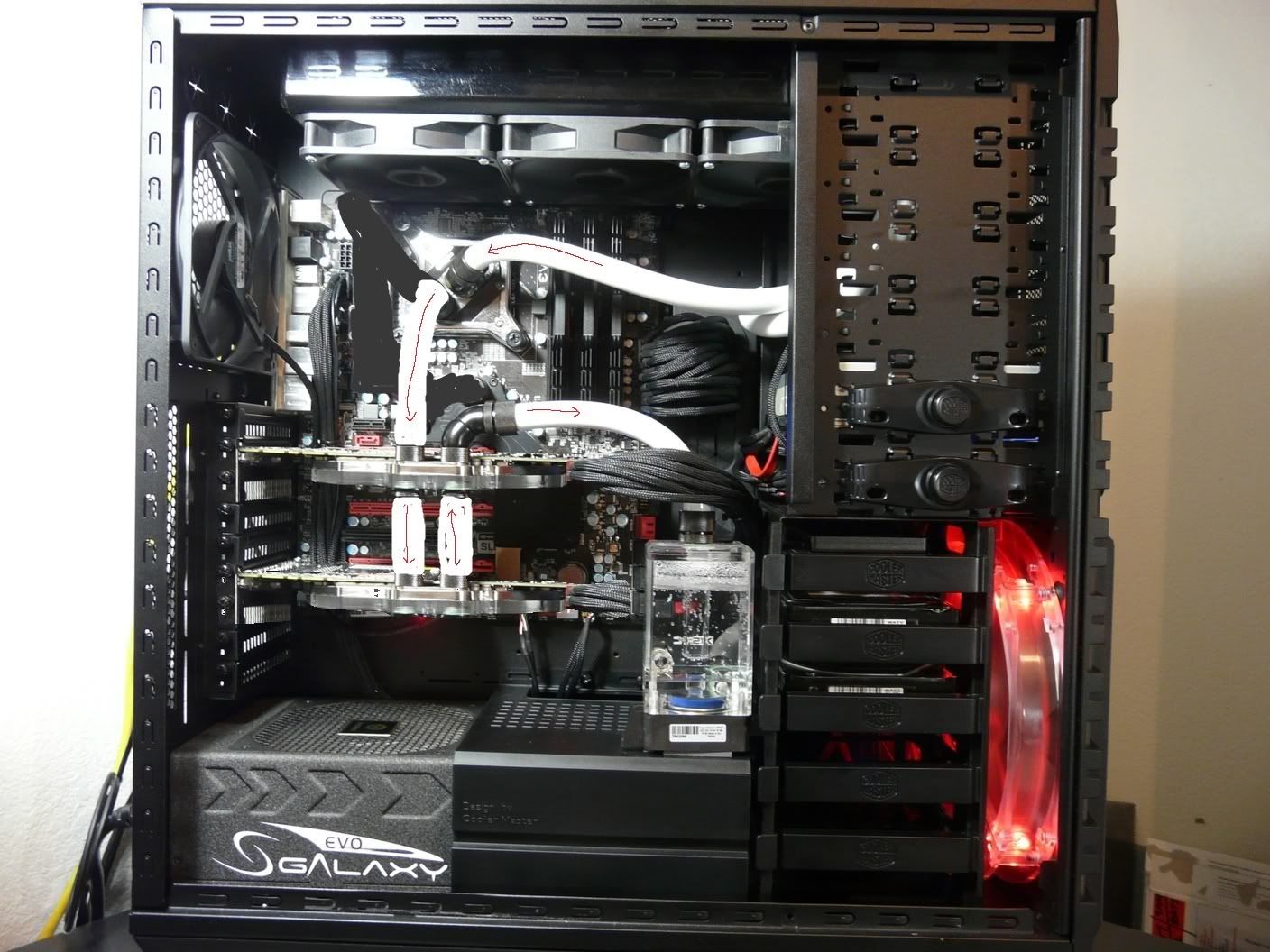

Parallel would work like this
stole this image from: http://www.overclock.net/water-cooli...deo-cards.html


Edited by Epitope - 5/31/11 at 8:10pm

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply
post #5 of 7
Thread Starter
Quote:
Originally Posted by Epitope View Post
In series, short answer: no. Just draw it out...

How could fresh water come in the input of card 1, exit the output of card 1, go in the input of card 2, go out the output of card 2, go back to card 1 (and connect to what?), and exit a different output of card 1 than the one that is already outputting to card 2?

Parallel would work like this
stole this image from: http://www.overclock.net/water-cooli...deo-cards.html

Yea thats what I want. But how does the water flow through the top card and not just bypass the block an and pass straight through
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
Server/Gaming Rig
(22 items)


CPUCPUMotherboardGraphics
Intel E5-2670 intel E5-2670 Asus Z9PE-D8 WS Visiontek R9 390
RAMHard DriveHard DriveHard Drive
8x4GB DDR3 1333 ECC Registered Toshiba 5TB X300 Seagate 4TB HGST 4TB
Hard DriveHard DriveHard DriveHard Drive
Sandisk 240GB Sandisk 480GB Samsung 830 128GB Toshiba 6TB X300
Hard DriveHard DriveOptical DriveOS
Toshiba 5TB X300 Toshiba 5TB X300 WH16NS40 Windows 10 Pro
MonitorMonitorKeyboardPower
Dell S1715H Dell u2311h blackwidow ultimate Kingwin Lazer platinum 1000w
CaseMouse
Corsair 800D Deathadder Chroma
  hide details
Reply
post #6 of 7
Quote:
Originally Posted by Blindsay View Post
Yea thats what I want. But how does the water flow through the top card and not just bypass the block an and pass straight through
It works through pressure. The water will follow the path of least resistance. Therefore half will go through block 1 and half through block 2 if they are identical blocks. (although I imagine block 1 would get slightly more flow than block 2 because it has less stuff it needs to flow through, but they should be essentially equal.)
Edited by Epitope - 5/31/11 at 8:21pm

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply
post #7 of 7
Thread Starter
Quote:
Originally Posted by Epitope View Post
It works through pressure. The water will follow the path of least resistance. Therefore half will go through block 1 and half through block 2 if they are identical blocks. (although I imagine card 1 would get slightly more flow than card 2 because it has less stuff it needs to flow through, but they should be essentially equal.)
Got ya. Ty for taking the time to explain
