My watercooled Silverstone RV02: An overview (PICS)

post #1 of 24
Thread Starter

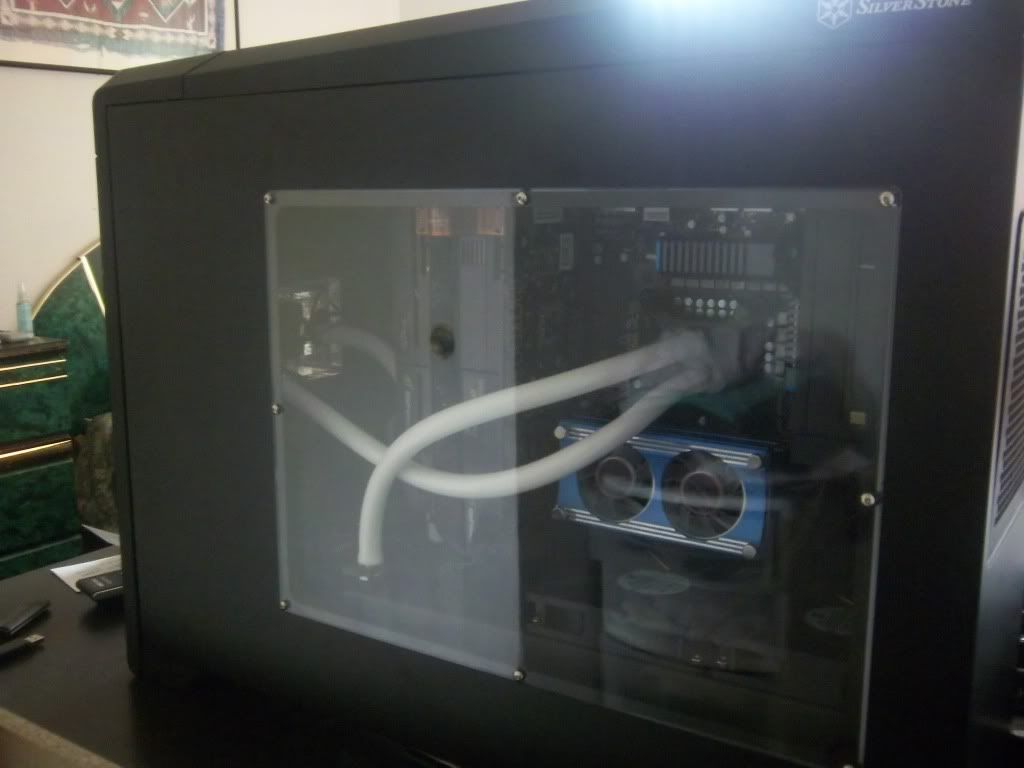

Finally finished my silverstone rig... most people said that this rig was not very optimized for water cooling... i went into it not knowing how true that statement was.

A few Gripes about the case:
- Almost everything is not screwless... that is, you need a screwdriver, screws, and maybe even more hardware depending on what you are doing.
- Looking at the pics online i thought it would be more spacious inside but it was not... very very tight fitting as you can see here with my RX 360mm rad.

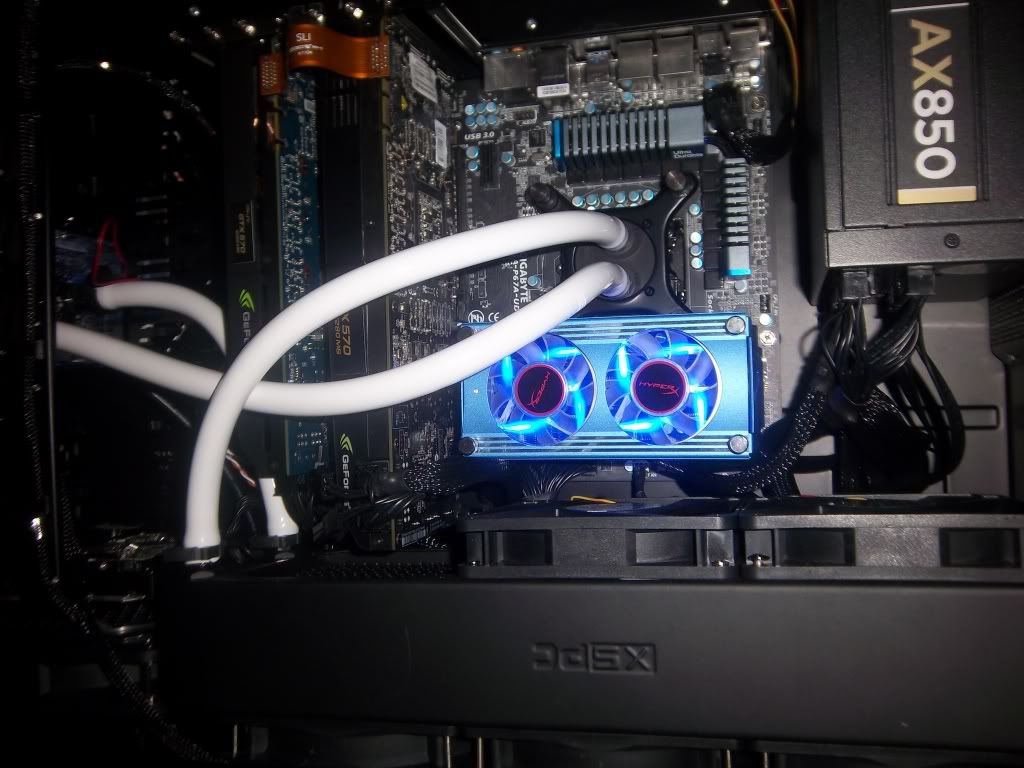

-As you can see here i have a good two inches before the rad fouls my ram


-Installation Is super TRICKY compared to my old haf 932 and thermaltake armor. (vague pictures and directions in the manual)

-For you that plan on putting in a rad in push pull... you will have to take out the entire fan assembly on two bottom stock 140mm fans directly bellow the motherboard tray. Afterwards if you lay fans flat on the surface of the case when you have a rad in push pull.. and if the fans are pushing airflow up from the bottom set of fans, it won't work since the fans will hit the metal and make a super loud noise and might break it. (the fans)

I had to resort to ghetto rigging ducktape and foam to the bottom of the fans so they had a slight seperation between them and the floor, so they actually worked

you can't use the included rad mounts since my rad is to thick in push pull or even just push.

-Another gripe is that if you have a longer video card it will not fit with a thick rad... (one of my graphics card is 10.5" long, a ref 570) and it looks like this:

as you can see very little space and it forced me to take out one of my pull fans.


The Good stuff i liked:
-It looks cool




-It would be great for a strictly air cooled rig only
-It's unique

All in all, i'm vain and i despised the look of my haf 932, and i think it was sort of worth it. However when it came to practicality and functionality (at least water cooling) the Haf wins. I am not even sure if i can add another rad in there for my gpu blocks since it is so cramped. I just wanted to let some of you guys who are thinking about water cooling this.
Edited by badatgames18 - 6/15/11 at 11:58am
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
post #2 of 24
very nice overview you have there. Makes me want one.
post #3 of 24
Thread Starter
Quote:
Originally Posted by thrasherht View Post
very nice overview you have there. Makes me want one.
Thanks

i'd seriously reconsider it if you plan on water cooling more than a cpu and mid range graphics cards.

The most you can fit is a 480mm rad if you cut out part of the case, and maybe a 120mm rad ontop.

I'd highly recommend it for air cooling though. (will work best with external exhaust video cards)
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
post #4 of 24
Quote:
Originally Posted by badatgames18 View Post
Thanks

i'd seriously reconsider it if you plan on water cooling more than a cpu and mid range graphics cards.

The most you can fit is a 480mm rad if you cut out part of the case, and maybe a 120mm rad ontop.

I'd highly recommend it for air cooling though. (will work best with external exhaust video cards)
Oh, I already have a case, and it is great for space. I have nothing but space in my case right now. The phantom is a champ for space.

I want to mount a 240mm rad in the bottom of my case.
post #5 of 24
Instead of shimming the fans off of the bottom of the case so that they do not drag couldn't you simply cut away the mesh at the bottom of the case? I cut my mesh out with a dremel in order to (attempt to) reduce wind noise.

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 950 3.2 GHz at 1.0V Asus Rampage III Formula Asus HD6870 6GB Mushkin Redline 1600MHz 6-8-6-24
Hard DriveOptical DriveCoolingOS
Samsung 250 GB SSD,2X 1TB F3, 250GB WD Blue, 1T... Asus BD Megahalems black chrome edition Windows 7 Professional
MonitorKeyboardPowerCase
2x Asus 24" Mac keyboard Enermax ERV950EWT Silverstone FT02
MouseMouse PadAudio
Logitech MX518 Steelseries I-2 Onkyo 1000W 7.1 surround through HDMI
  hide details
Reply
post #6 of 24
Thread Starter
Quote:
Originally Posted by Epitope View Post
Instead of shimming the fans off of the bottom of the case so that they do not drag couldn't you simply cut away the mesh at the bottom of the case? I cut my mesh out with a dremel in order to (attempt to) reduce wind noise.
... the thought came to mind yesterday but i was way to lazy to do it.

how did it turn out for you? and what did you use to cut it?

EDIT: whoops i see you used a dremel.. my eyes aren't working today -_-
was it difficult to do? i might try it
Edited by badatgames18 - 6/15/11 at 12:49pm
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
post #7 of 24
how are you liking that particular pump?
what kind of temps do you see?

thx
:metsyS
(13 items)


CPUMotherboardGraphicsRAM
950/1.275V/24X167 P6X58D P. 6870 CrossFire DDR3/12GB/668
Hard DrivePowerCase
C300/128GB AX850 PC-P50WB
  hide details
Reply
:metsyS
(13 items)


CPUMotherboardGraphicsRAM
950/1.275V/24X167 P6X58D P. 6870 CrossFire DDR3/12GB/668
Hard DrivePowerCase
C300/128GB AX850 PC-P50WB
  hide details
Reply
post #8 of 24
Thread Starter
Quote:
Originally Posted by SQLinsert View Post
how are you liking that particular pump?
what kind of temps do you see?

thx
well it's an okay pump but if i had more blocks.. or had a more restrictive rad i'd buy a mcp or something like it.

A RX 360 is way overkill for a single 2600k even at 5ghz.
I idle in the low 30s C, max load with ibt updated linpacks is mid to high 50sC.. but ibt avx always gets cpus super hot, and i don't see those temps unless i stress it with that.
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
Galbus
(21 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6700K 8M Skylake Quad-Core 4.0 G... ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z1... 3x MSI GeForce GTX 1080 Founders Edition  2x [Trident Z] F4-3600C16D-16GTZKW 16-16-16-36...
Hard DriveHard DriveOptical DriveOptical Drive
Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... Plextor M8Pe AIC 1TB PCI-Express 3.0 x4 MLC Int... LG BH16NS40 Blu-ray Card Reader: Rosewill RDCR-11003 - 3.5" 74-in-1...
CoolingOSMonitorKeyboard
Custom Ultra cool passive heatsink Microsoft Windows 10 Pro 64-bit ViewSonic XG2703-GS Black 27" 4ms (GTG) IPS G-S... Das Keyboard 4 Professional Mechanical Keyboard
PowerCaseMouseMouse Pad
CORSAIR AXi Series AX1500i Digital 1500W 80 PLU... Corsair Obsidian 750D Black Aluminum / Steel AT... Logitech G900 Chaos Spectrum Logitech
AudioOtherOtherOther
onboard Canon i-SENSYS LBP7680Cx (5089B014) Duplex 9600... Canon imageFORMULA DR-F120 (9017B002) 600 dpi U... Brother Personal Plain Paper Fax Machine, FAX-575
  hide details
Reply
post #9 of 24
Quote:
Originally Posted by badatgames18 View Post
well it's an okay pump but if i had more blocks.. or had a more restrictive rad i'd buy a mcp or something like it.

A RX 360 is way overkill for a single 2600k even at 5ghz.
I idle in the low 30s C, max load with ibt updated linpacks is mid to high 50sC.. but ibt avx always gets cpus super hot, and i don't see those temps unless i stress it with that.
thanks. i have that same pump and similar rad and have yet to set it up still waiting on parts for loop. nice to see you have low temps doesn't sound like overkill at all.

tubing looks great as well
:metsyS
(13 items)


CPUMotherboardGraphicsRAM
950/1.275V/24X167 P6X58D P. 6870 CrossFire DDR3/12GB/668
Hard DrivePowerCase
C300/128GB AX850 PC-P50WB
  hide details
Reply
:metsyS
(13 items)


CPUMotherboardGraphicsRAM
950/1.275V/24X167 P6X58D P. 6870 CrossFire DDR3/12GB/668
Hard DrivePowerCase
C300/128GB AX850 PC-P50WB
  hide details
Reply
post #10 of 24
Mad props for doing the unusual.
