[Official] GTX 580 Overclocking Club - Page 135

post #1341 of 3582
Thread Starter
thats gone change soon;) mi new chip got send out, ill get it tuesday and there is gone be mayhem;)
post #1342 of 3582

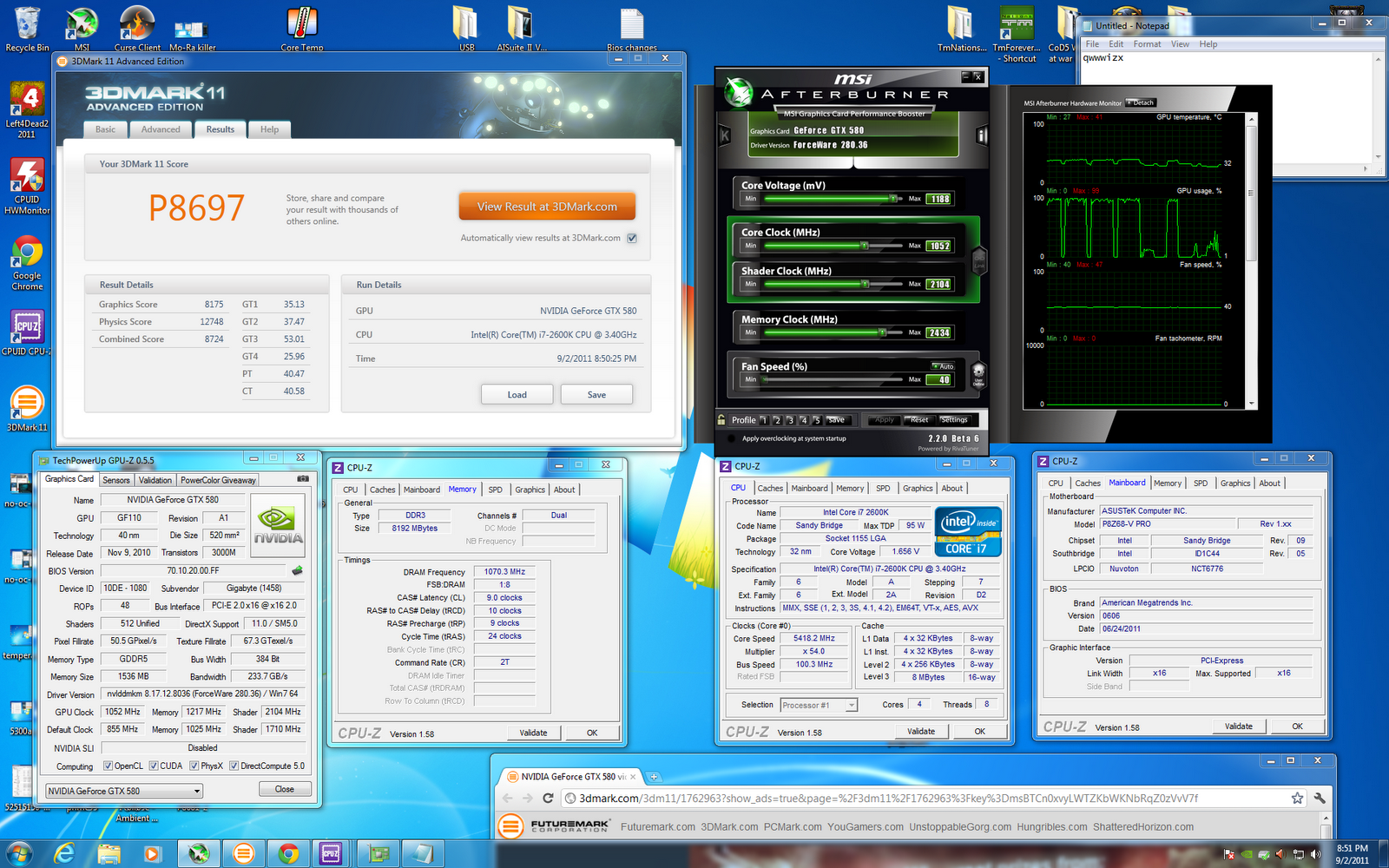

P8697 on single GTX580

[qwwwizx][Gigabyte GTX 580 SO][1052/2104/2434@1.188V][ID= 27C/LD= 41C]


CPU 5.418 Ghz
Multiplier x54
BCLK 100.3 Mhz
Vcore 1.635v
VSSIO 1.3v
CPU PLL 1.65v

To push it further, benchmarkwise
Disable all c-states
Disable turbo boost
Disable EIST, C1E etc.
Disable EPU
Disable TPU

I overclocked the machine, had it off for an hour, turned it on and hurried too bench it before it got to hot!!

I bought the damn 3dmark11 program today. No more not getting on the list because of difficult to read scores ;-)

Why am I getting low scores, compared to my pretty high clocks? I mean, I see people running 1020 (compared to my 1052), having scores equal to mine? Is it tweaking of drivers or?
Edited by qwwwizx - 9/2/11 at 12:07pm
Water-Rig
(25 items)

Chiller-Rig
(18 items)

work
(11 items)

CPUMotherboardGraphicsRAM
4770k MSI Z87 Mpower Max Gigabyte GTX 680 SOC Corsair Dominator GT2133 CL9-10-9-24-2T
RAMRAMHard DriveHard Drive
Corsair Platinum 2400 CL10-12-12-31-2T  Avexir Core Series 2800 CL12-14-14-35-2T OCZ Vertex 3 MaxIOPS  Corsair Force 2
OSMonitorKeyboardPower
Windows 7, x64 Ultimate BenQ 24" XL2410T (120hz) SteelSeries 6GV2 Silverstone Strider Gold 750w
CaseMouseMouse PadAudio
CM Stacker 830 SteelSeries Xai Laser RUSE Gaming SteelSeries Logitech G35
OtherOtherOtherOther
HWlabs Black-Ice SR-1 420 Radiator 3 x Prolimatech 140mm 3 x Silverstone Airpenetrator 141 3x Silverstone 121FM Fans (gfx)
OtherOtherOtherOther
1x Swifttech MCP35x + MCP35x reservoir  EK Water Blocks Nichel-Acetal Supr. HF CPU EK Water Blocks Copper-Plexi Supr. HF VGA 2m ½" tube
CPUMotherboardGraphicsRAM
P4 641 Asus Maximus Formula x38 Nvidia Geforce 7300LE Samsung PC5300
Hard DriveCoolingCoolingCooling
Seagate 8x TECs, 50x50x41mm (288 couple) 35v 2x Phobya Temperature displays Neoprene tube 19/13
CoolingCoolingCoolingCooling
4x Dominator GT waterblocks 1x EK CPU Supreme HF 2x EK DC 4 Pump  2x EK basic 250ml cylinder reservoirs
CoolingCoolingCoolingOS
1x HWlabs GTX360 Scythe 3000 rpm 120x38mm 3x Enermax 120mm fans  Windows XP
PowerCase
Enermax MaxRevo 1500W Fujitsu Siemens
  hide details
Reply
Water-Rig
(25 items)

Chiller-Rig
(18 items)

work
(11 items)

CPUMotherboardGraphicsRAM
4770k MSI Z87 Mpower Max Gigabyte GTX 680 SOC Corsair Dominator GT2133 CL9-10-9-24-2T
RAMRAMHard DriveHard Drive
Corsair Platinum 2400 CL10-12-12-31-2T  Avexir Core Series 2800 CL12-14-14-35-2T OCZ Vertex 3 MaxIOPS  Corsair Force 2
OSMonitorKeyboardPower
Windows 7, x64 Ultimate BenQ 24" XL2410T (120hz) SteelSeries 6GV2 Silverstone Strider Gold 750w
CaseMouseMouse PadAudio
CM Stacker 830 SteelSeries Xai Laser RUSE Gaming SteelSeries Logitech G35
OtherOtherOtherOther
HWlabs Black-Ice SR-1 420 Radiator 3 x Prolimatech 140mm 3 x Silverstone Airpenetrator 141 3x Silverstone 121FM Fans (gfx)
OtherOtherOtherOther
1x Swifttech MCP35x + MCP35x reservoir  EK Water Blocks Nichel-Acetal Supr. HF CPU EK Water Blocks Copper-Plexi Supr. HF VGA 2m ½" tube
CPUMotherboardGraphicsRAM
P4 641 Asus Maximus Formula x38 Nvidia Geforce 7300LE Samsung PC5300
Hard DriveCoolingCoolingCooling
Seagate 8x TECs, 50x50x41mm (288 couple) 35v 2x Phobya Temperature displays Neoprene tube 19/13
CoolingCoolingCoolingCooling
4x Dominator GT waterblocks 1x EK CPU Supreme HF 2x EK DC 4 Pump  2x EK basic 250ml cylinder reservoirs
CoolingCoolingCoolingOS
1x HWlabs GTX360 Scythe 3000 rpm 120x38mm 3x Enermax 120mm fans  Windows XP
PowerCase
Enermax MaxRevo 1500W Fujitsu Siemens
  hide details
Reply
post #1343 of 3582
Low score? You're thinking like I do, while that is a great score it just isn't enough...
Probably down to driver tweaks & OS stripping (non-essential services & drivers running).

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply
post #1344 of 3582
Some benches run better in XP right? Also, Tiny7 or something helps with scores IIRC.
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
post #1345 of 3582
Quote:
Originally Posted by csm725;14799038
Some benches run better in XP right? Also, Tiny7 or something helps with scores IIRC.

Yes, different benches can be very OS dependent. Tiny OS is usually better than full install, although i prefer to do my own OS stripping.

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply
post #1346 of 3582
Quote:
Originally Posted by FtW 420;14799028
Low score? You're thinking like I do, while that is a great score it just isn't enough...
Probably down to driver tweaks & OS stripping (non-essential services & drivers running).

Look at this? http://hwbot.org/submission/2200135_nkdfactory_3dmark11___performance_geforce_gtx_580_9015_marks

His graphics score is 8505, compared to my 8175, and he is only clocked 13MHz higher on his GPU.

13MHz = P330 points! It cant be right.

- Driver cheating?
- Or is it possible to do some serious tuning by modding the GTX bios?
- Or is it my system that suck a bit, when it comes to performance (also a possibility)
Water-Rig
(25 items)

Chiller-Rig
(18 items)

work
(11 items)

CPUMotherboardGraphicsRAM
4770k MSI Z87 Mpower Max Gigabyte GTX 680 SOC Corsair Dominator GT2133 CL9-10-9-24-2T
RAMRAMHard DriveHard Drive
Corsair Platinum 2400 CL10-12-12-31-2T  Avexir Core Series 2800 CL12-14-14-35-2T OCZ Vertex 3 MaxIOPS  Corsair Force 2
OSMonitorKeyboardPower
Windows 7, x64 Ultimate BenQ 24" XL2410T (120hz) SteelSeries 6GV2 Silverstone Strider Gold 750w
CaseMouseMouse PadAudio
CM Stacker 830 SteelSeries Xai Laser RUSE Gaming SteelSeries Logitech G35
OtherOtherOtherOther
HWlabs Black-Ice SR-1 420 Radiator 3 x Prolimatech 140mm 3 x Silverstone Airpenetrator 141 3x Silverstone 121FM Fans (gfx)
OtherOtherOtherOther
1x Swifttech MCP35x + MCP35x reservoir  EK Water Blocks Nichel-Acetal Supr. HF CPU EK Water Blocks Copper-Plexi Supr. HF VGA 2m ½" tube
CPUMotherboardGraphicsRAM
P4 641 Asus Maximus Formula x38 Nvidia Geforce 7300LE Samsung PC5300
Hard DriveCoolingCoolingCooling
Seagate 8x TECs, 50x50x41mm (288 couple) 35v 2x Phobya Temperature displays Neoprene tube 19/13
CoolingCoolingCoolingCooling
4x Dominator GT waterblocks 1x EK CPU Supreme HF 2x EK DC 4 Pump  2x EK basic 250ml cylinder reservoirs
CoolingCoolingCoolingOS
1x HWlabs GTX360 Scythe 3000 rpm 120x38mm 3x Enermax 120mm fans  Windows XP
PowerCase
Enermax MaxRevo 1500W Fujitsu Siemens
  hide details
Reply
Water-Rig
(25 items)

Chiller-Rig
(18 items)

work
(11 items)

CPUMotherboardGraphicsRAM
4770k MSI Z87 Mpower Max Gigabyte GTX 680 SOC Corsair Dominator GT2133 CL9-10-9-24-2T
RAMRAMHard DriveHard Drive
Corsair Platinum 2400 CL10-12-12-31-2T  Avexir Core Series 2800 CL12-14-14-35-2T OCZ Vertex 3 MaxIOPS  Corsair Force 2
OSMonitorKeyboardPower
Windows 7, x64 Ultimate BenQ 24" XL2410T (120hz) SteelSeries 6GV2 Silverstone Strider Gold 750w
CaseMouseMouse PadAudio
CM Stacker 830 SteelSeries Xai Laser RUSE Gaming SteelSeries Logitech G35
OtherOtherOtherOther
HWlabs Black-Ice SR-1 420 Radiator 3 x Prolimatech 140mm 3 x Silverstone Airpenetrator 141 3x Silverstone 121FM Fans (gfx)
OtherOtherOtherOther
1x Swifttech MCP35x + MCP35x reservoir  EK Water Blocks Nichel-Acetal Supr. HF CPU EK Water Blocks Copper-Plexi Supr. HF VGA 2m ½" tube
CPUMotherboardGraphicsRAM
P4 641 Asus Maximus Formula x38 Nvidia Geforce 7300LE Samsung PC5300
Hard DriveCoolingCoolingCooling
Seagate 8x TECs, 50x50x41mm (288 couple) 35v 2x Phobya Temperature displays Neoprene tube 19/13
CoolingCoolingCoolingCooling
4x Dominator GT waterblocks 1x EK CPU Supreme HF 2x EK DC 4 Pump  2x EK basic 250ml cylinder reservoirs
CoolingCoolingCoolingOS
1x HWlabs GTX360 Scythe 3000 rpm 120x38mm 3x Enermax 120mm fans  Windows XP
PowerCase
Enermax MaxRevo 1500W Fujitsu Siemens
  hide details
Reply
post #1347 of 3582
Curiously, how would you go about stripping Win7? Disabling services and such?
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
post #1348 of 3582
Quote:
Originally Posted by qwwwizx;14799275
Look at this? http://hwbot.org/submission/2200135_nkdfactory_3dmark11___performance_geforce_gtx_580_9015_marks

His graphics score is 8505, compared to my 8175, and he is only clocked 13MHz higher on his GPU.

13MHz = P330 points! It cant be right.

- Driver cheating?
- Or is it possible to do some serious tuning by modding the GTX bios?
- Or is it my system that suck a bit, when it comes to performance (also a possibility)

Different tweaks, + that memory OC & timings can make a difference.
Quote:
Originally Posted by csm725;14799438
Curiously, how would you go about stripping Win7? Disabling services and such?

I used rtlite for win 7 & nlite for vista, allows removing all the bloatware & unneeded stuff while automating the install. Then in device manager you can set the things you don't use to disabled & things you may use to manual, etc.

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 990x/3930k/3770k/4770k GB x58a-OC/Asus RIVE/x79 gd65/z77 mpower/z77 MV... gtx480s/gtx580s/7970s/680s/Titan Hyper/PSC/BBSE/Hynix/Samsung
Hard DriveOptical DriveCoolingOS
HDDs/SSDs DVD Air/water/phase/copper pot Windowz
MonitorKeyboardPowerCase
samsung 2320 Razer Lycosa ax1200 carboard box
Mouse
Trackball
  hide details
Reply
post #1349 of 3582
Windows 7 is a good benching area for SSD users, since the TRIM function provides a good performance boost.

There are a lot of ways to make W7 a more benchmark friendly environment.

I personally have experienced that the following tweaks reslly impact on the scores.

1.)closing all other processes when benching and giving your benchmark exe the highest priority in the taskmanger

2.)Displacing the page files of your main disk to other drives.

3.)Disabling all services and Windows search

4.)Of course disabling dwm and aero exe + all graphical enhancements , but Vantage and 3DMark11 do that automatically these days.

5.)Turning system protection off also brings something to the table.

This is a guide how to set up an SSD and do Windows 7 tweaks in order to make it faster but all the steps are also greatly benefitial to benchmarking of course:)

http://blog.corsair.com/?p=3989
Check it out:thumb:
Project Rapture
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.7 GHZ Gigabyte X58-OC MSI GTX 580 Lightning @ 1GHZ 12 GB Kingston Hyper X @ 2200 MHZ
Hard DriveOptical DriveOSMonitor
SSD Corsair F40 DVD,DVR,Blue Ray Windows 7 Ultimae 64 bit Sony Bravia Full HD 42"
PowerCaseMouse
Revolution +85 1050 Watt Little Devil V8 White Crysis Edition Microsoft
  hide details
Reply
Project Rapture
(13 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.7 GHZ Gigabyte X58-OC MSI GTX 580 Lightning @ 1GHZ 12 GB Kingston Hyper X @ 2200 MHZ
Hard DriveOptical DriveOSMonitor
SSD Corsair F40 DVD,DVR,Blue Ray Windows 7 Ultimae 64 bit Sony Bravia Full HD 42"
PowerCaseMouse
Revolution +85 1050 Watt Little Devil V8 White Crysis Edition Microsoft
  hide details
Reply
post #1350 of 3582
Why not kill explorer too?
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
Turbulence
(19 items)


CPUMotherboardGraphicsRAM
Intel i5-2500k 4.4GHz Asus P8P67 Pro 3.1 HIS HD 7870 2GB G.SKILL Ripjaws X 16GB 1600MHz
Hard DriveHard DriveOptical DriveCooling
Crucial m4 128GB Samsung Spinpoint F3 1TB Asus DRW-24B1ST Noctua NH-D14
CoolingOSMonitorKeyboard
Accelero Twin Turbo II Windows 7 Professional N Dell U2311H Realforce 87U White 55cN
PowerCaseMouseMouse Pad
Corsair TX650V2 Fractal Design R3 Black Pearl Razer DeathAdder SteelSeries 4HD
AudioAudioAudio
Audinst HUD-mx1 Beyerdynamic DT990 Premium 600 Ω Recabled M-Audio AV40
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: NVIDIA
Overclock.net › Forums › Graphics Cards › NVIDIA › [Official] GTX 580 Overclocking Club
