Lian Li V351 Watercooled

Hello!

I'm a little new here and sorry for my English so bad but I'm French ^ ^

I wanted to present a Mod on the basis of a small box μATX, the LL V351.

Unlike my big Mod Previous (where it was easy to cram lots of stuff in water), I say that for once I would set myself a challenge: put a big WC and big stuff in a small box!

So I chose a boital, the Lian Li V351!
The built-config:

- Rampage II Gene
- I7 920
- Sli GTX 480
- Corsair HX 650
- 3x2 GB Gskill 1600mhz

For water:

- 2 240 rads (yes, two rads ^^) slim docmicro
- Pump XSPC Dual Bay Res 750 H2O
- Bitspower Fittings 13/19
- Masterkleer 13/19



- Lian Li PC-V351










- I7 920 D0







- ASUS RAMPAGE 2 GENE









- Corsair HX650








- EVGA GTX 480 Superclocked (X2)









- WaterBlock VGA EK-FC480 GTX NICKEL ACETAL NVidia GTX480 (X2)







- Pump XSPC Dual Bay Res 750 H2O









- MagiCool SLIM DUAL 240









- MagiCool SLIM DUAL 240










- Watercool HK CPU LGA1366 Rev. 3.0 LT







- Bitspower fittings 13mm

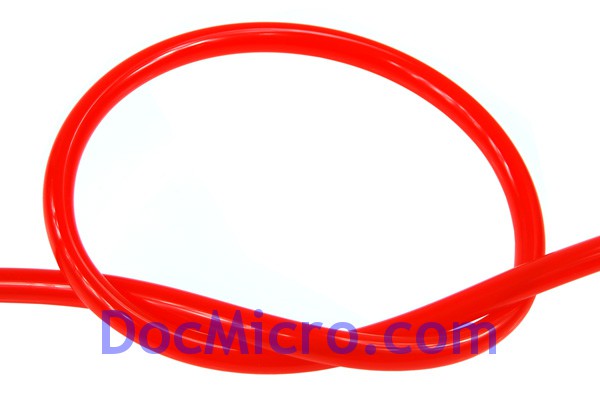

- MasterKleer 13/19 rouge








----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Here are the steps and the final result:


To begin, I disassemble everything!



And I fixed the first rad:





I install the fan:






I set up the 2nd rad to see the changes to do on the DVD player/drives cage :







Here is the result after some CUT :















Then to breathe all that, I put the grids on the top of the box :

With one :



With two :





Photos of the box with 2 rads:







Here with all the config up and a single GTX 480:











Then changes the tubing made ​​(since I shifted the CG of a slot to be ready to welcome the new CG) + sheath + cable management is made :






Here is a small bench in Extreme and temperatures that go with knowing that it is 24 degrees in my office :



I am satisfied with the result!

I await your advice gentlemen




(postscript: If you want me to show my previous achievements on other boxes, do not hesitate to ask me )

It does not come from the picture: you're right, the power supply is heavy and sinks...

Anyway, thank you

The fans are Scythe Slip Stream 120 mm Slim : http://www.scythe-usa.com/product/ac...12_detail.html

lol

This is what we always tells me ... but this is not true

Proof :




But it's true that I had more room when i do modding on my Thermaltake Mozart TX

Hi guys!

I decided to make one small change.

I want that one can see in the case Watercooling once the door closed!

So I created a cutting:



Then I cut and added a plate of Plexiglas:



Tadaaa

Thanks !

You right : I was just thinking put this on cuts :
