Help with oC i am a nooby

post #1 of 9
Thread Starter
Hello i am new to the forum.
CPU Intel core 2 duo E6550
RAM 4gb 667mhz
MOTHERBOARD GIGABYTE GA-P31-DS3L
you should be able to see my specs bellow but here are some more technical info's

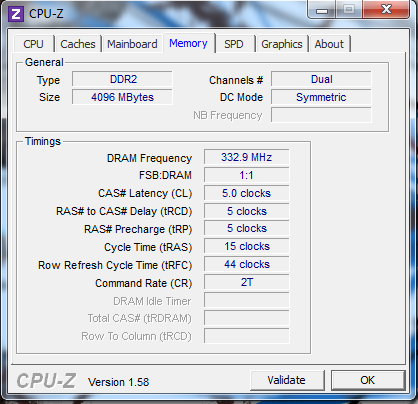

my ram mhz is **** no doubt about it

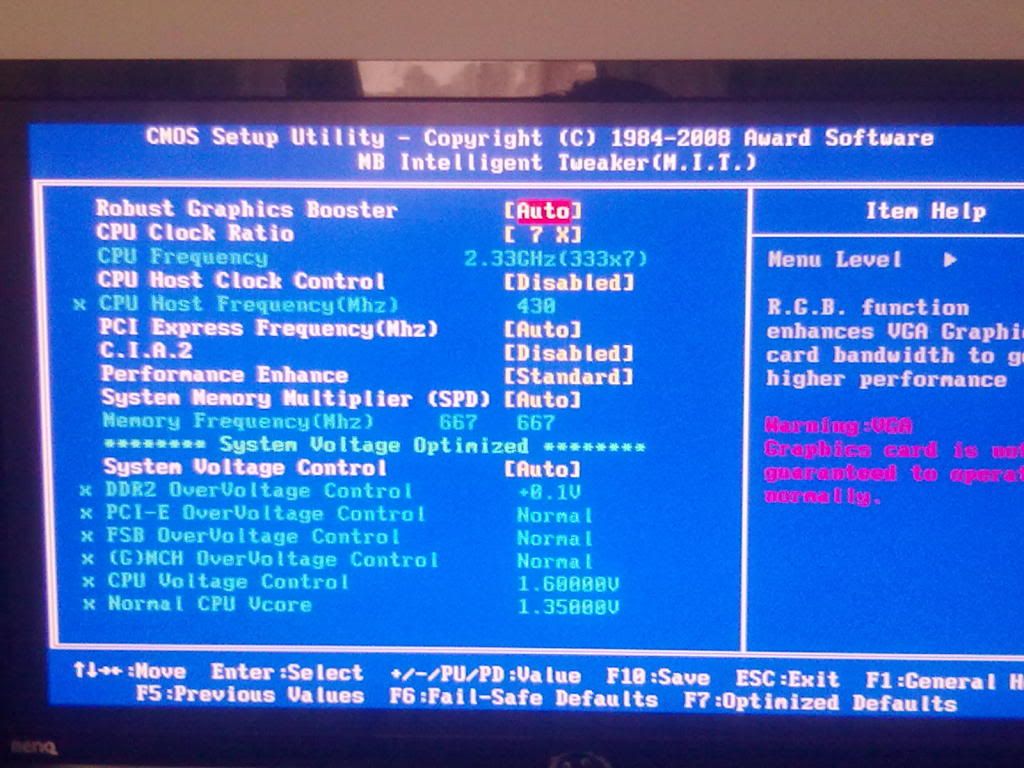

here is the my bios

my highest multiplier is 7
so i know what is overclock or i wouldnt be here but every time i just change frequency my cpu crashes on benchmarks so it means i am doing it wrong, also i didnt want to take the risk of changing the voltages.
so i need professional help please
appreciat the help
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
post #2 of 9
If it's unstable, add more CPU vcore. If you don't want to add vcore, then lower the CPU Host Frequency. Also keep in mind when you increase this number it's going to also increase the frequency of the memory.
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
post #3 of 9
Thread Starter
sorry for being noob but ... what ? ... whats the vcore ?, the voltage for the cores ???
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
post #4 of 9
Quote:
Originally Posted by .::Smurf::. View Post
sorry for being noob but ... what ? ... whats the vcore ?, the voltage for the cores ???
The thing in your bios at the bottom "Normal CPU Vcore". And yes vcore is the voltage applied to the CPU.
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
Beast
(14 items)

Dell XPS Faptop
(8 items)

Alura :)
(11 items)

CPUMotherboardGraphicsRAM
i7 4790k Asus Z97 Pro WIFI-AC Sapphire Nitro Radeon R9 Fury Tri-X OC+  G.Skill 4 x 8GB F3-2133C9D-16GXH
Hard DriveOptical DriveCoolingOS
2 x Intel 730 480GB SSD in RAID 0 Asus DRW-24B1ST/BLK/B/AS Noctua NH-D15 Winblows 10 Pro x64
MonitorKeyboardPowerCase
Pixio PX277 Logitech G510 Seasonic SS-660XP2 Fractal Design R4 Blackout
MouseMouse Pad
Logitech G500 Xtrac Ripper
CPUMotherboardGraphicsRAM
Core 2 Duo T5250 @ 1.5ghz Dell 0N6705 Mobile Intel 965 Express 2 x 2GB Hyundai/Kingston DDR2 533mhz
Hard DriveOptical DriveOSMonitor
OCZ Summit 60GB SSD Slot Load DVD-RW Windows 7 Ultimate x64 13.3 inch 1280x800
CPUMotherboardGraphicsRAM
i5 2500k Asus P8Z68-V Pro MSI R7970 Lightning BE 2 x 4GB G.Skill Ripjaws 2133mhz
Hard DriveOptical DriveCoolingOS
Mushkin Enhanced Chronos 240GB and WD Black 1TB Asus DRW-24B1ST Cooler Master Hyper 212 EVO Windows 7 Ultimate x64
MonitorPowerCase
Hannspree 24 inch Thermaltake Tough Power TP-750P 750W Gold Cooler Master HAF 932
  hide details
Reply
post #5 of 9
Thread Starter
ok but when i put the voltage control to manual from auto it does not let me change the vcore only the "CPU voltage control" and the rest.
and say i change the cpu frequency to 429mhz which would make it to 3ghz what voltages should i change it to ?
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
post #6 of 9
Sadly, you probably won't get far. The reason is, you have a CPU with a lower multiplier plus a CPU with a stock FSB that is what the motherboard is rated at and won't go too much higher than. In other words, you have very little headroom.

Those chipsets were okay for taking the 2GHz and under E2xx0 series CPUs with an 800MHz FSB to ~3GHz, but that's different (they had lower starting speeds/FSB and higher multipliers). I had an 800MHz FSB CPU (E2160) on a Gigabyte GA-G31-S2L board and got it to 3GHz, but a 1333MHz FSB CPU like you have (only mine was an E8400), it runs stock for this reason. I think I may have gotten it to boot at 3.6GHz (400MHz/1600MHz FSB), but I'm not entirely sure, and if so, I didn't test it or use it long-term to see how it worked that way. Temperatures will be up at increased speeds on that Northbridge, especially if you have the small and tiny passive square heatsink those usually came with. It runs warm stock as it is. So, I just left mine stock after the latter CPU was put in it.

A few things...

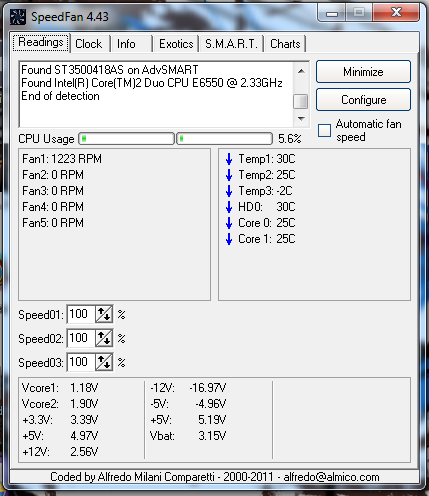

Your CPU-Z screen shows low voltage. this is good for that low clock speed, but you'll need more for overclocking. Just please don't tell me you're giving it the 1.6V I see in the BIOS. That's pretty dangerous for that CPU long-term. Try like ~1.35V-1.4V. You probably shouldn't need more until past ~3GHz.

Also, the Northbridge voltage, labeled (G)MCH Voltage, may need raised, but don't go crazy due to temperatures. I'd give it +0.1V or so at most.

Manually set your PCI Express Frequency to 100MHz (which is stock). Sometimes it goes up when you overclock, and it can lead to instability.
Edited by Princess Garnet - 7/21/11 at 1:38pm
post #7 of 9
Thread Starter
Quote:
Originally Posted by Princess Garnet View Post
Sadly, you probably won't get far. The reason is, you have a CPU with a lower multiplier plus a CPU with a stock FSB that is what the motherboard is rated at and won't go too much higher than. In other words, you have very little headroom.

Those chipsets were okay for taking the 2GHz and under E2xx0 series CPUs with an 800MHz FSB to ~3GHz, but that's different (they had lower starting speeds/FSB and higher multipliers). I had an 800MHz FSB CPU (E2160) on a Gigabyte GA-G31-S2L board and got it to 3GHz, but a 1333MHz FSB CPU like you have (only mine was an E8400), it runs stock for this reason. I think I may have gotten it to boot at 3.6GHz (400MHz/1600MHz FSB), but I'm not entirely sure, and if so, I didn't test it or use it long-term to see how it worked that way. Temperatures will be up at increased speeds on that Northbridge, especially if you have the small and tiny passive square heatsink those usually came with. It runs warm stock as it is. So, I just left mine stock after the latter CPU was put in it.

A few things...

Your CPU-Z screen shows low voltage. this is good for that low clock speed, but you'll need more for overclocking. Just please don't tell me you're giving it the 1.6V I see in the BIOS. That's pretty dangerous for that CPU long-term. Try like ~1.35V-1.4V. You probably shouldn't need more until past ~3GHz.

Also, the Northbridge voltage, labeled (G)MCH Voltage, may need raised, but don't go crazy due to temperatures. I'd give it +0.1V or so at most.

Manually set your PCI Express Frequency to 100MHz (which is stock). Sometimes it goes up when you overclock, and it can lead to instability.
Thanks ill try this now, and my CPU voltage at 1.6 is at its stock ... O.o ?
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
post #8 of 9
Thread Starter
thanks for the help managed to oc it to 2.8 ghz stable .. for now with 40degrees on load il keep pushing on
Edited by .::Smurf::. - 7/22/11 at 2:56am
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Intel Core 2 Duo Gigabyte GA-P31-DS3L Ati 5750 4gb DDR2 600mhz
Hard DriveOSMonitorKeyboard
500gb baracuda 7200.12 win 7 22" BenQ LED random one :D
PowerCaseMouseMouse Pad
550w undebranded EzCooL with CSS mod; side window Microsoft Sidewinder x5 Non
  hide details
Reply
post #9 of 9
Manually lower your voltage. 1.6V is not healthy for it for too long. Your BIOS shows 1.35V as the normal.
