GPU not folding at 100% in v.7

post #1 of 12
Thread Starter
Hello all, Yesterday I just got done putting together my new 2600k build and now have started to fold with it. However I have hit one little snag. I am using the folding@home version 7 beta and want to have my CPU and GPU fold at the same time. My CPU is maxed out at 100% while my GPU is only hovering around 32%. When I pause my SMP folding the GPU shoots up to 100%. What is the problem here? Is it a bottleneck? My GPU is a ATI 5770. Thanks!
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
post #2 of 12
Since you have an ATI card you need to free up a CPU core for it to run properly. You only have two cores and the GPU needs to use one so you should be running under unicore not SMP.

I'm not familiar with the v7 client (I use the 6.34 client) but check this post: http://www.overclock.net/12918157-post3.html

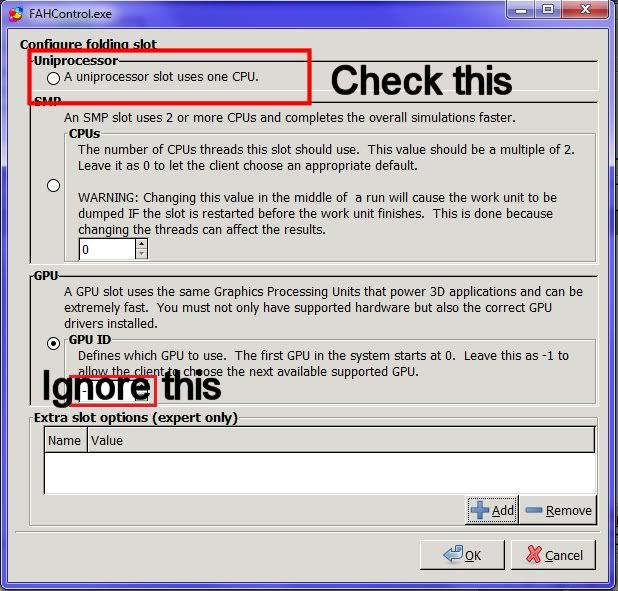

You should be able to highlight the SMP client and click "Configure" and check the circle under Uniprocessor.

(Image borrowed from zodac's thread and edited by me)

Edited by Philistine - 7/23/11 at 12:48am
post #3 of 12
Thread Starter
Quote:
Originally Posted by Philistine View Post
Since you have an ATI card you need to free up a CPU core for it to run properly. You only have two cores and the GPU needs to use one so you should be running under unicore not SMP.

I'm not familiar with the v7 client (I use the 6.34 client) but check this post: http://www.overclock.net/12918157-post3.html

You should be able to highlight the SMP client and click "Configure" and check the circle under Uniprocessor.

(Image borrowed from zodac's thread and edited by me)
Hmm, that didn't seem to do the trick. GPU is still hovering around 32%.
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
post #4 of 12
How many CPU cores is the client using? I may have updated my post while you were reading it.
post #5 of 12
Thread Starter
Quote:
Originally Posted by Philistine View Post
How many CPU cores is the client using? I may have updated my post while you were reading it.
If I go with the uniprocessor slot, will it void me from folding smp wu's or bigadv wu's and receiving bonus points from them?
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
post #6 of 12
Yes. But if you want to fold on the GPU at 100% it needs a CPU core.

A perfect excuse to upgrade!

Try folding on unicore and the GPU and see what PPD you get over the current configuration.
post #7 of 12
Thread Starter
Quote:
Originally Posted by Philistine View Post
Yes. But if you want to fold on the GPU at 100% it needs a CPU core.

A perfect excuse to upgrade!

Try folding on unicore and the GPU and see what PPD you get over the current configuration.
GAH! I just upgraded! I'll probably stick with my current config because I am pretty sure my 2600k folding smp and bigadv can net me more ppd than my 5770. But I might tinker with it in the future. Thank you for your help!
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
post #8 of 12
I didn't realize you had a 2600k (your sig said Phenom II x2 955). Follow what I said above but instead of selecting unicore change the SMP to "3". That way you are using 3 cores for the SMP and a leaving a core for the GPU.

(I thought it was kind of wierd for you to mention -bigadv with a x2 955 in your sig)
Edited by Philistine - 7/23/11 at 1:22am
post #9 of 12
Thread Starter
Quote:
Originally Posted by Philistine View Post
I didn't realize you had a 2600k (your sig said Phenom II x2 955). Follow what I said above but instead of selecting unicore change the SMP to "3". That way you are using 3 cores for the SMP and a leaving a core for the GPU.

(I thought it was kind of wierd for you to mention -bigadv with a x2 955 in your sig)
Yeah, sorry about that. I upgraded it last night and forgot to update my system. It's all updated now.
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
post #10 of 12
Thread Starter
Quote:
Originally Posted by Philistine View Post
I didn't realize you had a 2600k (your sig said Phenom II x2 955). Follow what I said above but instead of selecting unicore change the SMP to "3". That way you are using 3 cores for the SMP and a leaving a core for the GPU.

(I thought it was kind of wierd for you to mention -bigadv with a x2 955 in your sig)
Sorry for the double post. I just changed the SMP to "3" and the GPU is still going at around 32%. Is this because the 2600k won't switch over to 3 cores until my current wu is finished? I am 62% into the smp wu right now.
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.6GHz 1.360V ASUS P8Z68-V Pro EVGA GTX 970 G.Skill Ripjaws 8GB (2x4GB)
Hard DriveHard DriveOSMonitor
WD 640GB Blue Kingston 120GB SSD Windows 7 Professional Dell U2410
PowerCase
Antec Earthwatts EA650 Cooler Master CM690
  hide details
Reply
