noob at RAM overclocking (pics!)

post #1 of 4
Thread Starter
I have CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ8GX3M2A1600C8 That are supposed to be 1600MHz and 8-8-8-24 (http://www.newegg.com/Product/Produc...82E16820233147)

but my motherboard is running it at 1333mhz and 9-9-9-24 by default.

I've never overclocked RAM or adjusted its timings before, what do I have to adjust to make it run proper?






A cookie to anyone who can help!

Cheers.
Flag Ship
(16 items)


CPUMotherboardGraphicsRAM
Sandy Bridge 2600k ASRock Extreme6 Z77 EVGA GTX680 Patriot Viper 3 Intel Extreme Masters 2133MHz
Hard DriveHard DriveOptical DriveCooling
WD Caviar Black 1TB 7200rpm OCZ Agility 2 LG 12x BD-ROM Cooler Master Hyper 212 Evo
OSMonitorKeyboardPower
Windows 7 x64 Asus 23.6" LED Logitech G110 Rosewell 1000w
CaseMouseMouse PadAudio
NZXT Switch 810 (White) Logitech G9x Razer Vespula Creative Sound Blaster Titanium
  hide details
Reply
Flag Ship
(16 items)


CPUMotherboardGraphicsRAM
Sandy Bridge 2600k ASRock Extreme6 Z77 EVGA GTX680 Patriot Viper 3 Intel Extreme Masters 2133MHz
Hard DriveHard DriveOptical DriveCooling
WD Caviar Black 1TB 7200rpm OCZ Agility 2 LG 12x BD-ROM Cooler Master Hyper 212 Evo
OSMonitorKeyboardPower
Windows 7 x64 Asus 23.6" LED Logitech G110 Rosewell 1000w
CaseMouseMouse PadAudio
NZXT Switch 810 (White) Logitech G9x Razer Vespula Creative Sound Blaster Titanium
  hide details
Reply
post #2 of 4
Change the RAM speed divider-leave the timings on auto first.
Amelia
(13 items)

Professional
(13 items)

RCPC#1
(17 items)

CPUMotherboardGraphicsRAM
Phenom II X6 1100t MSI 890FX GD65 MSI Radeon HD5670 GSkill RipjawsX DDR3 PC3 12800 2x4GB CL8
Hard DriveOptical DriveCoolingOS
WD Black 1TB SATA III Samsung BD Zalman 9900MAX Windows 7 64 Professional
MonitorKeyboardPowerCase
AOC 22" LED Logitech Kingwin Lazer Platinum 500w Fractal Design R3
Other
Samsung 470 SSD 128GB
CPUMotherboardGraphicsRAM
AMD Phenom II X6 960T Asus M4A88T-VEVO Asus Strix R7 370 SuperTalent Perfomance
RAMHard DriveHard DriveOptical Drive
GSkill Snipers Monster Daytona Seagate Barracuda 500GB 7,200 RPM 16Mb cache Memorex DVD/RW
CoolingOSMonitorKeyboard
Corsair H60 Windows 8N IBM 9494 19" LCD IBM
PowerCaseMouseMouse Pad
Corsair GS500 In Win H-Frame Wolfking OCZ Behemoth
Audio
JBL Creature
  hide details
Reply
Amelia
(13 items)

Professional
(13 items)

RCPC#1
(17 items)

CPUMotherboardGraphicsRAM
Phenom II X6 1100t MSI 890FX GD65 MSI Radeon HD5670 GSkill RipjawsX DDR3 PC3 12800 2x4GB CL8
Hard DriveOptical DriveCoolingOS
WD Black 1TB SATA III Samsung BD Zalman 9900MAX Windows 7 64 Professional
MonitorKeyboardPowerCase
AOC 22" LED Logitech Kingwin Lazer Platinum 500w Fractal Design R3
Other
Samsung 470 SSD 128GB
CPUMotherboardGraphicsRAM
AMD Phenom II X6 960T Asus M4A88T-VEVO Asus Strix R7 370 SuperTalent Perfomance
RAMHard DriveHard DriveOptical Drive
GSkill Snipers Monster Daytona Seagate Barracuda 500GB 7,200 RPM 16Mb cache Memorex DVD/RW
CoolingOSMonitorKeyboard
Corsair H60 Windows 8N IBM 9494 19" LCD IBM
PowerCaseMouseMouse Pad
Corsair GS500 In Win H-Frame Wolfking OCZ Behemoth
Audio
JBL Creature
  hide details
Reply
post #3 of 4
My corsair RAM registered as 1333 too. You shouldn't need to mess with the timings at all just to get it to 1600, or at least I didn't. I would try just setting it to 1600mhz without adjusting the timings and see what happens.
Deathprimus
(13 items)


CPUMotherboardGraphicsRAM
i7-950 4.0Ghz @1.24v ASUS Sabertooth X58 ASUS 69502GB unlocked Corsair XMS3 6GB
Hard DriveOptical DriveOSMonitor
WD Caviar Black 500GB LG Super multi Blue Win7 64bit ASUS 23" VH236
PowerCase
Corsair TX850 Cooler Master HAF 932
  hide details
Reply
Deathprimus
(13 items)


CPUMotherboardGraphicsRAM
i7-950 4.0Ghz @1.24v ASUS Sabertooth X58 ASUS 69502GB unlocked Corsair XMS3 6GB
Hard DriveOptical DriveOSMonitor
WD Caviar Black 500GB LG Super multi Blue Win7 64bit ASUS 23" VH236
PowerCase
Corsair TX850 Cooler Master HAF 932
  hide details
Reply
post #4 of 4
You have to set the timings and speed manually.

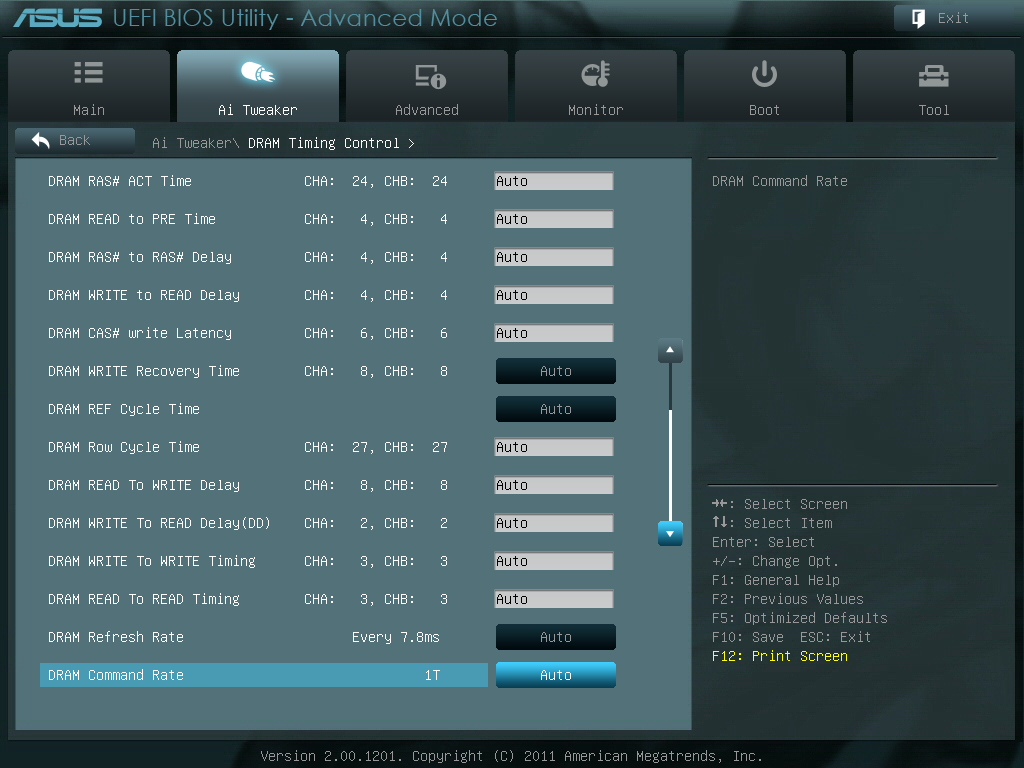

In the first picture, set the first 4 values to 8-8-8-24. Set the row cycle time (currently 27) to 32. Set the command rate to 2T *IF* you are unstable, it may stabilize things. Make sure the RAM frequency (you might need to go to another page to set this) and multiplier is set to x8/1600Mhz.
