post #21 of 30
Quote:
Originally Posted by Phry View Post
I found your post and all the info about the CCC mod thingy. I copied the 6950 info, made it into reg file. Then just double clicked it and added it to the Registry. In the /0000 folder I can see it in there, so it's good.

But... CCC still has the same limits, even after restart.
You've gotta drill down and confirm that whichever XXXX folder has the proper settings inside. The reason there could be a buncha XXXX folders, ie. 0000, 0001, 0002 is because one gets created each time a card is inserted. Thus you have to make sure the XXXX folder you're modding actually references a real card.
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
post #22 of 30
Thread Starter
Quote:
Originally Posted by tsm106 View Post
You've gotta drill down and confirm that whichever XXXX folder has the proper settings inside. The reason there could be a buncha XXXX folders, ie. 0000, 0001, 0002 is because one gets created each time a card is inserted. Thus you have to make sure the XXXX folder you're modding actually references a real card.
There we go, I did it on 0001, I forgot that I moved my GPU to a different slot on my Mobo. Thanks!

Now I just gotta figure out how to use RBE, haha.
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
post #23 of 30
Thread Starter
Okay, every time I do something in RBE then flash my card, I end up getting a BSOD 0003B when I start up my computer. Does something look wrong in these settings?

Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
post #24 of 30
Quote:
Originally Posted by Phry View Post
Okay, every time I do something in RBE then flash my card, I end up getting a BSOD 0003B when I start up my computer. Does something look wrong in these settings?

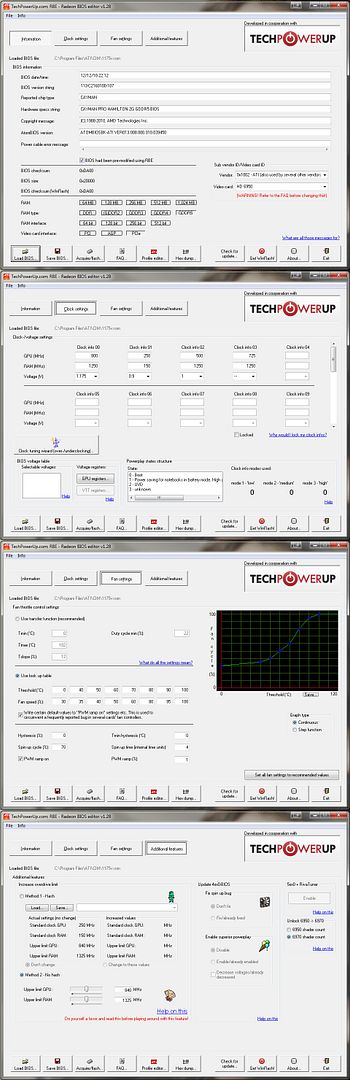

Do not touch anything except unlocking the shaders.

Then go to Clock Settings, gpu registers, a window opens with 4 options. 3rd option from the left, default is 1.065 or 1.1. Change this to whatever you want... 1.2 is a good place to start, plenty of voltage while still very safe. Click ok and save as unlock.rom or whatever...

That's it.


*If you're on air, you can allow RBE to run a custom fan profile, but only if you hit the "set all fans to recommended settings" under Fan Settings.

**The reason there's two different default voltages is due to the two differences in quality of silicon. Some cores can run good on 1.065v while others need 1.1v.

***Don't edit anything else in any other manner. Doing so will = BSOD.
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
post #25 of 30
Thread Starter
Yay! Thanks a lot man. I'm just gonna run AB for fan control.

So if I clock mine at 900/1400 unlocked, that would make it run faster than a 6970? Since that one has slightly lower clocks.
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
post #26 of 30
Quote:
Originally Posted by Phry View Post
Yay! Thanks a lot man. I'm just gonna run AB for fan control.

So if I clock mine at 900/1400 unlocked, that would make it run faster than a 6970? Since that one has slightly lower clocks.
900/1400 would be imperceptibly faster.

Also when you open gpu registers, if the 3rd box says 1.065 that means you have the better core. You could run 6970 default clocks at 1.065-1.1v. If 900/1400 is all you want, then just up the voltage a wee bit... 1.1-1.15v.
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
post #27 of 30
Thread Starter
Mine says 1100, sadpanda, haha. I can't run 900/1400 on the default 1100mv, it freezes up.

I guess if I have it at 1200mv, I might as well see how far I can go right? Haha. Is that a safe voltage for everyday use and gaming?
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
Alice
(14 items)


CPUMotherboardGraphicsRAM
2600K @ 4.6Ghz (1.400v) AsRock Extreme 4 Sapphire 7970 1125/1575 G.Skill RipjawsX DDR3 1600 CL8 (4x4Gb)
Hard DriveHard DriveHard DriveOS
Samsung 840 Wester Digital RE4 (Raid0) Seagate Barracuda Windows 7 64bit Pro
MonitorMonitorKeyboardPower
2x Asus VW246H Qnix QX2710 Ducky DK1008 (Mx Red) Corsair HX1000
CaseMouse
NZXT Phantom Razer Deathadder
  hide details
Reply
post #28 of 30
Quote:
Originally Posted by Phry View Post
Mine says 1100, sadpanda, haha. I can't run 900/1400 on the default 1100mv, it freezes up.

I guess if I have it at 1200mv, I might as well see how far I can go right? Haha. Is that a safe voltage for everyday use and gaming?
I use 1.2v 24/7. Imo if you don't go over 1.25v on air and are sensible, and you'll be ok.
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
The 3930
(26 items)

Junior's 3930
(22 items)

DATA/HTPC
(20 items)

  hide details
Reply
post #29 of 30
Quote:
Originally Posted by Phry View Post
So I'm just wondering, is flashing the 6950 to a 6970 bios actually bad for it?
Other than running the clocks out of spec, probably not.

Quote:
Originally Posted by Phry View Post
Mostly wondering cuz my card is being lame and for some reason won't overclock past 840/1325, even with adjusting voltages.
OCP could be responsible for this. In my experience, the rapid clock changes it performs near the TDP limit can themselves be a source of instability. Also, while OCP is on, the TDP limit makes overvolting utterly pointless.

I've seen zero difference between unlocked 6950 BIOSes and a 6970 BIOS on my two 6950s, in either overclocking, or performance, when I set the same voltages and clocks with OCP disabled.
Primary
(15 items)

Secondary
(13 items)

In progress
(10 items)

CPUMotherboardGraphicsRAM
5820K @ 4.3/3.6GHz core/uncore, 1.225/1.2v Gigabyte X99 SOC Champion (F22n) 2x Sapphire R9 290X Tri-X OC New Edition (10036... 4x4GiB Crucial @ 2667, 12-11-12-27-T1, 1.37v
Hard DriveHard DriveHard DriveCooling
Plextor M6e 128GB (fw 1.05) M.2 (PCI-E 2.0 2x) 2x Crucial M4 256GB 4x WD Scorpio Black 500GB Cooler Master Nepton 280L
OSMonitorKeyboardPower
Windows 7 Professional x64 SP1 BenQ BL3200PT Filco Majestouch Tenkeyless (MX Brown) Corsair RM1000x
CaseMouseAudio
Fractal Design Define R4 Logitech G402 Realtek ALC1150 + M-Audio AV40
CPUMotherboardGraphicsRAM
X5670 @ 4.4/3.2GHz core/uncore, 1.36 vcore, 1.2... Gigabyte X58A-UD5 r2.0 w/FF3mod10 BIOS Reference R9 290X w/Stilt's MLU 1000e / 1375m E... 2x Samsung MV-3V4G3D/US @ 2000, 10-11-11-30-T1,...
RAMHard DriveHard DriveHard Drive
1x Crucial BLT4G3D1608ET3LX0 @ 2000, 10-11-11-3... OCZ (Toshiba) Trion 150 120GB Hyundai Sapphire 120GB 3x Hitachi Deskstar 7k1000.C 1TB
CoolingOSPowerCase
Noctua NH-D14 Windows 7 Pro x64 SP1 Antec TP-750 Fractal Design R5
Audio
ASUS Xonar DS
CPUMotherboardGraphicsRAM
i7-6800K @ 4.3/3.5GHz core/uncore, 1.36/1.2v ASRock X99 OC Formula (P3.10) GTX 780 (temporary) 4x4GiB Crucial DDR4-2400 @ 11-13-12-28-T2, 1.33v
Hard DriveHard DriveCoolingOS
Intel 600p 256GB NVMe 2x HGST Travelstar 7k1000 1TB Corsair H55 (temporary) Windows Server 2016 Datacenter
PowerCase
Seasonic SS-860XP2 Corsair Carbide Air 540
  hide details
Reply
Primary
(15 items)

Secondary
(13 items)

In progress
(10 items)

CPUMotherboardGraphicsRAM
5820K @ 4.3/3.6GHz core/uncore, 1.225/1.2v Gigabyte X99 SOC Champion (F22n) 2x Sapphire R9 290X Tri-X OC New Edition (10036... 4x4GiB Crucial @ 2667, 12-11-12-27-T1, 1.37v
Hard DriveHard DriveHard DriveCooling
Plextor M6e 128GB (fw 1.05) M.2 (PCI-E 2.0 2x) 2x Crucial M4 256GB 4x WD Scorpio Black 500GB Cooler Master Nepton 280L
OSMonitorKeyboardPower
Windows 7 Professional x64 SP1 BenQ BL3200PT Filco Majestouch Tenkeyless (MX Brown) Corsair RM1000x
CaseMouseAudio
Fractal Design Define R4 Logitech G402 Realtek ALC1150 + M-Audio AV40
CPUMotherboardGraphicsRAM
X5670 @ 4.4/3.2GHz core/uncore, 1.36 vcore, 1.2... Gigabyte X58A-UD5 r2.0 w/FF3mod10 BIOS Reference R9 290X w/Stilt's MLU 1000e / 1375m E... 2x Samsung MV-3V4G3D/US @ 2000, 10-11-11-30-T1,...
RAMHard DriveHard DriveHard Drive
1x Crucial BLT4G3D1608ET3LX0 @ 2000, 10-11-11-3... OCZ (Toshiba) Trion 150 120GB Hyundai Sapphire 120GB 3x Hitachi Deskstar 7k1000.C 1TB
CoolingOSPowerCase
Noctua NH-D14 Windows 7 Pro x64 SP1 Antec TP-750 Fractal Design R5
Audio
ASUS Xonar DS
CPUMotherboardGraphicsRAM
i7-6800K @ 4.3/3.5GHz core/uncore, 1.36/1.2v ASRock X99 OC Formula (P3.10) GTX 780 (temporary) 4x4GiB Crucial DDR4-2400 @ 11-13-12-28-T2, 1.33v
Hard DriveHard DriveCoolingOS
Intel 600p 256GB NVMe 2x HGST Travelstar 7k1000 1TB Corsair H55 (temporary) Windows Server 2016 Datacenter
PowerCase
Seasonic SS-860XP2 Corsair Carbide Air 540
  hide details
Reply
post #30 of 30
Thread Starter
Well, I'm getting temps of roughly 79c +/- 2c during Kombustor when I'm running 1.2v, then roughly 2c less when running 1.5v. This is with my fan running at roughly 54-57%. Is that too much?
