Overclocking problem with 2600

post #1 of 13
Thread Starter

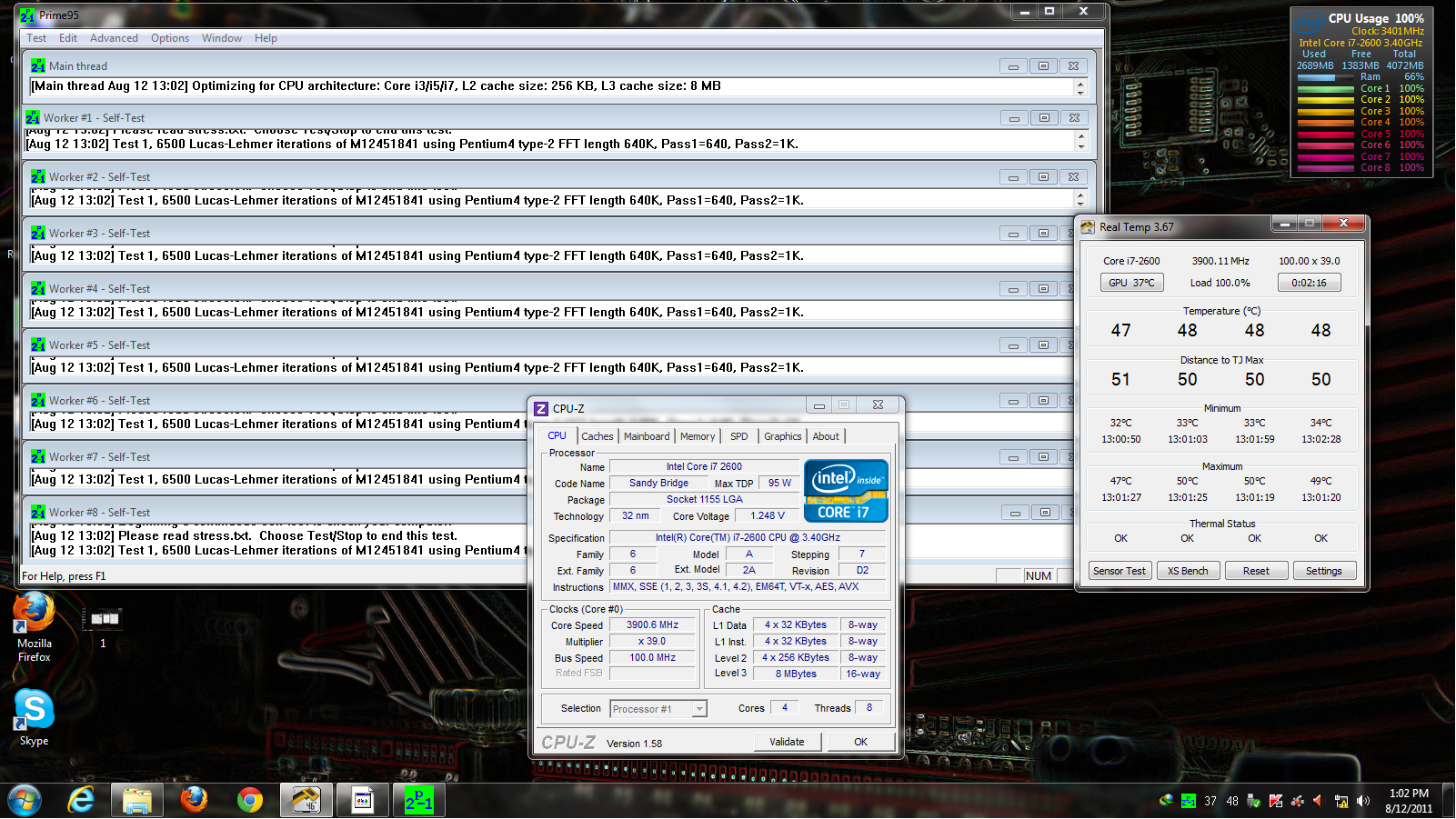

i have oc my 2600 to 4.2ghz but when i run prime 95 it only show 3.9ghz


but when i run Xs bench it go 4170mhz so what can be the problem i want stable 4.2ghz all the time

post #2 of 13
How did you overclock? I'm gonna assume you just upped the turbo?

There's a great Sandy Bridge guide in the Intel Cpu section, you should check it out.
post #3 of 13
You're only getting 3.9GHz because you don't have a K-Chip, which has an unlocked multiplier. Intel limits the non-K chips to 3.9GHz.
post #4 of 13
Thread Starter
Quote:
Originally Posted by Z13 View Post
You're only getting 3.9GHz because you don't have a K-Chip, which has an unlocked multiplier. Intel limits the non-K chips to 3.9GHz.

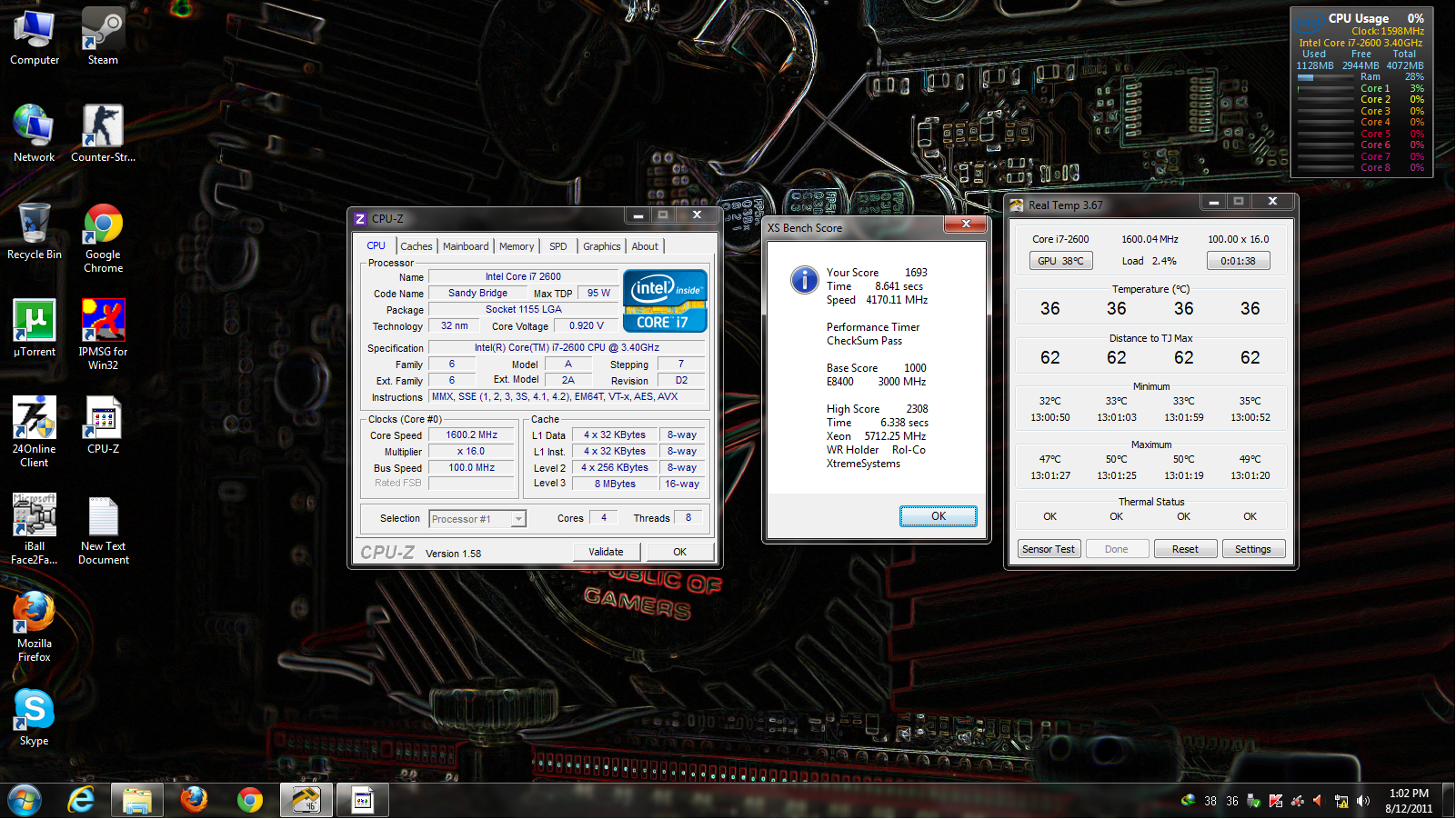

but check my XS bench it is 4150mhz n even in bios it show 4200MHz
post #5 of 13
it self throttles.
Triggers broom
(18 items)


CPUMotherboardGraphicsRAM
Intel i7 920 Gigabyte GA-EX58-UD3R  Gigabyte GTX460 Super Talent 1600
Hard DriveOptical DriveCoolingCooling
Seagate Barracuda LG DVD+/-RW SATA Drive EK Supreme LXT EK 240 Rad
CoolingOSMonitorKeyboard
EK big res and 2.2 pump Windows 7 Ultimate x64 HP 2159v  Razer Arctosa
PowerCaseMouseMouse Pad
Corsair CX600 Xigmatek Midgard Razer Abyssus Steelseries cheapo one
AudioOther
Sony TA-D607 iPhone 4
  hide details
Reply
Triggers broom
(18 items)


CPUMotherboardGraphicsRAM
Intel i7 920 Gigabyte GA-EX58-UD3R  Gigabyte GTX460 Super Talent 1600
Hard DriveOptical DriveCoolingCooling
Seagate Barracuda LG DVD+/-RW SATA Drive EK Supreme LXT EK 240 Rad
CoolingOSMonitorKeyboard
EK big res and 2.2 pump Windows 7 Ultimate x64 HP 2159v  Razer Arctosa
PowerCaseMouseMouse Pad
Corsair CX600 Xigmatek Midgard Razer Abyssus Steelseries cheapo one
AudioOther
Sony TA-D607 iPhone 4
  hide details
Reply
post #6 of 13
Non k fail bro. Shoulda dropped the extra $30 for the 2600k.
Murderface
(19 items)


CPUMotherboardGraphicsRAM
Core i7 2600k MSI Z68A-GD65 EVGA GTX 680 Mushkin Redline
Hard DriveHard DriveHard DriveHard Drive
Mushkin Chronos WD Caviar Black WD Caviar Black Hitachi Deskstar
Optical DriveOptical DriveCoolingOS
Lite-On BD burner Samsung DVD burner Thermalright Silver Arrow Win 7 64bit
MonitorKeyboardPowerCase
LG IPS236 KBT Race Enermax RV920 Lian Li T60B
MouseMouse PadAudio
CM Storm Xornet PureTrak Talent Creative Sound Blaster X-Fi Titanium HD
  hide details
Reply
Murderface
(19 items)


CPUMotherboardGraphicsRAM
Core i7 2600k MSI Z68A-GD65 EVGA GTX 680 Mushkin Redline
Hard DriveHard DriveHard DriveHard Drive
Mushkin Chronos WD Caviar Black WD Caviar Black Hitachi Deskstar
Optical DriveOptical DriveCoolingOS
Lite-On BD burner Samsung DVD burner Thermalright Silver Arrow Win 7 64bit
MonitorKeyboardPowerCase
LG IPS236 KBT Race Enermax RV920 Lian Li T60B
MouseMouse PadAudio
CM Storm Xornet PureTrak Talent Creative Sound Blaster X-Fi Titanium HD
  hide details
Reply
post #7 of 13
Quote:
Originally Posted by Badboyz View Post
but check my XS bench it is 4150mhz n even in bios it show 4200MHz
Yeah, that always happens. Intel limits the chip itself to 3.9GHz, but the BIOS can still think it's above that.
post #8 of 13
ooooh that sucks....
The Red Devil
(18 items)

My Old Rig
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5-3570K Asrock Z77-OC-Formula Gigabyte GTX680 SOC 2Gb 16Gb DDR3 G.Skill Ares 1833Mhz
Hard DriveHard DriveOptical DriveCooling
256Gb Samsung SSD 840 Pro 2Tb WD Caviar Black LG GH24-NS90 24X SATA Black Noctua NH-C14
OSMonitorKeyboardPower
Win 7 64-bit Asus PB278Q 27" PLS 2560 x 1440 CoolerMaster CM Storm Quick Fire Pro Corsair 850W HX-850
CaseMouseMouse PadAudio
CoolerMaster HAF-XM Window Logitech G700 Cooler Master BattlePad Corsair Vengeance 2000
OtherOther
bitfenix LED RED bitfenix LED RED
CPUMotherboardGraphicsRAM
Intel Core i5 2500k 4.7Ghz ASUS P8P67-M Asus GTX 560 G.Skill Ripjaws X Series 4GB DDR3-1600
Hard DriveOptical DriveCoolingOS
Samsung Spinpoint F3 HD103SJ 1TB SATA II 7200RPM Asus DRW-24B3ST Black 24x Dual Layer SATA DVD RW Cooler Master 212+ Windows 7 Home 64bit
MonitorKeyboardPowerCase
DELL Ultrasharp U2311H 23" 1920 x 1080 DELL Ultrasharp U2311H 23" 1920 x 1080 8MS CORSAIR Builder Series CX500 V2 500W ATX12V Antec Three Hundred Gaming ATX Case Black
  hide details
Reply
The Red Devil
(18 items)

My Old Rig
(14 items)


CPUMotherboardGraphicsRAM
Intel Core i5-3570K Asrock Z77-OC-Formula Gigabyte GTX680 SOC 2Gb 16Gb DDR3 G.Skill Ares 1833Mhz
Hard DriveHard DriveOptical DriveCooling
256Gb Samsung SSD 840 Pro 2Tb WD Caviar Black LG GH24-NS90 24X SATA Black Noctua NH-C14
OSMonitorKeyboardPower
Win 7 64-bit Asus PB278Q 27" PLS 2560 x 1440 CoolerMaster CM Storm Quick Fire Pro Corsair 850W HX-850
CaseMouseMouse PadAudio
CoolerMaster HAF-XM Window Logitech G700 Cooler Master BattlePad Corsair Vengeance 2000
OtherOther
bitfenix LED RED bitfenix LED RED
CPUMotherboardGraphicsRAM
Intel Core i5 2500k 4.7Ghz ASUS P8P67-M Asus GTX 560 G.Skill Ripjaws X Series 4GB DDR3-1600
Hard DriveOptical DriveCoolingOS
Samsung Spinpoint F3 HD103SJ 1TB SATA II 7200RPM Asus DRW-24B3ST Black 24x Dual Layer SATA DVD RW Cooler Master 212+ Windows 7 Home 64bit
MonitorKeyboardPowerCase
DELL Ultrasharp U2311H 23" 1920 x 1080 DELL Ultrasharp U2311H 23" 1920 x 1080 8MS CORSAIR Builder Series CX500 V2 500W ATX12V Antec Three Hundred Gaming ATX Case Black
  hide details
Reply
post #9 of 13
Its the core turbo's. 1 core is 42x, 2 cores is 41x, 3 cores is 40x, and 4 cores loaded is 39x.

You are flat out limited there. No way around it. You can up your BCLK slightly (maybe lucky and hit 105Mhz BCLK x 39, that gives you 4095MHz (or basically 4.1GHz). That's seriously as far as you're going to get.

Should've dropped the extra $30 for the K model.
Junkyard
(18 items)

NAStradamous
(12 items)

HTPC01
(16 items)

CPUMotherboardGraphicsRAM
Intel i5 2320 @ 3.1GHz MSI B75MA-E33 HIS HD7970 3GB @ 1050 / 1700, 1.17v Patriot 2x4GB DDR3-1066
Hard DriveHard DriveOptical DriveCooling
Crucial MX100 256GB WD Green 2TB DVDRW Corsair H50 Push / Pull
CoolingOSMonitorMonitor
NZXT 120mm fans strapped to stock 7970 cooler Windows 10 Pro Dell 3007WFP Dell 2007FP
MonitorKeyboardPowerCase
Dell 2007FP Cheap Toshiba (R.I.P. Ducky) PC Power & Cooling Silencer MKIII 950w Cheap Garbage (free)
MouseAudio
Logitech G602 Yardsale Special
CPUMotherboardGraphicsRAM
Intel Core i5 3330 Asus H61 MSI GTX 750Ti Low Profile 2x4GB Hynix DDR3-1333
Hard DriveHard DriveOptical DriveCooling
60GB Kingston SSD 1TB Seagate Samsung DVDRW CoolerMaster Gemin II
OSMonitorKeyboardPower
Windows 8.1 + Steam Big Picture / Plex HT 50" Insignia LED 1080p Logitech Rosewill Green 530w
CaseMouseAudioOther
Silverstone HTPC Logitech Pioneer 2.0 tower speakers + 135w RMS Rosewill MCE Remote
  hide details
Reply
Junkyard
(18 items)

NAStradamous
(12 items)

HTPC01
(16 items)

CPUMotherboardGraphicsRAM
Intel i5 2320 @ 3.1GHz MSI B75MA-E33 HIS HD7970 3GB @ 1050 / 1700, 1.17v Patriot 2x4GB DDR3-1066
Hard DriveHard DriveOptical DriveCooling
Crucial MX100 256GB WD Green 2TB DVDRW Corsair H50 Push / Pull
CoolingOSMonitorMonitor
NZXT 120mm fans strapped to stock 7970 cooler Windows 10 Pro Dell 3007WFP Dell 2007FP
MonitorKeyboardPowerCase
Dell 2007FP Cheap Toshiba (R.I.P. Ducky) PC Power & Cooling Silencer MKIII 950w Cheap Garbage (free)
MouseAudio
Logitech G602 Yardsale Special
CPUMotherboardGraphicsRAM
Intel Core i5 3330 Asus H61 MSI GTX 750Ti Low Profile 2x4GB Hynix DDR3-1333
Hard DriveHard DriveOptical DriveCooling
60GB Kingston SSD 1TB Seagate Samsung DVDRW CoolerMaster Gemin II
OSMonitorKeyboardPower
Windows 8.1 + Steam Big Picture / Plex HT 50" Insignia LED 1080p Logitech Rosewill Green 530w
CaseMouseAudioOther
Silverstone HTPC Logitech Pioneer 2.0 tower speakers + 135w RMS Rosewill MCE Remote
  hide details
Reply
post #10 of 13
Quote:
Originally Posted by pioneerisloud View Post
Its the core turbo's. 1 core is 42x, 2 cores is 41x, 3 cores is 40x, and 4 cores loaded is 39x.

You are flat out limited there. No way around it. You can up your BCLK slightly (maybe lucky and hit 105Mhz BCLK x 39, that gives you 4095MHz (or basically 4.1GHz). That's seriously as far as you're going to get.

Should've dropped the extra $30 for the K model.
This^

Or, if your board is little bit special (as some are), you might be able to get a 107MHz BCLK (@ 39x = 4173MHz). If only one core is under load and you can get to 107MHz, it'll be @ 42x multi, so 4494MHz. You could always sell it on eBay as an overclocked i7, get some money back, and buy a 2600K.
