Elloquin's FT03: 10lbs of Cooling in a 5lb Box

post #1 of 12
Thread Starter
System Parts

Case: Silverstone FT03
Motherboard: Asus Maximus IV Gene Z Z68
Processor: Intel 2600K @ 4.6 GHZ 1.35v BIOS
Ram: 16 GB Corsair Vengeance DDR3 @ 1600 9-9-9-24 1T
Graphics: 2 x XFX 5870 CrossfireX Flashed to MSI Lightning BIOS’
@ 1000 Core 1200 Mem 1.2v
Storage: Corsair Force GT 120GB SSD SATA III 6 GPS OS
Western Digital Velociraptor 300GB 10k RPM Storage/Games
Optical: Sony Optiarc Slot Load Slim Line DVD+R
PSU: NZXT HALE90 80 Plus Gold 1000 Watt Power Supply with Modular Cable

Cooling

CPU Loop: Koolance CPU 370 Water block
1x 200mm Phobya Radiator
1x NZXT FN 200RB 200mm Fan
1x Koolance PMP 400 Pump w/ Koolance Top and Heat sink.
1x Phobya Balancer 250 Silver Nickel Reservoir

GPU Loop: 2 x Koolance VID-AR587 REV2.0
1x 200mm Phobya Radiator
1x Koolance PMP 400 Pump w/ Koolance Top and Heat sink.
1x Phobya Balancer 250 Silver Nickel Reservoir

*Note radiator is cooled by the PSU’s Intake Fan and the lower 120mm Case Fan*

Various Bits: Koolance Fittings/ Quick Disconnects/ Single Slot Adjustable SLI Fittings
Tygon ½” ID ¾” OD Silver Antimicrobial Tubing ~5 feet for both loops.
Lamptron Aluminum Hose Clamps
Koolance Non Conductive Fluid
Case Fans: 2 x Zalman ZM-SF3

Temps / Pics:

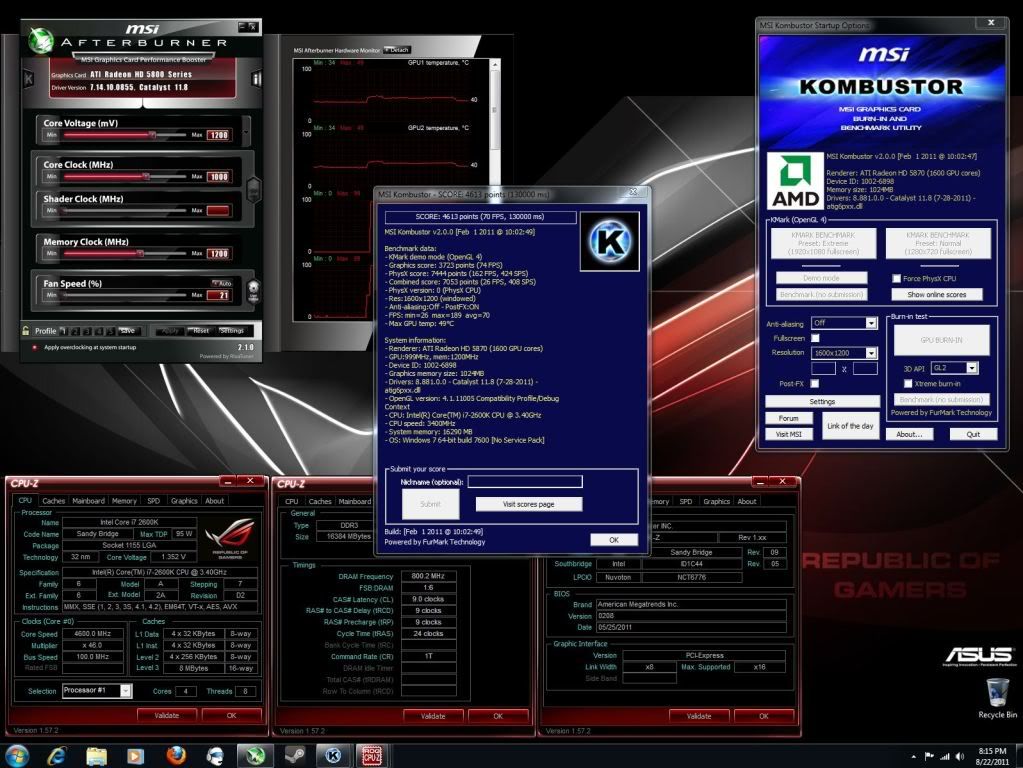

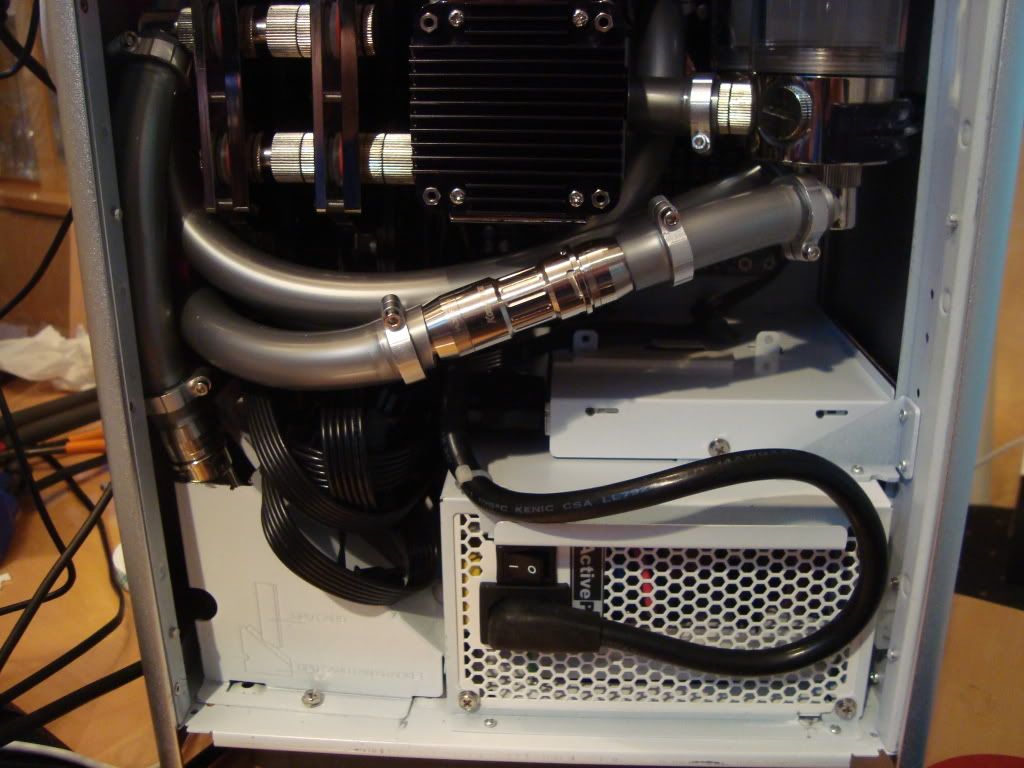

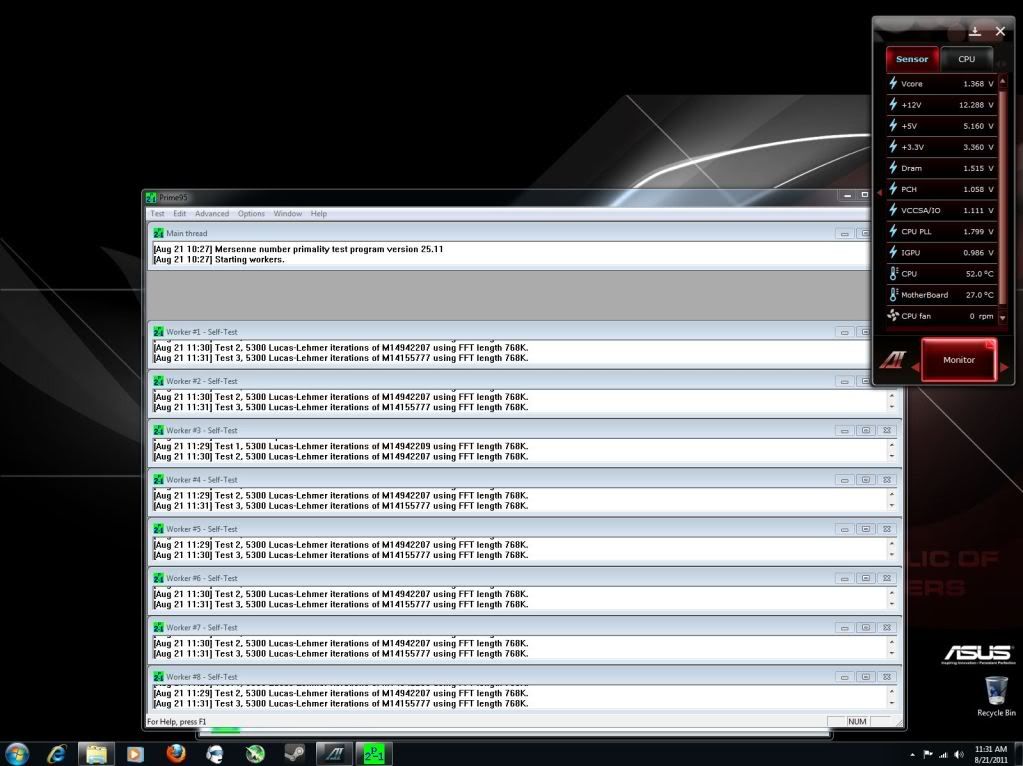

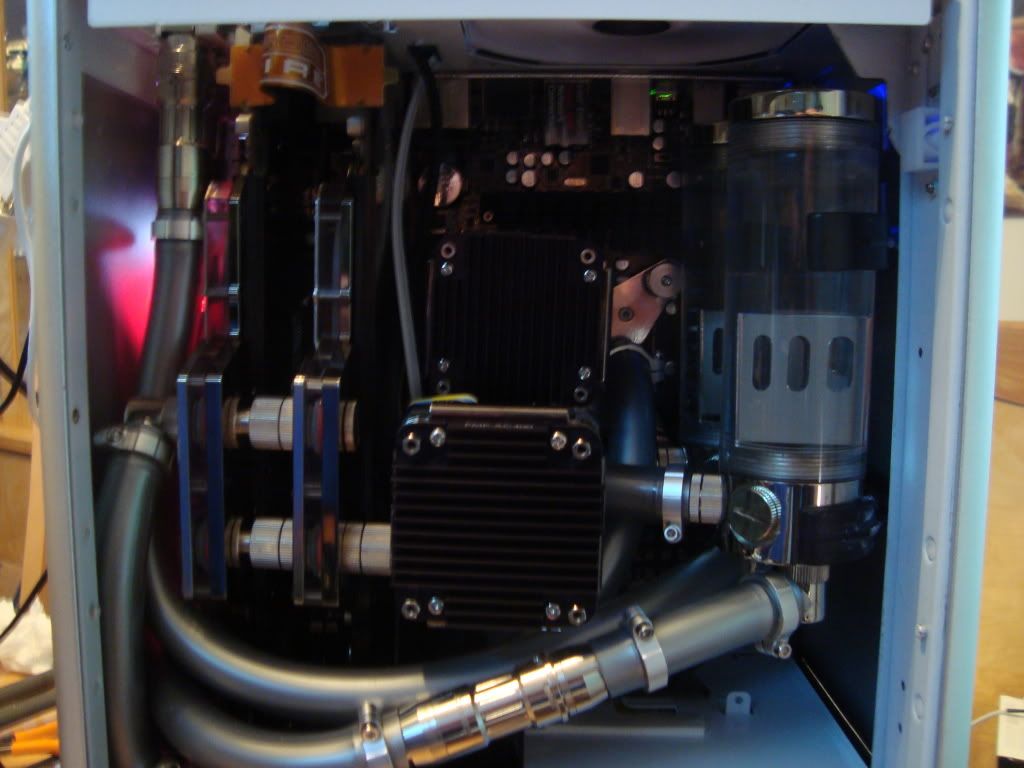

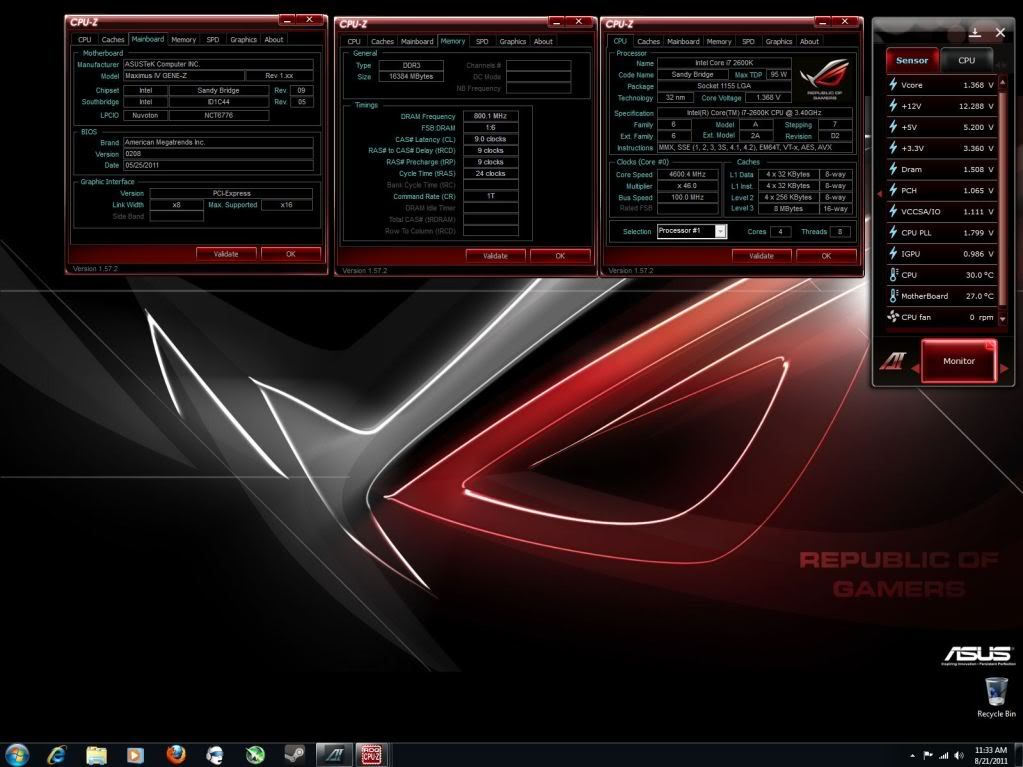

Very little modding was needed. Basically just widened the 4th PCI slot for the quick disconnects, drilled two holes for the bottom rad to mount (Third is the same screw that mounts the frame for the bottom 120mm fan it just lined up tongue.gif Fourth is not used as it sits under the psu cable plug), and made 2 notches with a dremel one in the upper right corner for the GPU loop res and one in the bottom 80mm fan mount for clearance for the barbs.
