Ok i am well aware of the great guide done by Deathtrip K here. But after getting my new computer i found his way was much to annoying and hard. So i made my own guide which is 100 times faster and simpler. YOU MUST HAVE A 200x200x20 fan a 200x200x30 will not work!

1) Remove the dust filter on the side of the case.

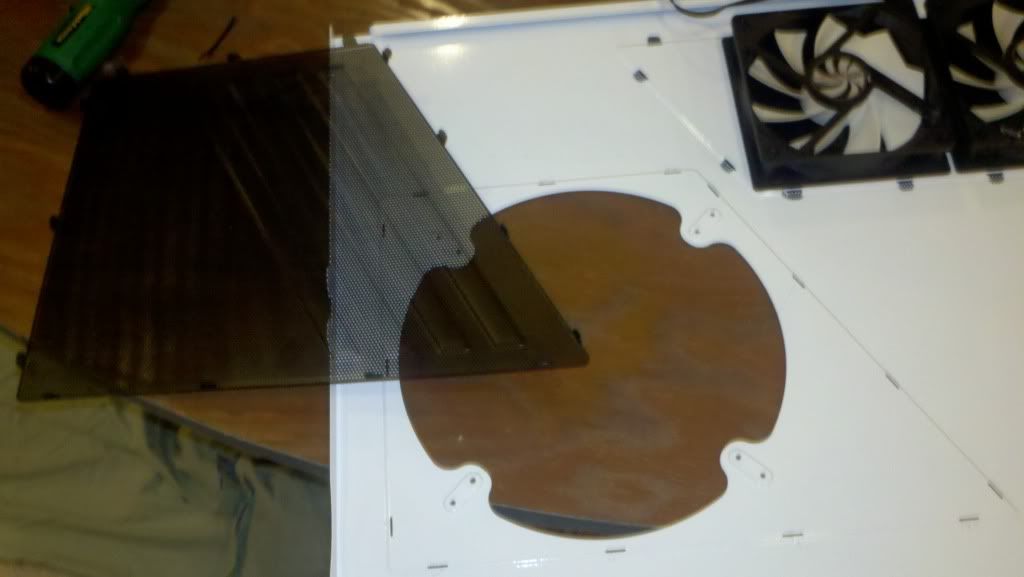

2) take your Phantoms Side panel and use a pliers or a flat headed screw driver and make the black mesh tabs straight. (Found that it is best done with a pliers)

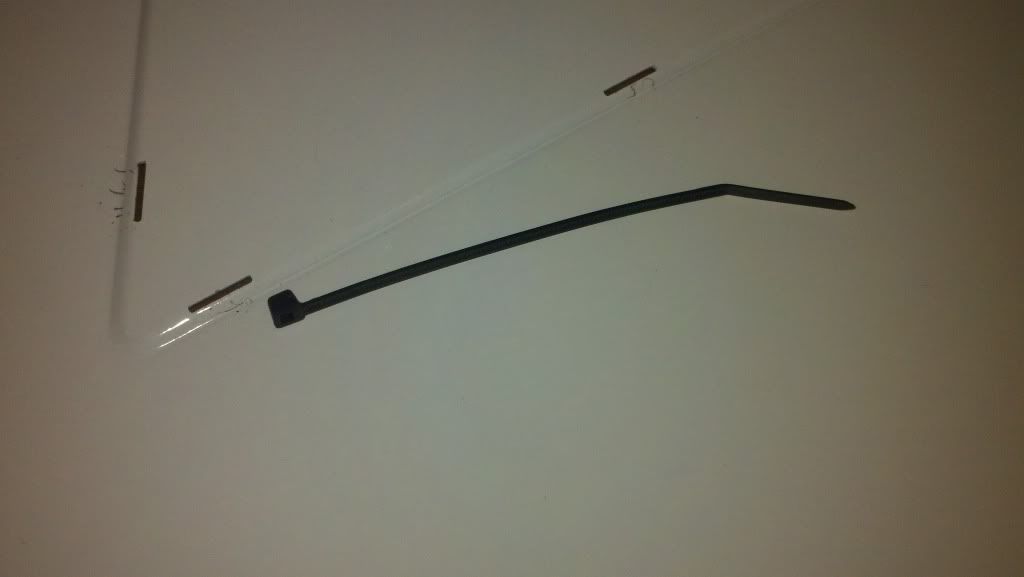

3) Once the side mesh is off, take the very small zip ties that comes with your PSU, Case, or motherboard. (the little ones)

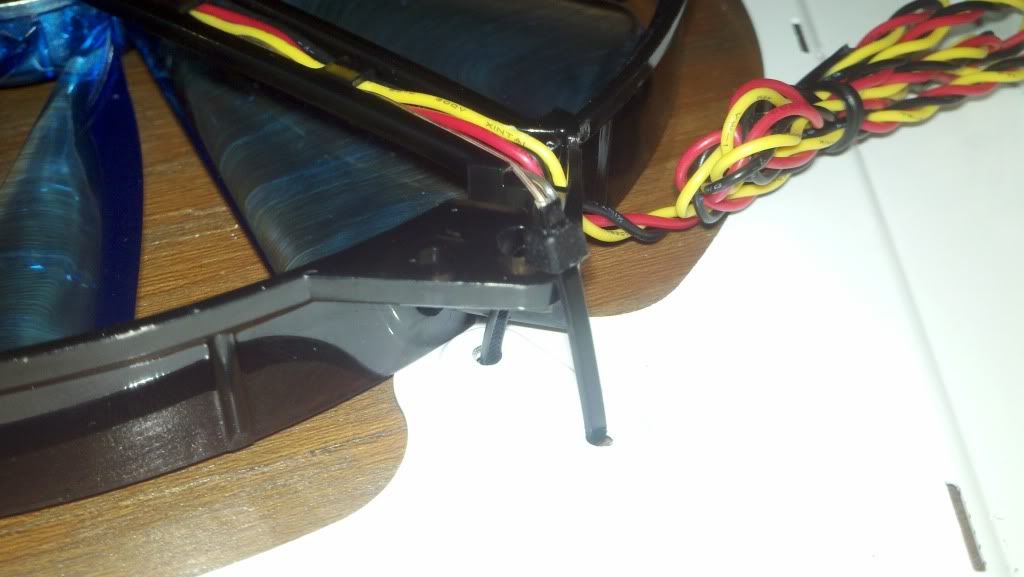

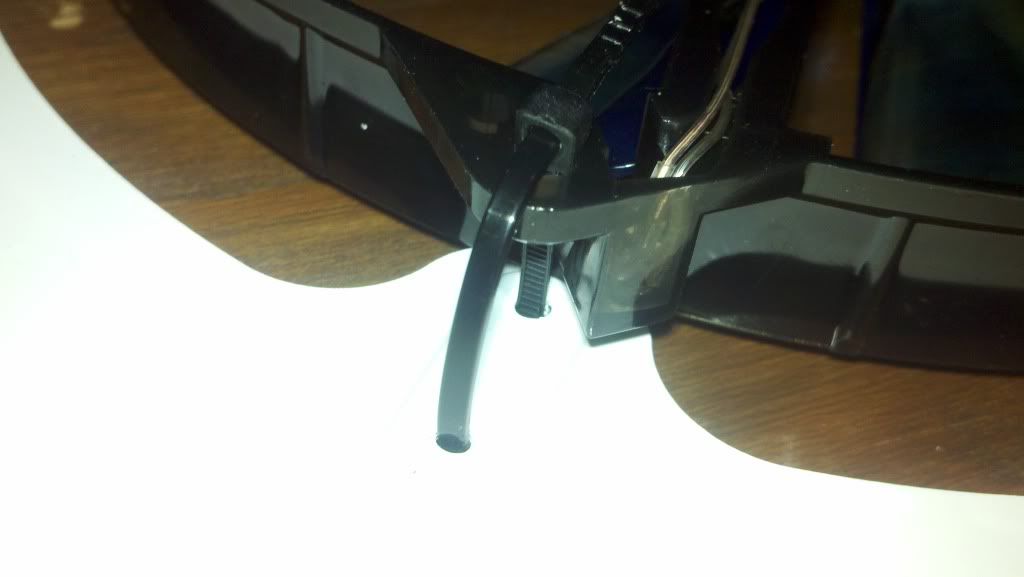

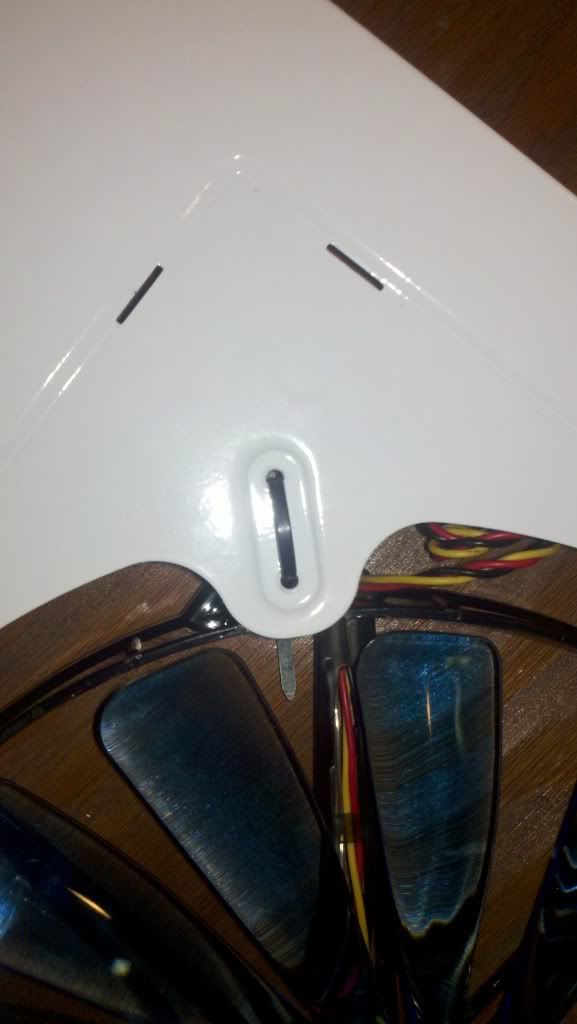

4) Take the zip tie and put it through the hole on the fan, and put it through the 190mm fan mounting hole, then up through the 230mm hole (make sure there is no slack) and then proceed to put it in the zip thingy, DO NOT TIGHTEN ALL THE WAY just snug

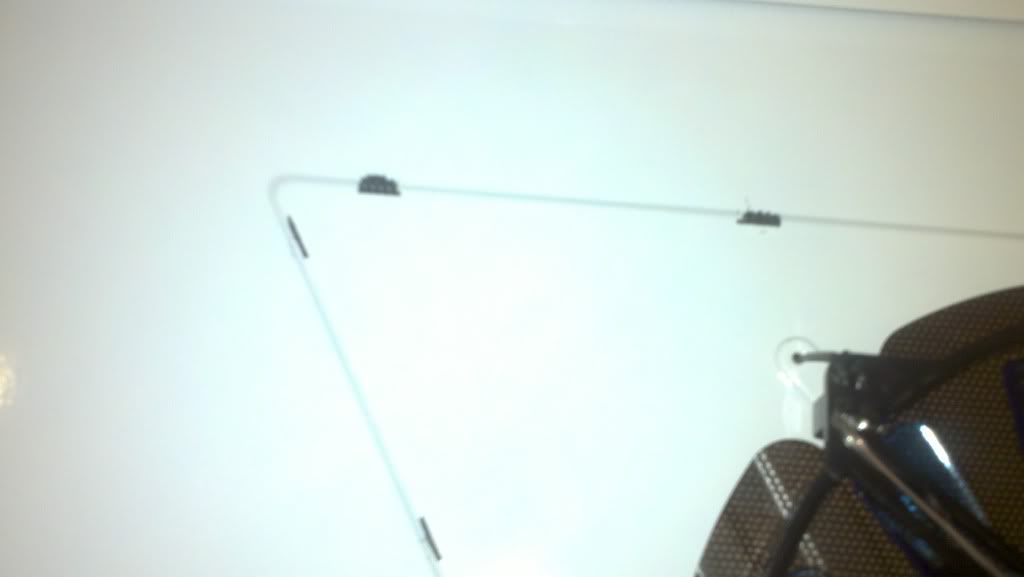

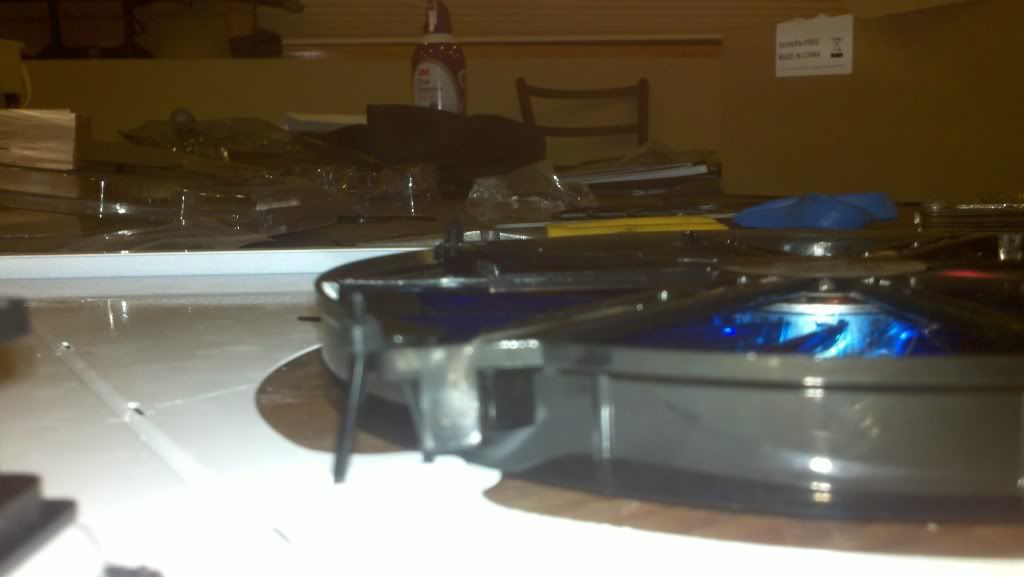

5) Do this for all 4 slots it should look like this






6) Now once they are all good tighten the zips really good with the pliers, then snip the excess plastic off and leave about 3-4mm

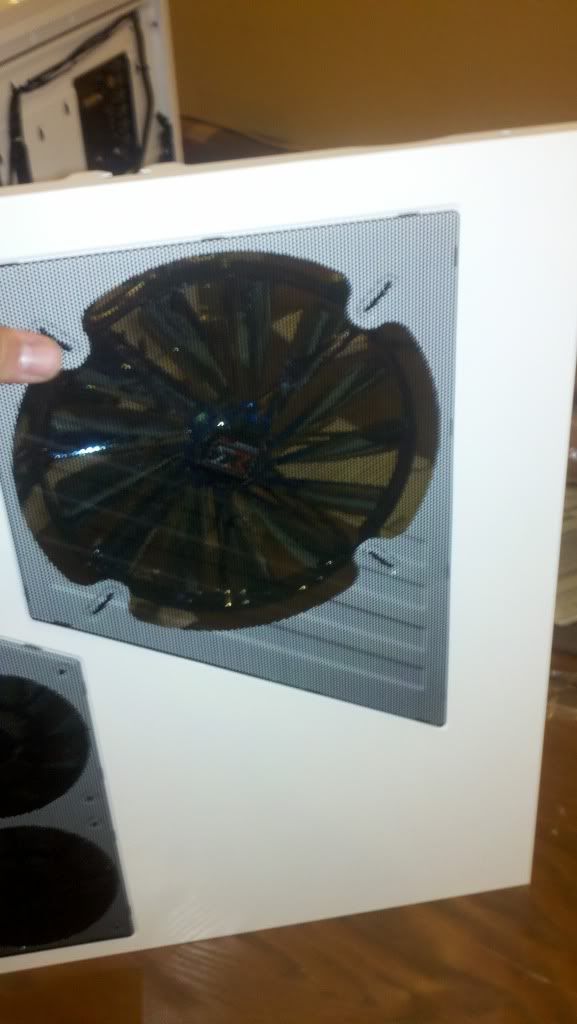

7) Take the mesh and straighten all the little tabs with the pliers and line them up, Stick em through and then twist them down to the case like before

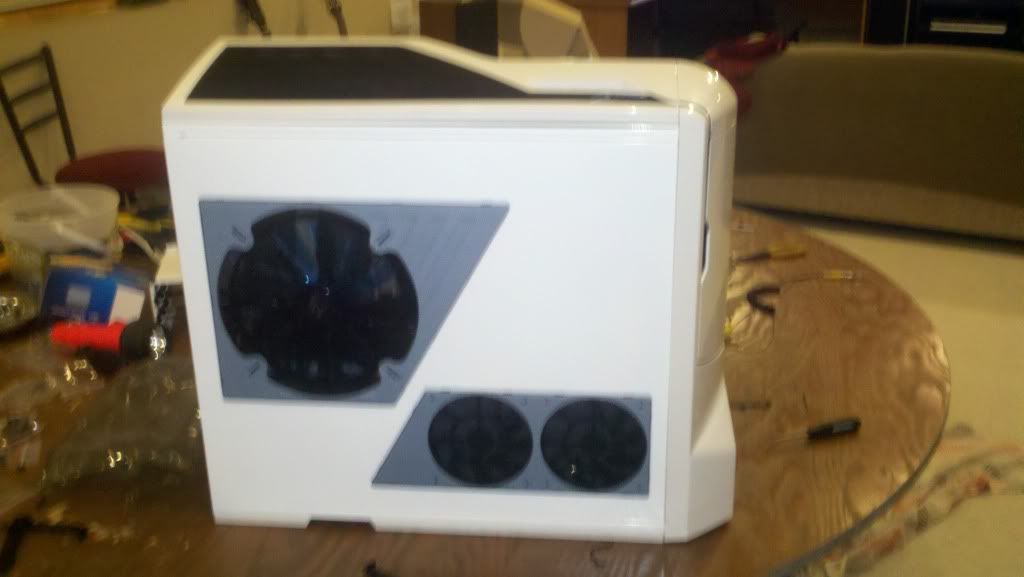

8) Your done, and it should look like this


Edited by inchy97 - 10/2/11 at 7:04pm
