Where to put new GTX 560ti

post #1 of 17
Thread Starter

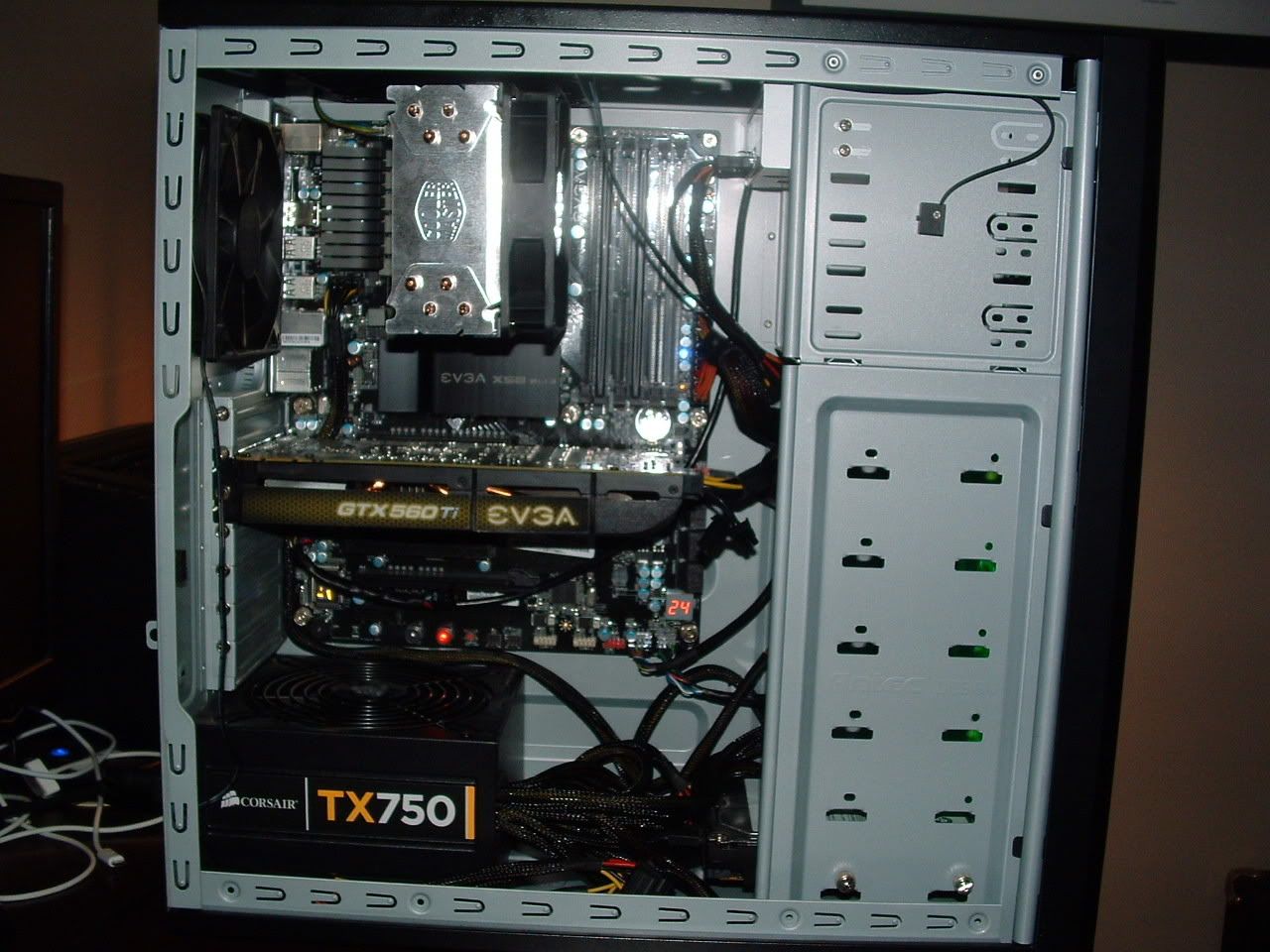

So I just bought another GTX 560 to SLI with my current one. Now I am wondering where to put it. I have 3 PCI express slots on my board but I don't know which slot would make for better cooling. Here is my current setup, any help is appreciated.



If you can't see the two slots one is right above the PSU and the other is directly underneath the GPU.
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
post #2 of 17
The EVGA X58 SLI3 uses a x16, x8, x8 configuration for it's lanes so the second card will inevitably be running at x8. Therefore if your SLI bridge is long enough go for the furthest to maintain airflow.

I'm no expert but thats where I'd be heading.

Missus' Rig
(9 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 7700k Asus Maximus IX Hero Asus GTX 1080 ti Strix Asus GTX 1080 ti Strix
RAMHard DriveHard DriveHard Drive
GSkill TridentZ 16GB 4133MHz Samsung 960 Pro 1TB Samsung 850 Pro 1TB (RAID 0) Samsung 850 Pro 1TB (RAID 0)
CoolingOSMonitorKeyboard
EK Predator 240 Windows 10 Asus ROG Swift PG278Q Razer BlackWidow Chroma X
PowerCaseMouseMouse Pad
Corsair AX850 NZXT ROG Noctis 450 Razer Deathadder Chroma ROG Sheath
Audio
Astro A50 Wireless Headset
CPUMotherboardGraphicsRAM
i7 4790k Asus Maximus VII Hero Gigabyte GTX 960 G1 Gaming 4GB 16GB 1866MHz
Hard DriveCoolingPowerCase
Samsung 840 Pro 512GB Corsair H110i Corsair CX500 NZXT H440
CPUGraphicsRAMHard Drive
Intel Core i7 Nvidia GT 650M 8GB 1600MHz 256GB Flash
OS
OSX 10.8.2
  hide details
Reply

Missus' Rig
(9 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 7700k Asus Maximus IX Hero Asus GTX 1080 ti Strix Asus GTX 1080 ti Strix
RAMHard DriveHard DriveHard Drive
GSkill TridentZ 16GB 4133MHz Samsung 960 Pro 1TB Samsung 850 Pro 1TB (RAID 0) Samsung 850 Pro 1TB (RAID 0)
CoolingOSMonitorKeyboard
EK Predator 240 Windows 10 Asus ROG Swift PG278Q Razer BlackWidow Chroma X
PowerCaseMouseMouse Pad
Corsair AX850 NZXT ROG Noctis 450 Razer Deathadder Chroma ROG Sheath
Audio
Astro A50 Wireless Headset
CPUMotherboardGraphicsRAM
i7 4790k Asus Maximus VII Hero Gigabyte GTX 960 G1 Gaming 4GB 16GB 1866MHz
Hard DriveCoolingPowerCase
Samsung 840 Pro 512GB Corsair H110i Corsair CX500 NZXT H440
CPUGraphicsRAMHard Drive
Intel Core i7 Nvidia GT 650M 8GB 1600MHz 256GB Flash
OS
OSX 10.8.2
  hide details
Reply
post #3 of 17
Thread Starter
That was my first thought as well but I am worried about my PSU as its fan pulls air in as does the new card so both would be pulling. Looks like one card is going to run a tad hotter either way I do it.
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
post #4 of 17
If you have an intake on your side panel, right below your first card is fine.

Quote:
Originally Posted by DraXxus1549 View Post
Looks like one card is going to run a tad hotter either way I do it.
Yup, the top card. Heat from your bottom cards PCB will rise up, which makes a side air intake nice in these situations.
post #5 of 17
Thread Starter
I do have a side intake that blows right on the first card. Would taking the plastic that covers the heatsink and fan help out at all?
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
post #6 of 17
no, that would adversely affect temperatures. The shroud is what guides the air sucked in by the GPU fan along the heatsink. The side air intake just pushes cooler, outside air, into the intake of the top card and along the PCB of the bottom card.
post #7 of 17
The X58 SLI3 Manual Confirms my thoughts on the spacing. That second card will be a couple of degrees hotter but you're not in danger with Video cards until you're above 90-95 degrees consistently anyway.

She'll be right.

Missus' Rig
(9 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 7700k Asus Maximus IX Hero Asus GTX 1080 ti Strix Asus GTX 1080 ti Strix
RAMHard DriveHard DriveHard Drive
GSkill TridentZ 16GB 4133MHz Samsung 960 Pro 1TB Samsung 850 Pro 1TB (RAID 0) Samsung 850 Pro 1TB (RAID 0)
CoolingOSMonitorKeyboard
EK Predator 240 Windows 10 Asus ROG Swift PG278Q Razer BlackWidow Chroma X
PowerCaseMouseMouse Pad
Corsair AX850 NZXT ROG Noctis 450 Razer Deathadder Chroma ROG Sheath
Audio
Astro A50 Wireless Headset
CPUMotherboardGraphicsRAM
i7 4790k Asus Maximus VII Hero Gigabyte GTX 960 G1 Gaming 4GB 16GB 1866MHz
Hard DriveCoolingPowerCase
Samsung 840 Pro 512GB Corsair H110i Corsair CX500 NZXT H440
CPUGraphicsRAMHard Drive
Intel Core i7 Nvidia GT 650M 8GB 1600MHz 256GB Flash
OS
OSX 10.8.2
  hide details
Reply

Missus' Rig
(9 items)


CPUMotherboardGraphicsGraphics
Intel Core i7 7700k Asus Maximus IX Hero Asus GTX 1080 ti Strix Asus GTX 1080 ti Strix
RAMHard DriveHard DriveHard Drive
GSkill TridentZ 16GB 4133MHz Samsung 960 Pro 1TB Samsung 850 Pro 1TB (RAID 0) Samsung 850 Pro 1TB (RAID 0)
CoolingOSMonitorKeyboard
EK Predator 240 Windows 10 Asus ROG Swift PG278Q Razer BlackWidow Chroma X
PowerCaseMouseMouse Pad
Corsair AX850 NZXT ROG Noctis 450 Razer Deathadder Chroma ROG Sheath
Audio
Astro A50 Wireless Headset
CPUMotherboardGraphicsRAM
i7 4790k Asus Maximus VII Hero Gigabyte GTX 960 G1 Gaming 4GB 16GB 1866MHz
Hard DriveCoolingPowerCase
Samsung 840 Pro 512GB Corsair H110i Corsair CX500 NZXT H440
CPUGraphicsRAMHard Drive
Intel Core i7 Nvidia GT 650M 8GB 1600MHz 256GB Flash
OS
OSX 10.8.2
  hide details
Reply
post #8 of 17
Thread Starter
Okay thanks for the help guys looks like I'll put it right under my current card.

Thanks for the help!
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
post #9 of 17
Thread Starter
So I got and installed the card but now the top card gets very hot ~80C (in furmark), while the hottest I have seen the bottom get was ~65C. Is this normal? Are there any ways to lower my temp on the top card short of watercooling?
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
My System
(14 items)


CPUMotherboardGraphicsRAM
i7 950 @ 4.01GHz EVGA SLI3 Sapphire R9 290 8GB Corsair XMS DDR3 1600
Hard DriveHard DriveMonitorPower
Crucuial M4 256GB Seagate 1TB ASUS VH232H 23" 1080p Corsair TX750
Case
Corsair 650D
  hide details
Reply
post #10 of 17
Quote:
Originally Posted by DraXxus1549 View Post
So I got and installed the card but now the top card gets very hot ~80C (in furmark), while the hottest I have seen the bottom get was ~65C. Is this normal? Are there any ways to lower my temp on the top card short of watercooling?
80c in furmark isn't bad for a reference cooler, but it is kind of surprising that there's a 15c delta between your two cards.

For reference, my top card runs 4-6c warmer than my bottom card, and mine are internal exhaust.
