change system agent volts? where is my vccio?

post #1 of 4
Thread Starter
i have a GA-z68x-ud4-b3 and while reading something online:
http://www.bit-tech.net/hardware/cpu...ore-i5-2500k/2

i came across some interesting info. in the how to guides ive read it says not to touch your system agent voltage. on the above guide it says you can adjust it. any thoughts?

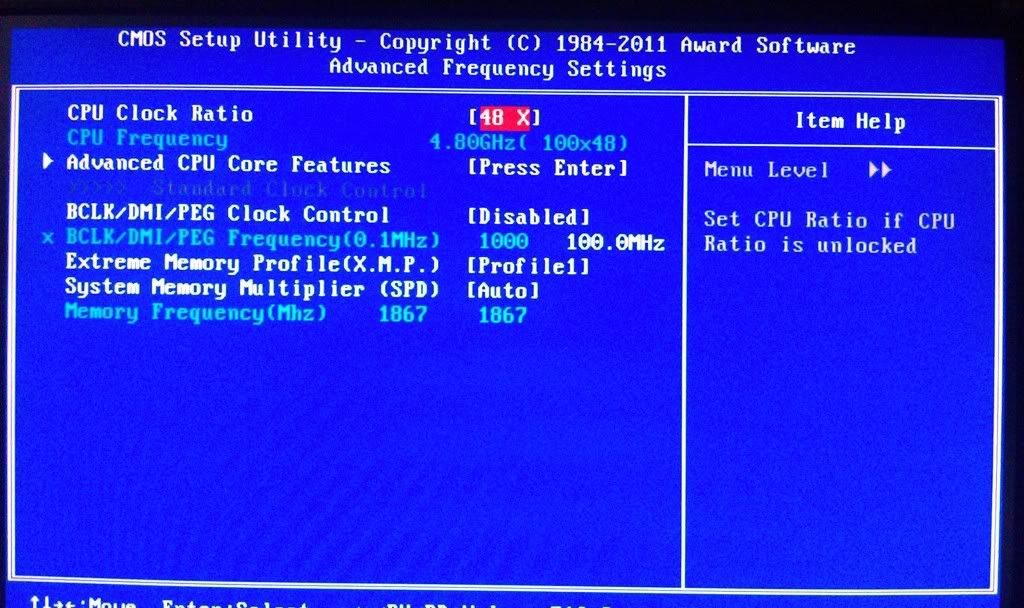

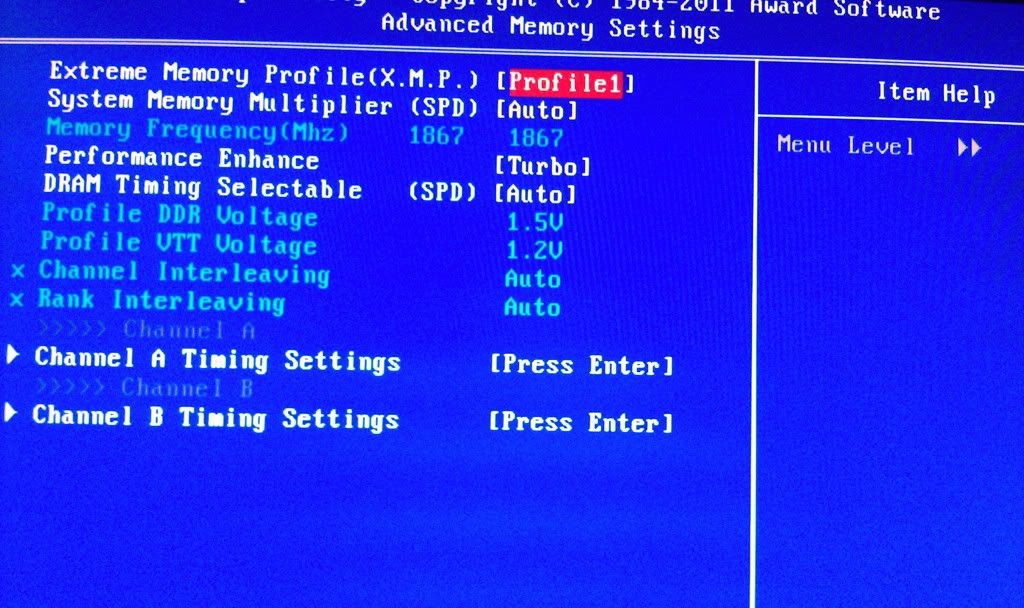

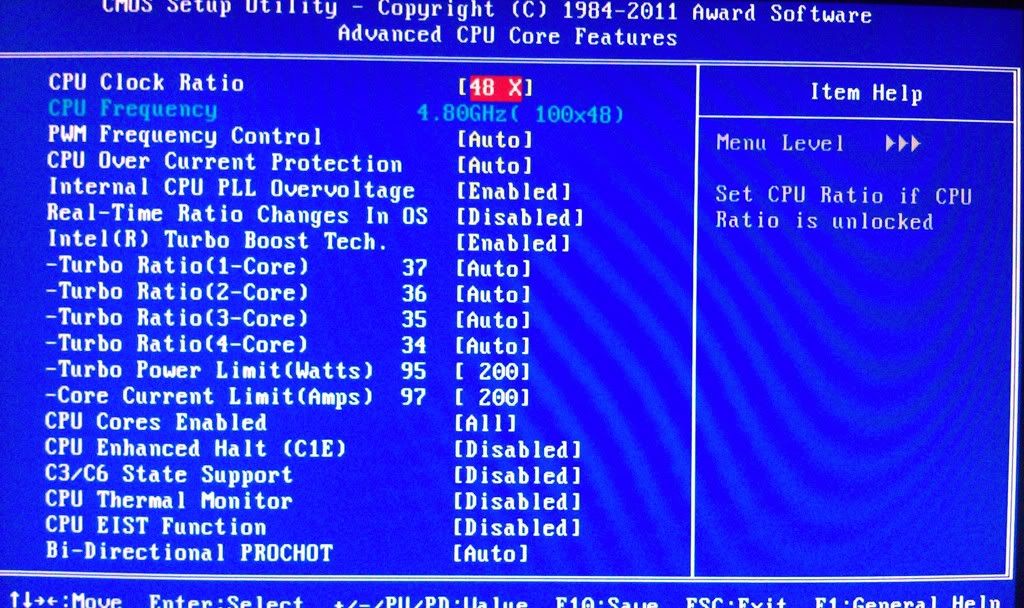

also i cant seem to find vccio in my bios. heres some shot s of it:




Chimera
(17 items)


CPUMotherboardGraphicsGraphics
i5 2500k 4.8Ghz ASUS P8Z68-v PRO GEN3 Evga gtx 580 3gb Evga gtx 580 3gb
RAMHard DriveCoolingOS
8Gb Veangence ocz agility 3 watercooled Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
d3 - 23" acer led monitors Logitech G15 1050W modular custom built from scratch case
MouseAudioAudio
CM Inferno afterglow wireless 7.1 headphones w/ mic x-fi titanium soundcard
  hide details
Reply
Chimera
(17 items)


CPUMotherboardGraphicsGraphics
i5 2500k 4.8Ghz ASUS P8Z68-v PRO GEN3 Evga gtx 580 3gb Evga gtx 580 3gb
RAMHard DriveCoolingOS
8Gb Veangence ocz agility 3 watercooled Windows 7 Ultimate 64bit
MonitorKeyboardPowerCase
d3 - 23" acer led monitors Logitech G15 1050W modular custom built from scratch case
MouseAudioAudio
CM Inferno afterglow wireless 7.1 headphones w/ mic x-fi titanium soundcard
  hide details
Reply
post #2 of 4

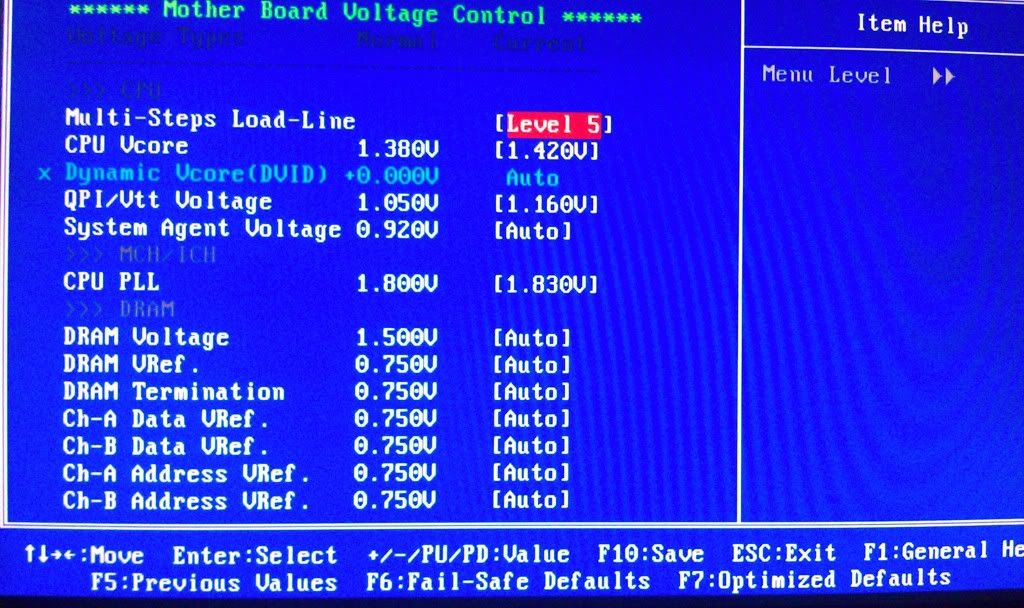

It's right there in your last pic. QPI/VTT is VCCIO. Some manufactures aren't calling it VCCIO. On my board it's VCCSA/IO
