Need help bleeding my loop, pumps sucking air...Urgent Help

post #1 of 6
Thread Starter
Hi

I have an annoying problem that started this week after my recent update on my build. I can't get my loop to bleed completely. I updated my loop this week and tried for 5 days to bleed the loop. I can't understand why I can't bleed it because I removed one block from my loop, I changed my triple GPU (5850/5850/5870) for Dual Gpu (2x 6970). I previously used a triple parallel bridge for my Graphic cards and I removed one GPU and put a Blank parallel link instead.

My previous Loop (in order)
-Reservoir
-Dual MCP 655 Pumps (with EK Dual Top)
-Feser 240 Radiator
-EK 5850
-EK 5850
-EK 5870 (triple Bridge parallel)
-Feser 480 Radiator
-Feser 360 Radiator
-Heatkiller CPU Block
-Full Mobo Block
-Back to reservoir

Current Loop (less blocks more problem?)
-Reservoir
-Dual MCP 655 Pumps (with EK Dual Top)
-Feser 240 Radiator
-EK 6970
-EK 6970 (triple Bridge parallel with blank link in the middle)
-Feser 480 Radiator
-Feser 360 Radiator
-Heatkiller CPU Block
-Full Mobo Block
-Back to reservoir

I can fill the loop completely like I always did, the flow is going through the whole loop, the pumps are stopping making sound and then when I add more water to the running loop, after a certain level, the pumps is starting to make a loud noise, seems like air into the pumps. I tried everything, draining the full loop and starting back again without any success. I used about 14 litters of distilled water during these 5 days ( I don't reuse the water) . I tried to tilt the case , tried to stop and start the pumps many time. Pinching the tubes. I have no more idea.

Looks like I have air lock inside the loop and can't seem to understand why. The flow is coming back to the reservoir but when I tilt the case I hear bubbles moving in the radiators.

I really need your help guys , I can't even sleep no more

Thank you very much for your help

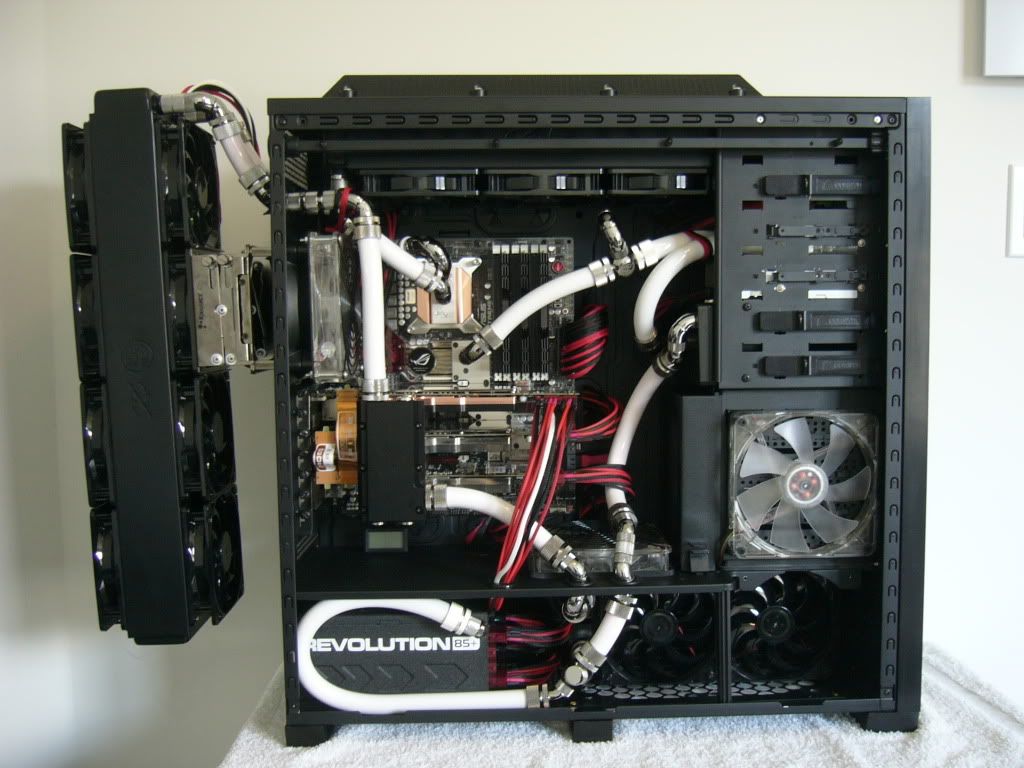

PS This is my previous loop, keep in mind that I removed one card on the bridge and replaced it with a blank parallel link. I won't be able to respond tonight because I can't use my PC, I'll be answering tomorrow at the job. Have a nice evening

Quad Damage
(24 items)


CPUMotherboardGraphicsRAM
Intel i7 4930k @ 4.6Ghz Asus Rampage IV Extreme (Koolance Full WB) 2 x GTX 1080ti FE in SLI (EK WATERBLOCK) Corsair Dominator GT 2133 MHz (16GB)
Hard DriveHard DriveHard DriveHard Drive
3 TB Seagate OCZ Vertex 4 256GB Crucial M4 128GB ADATA SX900 128GB
CoolingCoolingCoolingCooling
RIVE Koolance Waterblock (VRM and PCH) Feser X-Changer 360 Feser X-Changer 240 Feser X-Changer 480
CoolingCoolingCoolingOS
WaterCool MoRA3 Pro with Gentle Typhoon 3 x MCP 655 pumps (With EK top...all serial) 2 x EK FC 1080ti Blocks Windows 7 Ultimate x64
MonitorMonitorKeyboardPower
Asus ROG Swift PG348Q (3440x1440 @100hz) CrossOver 27Q Led-P Logitech G15 EVGA SuperNova 1600T2 (Titanium)
CaseMouseMouse PadAudio
Corsair Obsidian Heavily Modded Logitech G700 RocketFish Speed/Control M-audio AV-40 (Logitech G-35)
  hide details
Reply
Quad Damage
(24 items)


CPUMotherboardGraphicsRAM
Intel i7 4930k @ 4.6Ghz Asus Rampage IV Extreme (Koolance Full WB) 2 x GTX 1080ti FE in SLI (EK WATERBLOCK) Corsair Dominator GT 2133 MHz (16GB)
Hard DriveHard DriveHard DriveHard Drive
3 TB Seagate OCZ Vertex 4 256GB Crucial M4 128GB ADATA SX900 128GB
CoolingCoolingCoolingCooling
RIVE Koolance Waterblock (VRM and PCH) Feser X-Changer 360 Feser X-Changer 240 Feser X-Changer 480
CoolingCoolingCoolingOS
WaterCool MoRA3 Pro with Gentle Typhoon 3 x MCP 655 pumps (With EK top...all serial) 2 x EK FC 1080ti Blocks Windows 7 Ultimate x64
MonitorMonitorKeyboardPower
Asus ROG Swift PG348Q (3440x1440 @100hz) CrossOver 27Q Led-P Logitech G15 EVGA SuperNova 1600T2 (Titanium)
CaseMouseMouse PadAudio
Corsair Obsidian Heavily Modded Logitech G700 RocketFish Speed/Control M-audio AV-40 (Logitech G-35)
  hide details
Reply
post #2 of 6
Sounds like maybe you just need to give it time to get the air out it will bleed itself over time.
SABERWOLF
(18 items)

XEON-WOLF
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6800K MSI X99A GAMING PRO CARBON EVGA GTX 1080 FTW Hydro Copper G.SKILL TridentZ Series
Hard DriveCoolingCoolingCooling
Samsung EVO 850 500 EK-SBAY Dual DDC 3.2 PWM Serial Alphacool NexXxoS ST30 Full Copper Radiator 360 Hardware Labs Black Ice SR2 Multiport Black Car...
CoolingCoolingOSMonitor
EK-CoolStream RAD XTC 420 koolance 380i Windows 10 Pro ASUS VW246H Black 24" 2ms
PowerCaseMouseAudio
SeaSonic M12D SS-850 850W  Thermaltake core x71 CM Storm Sentinel Advance II Corsair Void
CPUMotherboardGraphicsRAM
X5675@4400 1.344 ASUS P6X58D-E XfX RX480 RS F3-12800CL7T-6GBPI 6-7-6-21 1T
RAMHard DriveHard DriveHard Drive
F3-12800CL9S-4GBRL WDC WD1001FALS-00J7B1 ST31000340AS WDC WD7500AAKS-00RBA0
Hard DriveOptical DriveCoolingOS
Hitachi HDS723020BLA642 ihas 624-A SilverStone Heligon HE01 windows 10 64 Pro
MonitorPowerCase
Vizio 42inch lcd tv CORSAIR CMPSU-950TX Modded Rocketfish
  hide details
Reply
SABERWOLF
(18 items)

XEON-WOLF
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-6800K MSI X99A GAMING PRO CARBON EVGA GTX 1080 FTW Hydro Copper G.SKILL TridentZ Series
Hard DriveCoolingCoolingCooling
Samsung EVO 850 500 EK-SBAY Dual DDC 3.2 PWM Serial Alphacool NexXxoS ST30 Full Copper Radiator 360 Hardware Labs Black Ice SR2 Multiport Black Car...
CoolingCoolingOSMonitor
EK-CoolStream RAD XTC 420 koolance 380i Windows 10 Pro ASUS VW246H Black 24" 2ms
PowerCaseMouseAudio
SeaSonic M12D SS-850 850W  Thermaltake core x71 CM Storm Sentinel Advance II Corsair Void
CPUMotherboardGraphicsRAM
X5675@4400 1.344 ASUS P6X58D-E XfX RX480 RS F3-12800CL7T-6GBPI 6-7-6-21 1T
RAMHard DriveHard DriveHard Drive
F3-12800CL9S-4GBRL WDC WD1001FALS-00J7B1 ST31000340AS WDC WD7500AAKS-00RBA0
Hard DriveOptical DriveCoolingOS
Hitachi HDS723020BLA642 ihas 624-A SilverStone Heligon HE01 windows 10 64 Pro
MonitorPowerCase
Vizio 42inch lcd tv CORSAIR CMPSU-950TX Modded Rocketfish
  hide details
Reply
post #3 of 6
Thread Starter
I made it run for 5 hours without success and the air sound is still there, I don't understand why at the beggining, the pumps are not doing any buzzing sound, I guess maybe the lower 240 Radiator has a lot of air and its dumping it into the pumps.
Quad Damage
(24 items)


CPUMotherboardGraphicsRAM
Intel i7 4930k @ 4.6Ghz Asus Rampage IV Extreme (Koolance Full WB) 2 x GTX 1080ti FE in SLI (EK WATERBLOCK) Corsair Dominator GT 2133 MHz (16GB)
Hard DriveHard DriveHard DriveHard Drive
3 TB Seagate OCZ Vertex 4 256GB Crucial M4 128GB ADATA SX900 128GB
CoolingCoolingCoolingCooling
RIVE Koolance Waterblock (VRM and PCH) Feser X-Changer 360 Feser X-Changer 240 Feser X-Changer 480
CoolingCoolingCoolingOS
WaterCool MoRA3 Pro with Gentle Typhoon 3 x MCP 655 pumps (With EK top...all serial) 2 x EK FC 1080ti Blocks Windows 7 Ultimate x64
MonitorMonitorKeyboardPower
Asus ROG Swift PG348Q (3440x1440 @100hz) CrossOver 27Q Led-P Logitech G15 EVGA SuperNova 1600T2 (Titanium)
CaseMouseMouse PadAudio
Corsair Obsidian Heavily Modded Logitech G700 RocketFish Speed/Control M-audio AV-40 (Logitech G-35)
  hide details
Reply
Quad Damage
(24 items)


CPUMotherboardGraphicsRAM
Intel i7 4930k @ 4.6Ghz Asus Rampage IV Extreme (Koolance Full WB) 2 x GTX 1080ti FE in SLI (EK WATERBLOCK) Corsair Dominator GT 2133 MHz (16GB)
Hard DriveHard DriveHard DriveHard Drive
3 TB Seagate OCZ Vertex 4 256GB Crucial M4 128GB ADATA SX900 128GB
CoolingCoolingCoolingCooling
RIVE Koolance Waterblock (VRM and PCH) Feser X-Changer 360 Feser X-Changer 240 Feser X-Changer 480
CoolingCoolingCoolingOS
WaterCool MoRA3 Pro with Gentle Typhoon 3 x MCP 655 pumps (With EK top...all serial) 2 x EK FC 1080ti Blocks Windows 7 Ultimate x64
MonitorMonitorKeyboardPower
Asus ROG Swift PG348Q (3440x1440 @100hz) CrossOver 27Q Led-P Logitech G15 EVGA SuperNova 1600T2 (Titanium)
CaseMouseMouse PadAudio
Corsair Obsidian Heavily Modded Logitech G700 RocketFish Speed/Control M-audio AV-40 (Logitech G-35)
  hide details
Reply
post #4 of 6
You have to bleed the air out at its highest point in the system and for you thats the top of the rad
My System
(27 items)


CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair V Formula NVIDIA GeForce GTX 580 NVIDIA GeForce GTX 580
RAMRAMRAMRAM
G.Skill G.Skill G.Skill G.Skill
Hard DriveHard DriveOptical DriveOS
Crucial M4 2.5" 256GB SATA III MLC Internal Sol... Western Digital Caviar Black WD1002FAEX 1TB 720... SONY Black 12X BD-R 2X BD-RE 8X DVD+R 5X DVD-RA... Microsoft Windows 7 Ultimate SP1 64-bit
MonitorKeyboardPowerCase
HP LED Black 27" 5ms HDMI Widescreen LED BackLi... Logitech G510 Black 18 Function Keys USB Wired ... SILVERSTONE ST1500 1500W ATX 12V 2.3 & EPS 12V ... XSPC H1 Hive Series Cube Enthusiast Water Cooli...
MouseMouse PadAudioOther
Logitech G500 10 Buttons Dual-mode Scroll Wheel... Ozone Gaming Gear GROUND LEVEL L Gaming Mouse Pad Cooler Master Circumaural Storm Sirus Headset -... XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP...
OtherOtherOtherOther
XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R...
OtherOtherOther
XSPC EX360 Triple 120mm Low Profile Split Fin R... EK ASUS Crosshair V Full Board Cooling Block Ki... EK Supreme HF Universal CPU Liquid Cooling Bloc...
  hide details
Reply
My System
(27 items)


CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair V Formula NVIDIA GeForce GTX 580 NVIDIA GeForce GTX 580
RAMRAMRAMRAM
G.Skill G.Skill G.Skill G.Skill
Hard DriveHard DriveOptical DriveOS
Crucial M4 2.5" 256GB SATA III MLC Internal Sol... Western Digital Caviar Black WD1002FAEX 1TB 720... SONY Black 12X BD-R 2X BD-RE 8X DVD+R 5X DVD-RA... Microsoft Windows 7 Ultimate SP1 64-bit
MonitorKeyboardPowerCase
HP LED Black 27" 5ms HDMI Widescreen LED BackLi... Logitech G510 Black 18 Function Keys USB Wired ... SILVERSTONE ST1500 1500W ATX 12V 2.3 & EPS 12V ... XSPC H1 Hive Series Cube Enthusiast Water Cooli...
MouseMouse PadAudioOther
Logitech G500 10 Buttons Dual-mode Scroll Wheel... Ozone Gaming Gear GROUND LEVEL L Gaming Mouse Pad Cooler Master Circumaural Storm Sirus Headset -... XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP...
OtherOtherOtherOther
XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R...
OtherOtherOther
XSPC EX360 Triple 120mm Low Profile Split Fin R... EK ASUS Crosshair V Full Board Cooling Block Ki... EK Supreme HF Universal CPU Liquid Cooling Bloc...
  hide details
Reply
post #5 of 6
Quote:
Originally Posted by KaRLiToS View Post
Hi

I really need your help guys , I can't even sleep no more
You are going to have to get your res to the highest point of the loop and run it like that until gravity does its job and the air bleeds out.

This means finding a way to tip your case on it's back; not easy I realise with that radiator at the back especially if you also need to rock the case for while. GL.

CPUMotherboardGraphicsRAM
Intel i7 930 @ 3.85GHz Gigabyte G1.Sniper X58 BiosF4e CPU1.2v/QPI1.225v MSIGTX680 Core1120/1185MHz Mem6000MHz G.Skill 3x4GB Ripjaws RLF3 1600MHz @ CAS8 1.5v
Hard DriveOptical DriveOSMonitor
2x Samsung 256GB SSD 830 Samsung 1TB F3 LG Blu-ray RW BH10LS30 Windows 7 Pro 64-bit Hazro HZ27WA LED S-IPS TFT 2560x1440
KeyboardPowerCaseMouse
Keysonic KSK-8020HM Aluminium Seasonic X-Series 760W 80+ Gold Cooler Master 690 II Advanced Logitech RX1000
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel i7 930 @ 3.85GHz Gigabyte G1.Sniper X58 BiosF4e CPU1.2v/QPI1.225v MSIGTX680 Core1120/1185MHz Mem6000MHz G.Skill 3x4GB Ripjaws RLF3 1600MHz @ CAS8 1.5v
Hard DriveOptical DriveOSMonitor
2x Samsung 256GB SSD 830 Samsung 1TB F3 LG Blu-ray RW BH10LS30 Windows 7 Pro 64-bit Hazro HZ27WA LED S-IPS TFT 2560x1440
KeyboardPowerCaseMouse
Keysonic KSK-8020HM Aluminium Seasonic X-Series 760W 80+ Gold Cooler Master 690 II Advanced Logitech RX1000
  hide details
Reply
post #6 of 6
5hrs aint long it can take days or week to get all the air out of a loop. Moving the case around running it on its side or upside down can also help sometimes.
