MINI or MICRO NAS Build

post #1 of 9
Thread Starter

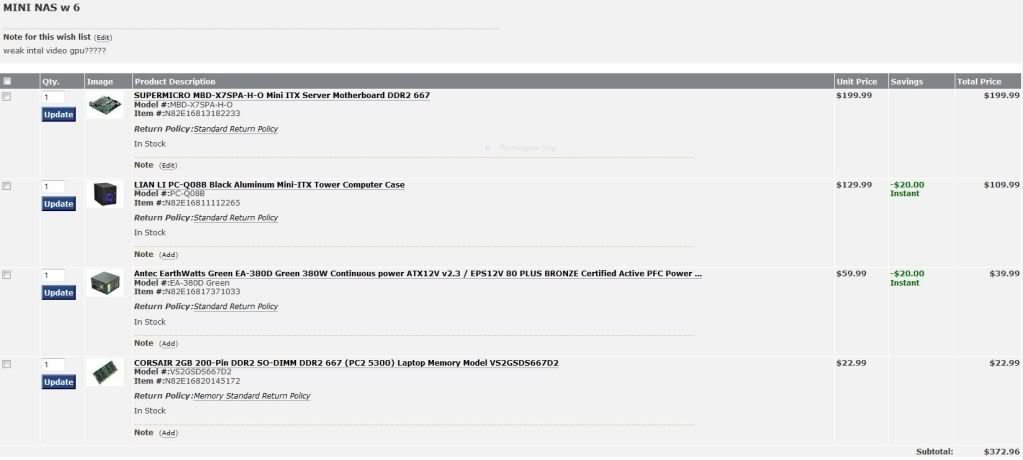

Its so hard to build a mini NAS. I basically plan on putting three 2TB F3/F4's in Raid 5 w freenas. This is what I've come up with. Both boards have raid 5.

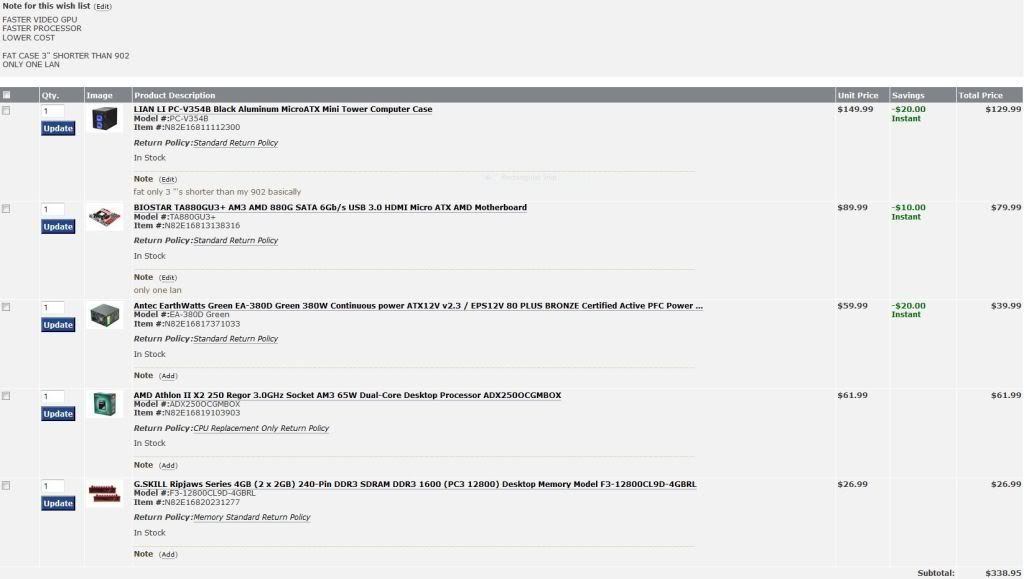

I was thinking about getting this Micro NAS but this case is only 3" inches shorter than my antec 902 its a Fat case, and i'm pretty sure it uses more power than the D510:


but I'm really settled with this build I just want to know what you guys think:


I chose this as it has 6 satas, onboard raid 5, and basically allows me to add three more drives in the future. I was gonna go for this: http://www.newegg.com/Product/Product.aspx?Item=N82E16813500055

but i found that i need raid 5 and from a recent review on newegg that zotac board isnt good for a nas.

One direct question I have is about the power supply I see a 380 watt green psu is about the lowest available. But i really want a modular psu and all the modlar psu's start at about 500W. So will the NAS consume more power even though I'll have only 3 HD's connected to the 500W PSU vs. 3 connected to the 380W PSU? Here are the PSU's:

http://www.newegg.com/Product/Product.aspx?Item=N82E16817152028

http://www.newegg.com/Product/Product.aspx?Item=N82E16817341016

http://www.newegg.com/Product/Product.aspx?Item=N82E16817371033

thanks for the input!!
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
post #2 of 9
Those Lian Li cases are great. I have the V354B myself and it can fit quite a bit. See my sig link for the details.

The parts you've chosen seem sufficient for me in terms of a micro NAS build.

The NAS will not consume more power if you use a higher wattage rated PSU. If you could get a higher rated PSU it will only mean you will have more headroom and capacity for any possible future upgrades smile.gif
Main (2014)
(12 items)

Work Rig (2012)
(15 items)


CPUMotherboardGraphicsRAM
Intel Core i7 4790k Gigabyte G1 Sniper Z97 EVGA GTX 770 4GB FTW 2x 8GB Corsair Dominator
Hard DriveHard DriveCoolingOS
Crucial MX100 512GB 2x WD SE 2TB (RAID-1) Corsair H100i Windows 7 Pro
MonitorKeyboardCaseMouse
LG 29UM65-P IPS CMStorm Quickfire TK Red Corsai A540 White Proteus Core
CPUMotherboardGraphicsRAM
Intel Core i5 2500k ASUS P8Z68-M Pro  EVGA GTX 680 SC+ 16GB Mushkin Enhanced Frostbyte
Hard DriveOptical DriveCoolingOS
Crucial M4 128GB LG GH24LS50  Noctua C12P Windows 7 Pro
MonitorKeyboardPowerCase
3x 27" Displays CMStorm Quickfire TK Brown Cyberpower CP1500AVRLCD Lian Li PC-V354B
MouseMouse PadAudio
Logitech G400 Mionix Sargas 900 Corsair SP2500 / Bose Cinemate Series II
  hide details
Reply
Main (2014)
(12 items)

Work Rig (2012)
(15 items)


CPUMotherboardGraphicsRAM
Intel Core i7 4790k Gigabyte G1 Sniper Z97 EVGA GTX 770 4GB FTW 2x 8GB Corsair Dominator
Hard DriveHard DriveCoolingOS
Crucial MX100 512GB 2x WD SE 2TB (RAID-1) Corsair H100i Windows 7 Pro
MonitorKeyboardCaseMouse
LG 29UM65-P IPS CMStorm Quickfire TK Red Corsai A540 White Proteus Core
CPUMotherboardGraphicsRAM
Intel Core i5 2500k ASUS P8Z68-M Pro  EVGA GTX 680 SC+ 16GB Mushkin Enhanced Frostbyte
Hard DriveOptical DriveCoolingOS
Crucial M4 128GB LG GH24LS50  Noctua C12P Windows 7 Pro
MonitorKeyboardPowerCase
3x 27" Displays CMStorm Quickfire TK Brown Cyberpower CP1500AVRLCD Lian Li PC-V354B
MouseMouse PadAudio
Logitech G400 Mionix Sargas 900 Corsair SP2500 / Bose Cinemate Series II
  hide details
Reply
post #3 of 9
Thread Starter
wow the v354b is not that big. I was looking at the dimensions and the only major difference from my antec 902 was 3" in height. I'm def getting a modular PSU know.. Now I have to choose between the micro or mini build...hmmmmm The micro is certainly more flexible.
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
post #4 of 9
Another case option that supports ITX, is the Chenbro case. It supports up to 4 HDs and all are hot swappable.

The 2600k
(18 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600k GA-Z68XP-UD4 MSI ATI 6950(unlocked) XFX ATI 6950(unlocked)
RAMHard DriveHard DriveCooling
Mushkin 997015 8GB(2x4GB) DDR3 PC3-17000 10-11-... Crucial M4 128GB SSD Western Digital Caviar Black 500GB Custom Watercooled
OSMonitorMonitorKeyboard
Microsoft Windows 7 Ultimate Viewsonic VX2739wm Viewsonic VX2739wm Logitech G15(original)
PowerCaseMouseMouse Pad
Coolermaster Silent Pro M 1000 DangerDen Torture Rack Razer Diamondback Everglide Titan
Audio
Creative xFi Titanium
  hide details
Reply
The 2600k
(18 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600k GA-Z68XP-UD4 MSI ATI 6950(unlocked) XFX ATI 6950(unlocked)
RAMHard DriveHard DriveCooling
Mushkin 997015 8GB(2x4GB) DDR3 PC3-17000 10-11-... Crucial M4 128GB SSD Western Digital Caviar Black 500GB Custom Watercooled
OSMonitorMonitorKeyboard
Microsoft Windows 7 Ultimate Viewsonic VX2739wm Viewsonic VX2739wm Logitech G15(original)
PowerCaseMouseMouse Pad
Coolermaster Silent Pro M 1000 DangerDen Torture Rack Razer Diamondback Everglide Titan
Audio
Creative xFi Titanium
  hide details
Reply
post #5 of 9
Hello
What about the lianli q25B -> Linky Here

Ive just got the case and it is great. lots of room for up to 7 hdd

or the Fractal Design Array R2 ->Linky

Both cases would be great for a NAS build and both micro itx.
Media
(12 items)

NAS
(8 items)


CPUMotherboardGraphicsRAM
AMD A8-3850 APU Asus F1A75-i Deluxe Radeon HD 6550D (apu) 8GB (2x4GB) Corsair DDR3 Vengeance Jet Black
Hard DriveOptical DriveCoolingOS
Sandisk Ultra 2.5" SSD Samsung SN-506AB Blu-Ray Drive Scythe Big Shuriken Win Se7en 64bit
PowerCase
150w antec isk psu Antec ISK 300
CPUMotherboardGraphicsRAM
AMD E-350 Asus E35M1-I 6310 (apu onboard) 2 x 4 GB
Hard DriveCoolingOSCase
Western Digital 3TB x5 140mm Antec Fan FreeNas v8.3 Fractal Design Array R2
  hide details
Reply
Media
(12 items)

NAS
(8 items)


CPUMotherboardGraphicsRAM
AMD A8-3850 APU Asus F1A75-i Deluxe Radeon HD 6550D (apu) 8GB (2x4GB) Corsair DDR3 Vengeance Jet Black
Hard DriveOptical DriveCoolingOS
Sandisk Ultra 2.5" SSD Samsung SN-506AB Blu-Ray Drive Scythe Big Shuriken Win Se7en 64bit
PowerCase
150w antec isk psu Antec ISK 300
CPUMotherboardGraphicsRAM
AMD E-350 Asus E35M1-I 6310 (apu onboard) 2 x 4 GB
Hard DriveCoolingOSCase
Western Digital 3TB x5 140mm Antec Fan FreeNas v8.3 Fractal Design Array R2
  hide details
Reply
post #6 of 9
Thread Starter
ive been watching this forum for about a week and the two most recent comments didnt show up until now... well i got the lian li V354Bc. I cant decide on the OS. I have this biostar mobo amd cp,e tp fomd out it does not boot from USB!!!!! Now i prob gotta get another overpriced hard drive.
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
Sys
(13 items)


CPUMotherboardGraphicsRAM
1090T Asrock Deluxe4 333 6870 HD Radeon G.Skill Pi 4GB 2GBx2
Hard DriveOptical DriveOSMonitor
C300 ASUS Win 7/ Multiple Linux Acer 22"....
KeyboardPowerCaseMouse
Logitech G11 Corsair 750 ANTEC 902 The Logitech
Mouse Pad
none
  hide details
Reply
post #7 of 9
Quote:
I cant decide on the OS
Definitely FreeNAS. It's has ZFS so you don't have to use the crappy onboard RAID controller. NexentaStor is also supposedly good and people say it's faster than FreeNAS but I haven't tried it myself.
http://www.nexentastor.org/projects/site/wiki/CommunityEdition
post #8 of 9
Ya definitely another +1, for Freenas. Its support and community are a great addition to the already well put together OS/Application.
The 2600k
(18 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600k GA-Z68XP-UD4 MSI ATI 6950(unlocked) XFX ATI 6950(unlocked)
RAMHard DriveHard DriveCooling
Mushkin 997015 8GB(2x4GB) DDR3 PC3-17000 10-11-... Crucial M4 128GB SSD Western Digital Caviar Black 500GB Custom Watercooled
OSMonitorMonitorKeyboard
Microsoft Windows 7 Ultimate Viewsonic VX2739wm Viewsonic VX2739wm Logitech G15(original)
PowerCaseMouseMouse Pad
Coolermaster Silent Pro M 1000 DangerDen Torture Rack Razer Diamondback Everglide Titan
Audio
Creative xFi Titanium
  hide details
Reply
The 2600k
(18 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600k GA-Z68XP-UD4 MSI ATI 6950(unlocked) XFX ATI 6950(unlocked)
RAMHard DriveHard DriveCooling
Mushkin 997015 8GB(2x4GB) DDR3 PC3-17000 10-11-... Crucial M4 128GB SSD Western Digital Caviar Black 500GB Custom Watercooled
OSMonitorMonitorKeyboard
Microsoft Windows 7 Ultimate Viewsonic VX2739wm Viewsonic VX2739wm Logitech G15(original)
PowerCaseMouseMouse Pad
Coolermaster Silent Pro M 1000 DangerDen Torture Rack Razer Diamondback Everglide Titan
Audio
Creative xFi Titanium
  hide details
Reply
post #9 of 9
Thread Starter
whats wrong with using onboard raid? I forgot about raid z i was gonna go w onboard raid 5 i'll go for raid z...
I got the final HD today im gonna burn it out 1st than I'll probably install freenas tomorrow.
