Repair/Mod Log: 8800 GTX repair and more mods

post #1 of 28
Thread Starter
Maxious accidentally pulled his vGPU mod wire and ripped the SMR off. With it came the cooper pad the SMR is soldered to. Goal is to expose more copper to mount to, fix vGPU mod and then add OCP and OVP mods to the GPU.

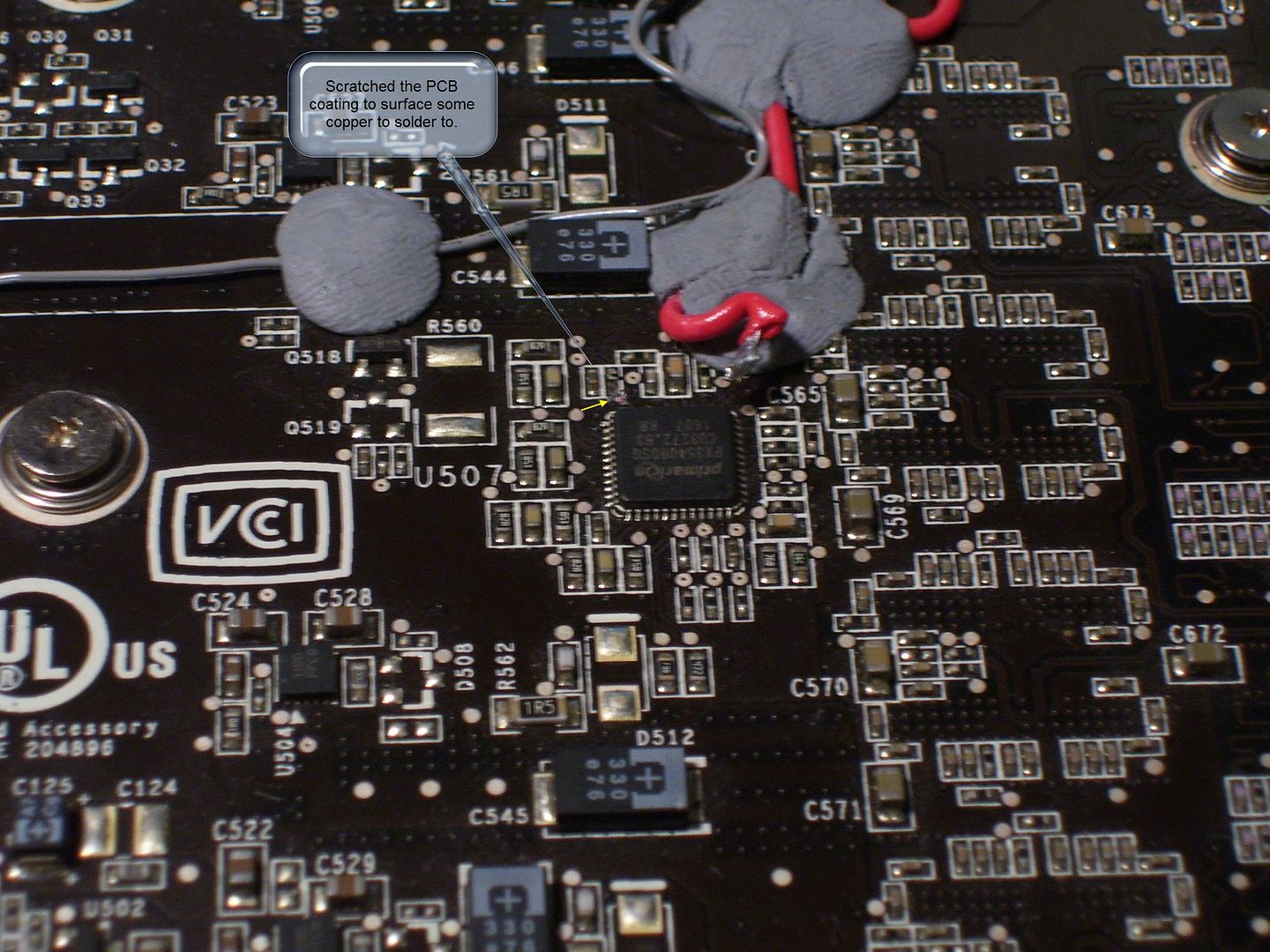

Day 1: Spent a few minute probe the board to get familiar with the connection paths. Then I took a tiny flat head screw driver and gently scraped some of the PCB coating off the circuit path.



Had to stop there for now. Drank to much coffee this morning. Shaky hands not good for soldering.

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
