Designing a ln2 pot Need input

post #1 of 10
Thread Starter
I am working on a design for a liquid nitrogen cooling pot and need some input. So far the design will hav 3.8 pounds ok copper, and 1 pound of aluminum in the base. What I need to know is how large can the base be. Right now my base is 3 inches by 3 inches, would this be too large?
Alpha_03
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 965 Black Biostar TA790GXB3 HIS IceQ ATI Radeon 4650 1GB (+OC) PNY XLR8 6GB (3 x 2GB) 240-Pin DDR3 SDRAM DDR3 160
Hard DriveOptical DriveOSMonitor
Random 500GB OEM drive Lite-On 24X iHAS124 XP Pro, 7 64 bit, Ubuntu server, Puppy linux. Primary: HP2009M LEFT: 1280X1024 Something RIGHT:
MouseMouse Pad
More than one $2 Something
  hide details
Reply
Alpha_03
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 965 Black Biostar TA790GXB3 HIS IceQ ATI Radeon 4650 1GB (+OC) PNY XLR8 6GB (3 x 2GB) 240-Pin DDR3 SDRAM DDR3 160
Hard DriveOptical DriveOSMonitor
Random 500GB OEM drive Lite-On 24X iHAS124 XP Pro, 7 64 bit, Ubuntu server, Puppy linux. Primary: HP2009M LEFT: 1280X1024 Something RIGHT:
MouseMouse Pad
More than one $2 Something
  hide details
Reply
post #2 of 10
Hey smile.gif The only size limitation I would put on an LN2 pot is making sure there's space to get around 3/4" of insulation between the pot and the mounting rods. I wouldn't want the rods to go *through* the insulation because there is a fair chance the insulation will split when it gets cold. Same if you make cut-outs
post #3 of 10
Quote:
Originally Posted by General_Kerr View Post

I am working on a design for a liquid nitrogen cooling pot and need some input. So far the design will hav 3.8 pounds ok copper, and 1 pound of aluminum in the base. What I need to know is how large can the base be. Right now my base is 3 inches by 3 inches, would this be too large?

You'll need to limit the size of your base/extension to fit within the size constrains of whatever HW you want to use the pot with.

Just find yourself some accurate schematics for the socket areas of each of the platforms (AM3, AM3+, 1155, 1156, 1366, 2011, etc) and take measurements of where the hole locations are and how far apart they are from each other.

What you're looking for are schematics like these...


That's for 1366. You can find the same documents for all the other socket layouts as well.

Once you have that; you can layer them on top of each other and figure out the hole locations for the back plate and hold down plate that you will be making for the pot. As for the size limitations; the same schematics will tell you how big you can go with the base and still have space for the screws and insulation.

Hope this helps
Sebas
Daily Driver
(21 items)


CPUMotherboardGraphicsGraphics
Phenom II X6 1090T Gigabyte GA-890FXA-UD5 XFX HD5670 1GB Gigabyte HD6570 1GB DDR3
RAMHard DriveHard DriveHard Drive
Microcenter Value RAM OCZ Vertex 2 Maxtor STM3200820AS Seagate ST316002 3AS
Optical DriveCoolingCoolingOS
Asus DRW-24B1ST Thermalright Venomous X Black Sanyo Denki - San Ace 9SG1212P1G01 120mm x 38mm... Win 7 Ultimate x64
MonitorMonitorKeyboardPower
Dell U2311H Dell E193FP Dell OEM keyboard Corsair TX850V2
CaseMouseMouse PadAudio
CM 690 II Advanced Razer Death Adder Black Edition 3.5G Steelseries QKC  On board Realtek HD audio
Audio
Dell OEM 5.1 speaker system
  hide details
Reply
Daily Driver
(21 items)


CPUMotherboardGraphicsGraphics
Phenom II X6 1090T Gigabyte GA-890FXA-UD5 XFX HD5670 1GB Gigabyte HD6570 1GB DDR3
RAMHard DriveHard DriveHard Drive
Microcenter Value RAM OCZ Vertex 2 Maxtor STM3200820AS Seagate ST316002 3AS
Optical DriveCoolingCoolingOS
Asus DRW-24B1ST Thermalright Venomous X Black Sanyo Denki - San Ace 9SG1212P1G01 120mm x 38mm... Win 7 Ultimate x64
MonitorMonitorKeyboardPower
Dell U2311H Dell E193FP Dell OEM keyboard Corsair TX850V2
CaseMouseMouse PadAudio
CM 690 II Advanced Razer Death Adder Black Edition 3.5G Steelseries QKC  On board Realtek HD audio
Audio
Dell OEM 5.1 speaker system
  hide details
Reply
post #4 of 10
Thread Starter
Note: OP was with a smartphone, I didn't have internet on my pc until ~30 min ago... ISP is phail.
Quote:
You'll need to limit the size of your base/extension to fit within the size constrains of whatever HW you want to use the pot with.
I want to make them to sell them, So I want them to fit anything.

I just found intel's datasheets, and I have one from ASrock for the AM3 holes, and AMD's are all mounted the same, right?

If so, I should be good smile.gif (Thanks tongue.gif )

So, On to design..

I've read what articles about LN2 pots that I could find, and done my own designing and math to come up with what I have. But I'm not designing the pot for my own hardcore use, and I want to get input from those who have much more experience freezing CPU's.


Here are a few things I'd like to ask:



Temperature probe:

What Diameter temperature probe do most people use? Mine is .184 inches, notably larger than most.
If you were to recommend a size to make the most people happy, what would it be?



Mass:

How much is enough?
My Design in progress has 3.8 Pounds of copper, and ~1 LB of aluminum in the lower part of the base (I didn't count the walls in my calculations, I figure they don't matter as much)

I can add more copper mass (with little impact to surface area) but It would make it more expensive in material.

Should I aim for more mass, or... what is the preference?

(I haven't done any LN2 benching yet. Only dice. Seeing as my HW store doesn't carry LN2 thumb.gif (I could put in a PO with A&L gasses, But I dont have a dewar, or the money for one anyway))



Surface Area:

Does Too much hurt? Or should I make it as much as possible?

I'll provide exact figures for my design later.



Mounting:

I Intend to make universal mounting brackets (using the prints mentioned above), one goes on the pot and and goes underneth. Same as my dry ice pot.

Does anyone think that would be inconvenient for whatever reason?

(Those hex pieces slide on, and the setscrew in the side lets you lock them, then you can use them to screw the rods into the backplate. I personally really liked the setup, I could feel and torque each of the 4 corners just the way i wanted)
338



Volume Capacity:

How much LN2 should a good pot hold? ATM the design holds ~2.5 cups (leaving 2.5 inches of tube unfilled) but all I have to do is increase the length of my aluminum tube to increase that.



Attachment of the tube:

At the moment the tube that goes on top Is interference-fit, which means anything short of a sledge hammer or hydraulic press couldn't remove it. (Someone told me these come apart when it gets cold, and some pots have failed because of it. I see how a poorly done Press-fit would come apart at LN2 temps. But not a strong interference fit, with equal cross-sections in the two parts.)

Would a permanent top be an issue for some reason?
If it might be, I could put in a tight thread, but it would take a lot longer to make the pot.



Cross-Section:

The Shortest cross-section between the LN2 and the processor would be .625" in my current design Does this sound acceptable, too thin, or too thick?



Shape:

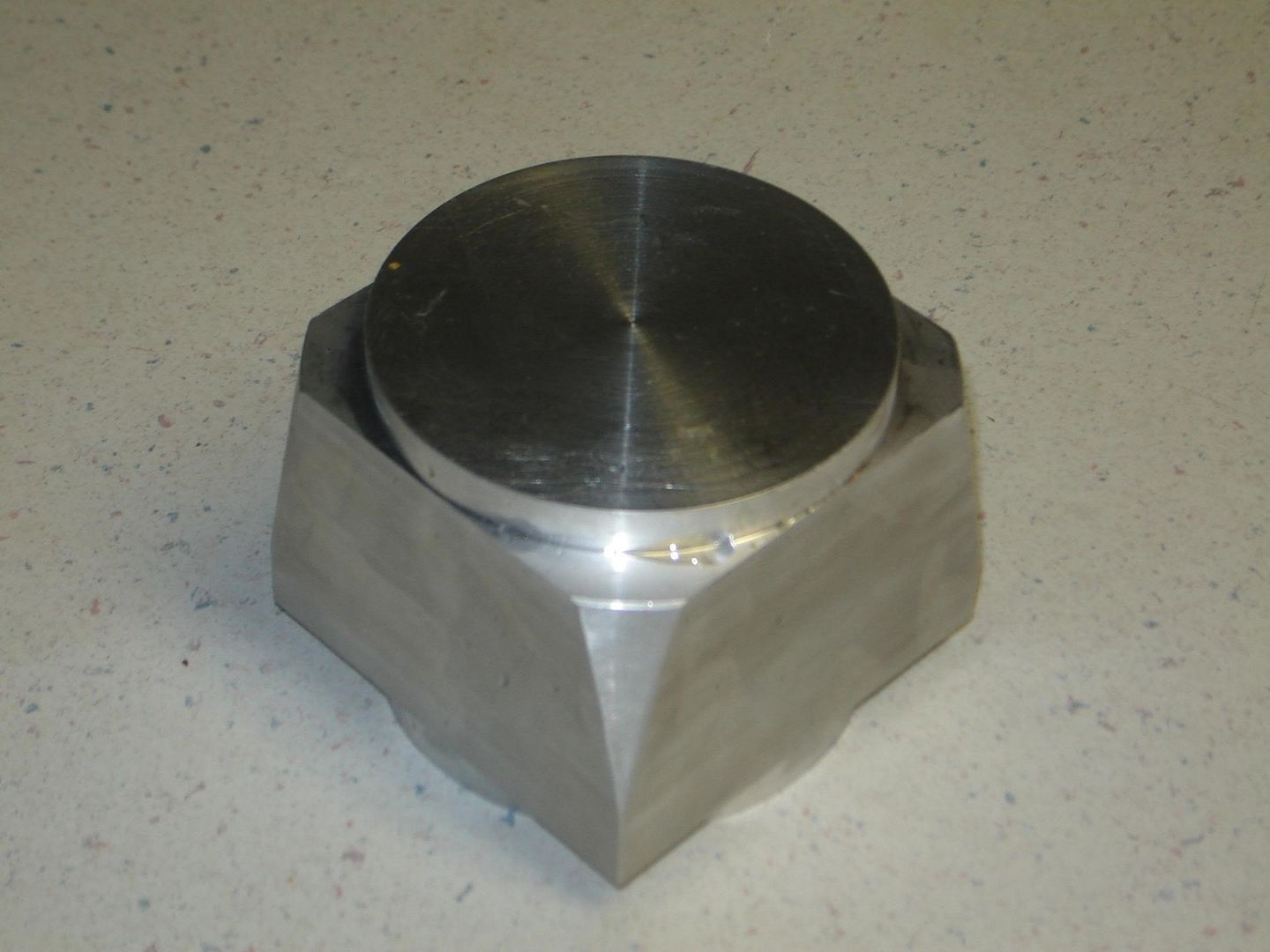

Does this look good tongue.gif

I am going to be using a square base again (works well for mounting, both at the mobo and in my machine). The tube isn't going to be so thick, though. (Bigger OD, thinner walls, inside NOT done with a cheap ass chinese boring bar that flexes .5 over 4 inches!)

Those aren't scratches, it's frost! If I make pots to sell they are going to be very well finished. Scratches, chip indents, use of mechanical abrasives... ALL inexcusable!


If anyone feels like commenting on these aspects of the design, or pointing me to resources, I'd much appreciate it.
