[Build Log] AMD 6970 Lightning Antec Kuhler 920 Mod -- 56k Warning!

post #1 of 15
Thread Starter
For those of you who were wondering if the Antec kuhler CPU coolers could be modded to fit AMD/ATi GPU's. It has been done for the red team!

First off, the use of zipties was not my idea, and credit must be given where credit is due. I came across the idea to do this from following some of the guys on the green team, namely cravenmild. His build log is listed [=http://www.overclock.net/t/1086286/complete-build-log-zotac-560ti-corsair-h70#post_14496907]here[/]. The nvidia card spacing is larger than that of AMD's, so I had to measure to be sure:

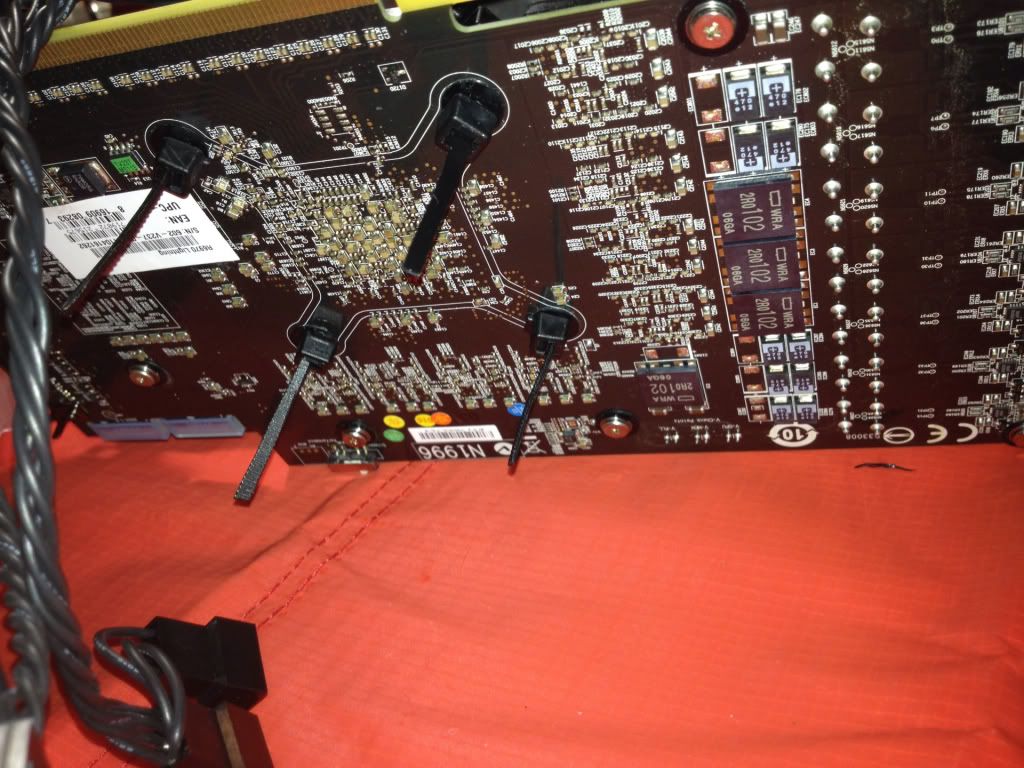

Luckily I had a spare H50 bracket from my old build, so I placed it over the back of my card to see if it would fit... but the bracket was too big. However, after using the h50 pump to measure the spacing of the holes, it became apparent that there was still room to use zipties. So to Newegg and RadioShack I went:

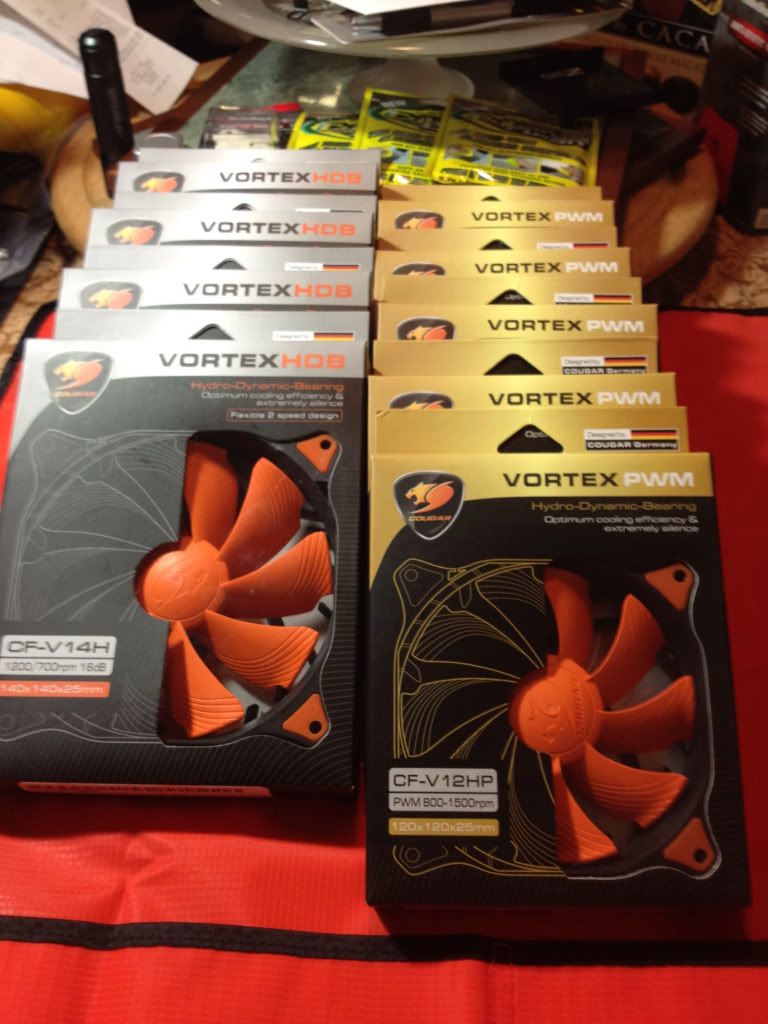

Fans for the case and all of the new rads:f41ff978.jpg


And then for the part youve been waiting for, the Antec kuhler 920 on my MSI 6970 Lightning:

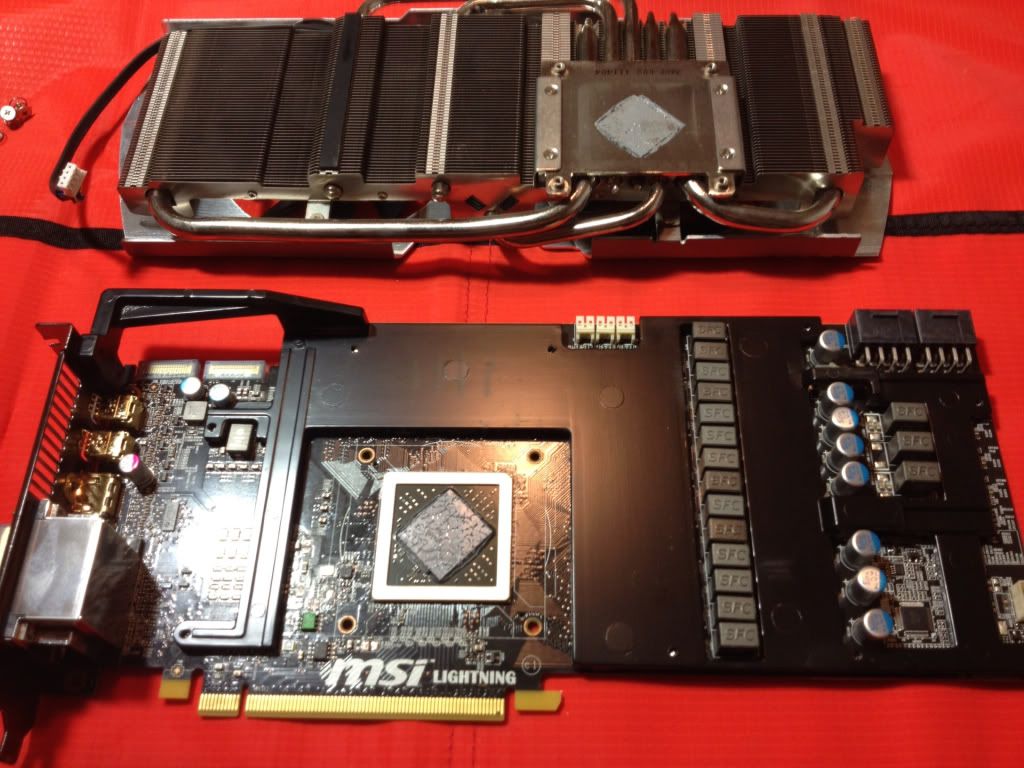

Cleaning the old thermal paste off:

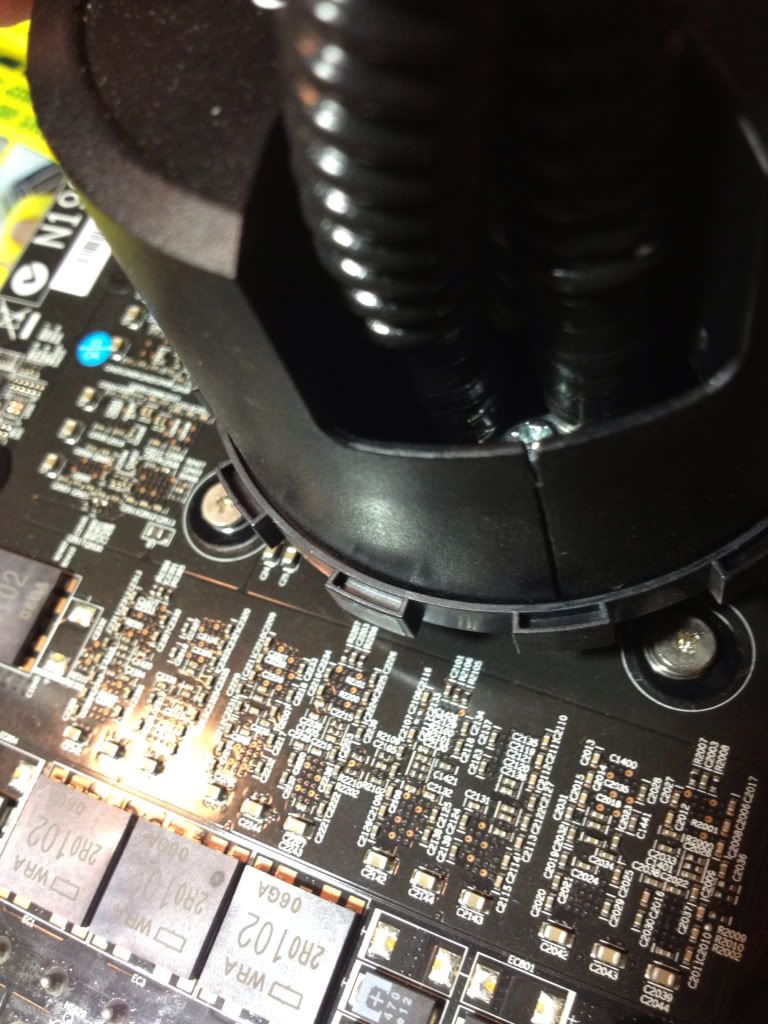

And finally fitting the cooler to the GPU:

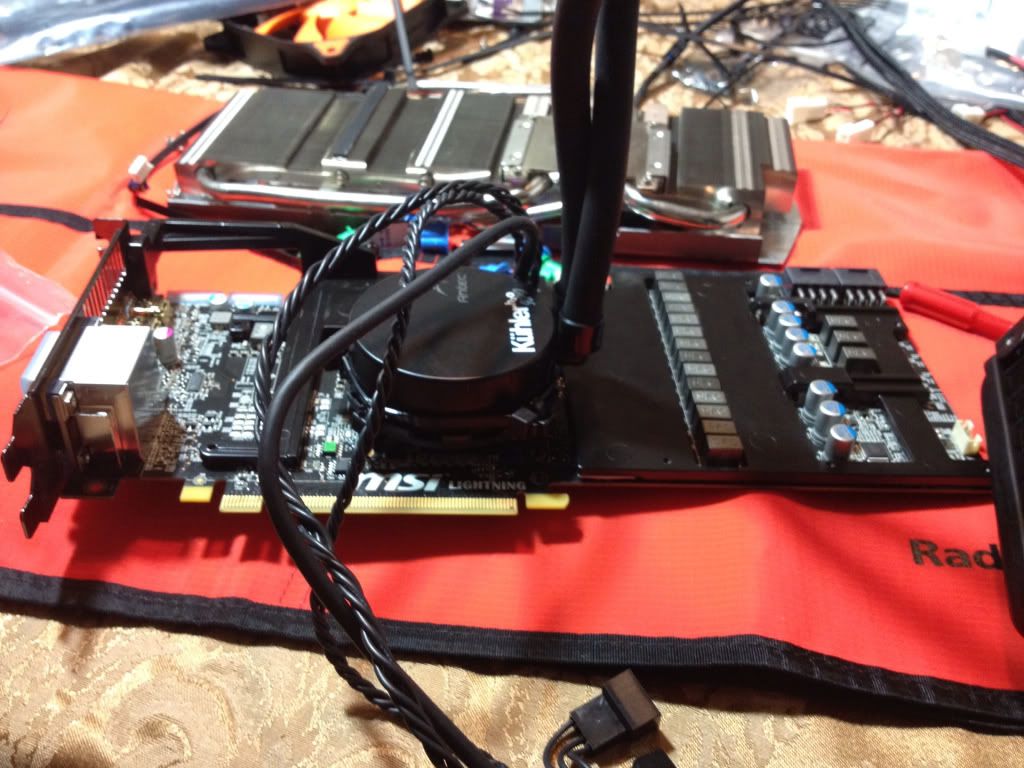

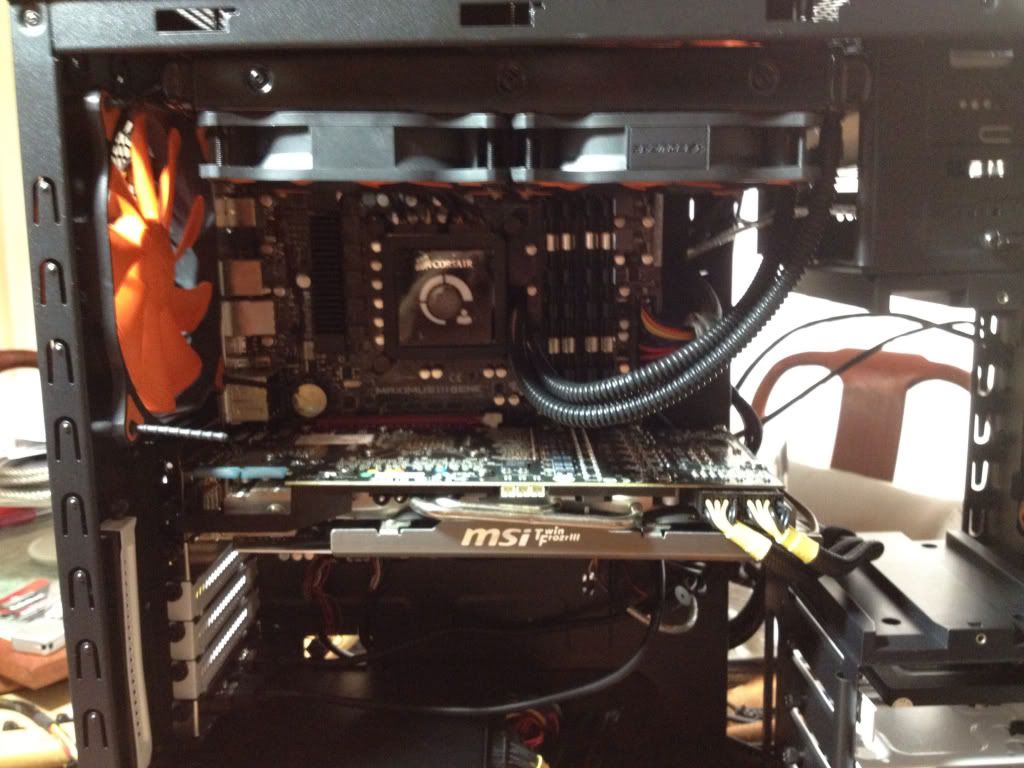

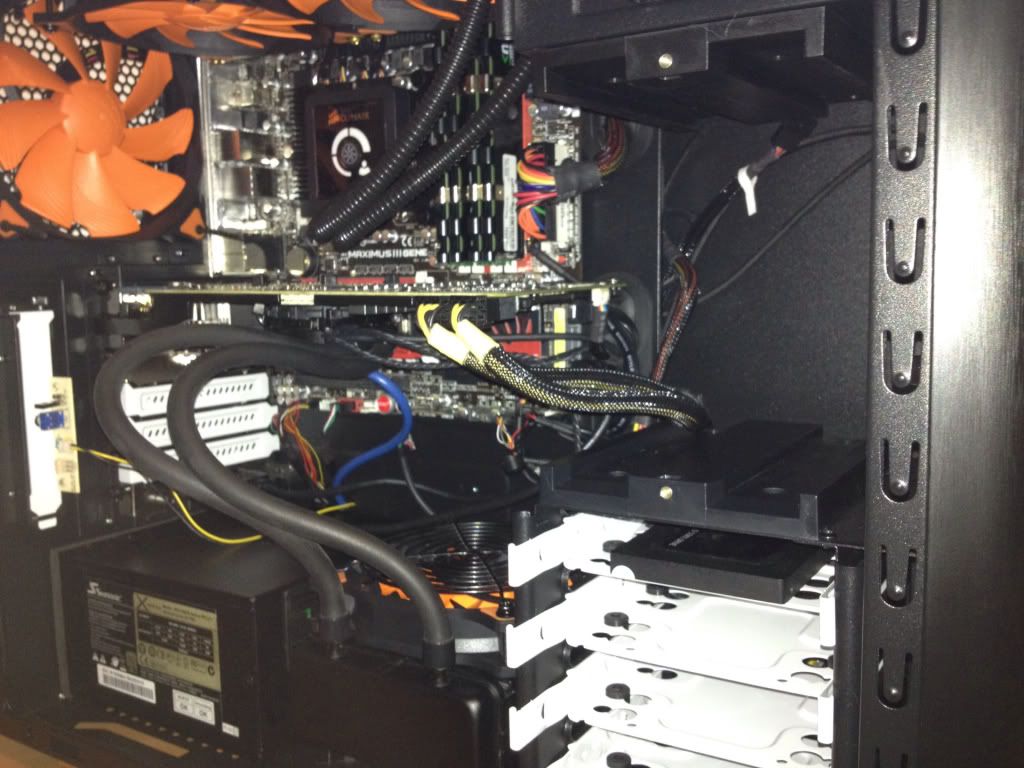

And the finished product:
I know its not nice and tidy, but this was taken right after I threw the cooler in the case. Temps dropped by 4-5 degrees C at idle and 30 degrees C at load. Yes, you read right, 30 degrees(from 85 to 55), and that was with an overclock from 940 core to 1000 core -- stock voltages and mem timings. The good thing about this mod is that you dont have to clean out your loop. all I have to do now is vacuum it wink.gif

Oh I must also mention... for like $2 (originally $10) you guys should pick up some of this to clean the insides of your pc and PCB's. It goes anywhere and works wonders. Picks up stuff even left behind by dusting air. You can get it at radioshack now. I havent even gone through the first one I brought yet. Its safe to roll on your electronic devices too -- cleaned my mobo and graphics card using it and now theyre sparkling clean! No more dust smile.gif
