Buying refurbed xbox, how can I keep it cool? - Page 4

post #31 of 54
Quote:
Originally Posted by mothrpe View Post

Hi Guys,
I'm trading in my psp 3000 and some ps3 games to gamestop to get one of their refurbished xbox 360 consoles. That said, they are not the slim models and I'm concerned about them overheating and getting the legendary rrod.
What are some cooling solutions and/or tips to ensure this doesn't happen?
Appreciate any feedback.


Drops RPM cuts temps in half and was originally intended by Microsoft, and yes i can back that claim up.
Core 2 Haf
(16 items)


CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
  hide details
Reply
Core 2 Haf
(16 items)


CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
  hide details
Reply
post #32 of 54
Quote:
Originally Posted by cdoublejj View Post

Drops RPM cuts temps in half and was originally intended by Microsoft, and yes i can back that claim up.

Is it just the holes in the case?
My System
(15 items)


CPUMotherboardGraphicsRAM
Core i5 2500K MSI P67A-G43 GTX 460 SLI 8GB Patriot DDR3-1333
Hard DriveCoolingMonitorKeyboard
2x WD Raptor 150Gb Raid 0 1x WD 1Tb Caviar Black XSPC Rasa RS240 LG 27" 1080p Logitech G15
PowerCaseMouseAudio
XFX Pro 850W Corsair 500R White Logitech G9x Creative SoundBlaster x-fi Xtreme Music
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
Core i5 2500K MSI P67A-G43 GTX 460 SLI 8GB Patriot DDR3-1333
Hard DriveCoolingMonitorKeyboard
2x WD Raptor 150Gb Raid 0 1x WD 1Tb Caviar Black XSPC Rasa RS240 LG 27" 1080p Logitech G15
PowerCaseMouseAudio
XFX Pro 850W Corsair 500R White Logitech G9x Creative SoundBlaster x-fi Xtreme Music
  hide details
Reply
post #33 of 54
breath through a straw for while and only through the straw, get it? These to holes allow for massive increase of fresh for the cooling system to intake. not only does it give it air they are in exactly the righ location to do so that is why there is mesh there there was originally intended to be holes there for the heats sinks and ducting to pull fresh air from. For some reason they never molded the plastic with holes there.

I have done some testing with this, in games where the fans usually spin up to notable noise level and start to get hot, with this they maintain an acceptable noise level and don't get as warm. I also did a little air flow testing by blowing some smoke in to it. it immediately suck up any smoke near those holes and a few occasions shot the smoke right out the back (usually dissipates by then).

No volt mods, no extra heat sinks, no washers, no extra fans, no nothing less is more!
Core 2 Haf
(16 items)


CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
  hide details
Reply
Core 2 Haf
(16 items)


CPUMotherboardGraphicsRAM
C2Q Q9550 ASUS P5E3 Deluxe Wifi-AP GTX 480 Kingston HyperX DDR3 KHX1600C9D3K2/8G
RAMHard DriveCoolingOS
PNY 1333 55gb, 320Gb, 500GB, 1TB Hyper 212 EVO Win 7 Ultimate 64bit
OSOSPowerCase
Lubuntu 13.04 x64 OS X 10.8.5 TX750 Haf 912
  hide details
Reply
post #34 of 54
Do you have any instructions or photos on where/how to make the cuts?

Ultra Magnus
(7 items)


CPUMotherboardGraphicsHard Drive
Intel i7 3930k ASRock X79 Extreme 11  EVGA GeForce GTX 680 4GB FTW+ with Backplate Samsung 840 Series 120GB SSD Retail Box
CoolingPowerCase
Corsair Hydro Series H55 CPU Cooler Corsair TX-850M Modular Corsair Graphite 600T Special Edition White
  hide details
Reply

Ultra Magnus
(7 items)


CPUMotherboardGraphicsHard Drive
Intel i7 3930k ASRock X79 Extreme 11  EVGA GeForce GTX 680 4GB FTW+ with Backplate Samsung 840 Series 120GB SSD Retail Box
CoolingPowerCase
Corsair Hydro Series H55 CPU Cooler Corsair TX-850M Modular Corsair Graphite 600T Special Edition White
  hide details
Reply
post #35 of 54
Quote:
Originally Posted by M1nUrThr3t View Post

I'm guessing you havent played Halo Reach, you do NEED a HDD.

Aggh... I feel bad because I don't remember this... I played Reach a good bit, but totally forgot.. I haven't used my 360 in ages and currently am selling it.

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 XFX HD 6950 G.Skill 2x4GB
CoolingOSPowerCase
CM Hyper 212+ Windows 7 / Linux Mint Seasonic S12ii 620 HAF 912
  hide details
Reply

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 XFX HD 6950 G.Skill 2x4GB
CoolingOSPowerCase
CM Hyper 212+ Windows 7 / Linux Mint Seasonic S12ii 620 HAF 912
  hide details
Reply
post #36 of 54
I'm on my second Xbox, its a slim one. The first one stayed at home when I left for college, it was the pro version from back in the day.

Basically it's only the first gen of 360s that had heat issues. Those are the arcade versions without hard drives and with a white dvd bezel. They also don't have an HDMI port. Stear clear of those and you'll be ok.

You have to give the xbox enough air around it, particularly in the back. Unless you're hell bent on putting it in some kind of cabinet or entertainment center with restricted air flow, I wouldn't recommend an "intercooler". It might help if you want to put it somewhere cramped though.

Also, gamestop buys your used stuff for one third of what they can sell it for at a used price. What that means is you can get more money virtually anywhere else. I'd recommend trying to sell stuff on ebay or somewhere other than gamestop.

Continuing my rant on gamestop, their refurbished 360s are $130 and up, depending on what comes with it. You won't save more than $50, and an extra $40-50 for a brand new current gen slim xbox with all the accessories is more than worth it if you ask me. If you want to go used, I think you should search elsewhere.

A final note: the xbox was prone to "ringing" the discs, or scratching a ring into the disc. This happens when you try to move the xbox with a disc in it then power it on. ALWAYS take your disc out before you move it, even if the xbox is powered off. The current gen slim ones still have the problem.
Big Daddy
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K @ 4.5 GHz Gigabyte Z77X-UD3H EVGA 980 Ti Classified G Skill ripjaws x 16 GB 1866
Hard DriveHard DriveCoolingOS
Seagate Barracuda 1 TB 7200 RPM Crucial MX 100 Corsair H80i GT Windows 7 Professional 64-bit
MonitorMonitorKeyboardPower
Asus ROG Swift PG279Q Dell P170S KBP V80 TKL Seasonic X-750
CaseMouseMouse PadAudio
Fractal Design Define R4 Titanium Grey Logitech G502 Razer Goliathus Speed M Creative Sound Blaster X-Fi Titanium
AudioOther
AKG K7XX NZXT Mesh 5 Channel Fan Cantroller
CPUGraphicsHard DriveCooling
Intel Core i7 2620M AMD Radeon HD 6470M Hitachi 320 GB 7200 rpm SED Stock, AC MX-4
OSMonitorMouseMouse Pad
Windows 7 Professional 64 1600x900 Logitech G700 Razer Goliathus
Audio
Onboard
  hide details
Reply
Big Daddy
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i5 3570K @ 4.5 GHz Gigabyte Z77X-UD3H EVGA 980 Ti Classified G Skill ripjaws x 16 GB 1866
Hard DriveHard DriveCoolingOS
Seagate Barracuda 1 TB 7200 RPM Crucial MX 100 Corsair H80i GT Windows 7 Professional 64-bit
MonitorMonitorKeyboardPower
Asus ROG Swift PG279Q Dell P170S KBP V80 TKL Seasonic X-750
CaseMouseMouse PadAudio
Fractal Design Define R4 Titanium Grey Logitech G502 Razer Goliathus Speed M Creative Sound Blaster X-Fi Titanium
AudioOther
AKG K7XX NZXT Mesh 5 Channel Fan Cantroller
CPUGraphicsHard DriveCooling
Intel Core i7 2620M AMD Radeon HD 6470M Hitachi 320 GB 7200 rpm SED Stock, AC MX-4
OSMonitorMouseMouse Pad
Windows 7 Professional 64 1600x900 Logitech G700 Razer Goliathus
Audio
Onboard
  hide details
Reply
post #37 of 54
If you're interested I'm trying to sell my xbox. I bought it as a refurb from gamestop almost a year ago and haven't had any RROD or any other problems. It's a Falcon model, 20GB HDD, 1 Wired controller, and Halo Reach.
My rig
(17 items)


CPUMotherboardGraphicsRAM
AMD Turion TL-60 x2 2Ghz Acer Aspire 5517 Radeon HD 3200 4GB DDR2 800 Mhz
Hard DriveOS
64GB Kingston SSD Windows 7
  hide details
Reply
My rig
(17 items)


CPUMotherboardGraphicsRAM
AMD Turion TL-60 x2 2Ghz Acer Aspire 5517 Radeon HD 3200 4GB DDR2 800 Mhz
Hard DriveOS
64GB Kingston SSD Windows 7
  hide details
Reply
post #38 of 54
I used to do Xbox 360 system refurbishing professionally.

My tips for keeping an original-style 360 alive are:

- Don't put it in an entertainment center. It needs to be able to vent heat out of it.

- Do not use a Nyko Intercooler. It attaches to the rear of the system over the exhaust fan vents and claims to increase cooling by pulling more air through the factory fan. The older versions piggyback on the power cable and have been known to cause system damage.

- If you're okay with opening the system and voiding the warranty, you could do a preemptive X-Clamp Fix and 12V Fan mod, as well as straighten the system chassis.

The X-Clamp fix involves new thermal compound, and removing the spring-metal X-Clamps meant to put tension on the heatsinks and instead solidly bolting the heatsink through the motherboard and to the chassis. Instructions on the X-Clamp fix are widely available online. You'll need to make sure you have 3mm of washers between board and chassis and 2mm between heatsink and board.

The 12V fan mod involves either soldering a connection between two points on the board to disable fan speed ramping, or soldering the fan's power wires to the 12v+ contact where the power connector meets the board. Instructions are available online.

The chassis straightening is a technique I developed to reduce the amount of repair returns, and was very effective.

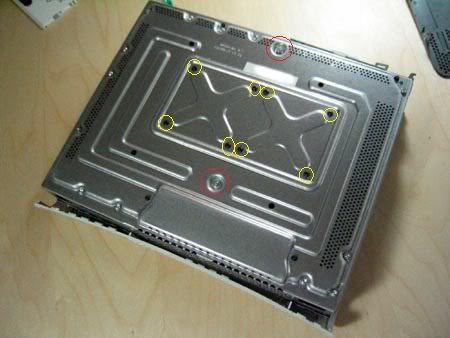

In this picture, the 8 screws that hold the X-Clamps and heatsinks to the chassis are circled in yellow, an the two central chassis lid screws are circled in red.
On every system I've worked on, the stamping on the chassis causes the two red-circled points to be 2-3mm taller than the rest of the chassis. This puts a constant warping pressure on the board between the CPU and GPU dies.
The two options available are to pound those flush with the rest of the chassis with a hammer, and still use the lid mount screws there, or to cut them off completely with a Dremel and not use those mount screws.

- The last secret trick is originally intended for a launch-series "Xenon" console, but can be adapted to later systems. The Xenon systems had a spot located behind the Ring of Light connector on the motherboard where a 3-pin fan header could be added. There is room between the CPU heatsink and the chassis to add a 60mm fan to the system lid, in the position where those holes were drilled into the system in previous pictures. If you were to do this on later systems, you would have to tap into the 12v+ connection on the power connector, as they removed the spot for the 3-pin header in later revisions. This modification will require removal of the metal static shield lid from the case top.

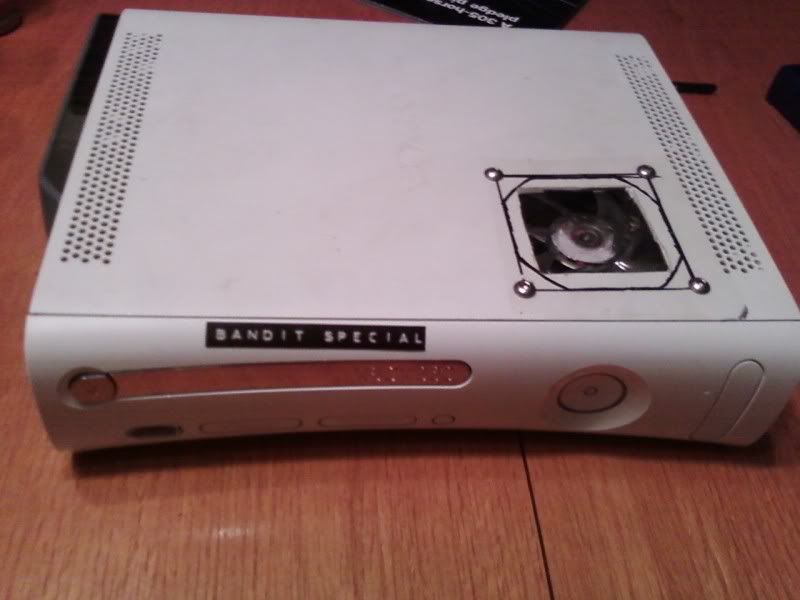

I did that mod on my personal system with an 80mm fan, because I couldn't source a 60mm locally. The 80mm required modification of the CPU heatsink to fit, but gave exceptional cooling.

This was a rough shot shortly after installation. I did end up finishing out the hole better.


Asus K55A
(12 items)


CPUMotherboardGraphicsRAM
Pentium G3258 MSI Z97 PC Mate PNY GTX 650 2GB 4GB Corsair XMS3
Hard DriveHard DriveOptical DriveCooling
Seagate 1TB SSHD M500 120GB LITE-ON iHAS124-14 Stock
OSMonitorMonitorKeyboard
Win7 Professional 64bit LG W2253 HP 1502 Nixeus Moda
PowerCaseMouseMouse Pad
Corsair CX600M Rosewill FBM-02 Razer Abyssus Mirror Razer Goliathus alpha control, Razer Goliathus ...
AudioOther
Plantronics RIG 7.1 BYTECC U3-225 3.5" 2x USB 3.0 + 2x 2.5" HDD/SSD...
CPUMotherboardGraphicsRAM
Intel i5-3210M CPU @ 2.50GHz Asus K55A Intel HD Graphics 4000 Elpida 4GB DDR3
Hard DriveOptical DriveCoolingOS
Seagate Momentus 500GB Matshita DVD-RAM UJ8C0 Stock CPU Fan Win7 Home Premium 64bit
MonitorPowerCaseAudio
1366x768 15" Glossy Laptop Screen Stock battery and wall adapter Asus K55A chassis Factory Altec-Lansing speakers
CPUMotherboardGraphicsRAM
Atom N270 Asus 1005HAB Intel Integrated 2GB DDR2
Hard DriveOptical DriveCoolingOS
OCZ Agility Series OCZSSD2-1AGT30G 30GB SATA II... Stand-alone external USB Stock Windows 7 32bit
MonitorKeyboardPowerCase
10.1" 1024x600 Integrated LCD Panel Built-in keyboard 6-cell Li-Ion battery, Wall Charger Stock EeePC chassis
Mouse
Multi-touch Trackpad
  hide details
Reply

Asus K55A
(12 items)


CPUMotherboardGraphicsRAM
Pentium G3258 MSI Z97 PC Mate PNY GTX 650 2GB 4GB Corsair XMS3
Hard DriveHard DriveOptical DriveCooling
Seagate 1TB SSHD M500 120GB LITE-ON iHAS124-14 Stock
OSMonitorMonitorKeyboard
Win7 Professional 64bit LG W2253 HP 1502 Nixeus Moda
PowerCaseMouseMouse Pad
Corsair CX600M Rosewill FBM-02 Razer Abyssus Mirror Razer Goliathus alpha control, Razer Goliathus ...
AudioOther
Plantronics RIG 7.1 BYTECC U3-225 3.5" 2x USB 3.0 + 2x 2.5" HDD/SSD...
CPUMotherboardGraphicsRAM
Intel i5-3210M CPU @ 2.50GHz Asus K55A Intel HD Graphics 4000 Elpida 4GB DDR3
Hard DriveOptical DriveCoolingOS
Seagate Momentus 500GB Matshita DVD-RAM UJ8C0 Stock CPU Fan Win7 Home Premium 64bit
MonitorPowerCaseAudio
1366x768 15" Glossy Laptop Screen Stock battery and wall adapter Asus K55A chassis Factory Altec-Lansing speakers
CPUMotherboardGraphicsRAM
Atom N270 Asus 1005HAB Intel Integrated 2GB DDR2
Hard DriveOptical DriveCoolingOS
OCZ Agility Series OCZSSD2-1AGT30G 30GB SATA II... Stand-alone external USB Stock Windows 7 32bit
MonitorKeyboardPowerCase
10.1" 1024x600 Integrated LCD Panel Built-in keyboard 6-cell Li-Ion battery, Wall Charger Stock EeePC chassis
Mouse
Multi-touch Trackpad
  hide details
Reply
post #39 of 54
Thread Starter
Thank you guys for all your feedback!

Last night I went and got one, actually ended up getting a new Xbox 4gb Model and Halo Reach. Even though it's a new model I put it on a little stand by itself with all vents uncovered, little thing gets warm.

I'm really liking the system, I dig the small features lacking in my ps3 like being able to hook it up to my 1920x1080 pc monitor and the xbox upscaling all games to its native resolution.

And the loading times are really short I've found so far.
Superhans
(13 items)


CPUMotherboardGraphicsRAM
Intel Q6600 OC@3.0Ghz, Stock Voltage GIGABYTE GA-G31M-ES2L MSI GTX 950 2GD5T OC 4GB DDR2 800 OEM@833Mhz
Hard DriveOptical DriveOSMonitor
WD Caviar Black 1TB OEM DVD-R/RW Windows 7 Ultimate x64 Samsung 46" LED 1080P
KeyboardPowerCaseMouse
Logitech Wave Keyboard corsair 550w Generic Mid-Tower Razer DeathAdder
  hide details
Reply
Superhans
(13 items)


CPUMotherboardGraphicsRAM
Intel Q6600 OC@3.0Ghz, Stock Voltage GIGABYTE GA-G31M-ES2L MSI GTX 950 2GD5T OC 4GB DDR2 800 OEM@833Mhz
Hard DriveOptical DriveOSMonitor
WD Caviar Black 1TB OEM DVD-R/RW Windows 7 Ultimate x64 Samsung 46" LED 1080P
KeyboardPowerCaseMouse
Logitech Wave Keyboard corsair 550w Generic Mid-Tower Razer DeathAdder
  hide details
Reply
post #40 of 54
Quote:
Originally Posted by mothrpe View Post

Thank you guys for all your feedback!
Last night I went and got one, actually ended up getting a new Xbox 4gb Model and Halo Reach. Even though it's a new model I put it on a little stand by itself with all vents uncovered, little thing gets warm.
I'm really liking the system, I dig the small features lacking in my ps3 like being able to hook it up to my 1920x1080 pc monitor and the xbox upscaling all games to its native resolution.
And the loading times are really short I've found so far.

yeah its a pretty good system. I got the slim myself and like it. It does get a bit warm but I havent had any issues.
