Beginner here, help me watercool this case: pc-x2000f

post #1 of 8
Thread Starter
This will be my first time water cooling. For now I just want to cool the CPU (see sig rig), but I don't know where to start with this case. Could someone help me piece together a system? A dual bay xspc rez/pump would be a cool look with this case. Budget: as little as possible, but enough power to cool my overclocked i7 and future ivy bridge. All the fans in this case are 140mm.
450
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
post #2 of 8
That's a very nice case and there are a number of possibilities.

One that comes immediately to mind since I have the smaller version of the case is Swiftech's MCR Drive series. A potential issue is the 140mm fans - are there 120mm mounting holes for 120mm fans?

The newest release is a kit that includes a pump, radiator and CPU waterblock. Check it out here.

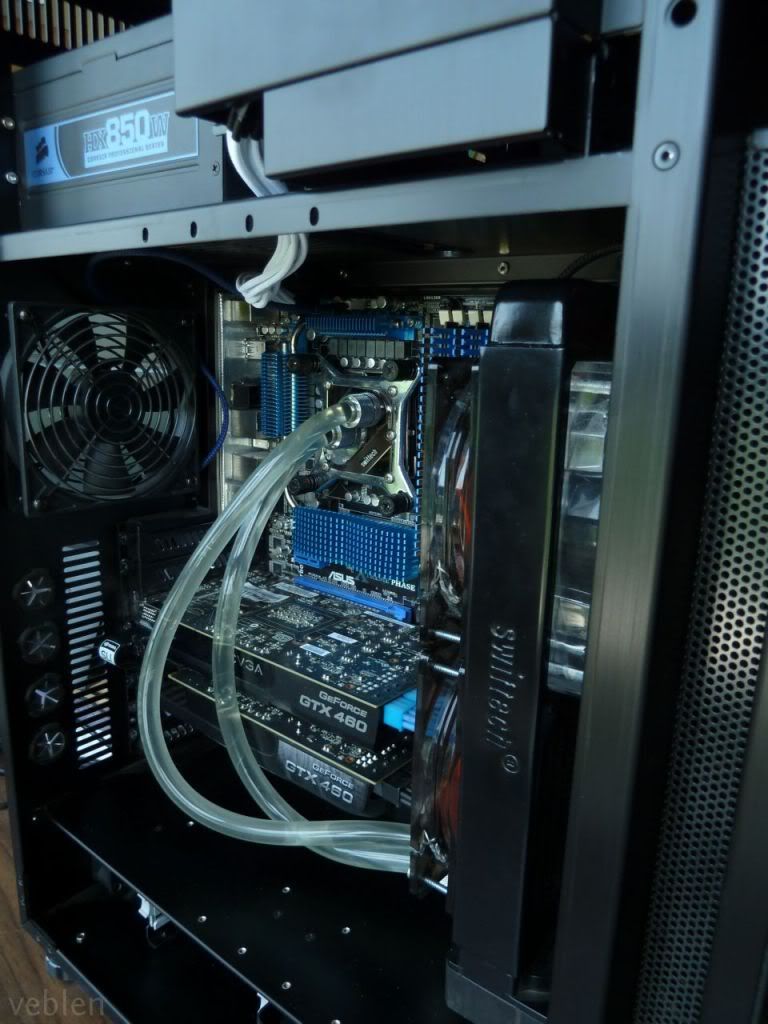

Here's a picture of my rig:


If you remove the bottom drive cage, you can probably fit the 360 rad version of the kit (again, assuming you have 120mm mounting holes).
Edited by veblen - 1/26/12 at 8:50am

CPUMotherboardGraphicsRAM
Intel Core i7 3930K Rampage IV Extreme EVGA GTX 580 16GB G.Skill Ripjaws
Hard DriveOptical DriveOSMonitor
Vertex 4 256GB; 1 x WD 1TB Black Asus 24X DVD-RW Windows 8 Pro/OS X 10.8.2/Mint 13 BenQ G2400WD
KeyboardPowerCaseMouse
Das Professional Silent S Enermax 1250W Silverstone TJ07 Logitech G500
Audio
Creative Titanium HD
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel Core i7 3930K Rampage IV Extreme EVGA GTX 580 16GB G.Skill Ripjaws
Hard DriveOptical DriveOSMonitor
Vertex 4 256GB; 1 x WD 1TB Black Asus 24X DVD-RW Windows 8 Pro/OS X 10.8.2/Mint 13 BenQ G2400WD
KeyboardPowerCaseMouse
Das Professional Silent S Enermax 1250W Silverstone TJ07 Logitech G500
Audio
Creative Titanium HD
  hide details
Reply
post #3 of 8
I'd be surprised if he doesn't have 120 mount holes on that case. I've yet to come across a case only manufacturer that didn't plan for eventual modding. And yea a 360 kit would look great in the front of that tower. If you want to piece it out the whole kit can be purchased individually and that would let you buy a tri-140 rad rather then the tri-120 rad. Also this being OCN do you plan on OCing the CPU? if you don't then a 240 will be more then enough. The one I use can even handle a 1.2ghz OC for my I7 hexacore running at 100% load continuously.
2012 New Hotness
(10 items)


CPUMotherboardGraphicsRAM
I7-3930K Asus Rampage IV Extreme EVGA GTX 580 Classified G Skill Ripjaws
Hard DriveOptical DriveCoolingOS
Crucial M4 SSD Samsung Black Blueray/DVD Rasa 750 240 rad Microsoft Windows 7 Professional 64 bit
PowerCase
Rosewell Lighting 1000w Azza Solano 1000R
  hide details
Reply
2012 New Hotness
(10 items)


CPUMotherboardGraphicsRAM
I7-3930K Asus Rampage IV Extreme EVGA GTX 580 Classified G Skill Ripjaws
Hard DriveOptical DriveCoolingOS
Crucial M4 SSD Samsung Black Blueray/DVD Rasa 750 240 rad Microsoft Windows 7 Professional 64 bit
PowerCase
Rosewell Lighting 1000w Azza Solano 1000R
  hide details
Reply
post #4 of 8
Thread Starter
I'll look for the 120mm holes when I get home, I can't get rid of the lower drive bays because I have 6 drives and every slot will be full. Love this case, all the bays are hotswap, wires will be nicely hidden. absolutely gorgeous. Depending on how much room I have when I get the GPU's in I'll see whether or not I can use a thick rad or a low profile. Is push pull worth it or not?
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
post #5 of 8
The gains aren't huge in a push pull set up but they are there if you can fit it go for it. Just an FYI for a push pull set up you don't need (or want iirc) High speed fans on the pull side of the Rad it'll cause to much turbulence and remove the efficiency you would gain from a push pull set up. Ideally go with a mid to low flow set up that helps draw the air exiting the rad away from it rather then "pulling" the air through the rad.
2012 New Hotness
(10 items)


CPUMotherboardGraphicsRAM
I7-3930K Asus Rampage IV Extreme EVGA GTX 580 Classified G Skill Ripjaws
Hard DriveOptical DriveCoolingOS
Crucial M4 SSD Samsung Black Blueray/DVD Rasa 750 240 rad Microsoft Windows 7 Professional 64 bit
PowerCase
Rosewell Lighting 1000w Azza Solano 1000R
  hide details
Reply
2012 New Hotness
(10 items)


CPUMotherboardGraphicsRAM
I7-3930K Asus Rampage IV Extreme EVGA GTX 580 Classified G Skill Ripjaws
Hard DriveOptical DriveCoolingOS
Crucial M4 SSD Samsung Black Blueray/DVD Rasa 750 240 rad Microsoft Windows 7 Professional 64 bit
PowerCase
Rosewell Lighting 1000w Azza Solano 1000R
  hide details
Reply
post #6 of 8
Thread Starter
So if possible i'd be better off with a push only thick radiator rather than a push/ pull low profile?
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
New i7 950 build
(15 items)


CPUMotherboardGraphicsRAM
i7-950 @ 4.2ghz MSI Big Bang x58  Crossfire Sapphire 7970 OC  6gb HyperX 1600
Hard DriveHard DriveCoolingOS
C300 64gb , Agility2 90gb, 2x WD greens Raid 0 Samsung 830 series 64gb H100 Windows 7 64bit
MonitorPowerCase
Crossover 1440p OCZ ZX850W Lian li Pc-x2000f
  hide details
Reply
post #7 of 8
Here is a little info from Martin about fans and rads its a very good read LINK
My System
(27 items)


CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair V Formula NVIDIA GeForce GTX 580 NVIDIA GeForce GTX 580
RAMRAMRAMRAM
G.Skill G.Skill G.Skill G.Skill
Hard DriveHard DriveOptical DriveOS
Crucial M4 2.5" 256GB SATA III MLC Internal Sol... Western Digital Caviar Black WD1002FAEX 1TB 720... SONY Black 12X BD-R 2X BD-RE 8X DVD+R 5X DVD-RA... Microsoft Windows 7 Ultimate SP1 64-bit
MonitorKeyboardPowerCase
HP LED Black 27" 5ms HDMI Widescreen LED BackLi... Logitech G510 Black 18 Function Keys USB Wired ... SILVERSTONE ST1500 1500W ATX 12V 2.3 & EPS 12V ... XSPC H1 Hive Series Cube Enthusiast Water Cooli...
MouseMouse PadAudioOther
Logitech G500 10 Buttons Dual-mode Scroll Wheel... Ozone Gaming Gear GROUND LEVEL L Gaming Mouse Pad Cooler Master Circumaural Storm Sirus Headset -... XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP...
OtherOtherOtherOther
XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R...
OtherOtherOther
XSPC EX360 Triple 120mm Low Profile Split Fin R... EK ASUS Crosshair V Full Board Cooling Block Ki... EK Supreme HF Universal CPU Liquid Cooling Bloc...
  hide details
Reply
My System
(27 items)


CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair V Formula NVIDIA GeForce GTX 580 NVIDIA GeForce GTX 580
RAMRAMRAMRAM
G.Skill G.Skill G.Skill G.Skill
Hard DriveHard DriveOptical DriveOS
Crucial M4 2.5" 256GB SATA III MLC Internal Sol... Western Digital Caviar Black WD1002FAEX 1TB 720... SONY Black 12X BD-R 2X BD-RE 8X DVD+R 5X DVD-RA... Microsoft Windows 7 Ultimate SP1 64-bit
MonitorKeyboardPowerCase
HP LED Black 27" 5ms HDMI Widescreen LED BackLi... Logitech G510 Black 18 Function Keys USB Wired ... SILVERSTONE ST1500 1500W ATX 12V 2.3 & EPS 12V ... XSPC H1 Hive Series Cube Enthusiast Water Cooli...
MouseMouse PadAudioOther
Logitech G500 10 Buttons Dual-mode Scroll Wheel... Ozone Gaming Gear GROUND LEVEL L Gaming Mouse Pad Cooler Master Circumaural Storm Sirus Headset -... XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP...
OtherOtherOtherOther
XSPC Dual 5.25" Bay Reservoir - w/ Alphacool VP... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R... XSPC EX360 Triple 120mm Low Profile Split Fin R...
OtherOtherOther
XSPC EX360 Triple 120mm Low Profile Split Fin R... EK ASUS Crosshair V Full Board Cooling Block Ki... EK Supreme HF Universal CPU Liquid Cooling Bloc...
  hide details
Reply
post #8 of 8
Yea I'd agree with that.
