Before and after Pictures custom watercooling with unknown watercooling parts/ traded systems with buddy

post #1 of 10
Thread Starter
So I trade kinda like a bare-bone for my setup with a good friend's setup. It had a custom watercooling with unkown parts. Specifications
were

intel i7-940
intel DX58SO
12gb triple channel
old thermaltake case
blue fan controller

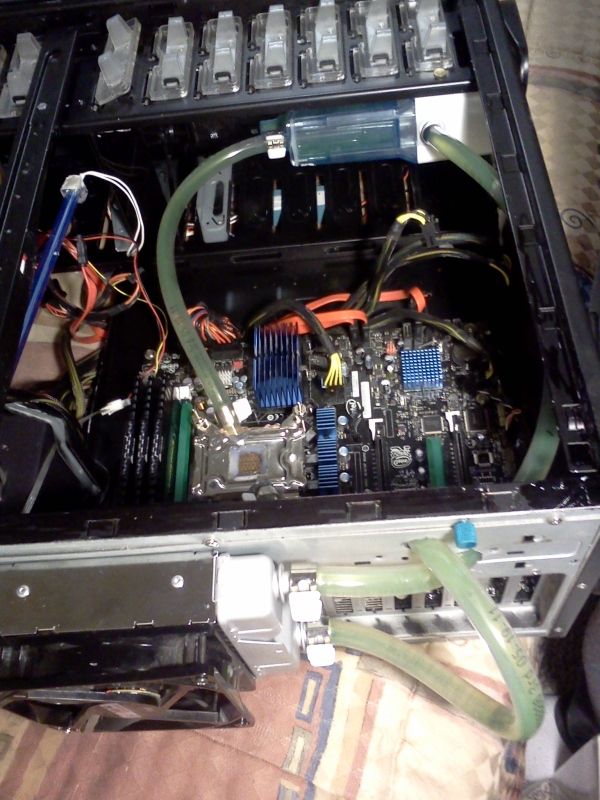

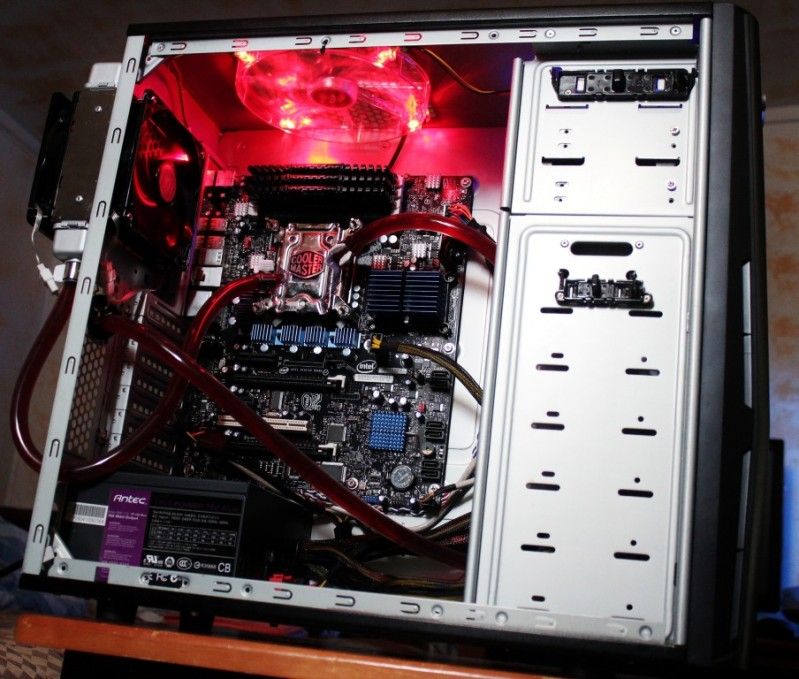

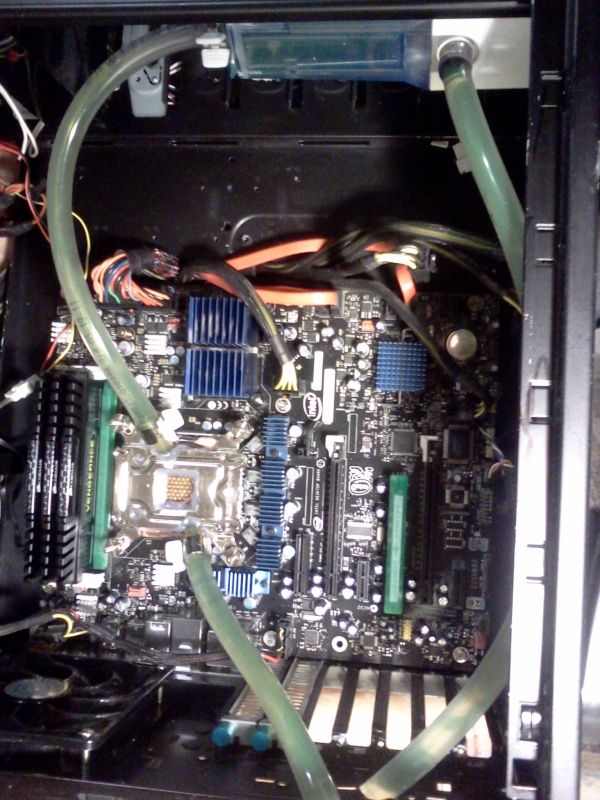

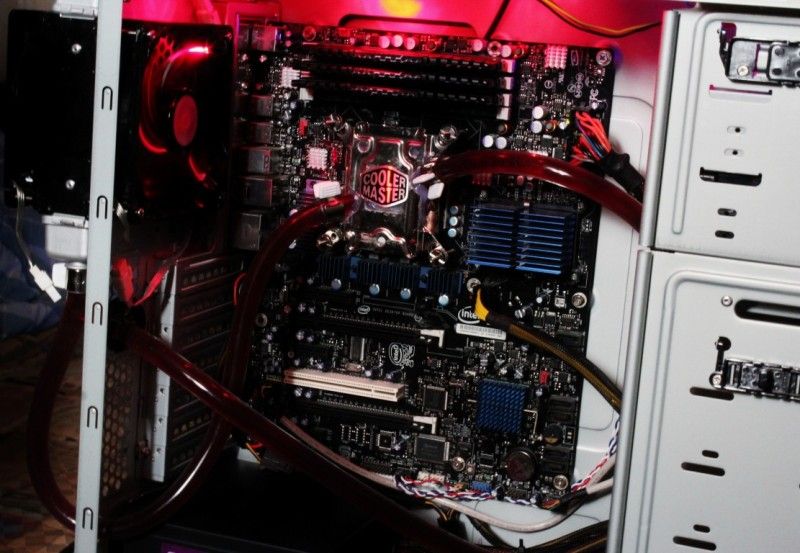

It did not look that great but I did have hope and it was my first time playing with water cooling and boy its scary.. All in all it was good experience it turned out more then I can hope. Only thing I did was swapped cases, do a little cable management, and bought blood red watercooling fluid (had to buy an extra dye since at first it looked like water with a little hint of red..). Here is what I managed to do. What you think tongue.gif


I got a few questions with watercooling.

1.Does it need to be cleaned or anything after a while?
2. How much of the fluid do I put in the reservoir tank?
3. Anyone know the parts of my watercooling setup?
Edited by john99teg - 1/30/12 at 2:59pm
