[Guide] Building a 2P/4P; From Start To Finish - Along with PPD Benchmarks & Gallery

post #1 of 740
Thread Starter
Originally by derickwm, Update by Chooofoojoo


Putting Together a 2P/4P Rig - From Wallet Emptying to Running bidadv

I've gotten a lot of positive comments from my build log and I wanted to make an "unofficial" how to thread instead of just going off a build log. This is in slight interference with Hoth17's multicpu discussion thread but as he is no longer with us I would like to update and expand upon his thread.

This is something as a team we need to get on as soon as humanely possible. Even with the advent of QRB for GPU folding, multiprocessor rigs are still the PPD/Watt king. [H] has an army of these things and EVGA just has a lot of folders. Multiple cpu rigs are the future of folding and the more people the better thumb.gif

The first post will be detailed instructions on how to construct your own multiprocessor thread, along with different budget options that are available. The second post will be PPD benchmarks for various configurations. The third post will be a gallery.

Buying Parts

In all honesty, the best place to buy chips right now is eBay. It's just silly to pay $1240 for a chip that you could get for $450 on eBay. Yes we all have our issues with eBay, but it just is the most logical thing to do. Unless you just have cash to burn, but even then you could build 3 4P rigs for the price of one tongue.gif

For motherboards, Wiredzone is a good place. They have awesome prices and fast shipping. I ordered my board either Thursday night or Friday morning and it arrived to my door the following Monday.

For RAM, cooling, and PSUs there aren't any special places to order them from. Find the cheapest, most reliable place you can thumb.gif

CPUs (Click to show)

Budget: AMD 6128 8 Core Processor

Most common and best PPD/W: AMD 6174 12 Core Processor

Highest end 6180s

MC vs IL

The new Interlagos chips are based on BD...and we all know how that went. Fortunately the IL processors are actually faster then the MC processors. They just suck a helluva lot more power. Using 4x16core IL vs using 4x12core MC nets you approximately 15k more PPD [doing more research] but it will be sucking about 100-150 more watts from the wall. So if you can afford IL and don't pay your electricity bill then please be my guest and buy them biggrin.gif
Quote:
Originally Posted by hoth17 View Post

As for MC vs. IL, I'm still MC (I bought 4 6174s). I'm sure you have read the MC IL debate over at [H], if not, off you go, http://hardforum.com/showthread.php?t=1652213. However, I'm sure you have, so here is my take on it.
A 6272 will perform about 25 seconds faster than a 6174, that will be about 15k faster. Now, if you were planning on buying your chips retail regardless of price, IL all the way. However, because a 6174 can be had on ebay for ~450 (I just bought 4 [auctions] that averaged out to $450 each), you are saving $400 dollars over IL. That, and it will consume 100+ watts less, MC is the right choice. Even at $525, 15k PPD is not worth the extra watts, if you are paying for it.
Now, if you are not paying for your own electricity, and you don't want to wait for and 6174 auctions to come up, then IL is the way to go.
Having said all of that, there is a fourth option. Right now, I think it is the best option. Buy a 4p board and 4 x 6128s. This will cost about $1300. That is about the cost of a 2p board and two MC or IL chips (maybe slightly more). It will net you 260k PPD, which is far more than the 180ish you can expect form a 2p IL or MC setup. Then, over time, as auctions come up, you can upgrade to MC or IL. And better yet, used IL may start cropping up for < $400.

Abu Dhabi

AD chips are based on AMD's Piledriver architecture, giving them better power efficiency than IL. This affords them a bit better edge over IL chips in PPD/Watt. Very expensive, and limited overclocking makes these a poor value, however. Regardless, screaming deals can be had (I bought my 6386 SE Eng. Sample chips for ~$800 each), but for the money MC seems to trump all newer gen CPUs for folding value.


Motherboards (Click to show)

SuperMicro H8QGi+-F - WiredZone

SuperMicro H8QGL-iF+ - WiredZone

SuperMicro H8DGU - WiredZone

TYAN S8812WGM3NR - Newegg

TYAN S8236GM3NR - Newegg

Right now SuperMicro is the preferred manufacturer for boards as they are overclockable through a modded BIOS.

The board I'm using for my build is the second link, and also the newer board; it's also cheaper wink.gif. The alternate socket spacing of the H8QGi+-F allows better airflow with 212+ heatsinks

RAM (Click to show)
With SuperMicro boards we can now use 1600Mhz ram effectively! biggrin.gif

It has been found that tighter timings do wonders for bigadv folding. 1600Mhz CL8 seems to be the preferred ram.

http://www.newegg.com/Product/Product.aspx?Item=N82E16820148656

^this has been the most recommended ram so far.

If you want 8Gb dimms then : http://www.newegg.com/Product/Product.aspx?Item=N82E16820148558

Cooling (Click to show)

These chips do not run hot. A CM Hyper 212+ will cool them perfectly fine. They do however require custom mounting.

For custom mounting instructions scroll down on this post.

Here is a list of "native" g34 coolers.

Koolance, EK, and DT all have water blocks that fit the G34 Socket. Performance PC's Link for water blocks

PSUs (Click to show)
Get solid built PSUs. DO NOT cheaper out here. Efficiency is king for PPD/Watt. Remember this will be running 24/7! Most setups don't pull more then ~550w [Overclocked MC, IL and AD chips can pull 1000W+] from the wall but to maximize efficiency you want to buy a solid good brand name PSU. My personal recommendation for any 4p build is the Corsair AX1200.

More then like you will need this adapter as well. Most PSUs, including the AX1200 will only have 2 EPS 8 pin slots. I am using the same cable with my PSU and I've had no issues. Motherboards such as the H8QGi+-F that have ONE PCIe slot only require TWO 8-pin EPS connectors, so no adapter will be necessary for those boards.

Also another adapter that has been recommended and overall might be a better one to use thumb.gifLink

Cases (Click to show)

Go Full On custom like I am:

This is a custom prototype done by Rich Chomiczewski.
His website can be found here.
Quote:
Originally Posted by hoth17 View Post

You have a few options.
If you want it rackmounted

NORCO RPC-470 Black 4U Rackmount Server Case

If not

Rosewill BLACKHAWK-ULTRA

COOLER MASTER HAF 932

Other options


G34 Builds

~$1000 Budget (Click to show)
Part List:

2x AMD MC 6128 8 Core Processors - $100 each - eBay

Supermicro H8DGU - $350 or TYAN S8236GM3NR - $450

RAM - 2 Sets of these - $60 each

Cooling - 2xCM 212+s - $30 each These will for sure be mountable on the SuperMicro board, I need to do further research on the Tyan Board.

PSU - Anything above a 650W will be good. ~$150

Throw in an old HDD you have laying around and you're good to go.

Total: $880-$980, not including shipping.

This section still needs some more work as I haven't done a whole lot of research on 2P boards myself.

~$1500 Budget (Click to show)
Part List::

4x AMD MC 6128 8 Core Processors - $100 each - eBay

/Supermicro H8QGL-IF - $640

RAM - 4 Sets of these - $60 each

Cooling - 4xCM 212+s - $30 each

PSU - Again your choice, just get a quality brand, I would recommend at least 850W. 1200W if you want to have the most efficiency possible.

HDD - Same thing, anything you have laying around works.

Total: $1400+PSU, not including shipping

Probably going to be a little bit above $1500, but for that budget this is the best you can build, it'd be worth it to stretch it another $100 wink.gif

~$2000 Budget (Click to show)
Part List:

Now here is where it gets a little awkward because it's between a 4p 6174 board and a 4p 6128 board. But it's right in the middle... Probably your best option is to take the $1500 build, and switch out 4 6128s for 2 6174s. You aren't going to get as much PPD, but this leaves great opportunities to expand to a full on 4p 6174 system as money becomes available.

Will work on other options for this build later tongue.gif

~$3000 Budget (Click to show)
Part List:

4x AMD MC 6174 12 Core Processors - $450-$500each - eBay

/Supermicro H8QGL-IF - $640

RAM - 4 Sets of these - $60 each

Cooling - 4xCM 212+s - $30 each

PSU - Again your choice, just get a quality brand, I would recommend at least 850W. 1200W if you want to have the most efficiency possible.

HDD - Same thing, anything you have laying around works.

Total: $2800+PSU

>$3000 budget (Click to show)
Part List:

4x AMD MC 6180 12 Core Processors - $500-550each - eBay

/Supermicro H8QGL-IF - $640

RAM - 4 Sets of these - $60 each

Cooling - 4xCM 212+s - $30 each

PSU - Again your choice, just get a quality brand, I would recommend at least 850W. 1200W if you want to have the most efficiency possible.

HDD - Same thing, anything you have laying around works.

Total: $3200+PSU

Server Rack Required Components (Click to show)

If you're wanting to build a 4p setup in a server rack your options become pretty limited if you want to avoid any "hardcore" modding.

H8QGi+-F

Noctua NH-U9DO-A3

NORCO RPC-470 Black 4U or similar

The rest is up to you smile.gif

SR-2 Builds (Click to show)

New SR-2

Best places to buy a used SR-2 is either Fleabay or EVGA B-Stock

For chips, you're going to need to get dual hexacores if you want to be able to do the new Bigadv WUs. At least L5640s. You're also going to need a decent OC tongue.gif @2.4Ghz they failed. @2.96Ghz they've completed them.

Putting together a 4P - From box to powering on (Click to show)

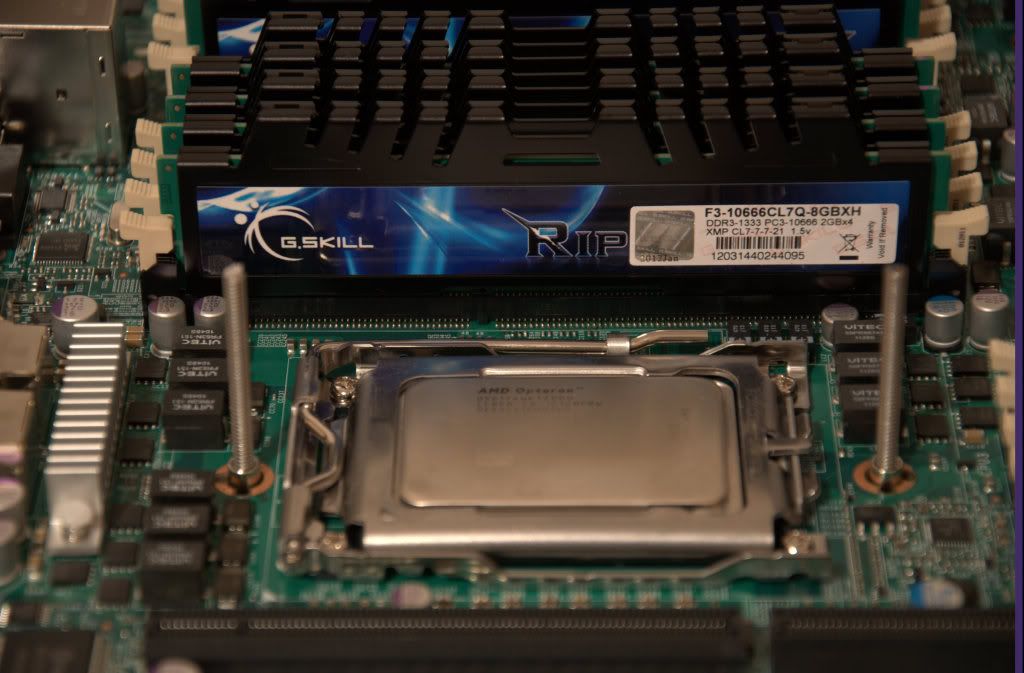

1. Install CPUs & RAM

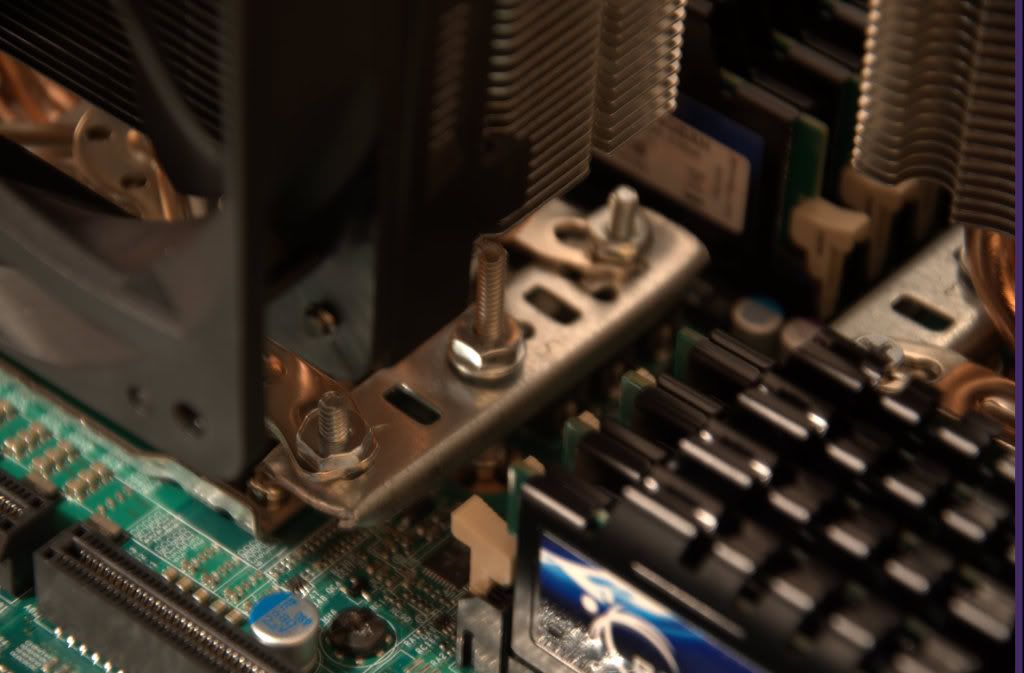

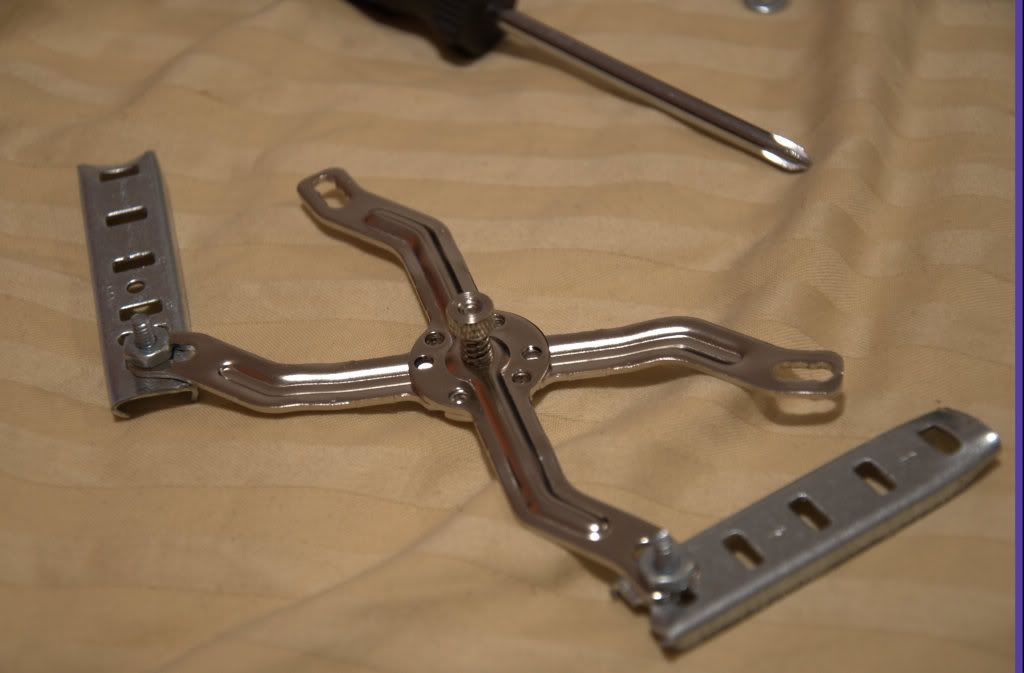

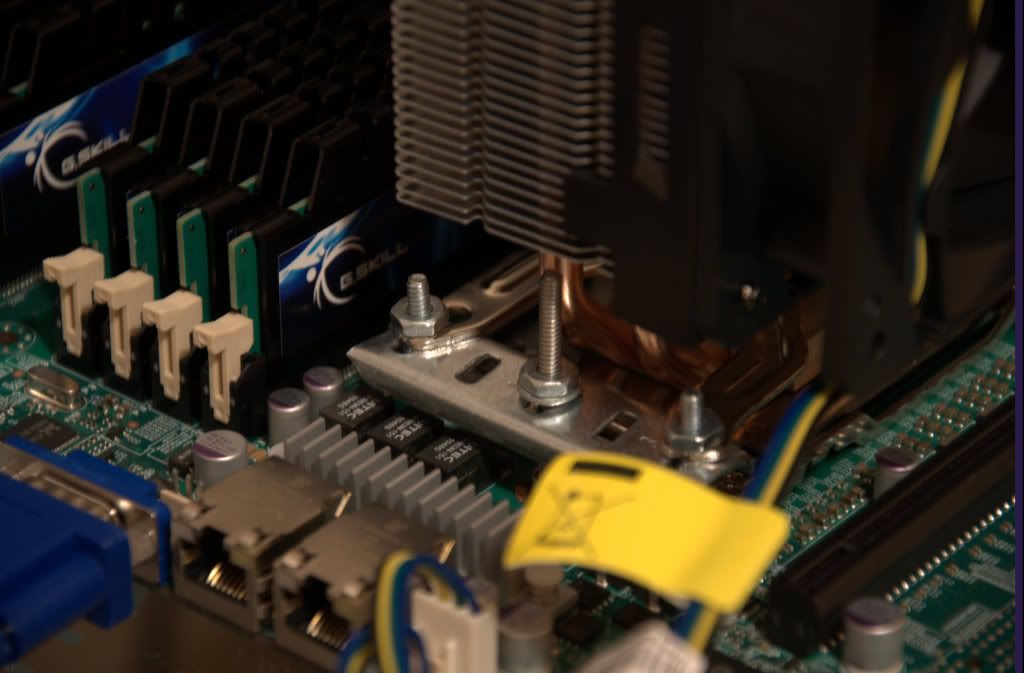

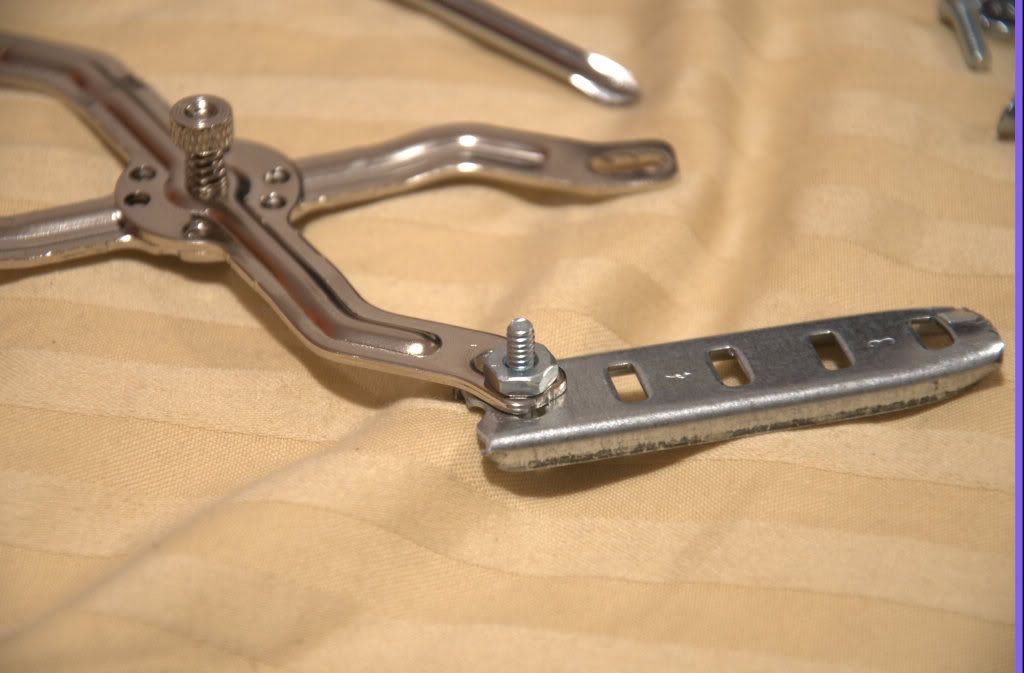

2. Check out musky's guide for custom mounting 212+ necessary hardware

3. Continue to look between my pictures and musky's because I'm a douche and didn't take all the necessary pictures rolleyes.gif Note*my custom brackets are upside down compared to musky's... I did that on purpose. Not sure how he fitted his like that but mine would not fit in that orientation.








Actually I made a video, as soon as I edit I'll make up for the lack of pictures I took tongue.gif

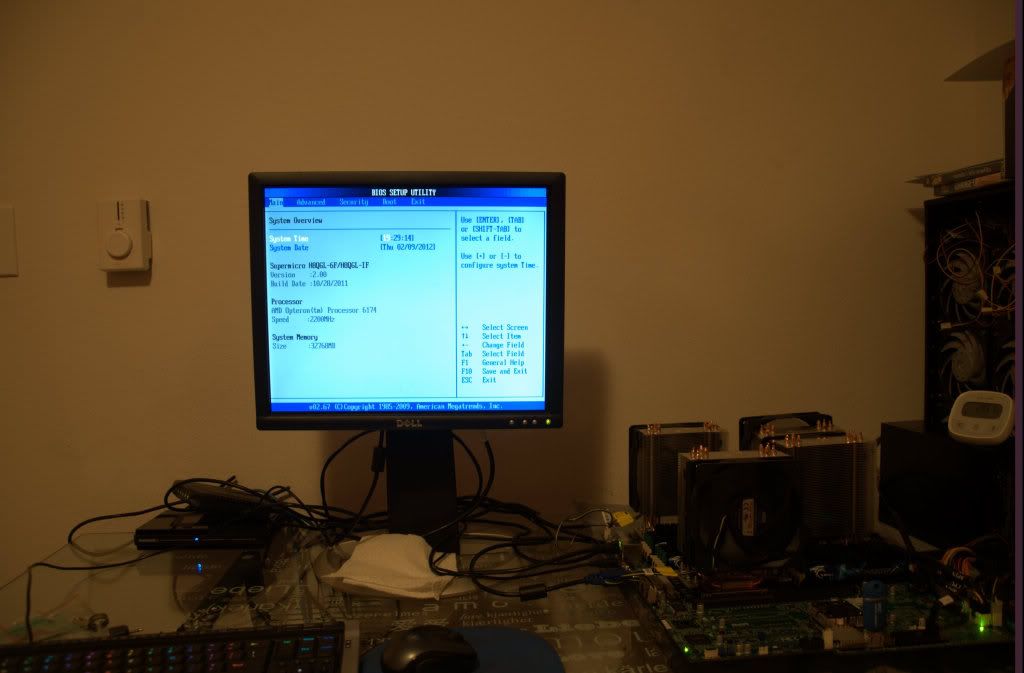

4. Yay you're finished wheee.gif

Necessary steps to setup a 4P for folding (Click to show)

Basic Ubuntu Desktop Install
  1. This is about as simple as you are going to get. You can still download Ubuntu 10.10 HERE.
  2. Install Ubuntu Desktop 10.10 64 bit. It will install nicely from a USB drive with unetbootin. The only thing you should change is to use ext3 instead of the default ext4 filesystem when partitioning the drive. I think this is pretty straightforward to do from the installer. HERE are some screenshots of a pretty typical install.
  3. System - Administration - Update Manager. Click "Check" to let it find all available updates. Click "Install Updates" - you will be prompted for your password. Let it update.
  4. System - Administration - Update Manager. Click the "Settings" button and uncheck the "Check for update" box.
  5. Places - Home Folder. Create a new folder called fah (Right-click - Create Folder)
  6. Right-click on the new folder - Sharing Options - Check the Share This Folder checkbox - it will prompt you to install a package, let it install. It will want you to restart your session, don't yet. Cllick Cancel on the sharing box.
  7. Reboot the machine. When you log back in, go back to Places - Home Folder, right-click your fah folder and select Sharing options, and check all three checkboxes. You will get something about adding permissions, click OK.
  8. Open a terminal (Applications - Accessories - Terminal) and type:
    Code:
    cd ~/fah
     wget "http://www.stanford.edu/group/pandegroup/folding/release/FAH6.34-Linux64-SMP.exe"
     mv FAH6*.* fah6
     chmod 755 fah6

  9. Run F@H config:
    Code:
    ./fah6 -configonly

  10. Enter all your stuff. I add the -smp -bigadv flags in the configuration to prevent having to make a shortcut with them, but to each his or her own.
  11. Run F@H:
    Code:
    ./fah6


Install BFS - for all Intel systems I have tested. NOT for multi-socket AMD systems. (Click to show)

1. Open a terminal and type this:
Code:
sudo add-apt-repository ppa:chogydan/ppa && sudo apt-get update
You will see a bunch of verbiage that probably means something, but don't worry about it

Edit from 10e:
If you get a "command not found" error when running "sudo add-apt-repository ppa:chogydan/ppa && sudo apt-get update"

You need to do:
Code:
sudo apt-get install python-software-properties

2. Once it finishes, type this:
Code:
sudo apt-get install linux-image-generic-ck linux-headers-generic-ck
Again, more verbiage, blah, blah blah. Just let it finish.

3. Still in the terminal, type;
Code:
sudo update-grub
While it is doing its thing, you should see reference to two or three different kernels plus the safe modes for each.
Code:
Generating grub.cfg ...
Found linux image: /boot/vmlinuz-2.6.35-28-generic-ck
Found initrd image: /boot/initrd.img-2.6.35-28-generic-ck
Found linux image: /boot/vmlinuz-2.6.35-28-generic
Found initrd image: /boot/initrd.img-2.6.35-28-generic
Found memtest86+ image: /boot/memtest86+.bin
done

Look for the ones that ends in -ck. If the first two entries end in "-generic-ck" like the example, you are finished with this step. If they are the third and fourth entries, type this:
Code:
sudo nano /etc/default/grub
Change this line:
Code:
GRUB_DEFAULT=0
to this:
Code:
GRUB_DEFAULT=2
Control-X - Y - Enter to save the change, then:
Code:
sudo update-grub

If they are the fifth and sixth, you would set GRUB_DEFAULT=4, and so on. They should be either the first and second or third and fourth.

4. Now, reboot the system. Once it reboots, open a terminal and type:
Code:
uname -r
If what it returns ends in "-generic-ck", you are set. If not, go back to step 3 and make sure your GRUB_DEFAULT is correct.
The Kraken - for both Intel & AMD (Click to show)
Install "The Kraken" wrapper - for all multi-socket systems
A big thanks to tear for this. The original guide is here.
*EDIT - 10/30/11 - Updated for version 0.6
*EDIT - 5/20/12 - Updated for version 0.7-pre10
*EDIT - 5/22/12 - Updated to version 0.7-pre11
*EDIT - 6/28/12 - Updated to version 0.7-pre15

*NOTE: To get the most use out of the kraken, you need to have NUMA enabled (SR-2s, other 2p Intel boards) or node interleaving disabled (G34/C32/Socket F AMD systems). If you have a multi-processor board, you should have a bios setting for one or the other.

1. First, make sure the client has downed a core. The wrapper wraps the actual FAH core, so it doesn't do anything until you have a core downloaded.
2. Download the package:
Code:
cd ~
wget http://darkswarm.org/thekraken-0.7-pre15.tar.gz
3. Untar it
Code:
tar xvf thekraken-0.7-pre15.tar.gz
4. Install it
Code:
cd thekraken-0.7-pre15
make
sudo make install
5. The Kraken is now available at /usr/bin/thekraken. To wrap your existing A3/A5 cores, move to your fah directory and run The Kraken with the -i flag:
Code:
cd ~/fah
thekraken -i
You should see something like this:
Code:
dave@bulldawg:~/fah$ thekraken -i
thekraken: The Kraken 0.7-pre15 (compiled Tue May 22 05:22:45 CDT 2012 by dave@bulldawg)
thekraken: Processor affinity wrapper for Folding@Home
thekraken: The Kraken comes with ABSOLUTELY NO WARRANTY; licensed under GPLv2
thekraken: performing installation to .
thekraken: /home/dave/fah/FahCore_a5.exe: wrapper succesfully installed
thekraken: descend into /home/dave/fah/backup and all other subdirectories [Y/n]? Y
thekraken: finished installation, 1 out of 1 files processed
6. Start the client. From another terminal window, type:
Code:
top
If you top process looks something like this, "The Kraken" is working correctly:
Code:
PID  USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
1984 dave       1  13 2789m 1.3g 3192 S 2384 22.8  16476:48 thekraken-FahCo

Start FAH on Boot (Click to show)
Code:
sudo nano /etc/rc.local
Add to this file:
Code:
cd /home/[user]/fah && sudo -u [user] screen -d -m ./fah6
My user is fah, so my rc.local file ends up like this:
Code:
#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
cd /home/fah/fah && sudo -u fah screen -d -m ./fah6
exit 0
This causes fah to start on boot as your user in a detached screen. To access it, type:
Code:
screen -r
To detach, hold down the Control key and hit A then D.

Start FAH in Background screen (Click to show)
You need to make a small script to do this. Type
Code:
cd ~/fah
nano start
You should be looking at a blank file. Enter the following:
Code:
#!/bin/sh

# Start FAH
screen -d -m ./fah6
Control X then Y then Enter to save the file. Make your script executable by typing:
Code:
chmod 755 start
To run it, type
Code:
./start
To make sure it started, attach to the new screen by typing
Code:
screen -r
You should see the client running. To detach, hold down the Control key and type A the D.

HFM Install in Linux (Click to show)
HFM.net will run under Ubuntu and probably any other Linux GUI distro. The setup is a little more difficult, but it is not that bad.

Update sources list
Code:
sudo nano /etc/apt/sources.list
Add these two lines to the end of the file:
Code:
deb http://ppa.launchpad.net/directhex/monoxide/ubuntu maverick main
deb-src http://ppa.launchpad.net/directhex/monoxide/ubuntu maverick main
Update the keys
Code:
sudo apt-key adv --keyserver keyserver.ubuntu.com --recv-keys 23DC003A
Update everything
Code:
sudo apt-get update
Update mono libraries and forms:
Code:
sudo apt-get install libmono-system-runtime2.0-cil
sudo apt-get install libmono-winforms2.0-cil
Make sure unzip is instaled
Code:
sudo apt-get install unzip
Get HFM.net
Code:
mkdir hfm
cd hfm
wget http://hfm-net.googlecode.com/files/HFM%20Release%200.6.2.336.zip
mv HFM*.* hfm.zip
unzip hfm.zip
To run HFM type:
Code:
cd ~/hfm
sudo mono HFM.exe

Setting up clients - example
Let's assume we have three remote machines with static IP addresses named larry (192.168.1.150), curly (192.168.1.155), and moe (192.168.1.160). These three machines all have a shared directory called "fah". You are logged into your local machine as user "shimp". First, make some share directories
Code:
mkdir /home/shimp/hfm/mounts/larry
mkdir /home/shimp/hfm/mounts/curly
mkdir /home/shimp/hfm/mounts/moe
Make sure smbfs is installed
Code:
sudo apt-get install smbfs
Mount your shares
Code:
sudo smbmount //192.168.1.150/fah /home/shimp/hfm/mounts/larry -o guest
sudo smbmount //192.168.1.155/fah /home/shimp/hfm/mounts/curly -o guest
sudo smbmount //192.168.1.160/fah /home/shimp/hfm/mounts/moe -o guest
To mount the shares on boot, you need to update fstab:
Code:
sudo nano /etc/fstab
Add these three lines to this file
Code:
//192.168.1.150/fah /home/shimp/hfm/mounts/larry         smbfs guest 0 0
//192.168.1.155/fah /home/shimp/hfm/mounts/curly         smbfs guest 0 0
//192.168.1.160/fah /home/shimp/hfm/mounts/moe           smbfs guest 0 0

Adding clients is similar to Windows. If you followed these instructions, the path to your remote clients will be /home/shimp/hfm/mounts/. If you have a local client, that path will be /home/shimp/fah/.
Install the bios OC (Click to show)
Tear, of the 4P Supermicro Brotherhood, has posted an overclocking guide and link to a new OC BIOS HERE.
Salute to the mad Folders at [H]. - Thanks Linden

Other Useful info:

Other information I found very helpful but was hard to find--mostly over on [H]:

Cheers TMTNET!
Future Build Info (Click to show)


Latest possible road map:


See the following posts for more info on PPD benchmarks of different systems along with how things are setup smile.gif

Thank you for folding and even considering build such a monstrous rig dedicated to folding the proteins thumb.gif If you have any questions please feel free to post here. I will answer by PM but it would be better to post so other community members could not only answer as well, but can learn from your question. As a last mention, I'd like to thank Hoth17, he's taught me almost everything about 4P rig construction. Couldn't have done it without him thumb.gif
Edited by Chooofoojoo - 6/13/13 at 9:47pm
post #2 of 740


^This is a community project, if you have info please submit it. Any wrongful edits will result in a locking of public edits. Please don't cause issues. This is for the entire folding community to use.
Edited by derickwm - 2/10/12 at 1:00pm
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
post #3 of 740
My Personal Build Log

Smasher's Build Log
Edited by derickwm - 2/11/12 at 10:32pm
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
post #4 of 740
I like where this thread is going.

F@H
(14 items)


CPUMotherboardGraphicsRAM
Core i7 920 @ 4.0ghz EVGA x58 132-BL-E758-A1 2x EVGA 460 1 GB G.SKILL 3 x 2 GB
Hard DriveOSMonitorKeyboard
Mushkin 40 GB SSD / WD Black 1 TB Windows 7 Home Premium 64-bit DCLCD 20.1" Logitech G15
PowerCaseMouse
Antec TP 750 Antec 900 Logitech G5
CPUMotherboardRAMCooling
i7 2700k ASUS Maximus Gene-Z z68 G.Skill 2133mhz Noctua NH-D14
OSPowerCase
Ubuntu 10.10 BFG 650 Silverstone TJ08-E
  hide details
Reply

F@H
(14 items)


CPUMotherboardGraphicsRAM
Core i7 920 @ 4.0ghz EVGA x58 132-BL-E758-A1 2x EVGA 460 1 GB G.SKILL 3 x 2 GB
Hard DriveOSMonitorKeyboard
Mushkin 40 GB SSD / WD Black 1 TB Windows 7 Home Premium 64-bit DCLCD 20.1" Logitech G15
PowerCaseMouse
Antec TP 750 Antec 900 Logitech G5
CPUMotherboardRAMCooling
i7 2700k ASUS Maximus Gene-Z z68 G.Skill 2133mhz Noctua NH-D14
OSPowerCase
Ubuntu 10.10 BFG 650 Silverstone TJ08-E
  hide details
Reply
post #5 of 740
I approve of this thread.
Daily Bench Rig
(23 items)


CPUMotherboardGraphicsGraphics
Intel Processor 4770k Z87X-OC Force-CF AMD Radeon HD 7970 AMD Radeon HD 7970
RAMHard DriveHard DriveHard Drive
dominator gt Samsung 840 EVO Samsung 840 EVO Samsung F3
Optical DriveCoolingCoolingCooling
DVD burner XSPC Raystorm RX360 D5
CoolingCoolingOSMonitor
Alphacool Repack D5 Kingpin CPU pot Windows 7 Dell U2211
MonitorKeyboardPowerCase
40" Samsung 1080P 120hz 15 years old mechanical AX-1200 HAF 932
MouseMouse PadAudio
Deathadder 2013 Pyrrhus Creative Soundblaster Z
  hide details
Reply
Daily Bench Rig
(23 items)


CPUMotherboardGraphicsGraphics
Intel Processor 4770k Z87X-OC Force-CF AMD Radeon HD 7970 AMD Radeon HD 7970
RAMHard DriveHard DriveHard Drive
dominator gt Samsung 840 EVO Samsung 840 EVO Samsung F3
Optical DriveCoolingCoolingCooling
DVD burner XSPC Raystorm RX360 D5
CoolingCoolingOSMonitor
Alphacool Repack D5 Kingpin CPU pot Windows 7 Dell U2211
MonitorKeyboardPowerCase
40" Samsung 1080P 120hz 15 years old mechanical AX-1200 HAF 932
MouseMouse PadAudio
Deathadder 2013 Pyrrhus Creative Soundblaster Z
  hide details
Reply
post #6 of 740
I'm looking forward to this as well. Seeing that road map, I might look into a 2p or 4p Tarremar watercooled build in a 4U case. I figure a 360 mm RAD at the front and back.

Thanks again for such a detailed thread thumb.gif
CHILZ - Lan Rig
(17 items)

CANARY - Main Rig
(16 items)

CADILLAC - HTPC
(14 items)

CPUMotherboardGraphicsRAM
Intel Xeon X3480 Asus Maximus III Gene AMD 7950 Mushkin Redline 2133 MHz CL9
Hard DriveHard DriveHard DriveCooling
250 GB Samsung 840 120 GB OCZ Solid 3 60 GB OCZ Vertex 2 Custom Loop
OSMonitorKeyboardPower
Windows 8 Pro BenQ GL2450 Filco MajesTouch2 Ninja PC P&C Silencer Mk III 600 W
CaseMouseMouse PadAudio
Spotswood Small Tech Station Tt e-Sports Saphira Monoprice XXL Yamaha R-S300 + JVC Bookshelfs
Other
Scythe Kama-Panel 3
CPUMotherboardGraphicsRAM
FX-8150 @ 4.6 GHz Fatal1ty 990FX Pro 9800 GTX+ 512 MB G.Skill Ripjaws X 1866 CL9
Hard DriveHard DriveCoolingOS
120 GB OCZ Vertex 3 1 TB WD Black 5x 120mm + MCP350 + EK Supreme HF + MicroRes Windows 8 Consumer Preview
MonitorKeyboardPowerCase
2x Dell U2212HM Logitech G110 Cooler Master 850W Silent Pro Cooler Master 690 II Adv.
MouseMouse PadAudio
Razer Death Adder 3.5G Staples Gel Cushion Asus Xonar DG + Senn. PC333D
CPUMotherboardGraphicsRAM
Q6600 Acer X1800 ATI 5670 2 GB Kingston
Hard DriveOptical DriveOSMonitor
2 TB WD Green Asus BD-R Windows 7 Home Premium Sony 50" LCD
KeyboardPowerCaseMouse
Acer Media 220 W SFF Acer X1800 Acer Optical
Mouse PadAudio
The TV cabinet Denon 2808 7.1 AVR + Dahlquist 350W 8" Sub + Kl...
  hide details
Reply
CHILZ - Lan Rig
(17 items)

CANARY - Main Rig
(16 items)

CADILLAC - HTPC
(14 items)

CPUMotherboardGraphicsRAM
Intel Xeon X3480 Asus Maximus III Gene AMD 7950 Mushkin Redline 2133 MHz CL9
Hard DriveHard DriveHard DriveCooling
250 GB Samsung 840 120 GB OCZ Solid 3 60 GB OCZ Vertex 2 Custom Loop
OSMonitorKeyboardPower
Windows 8 Pro BenQ GL2450 Filco MajesTouch2 Ninja PC P&C Silencer Mk III 600 W
CaseMouseMouse PadAudio
Spotswood Small Tech Station Tt e-Sports Saphira Monoprice XXL Yamaha R-S300 + JVC Bookshelfs
Other
Scythe Kama-Panel 3
CPUMotherboardGraphicsRAM
FX-8150 @ 4.6 GHz Fatal1ty 990FX Pro 9800 GTX+ 512 MB G.Skill Ripjaws X 1866 CL9
Hard DriveHard DriveCoolingOS
120 GB OCZ Vertex 3 1 TB WD Black 5x 120mm + MCP350 + EK Supreme HF + MicroRes Windows 8 Consumer Preview
MonitorKeyboardPowerCase
2x Dell U2212HM Logitech G110 Cooler Master 850W Silent Pro Cooler Master 690 II Adv.
MouseMouse PadAudio
Razer Death Adder 3.5G Staples Gel Cushion Asus Xonar DG + Senn. PC333D
CPUMotherboardGraphicsRAM
Q6600 Acer X1800 ATI 5670 2 GB Kingston
Hard DriveOptical DriveOSMonitor
2 TB WD Green Asus BD-R Windows 7 Home Premium Sony 50" LCD
KeyboardPowerCaseMouse
Acer Media 220 W SFF Acer X1800 Acer Optical
Mouse PadAudio
The TV cabinet Denon 2808 7.1 AVR + Dahlquist 350W 8" Sub + Kl...
  hide details
Reply
post #7 of 740

Can't wait for tonight wheee.gif
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
For Sale: [FS] HIS R9-290
$1 (USD)
For Sale: [FS] HP TouchPad 32GB
$90 (USD)
Reply
post #8 of 740
Quote:
Originally Posted by axipher View Post

I'm looking forward to this as well. Seeing that road map, I might look into a 2p or 4p Tarremar watercooled build in a 4U case. I figure a 360 mm RAD at the front and back.
Thanks again for such a detailed thread thumb.gif

I might be doing something similar...looking to build 1 or 2 of these things this summer.
Quote:
Originally Posted by derickwm View Post

Can't wait for tonight wheee.gif

Tonight?! I'll be over in like 2 hours.





Much more information to come. biggrin.gif
post #9 of 740
Nicely done. i have started to do research into building a 2p/4p setup after the wedding I have coming in 3 months. This is most helpful. Thanks!
Red Steel
(22 items)

Asus G50V
(5 items)

Blue Butterfly
(14 items)

CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1090T >STOCK< Asus CROSSHAIR V FORMULA-Z Sapphire HD7950 Vapor-X Unknown Branded Reference HD 7970
RAMHard DriveHard DriveHard Drive
GSkill 4x4GB 1600Mhz RIpjaws X ADATA Premier Pro SP900 2.5" 64GB SATA III MLC ... Seagate Barracuda 7200.10 ST3250310AS 250GB 720... SAMSUNG SpinPoint T Series HD320KJ 320GB 7200 R...
Hard DriveOptical DriveCoolingOS
Seagate Barracuda 7200.10 ST3500630AS 500GB 720... Lightscribe DVD/RW Cooler Master Hyper 212+ in Push/Pull Windows 7 Ultimate 64 bit
MonitorKeyboardPowerCase
Gateway 22" HD @ 1920x1080 Ducky DK1008 w/ Cherry MX Bkack Switches Antec High Current Gamer Series HCG-620 620W HAF 922 with Red LED fans
MouseMouse PadAudioOther
Cooler Master Sentinel Advanced Ratpadz XT JVC HA-RX700 200mm Cooler Master Megaflow with Red LED in fr...
OtherOther
Lamptron FC6 Fan Controller 2x Scythe Slipstream 120MM @ 1000rpm+/-
CPUMotherboardGraphicsRAM
Intel Core 2 Duo P7450 ASUSTek G50VT GEForce9800M GS 2x2GB PC2-6400 800Mhz
OS
Windows 8.1
CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 Black Edition Deneb 3.2GHz ASUS M4A79T Deluxe AM3 EVGA GTX560 SE with Arctic Cooling Aftermarket ... G.SKILL Ripjaws Series 6GB (3 x 2GB) 240-Pin DD...
Hard DriveOptical DriveCoolingOS
>>320GB with a 1TB External<< >>DVD/RW<< Xigmatek Dark Night  >>Windows 7 Ultimate 64bit<<
MonitorKeyboardCaseMouse
>>22" Westinghouse WS<< >>Microsoft Wireless<< >>Antec 902 w/ Blue LED Fans<< >>Microsoft Wireless<<
  hide details
Reply
Red Steel
(22 items)

Asus G50V
(5 items)

Blue Butterfly
(14 items)

CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1090T >STOCK< Asus CROSSHAIR V FORMULA-Z Sapphire HD7950 Vapor-X Unknown Branded Reference HD 7970
RAMHard DriveHard DriveHard Drive
GSkill 4x4GB 1600Mhz RIpjaws X ADATA Premier Pro SP900 2.5" 64GB SATA III MLC ... Seagate Barracuda 7200.10 ST3250310AS 250GB 720... SAMSUNG SpinPoint T Series HD320KJ 320GB 7200 R...
Hard DriveOptical DriveCoolingOS
Seagate Barracuda 7200.10 ST3500630AS 500GB 720... Lightscribe DVD/RW Cooler Master Hyper 212+ in Push/Pull Windows 7 Ultimate 64 bit
MonitorKeyboardPowerCase
Gateway 22" HD @ 1920x1080 Ducky DK1008 w/ Cherry MX Bkack Switches Antec High Current Gamer Series HCG-620 620W HAF 922 with Red LED fans
MouseMouse PadAudioOther
Cooler Master Sentinel Advanced Ratpadz XT JVC HA-RX700 200mm Cooler Master Megaflow with Red LED in fr...
OtherOther
Lamptron FC6 Fan Controller 2x Scythe Slipstream 120MM @ 1000rpm+/-
CPUMotherboardGraphicsRAM
Intel Core 2 Duo P7450 ASUSTek G50VT GEForce9800M GS 2x2GB PC2-6400 800Mhz
OS
Windows 8.1
CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 Black Edition Deneb 3.2GHz ASUS M4A79T Deluxe AM3 EVGA GTX560 SE with Arctic Cooling Aftermarket ... G.SKILL Ripjaws Series 6GB (3 x 2GB) 240-Pin DD...
Hard DriveOptical DriveCoolingOS
>>320GB with a 1TB External<< >>DVD/RW<< Xigmatek Dark Night  >>Windows 7 Ultimate 64bit<<
MonitorKeyboardCaseMouse
>>22" Westinghouse WS<< >>Microsoft Wireless<< >>Antec 902 w/ Blue LED Fans<< >>Microsoft Wireless<<
  hide details
Reply
post #10 of 740
Pretty sure AX1200 for any 4p is overkill. Efficiency decreases only 2% if you use at 80% load (for my AX750). Go for a 80Plus gold, 650w-750w is enough. 2% efficiency increase will probably save you $10 a year.

CPUGraphicsRAMHard Drive
i5-2410M @ 2.9ghz Nvidia GT 540M 1GB DDR3 4GB DDR3 1333mhz 500GB 5400rpm
OSMonitorPowerCase
Win 7 Home 64 1366x768 gloss 90w power brick Acer
  hide details
Reply

CPUGraphicsRAMHard Drive
i5-2410M @ 2.9ghz Nvidia GT 540M 1GB DDR3 4GB DDR3 1333mhz 500GB 5400rpm
OSMonitorPowerCase
Win 7 Home 64 1366x768 gloss 90w power brick Acer
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
Overclock.net › Forums › Overclockers Care › Overclock.net Folding@Home Team › Folding@Home Guides and Tutorials › [Guide] Building a 2P/4P; From Start To Finish - Along with PPD Benchmarks & Gallery
