CrossOver 27Q LED/LED-P, 27M LED, & 2720MDP GOLD LED Monitor Club

post #1 of 6398
Thread Starter
414 471

Specifications:

27Q LED/LED-P (product page / product page)
LCD type: LG S-IPS 8-bit LED
Viewable image size: 27.0"
Pixel area: 0.2331mm²
Max brightness: 380 cd/m²
Contrast ratio: 1000:1
Color support: 16 million
Color gamut: 72%
Resolution: 2560 × 1440 @ 60Hz
Horizontal frequency: 30 ~ 81kHz
Vertical frequency: 56 ~ 75Hz
Response time: 6ms (GTG)
Viewing angle: 178°/178°
Video port: (1) DVI (dual-link)
Power source: DC 24V 5A
Power consumption: <65W, <1W standby
VESA support: Yes (100 x 100 mm)
Display measurements: 645 (W) X 385 (H) X 445 (T) mm
Weight: ~15 lbs


27M LED (product page)
LCD type: LG S-IPS 8-bit LED
Viewable image size: 27.0"
Pixel area: 0.2331mm²
Max brightness: 380 cd/m²
Contrast ratio: 1000:1
Color support: 16 million
Color gamut: 72%
Resolution: 2560 × 1440 @ 60Hz
Horizontal frequency: 30 ~ 81kHz
Vertical frequency: 56 ~ 75Hz
Response time: 6ms (GTG)
Viewing angle: 178°/178°
Video ports: (1) DVI (dual-link), (1) HDMI, (2) D-sub, Component
Additional ports: USB, SPDIF, PC audio
Speaker: 14W (7W+7W, stereo)
Power source: DC 24V 5A
Power consumption: 95W (max), 65W (nominal), 3W (standby)
VESA support: Yes (100 x 100 mm)
Display measurements: 645 (W) X 395 (H) X 445 (T) mm
Weight: ~24 lbs


2720MDP GOLD LED (product page)
LCD type: LG S-IPS 10-bit LED
Viewable image size: 27.0"
Pixel area: 0.2331mm²
Max brightness: 420 cd/m²
Contrast ratio: 1000:1
Color support: 1 billion
Color gamut: 72%
Resolution: 2560 × 1440 @ 60Hz
Horizontal frequency: 30 ~ 81kHz
Vertical frequency: 56 ~ 75Hz
Response time: 6ms (GTG)
Viewing angle: 178°/178°
Video ports: (1) DVI (dual-link), (1) Display Port, (2) HDMI, (1) D-sub, Component
Additional ports: SPDIF, PC audio
Speaker: 14W (7W+7W, stereo)
Power source: DC 24V 5A
Power consumption: 95W (max), 65W (nominal), 3W (standby)
VESA support: Yes (100 x 100 mm)
Display measurements: 650 (W) X 405 (H) X 490 (T) mm
Weight: ~20 lbs


Pictures
Overview of 27Q LED-P (credit to SimpleTech) (Click to show)
Quote:
Originally Posted by SimpleTech View Post

Some pictures of my Crossover 27Q LED-P from dcsamsungmall.


Very well wrapped.


Very light shipping damage. Thank goodness for the bubble wrap.


Side shot of the packaging showing the miscellaneous things the monitor supports.


Lots of foam padding inside. Big plus.


Here's what it looks like at it's default stand height. It measures 17 inches from top to bottom.


At it's full raised height, it measures 22 inches.


Pivot to the left.


Pivot to the right.


Here's how much it can tilt upwards.


And how much it can tilt downwards.


Brightness adjustment and power.


The buttons are located on the back.


Full view of the backside. It's a glossy white (powered coated?) aluminum frame that rounds around the top and bottom edges.


Serial and product numbers.


The monitor is about 2 inches deep.


Located underneath are the DC power and dual-link DVI connector.


Included accessories: power cable, power brick, dual-link DVI cable, and user's manual.


Closeup of the power brick.


Unfortunately mine didn't come unscathed. Had a minor chip on the front of the stand. No big deal honestly.



Monitor height
lowest position: 17 inches
highest position: 22 inches

Stand
length: 10-5/8 inches
depth: 8-1/2 inches
height: 1/2 inch

Bezel is about an inch all round.
Quote:
Originally Posted by SimpleTech View Post

Here are some more from my previous post. Apologize for the lack of lighting, my basement has two light fixtures.


From the left side.


View from the right.


Completely dark room.


Now for portrait mode. Measures 27 inches from top to bottom.


With flash.

Internals (credit to MrSpoon) (Click to show)
Quote:
Originally Posted by MrSpoon View Post

Okay, guys. I know there were some questions in regards to the internals of the Crossover versus the Yamakasi. While, as I stated earlier, I don't use portrait mode, I was curious why I (and I believe one other) could not fully rotate.

Note: Again, forgive the pictures. I do not have a real camera. They should still contain the information wanted.

700
This is the back of the stand with the monitor and plastic cap removed. As you can see, the base on the left side is warped - probably due to shipping this monitor with the stand on. I gripped the left side as close to the front (closest to the monitor) as I could and pulled it away from the center of the base. I also has to pull the right side into the base probably 1° in, and I now have level portrait mode...

That I'll never use.


Moving on! I decided while the monitor was apart I'd take pictures of all the PCBs and any other miscellany.

This is found mounted on the right side of the back. You can see it through the vents on the back of your monitor.
450

Other side of same PCB.
450

Sticker on my panel. Picture works, thumbnail doesn't.
450

Here is the second PCB I came across.
450

Closeup of MFGR/Model/Revision of same PCB
450

Would this be DisplayPort? redface.gif
450

Here is the last PCB I could find. This one and the previous hook up via the flat cable that you see in the previous PCB and the slot in the middle of this one. I couldn't get a picture of the backside of this PCB, I wasn't feeling dexterous at the time.
700

Close up of MFGR/Model/ PN of PCB.
700

Reassembly tip for the sides:
700


Well, that's it! I haven't looked at the Yamakasi PCBs to know the difference. Any information on that'd be great.
Geglamash's 27Q LED-P (Click to show)
Quote:
Originally Posted by Geglamash View Post

The Setup
400
Quote:
Originally Posted by Geglamash View Post

Mmmk...
400
Brightness buttons
400

I'll post more later. tongue.gif
hv43082's triple 27Q LED-P (Click to show)
Quote:
Originally Posted by hv43082 View Post

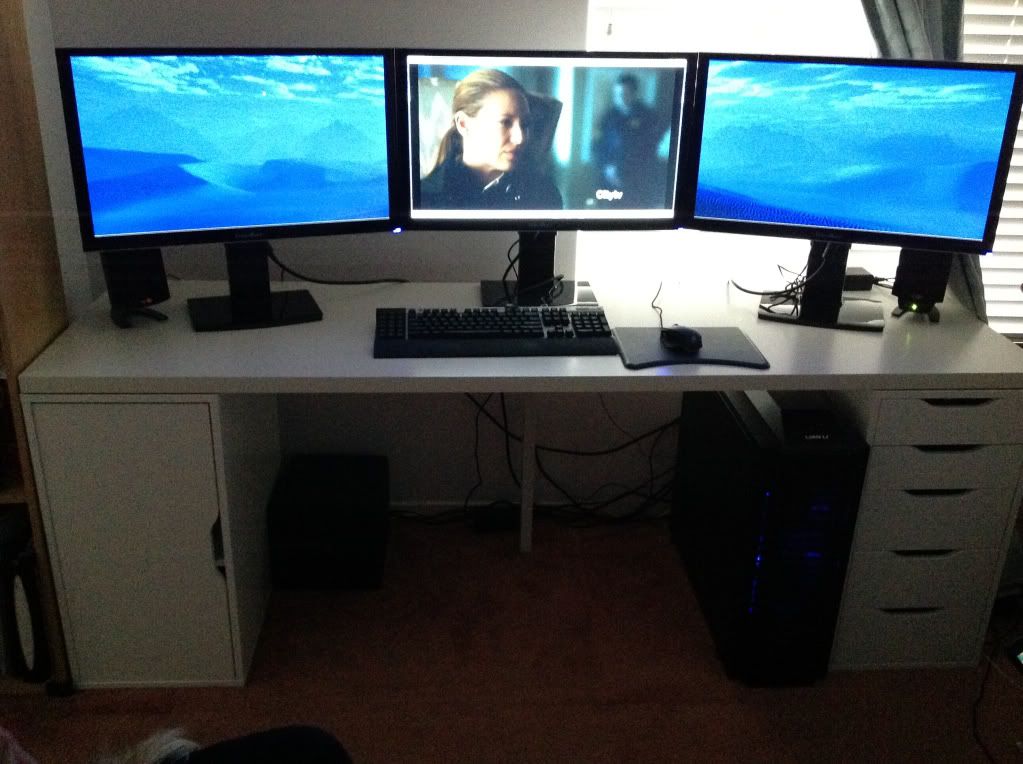

Got my 2nd and 3rd Crossover LED-P yesterday from Samsung_Korea seller. I paid for it Tuesday morning and delivered to Southern CA Thursday afternoon. Amazing. He shipped in plain box with less packing than DCSamsungMall but both monitors are working just fine. All 3 of my power bricks are 230V rated but worked fine with regular power cable. My new battle station is here.
04d0e795.jpg?t=1333160602

Videos
http://www.tagstory.com/video/100071738
http://www.youtube.com/watch?v=DDd12i0hP_E&hd=1
http://www.youtube.com/watch?v=kYqd1JpSa0c&hd=1
http://www.youtube.com/watch?v=5dnr_7dazH8&hd=1
http://www.youtube.com/watch?v=xY1X9Lad6Ac&hd=1

Reviews
- Playwares -- 27Q LED
- PCBee -- 27Q LED-P
- CoolenJoy -- 27Q LED-P
- Playwares -- 2720MDP GOLD LED

FAQs

1. What is this I keep hearing about the power brick?
Users are reporting that the supplied power adapter isn't compatible with US outlets (110v). The text reads, "AC 230V ~ 50/60Hz 1.2A". I have personally tested it with my multimeter and was able to get a constant 60Hz line frequency and ~24v DC. If you're still paranoid, you can buy a similar adapter on eBay or a step down/up transformer. Some users have contacted dcsamsungmall whom acknolwedges the problem and will replace the adapter free of charge (maybe not).
Source 1 (courtesy of adeptus) (Click to show)
Quote:
Originally Posted by adeptus View Post

I just got not 1 but 3 replies back from dcsamsungmall regarding the power adapters with the Crossover monitors. Here they are:
Quote:
FROM: dcsamsungmall
Hi,
New update for adaptor.
I have got answer from manufacture technician team.
They don't recommend to use 220v adaptor at USA. It can cause some problem.
Appropriated adopter should be used.
We are planning purchase free volt adaptor but is little bit expensive.
So it effect price of crossover monitor in the future.
Thank you
Quote:
FROM: dcsamsungmall
From today we will replace the adopter for 110v adaptor to US.CANADA
You can get 110v adaptor.


Then, this last one below seemed like a generic email sent out likely to his various customers thus far, as opposed to the two above which were private messages to me on ebay...
Quote:
FROM: dcsamsungmall
Hi,
Thank you for shopping from us.
We believe you are using our crossover monitor without problem.
But some customer who are live in USA $ CANADA has complaint regarding A/C Adapter.
We believe you are using this monitor with correct A/C adapter (110v) , but if you are still using A/C Adapter for Korea (220v).
It could be trouble in the future. So we recommend you to change to appropriated adaptor.

If you have inquiry please feel free contact me.
Dcsamsungmall
Best regards

Here is the original email again that I had sent him just yesterday:
Quote:
TO: dcsamsungmall
It seems you are selling many of these monitors to USA & Canada. I know because I learned about it on an internet forum. Recently some people have been having problems with these monitors just stop working and we are wondering if this is because of the power brick that it ships with - Picture:http://img534.imageshack.us/img534/4660/dsc0785.png In USA & Canada the voltage is 110-120V, but the power brick shows 220V. Can you please inquire with the manufacturer if it is safe to connect this power adapter to 120V or if this could cause problems with the monitor or even cause a fire?If the manufacturer says we should not run it at 110-120V, can you please ask for exact specifications of power adapter, ideally if you have a URL of a model number we can buy only to replace it? Thanks in advance!
Source 2 (courtesy of akg102) (Click to show)
Quote:
Originally Posted by akg102 View Post

UPDATE:

I messaged dcSamsungMall about my troubles with the power red light and no picture post. He spoke to the manufacturer and they said that it was adapter 'inconsistency.' It's not that none of the adapters can handle US voltage....but the inconsistency with which that translates to 24v is the problem.

HE IS GOING TO SHIP ME A COMPATIBLE ADAPTER.....FREE OF CHARGE.


If you're going to buy a Crossover, or any other monitor, buy from dcSamsungMall. Excellent customer service.

2. Is this similar to the Yamasaki Catleap, Achieva Shimian, and PCBank 3View I keep hear about?
Yes, they all use the same LG S-IPS 8-bit LED panel. The difference is the circuity that drives the monitor. However, a review for PCBank 3View showed it have a slightly lower input lag than the rest.

3. Then does this monitor overclock?
Currently only early batches of Catleaps (2B) are known to overclock past 60Hz. The same cannot be said about CrossOver which are most likely locked at 60Hz.

4. Are there any US sellers or do I have to buy from someone in Korea?
Since this monitor is strictly produced overseas (mainly S. Korea), the only way in order to get a hold of some in the States is by doing a group order (100+). Right now bQvle is working on acquiring a price estimate for a 100Hz Yamakasi Catleap Q270.

5. What's the difference between the 27Q LED and LED-P?
LED-P can pivot (-P "Pivot") or rotate vertically as shown here. Other than that, they are essentially the same display.

6. Is there any IQ between tempered glass and the regular gloss display?
No difference whatsoever. Same picture quality but the tempered glass model has more of a Apple feel. You also risk getting dust stuck behind the glass barrier.

7. What's the difference between a A-, A or A+ display?
While these use the same LG S-IPS panels found in Dell, HP, or Apple monitors they are the "rejects" so to speak that didn't quite meet the company's quality standards. In our case, we might have some minor backlight bleed (normally found in the bottom right-hand corner) and some dead or stuck pixels.

Edited by SimpleTech - 4/25/12 at 10:14am
post #2 of 6398
Thread Starter
==========================
Submit Form
==========================


Edited by SimpleTech - 6/25/12 at 7:37pm
post #3 of 6398
Thread Starter
.
Edited by SimpleTech - 6/25/12 at 7:35pm
post #4 of 6398
Thanks for starting it up guys. a poll like the one mentioned from the other thread would be great.
post #5 of 6398
If you have any questions about the CrossOver, or know which questions are likely to come up often, PM them to me so I can get them answered for the FAQ.

I plan on answering concerns about overclocking, the power brick, and build quality.
Anything else, please PM me! thumb.gif

CPUMotherboardGraphicsRAM
i7-4770K Asrock Z87E-ITX EVGA GTX 970 4GB 2x8GB G.Skill Ares 1333Mhz RAM
Hard DriveCoolingOSMonitor
Mushkin Chronos 120GB/Seagate Barracuda 3TB Corsair H60 Windows 8 Pro x64 QNIX QX2710 @ 120Hz
KeyboardPowerCaseMouse
Cooler Master Quickfire Stealth Silverstone ST45SF 450W SFX NCASE M1 Steelseries Sensei [RAW] Frost Blue
Mouse PadAudio
Steelseries Qck Steelseries Siberia v2 Frost Blue
CPUMotherboardGraphicsRAM
Core i5-3210M Ivy Bridge Lenovo Propriety Intel HD Graphics 4000 2x4GB DDR3 1333Mhz SO-DIMM
Hard DriveCoolingOSMonitor
320GB 7200RPM HDD Internal Lenovo Propriety  Windows 7 Home Premium x64 12.5"IPS Matte Display (1366x768)
KeyboardMouseAudio
Thinkpad Island-style Keyboard with Backlighting Trackpoint & Multitouch Track Pad Dolby Advanced Audio 2.0 Speakers
  hide details
Reply

CPUMotherboardGraphicsRAM
i7-4770K Asrock Z87E-ITX EVGA GTX 970 4GB 2x8GB G.Skill Ares 1333Mhz RAM
Hard DriveCoolingOSMonitor
Mushkin Chronos 120GB/Seagate Barracuda 3TB Corsair H60 Windows 8 Pro x64 QNIX QX2710 @ 120Hz
KeyboardPowerCaseMouse
Cooler Master Quickfire Stealth Silverstone ST45SF 450W SFX NCASE M1 Steelseries Sensei [RAW] Frost Blue
Mouse PadAudio
Steelseries Qck Steelseries Siberia v2 Frost Blue
CPUMotherboardGraphicsRAM
Core i5-3210M Ivy Bridge Lenovo Propriety Intel HD Graphics 4000 2x4GB DDR3 1333Mhz SO-DIMM
Hard DriveCoolingOSMonitor
320GB 7200RPM HDD Internal Lenovo Propriety  Windows 7 Home Premium x64 12.5"IPS Matte Display (1366x768)
KeyboardMouseAudio
Thinkpad Island-style Keyboard with Backlighting Trackpoint & Multitouch Track Pad Dolby Advanced Audio 2.0 Speakers
  hide details
Reply
post #6 of 6398
Getting the folks who are working on the Catleap overclocking and PCB comparisons in here to see what we have from the other thread and how it compares to what they've found so far might be good for discussion to get this thread moving.

Also, wow... dcsamsumgmall's prices on CrossOvers just shot WAY up, $479.50 for the LED-P and $461.40 for the fixed stand.
post #7 of 6398
Keen to see the updated ebay seller listings here, has anyone seen the Crossover model with multiple inputs?
post #8 of 6398
Quote:
Originally Posted by L D4WG View Post

Keen to see the updated ebay seller listings here, has anyone seen the Crossover model with multiple inputs?

Dream-seller has the multiple inputs up, but the price is $659. he also has a 30" model now as well.
post #9 of 6398
I think you missed a word. Its $415 on ebay right now.

http://www.ebay.com/itm/CROSSOVER-27Q-LED-P-27-DVI-Computer-Monitor-QHD-2560X1440-16-9-Pivot-/320865620246?pt=Computer_Monitors&hash=item4ab514d116

What seller, dcsamsung or dream-seller?
Edited by EvilGnomes - 3/22/12 at 4:27am
System
(18 items)


CPUMotherboardGraphicsGraphics
Intel Core i5 2500K Z68 Extreme3 Gen3 Intel HD Graphics 2000 (GT2) NVIDIA GeForce GTX 580
RAMHard DriveHard DriveHard Drive
Corsair  Western Digital 1TB Black  Seagate 1TB  Corsair Force series
Optical DriveCoolingCoolingOS
LG Blu-ray XSPC Rasa Kit with extra 120MM black ice rad Black Ice  Windows 7 X64
MonitorKeyboardPowerCase
AOC 24" 1080P LED Microsoft X8 Corsair 850W Haf 932
MouseAudio
Logitech G500 Logitech G35
  hide details
Reply
System
(18 items)


CPUMotherboardGraphicsGraphics
Intel Core i5 2500K Z68 Extreme3 Gen3 Intel HD Graphics 2000 (GT2) NVIDIA GeForce GTX 580
RAMHard DriveHard DriveHard Drive
Corsair  Western Digital 1TB Black  Seagate 1TB  Corsair Force series
Optical DriveCoolingCoolingOS
LG Blu-ray XSPC Rasa Kit with extra 120MM black ice rad Black Ice  Windows 7 X64
MonitorKeyboardPowerCase
AOC 24" 1080P LED Microsoft X8 Corsair 850W Haf 932
MouseAudio
Logitech G500 Logitech G35
  hide details
Reply
post #10 of 6398
Kinda a tough poll, I voted perfect. I do have 1 white pixel, you have to really really look hard to find it. It won't bother me at all, and im OCD about that type of stuff.

Let's get a link for our sigs for this club! Also, look fowards to the info and pictures on the OP.

450

450
The Empire
(27 items)

#2 PC
(16 items)


CPUMotherboardGraphicsGraphics
i5 3570k Asus Maximus V Formula z77 XFX 7970 Diamond 7970
GraphicsRAMHard DriveHard Drive
Diamond 7970 G.Skill Ripjaws X Series 2x4GB 2133 MHz Samsung Spinpoint F3 1TB  Crucial M4 128GB
CoolingCoolingCoolingCooling
XSPC Raystorm Koolance VID-AR797 x3 Phobya Radiator Stand EX360 x3
CoolingCoolingCoolingOS
9 Bgears B-Blaster MCP655 Phobya Balancer 250 Reservoir Windows 7 Ultimate x64
MonitorMonitorPowerCase
CrossOver 2560x1440 IPS Asus VE228H FSP AU-1000PRO Caselabs SM8
MouseMouse PadAudioAudio
RAZER Abyssus Mirror Special Edition XTRAC Ripper Asus Xonar Essence STX Dayton Audio B652
AudioAudio
Lepai Tripath Class-T Hi-Fi Audio Mini Amplifier 8 Inch 60-Watt Powered Subwoofer
CPUMotherboardGraphicsGraphics
Intel q9300 Intel DP45SG XFX Radeon 5870 ATI Radeon 5850
RAMHard DriveCoolingCooling
Corsair Dominator 1333 Corsair Force 3 90gb XSPC Raystorm XSPC Full Cover
CoolingCoolingOSMonitor
EK Full Cover Phobya G-Changer 240mm & XSPC 240mm Windows 7 Samsung SyncMaster 932bw
KeyboardPowerCaseMouse
Dell Rosewill Lightning 800w CM Stryker Dell
  hide details
Reply
The Empire
(27 items)

#2 PC
(16 items)


CPUMotherboardGraphicsGraphics
i5 3570k Asus Maximus V Formula z77 XFX 7970 Diamond 7970
GraphicsRAMHard DriveHard Drive
Diamond 7970 G.Skill Ripjaws X Series 2x4GB 2133 MHz Samsung Spinpoint F3 1TB  Crucial M4 128GB
CoolingCoolingCoolingCooling
XSPC Raystorm Koolance VID-AR797 x3 Phobya Radiator Stand EX360 x3
CoolingCoolingCoolingOS
9 Bgears B-Blaster MCP655 Phobya Balancer 250 Reservoir Windows 7 Ultimate x64
MonitorMonitorPowerCase
CrossOver 2560x1440 IPS Asus VE228H FSP AU-1000PRO Caselabs SM8
MouseMouse PadAudioAudio
RAZER Abyssus Mirror Special Edition XTRAC Ripper Asus Xonar Essence STX Dayton Audio B652
AudioAudio
Lepai Tripath Class-T Hi-Fi Audio Mini Amplifier 8 Inch 60-Watt Powered Subwoofer
CPUMotherboardGraphicsGraphics
Intel q9300 Intel DP45SG XFX Radeon 5870 ATI Radeon 5850
RAMHard DriveCoolingCooling
Corsair Dominator 1333 Corsair Force 3 90gb XSPC Raystorm XSPC Full Cover
CoolingCoolingOSMonitor
EK Full Cover Phobya G-Changer 240mm & XSPC 240mm Windows 7 Samsung SyncMaster 932bw
KeyboardPowerCaseMouse
Dell Rosewill Lightning 800w CM Stryker Dell
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Monitors and Displays
Overclock.net › Forums › Components › Monitors and Displays › CrossOver 27Q LED/LED-P, 27M LED, & 2720MDP GOLD LED Monitor Club
