Need Advice On My Air Cooling Setup

post #1 of 7
Thread Starter

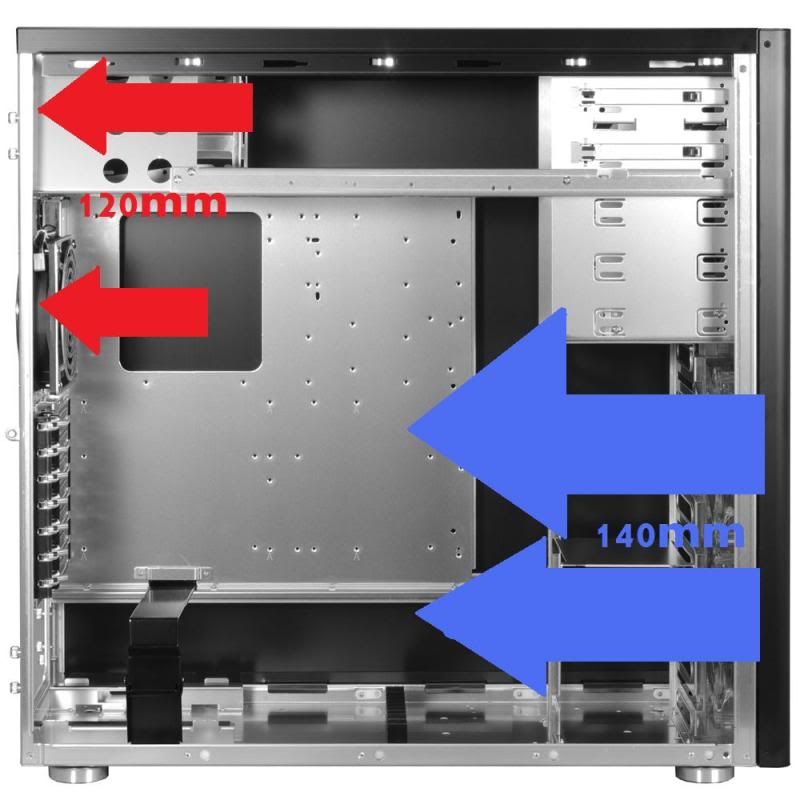

So my case is a Lian Li PC-A70F. It has two 140mm intake fans and two 120mm exhaust fans...


I've replaced the front intake fans with these Xigmatek fans..

http://www.newegg.com/Product/Product.aspx?Item=N82E16835233086

And rear fans with these..

http://www.newegg.com/Product/Product.aspx?Item=N82E16835233084

As far as a CPU cooler i'm going with a Noctua D14 since it will be on a Z77 mobo and Ivy Bridge CPU.

Ok heres my questions... I wanna go with a fan controller since i don't wanna molex all these fans and run them at 100%... Here is the controller i'm leaning towards.

http://www.frozencpu.com/products/10606/cpa-334/Lian_Li_525_Six_Fan_Controller_-_Black_PT-FN04B.html?tl=c17s286b3

Is this a quality controller or should i be looking at another. I will need one that will control at least 6 fans.. Also is my fan choice good?


My main question is should my rear exhaust fans be pushing more rpm's and cfm's than my cpu cooler and intake fans?
Edited by oblivious - 3/30/12 at 4:36pm
post #2 of 7
Yes that`s a good fan controller, and rear fans must have higher CFM than front fans!

And DONT get NH D14 get NH C14 or TR Archon or Prolimatech Megahalems or TRUE 120 black those have less weight and performs near, also would be enough for 5GHz i5/i7 IB
post #3 of 7
That's a good controller.

The air coming from the cpu cooler is going to be slowed down quite a bit by the heatsink, so really you just need enough exhaust to remove the heat it produces (or rather, displaces) and keep the front to back airflow in your case moving nicely. The Lian Li is very streamlined for this, so you shouldnt have a problem keeping things cool without up speeds. I would set both front and rear case fans at 800rpm, check temps, and go from there. The Lian Li may come with splitter cables that allow one end to go into the mobo for rpm monitoring.

imo the NH-D14 is a fine choice.
Edited by Otterclock - 3/30/12 at 4:48pm

CPUMotherboardGraphicsRAM
3570k@4.5ghz 1.21v Gigabyte Sniper M3 Sapphire 6950 Samsung 8g1866
Hard DriveHard DriveHard DriveCooling
Samsung 830 Samsung F1 500 Crucial M4 64 (SRC) cpu:Noc NF-F12 / case:4x TY-141/gpu: 2x NB-Multi
CoolingOSMonitorKeyboard
Venomous X, Accelero TT Win 7 64 Acer X213H Saitek Eclipse
PowerCaseMouse
Superflower 650 plat Fractal Arc Midi G500
  hide details
Reply

CPUMotherboardGraphicsRAM
3570k@4.5ghz 1.21v Gigabyte Sniper M3 Sapphire 6950 Samsung 8g1866
Hard DriveHard DriveHard DriveCooling
Samsung 830 Samsung F1 500 Crucial M4 64 (SRC) cpu:Noc NF-F12 / case:4x TY-141/gpu: 2x NB-Multi
CoolingOSMonitorKeyboard
Venomous X, Accelero TT Win 7 64 Acer X213H Saitek Eclipse
PowerCaseMouse
Superflower 650 plat Fractal Arc Midi G500
  hide details
Reply
post #4 of 7
Thread Starter
Well my front intake fans at max are 1000 rpms/65 cfm. The exhaust fans are 1800 rpms/ 75 cfm. So the exhaust are slightly higher. Also got to consider air will pass through the HDD rack. If i have my HDD's and SSD there, that will slow my air flow down too.

I was considering the D14 and Silver Arrow but i couldn't find anywhere yesterday when i was checking for everything so i went ahead and listed the D14 as my choice. Haven't actually bought a CPU cooler yet so it may change by the time i get everything.
post #5 of 7
I say you NH D14 is HUGE, better going H80/TR Archon(dual fan)/Megahalems Push pull(XSPC/NF P12/Scythe Slip Stream kaze jyuni 110CFM)/(XSPC Xinruilian 2000 RPM /Noctua NF P12/Scythe Slip Stream kaze jyuni 110CFM)/TRUE 120 Black(XSPC Xinruilian 2000 RPM /Noctua NF P12/Scythe Slip Stream kaze jyuni 110CFM)/TR venomous X rt 2x stock fans, NH C14

those are a bit smaller and have the same performance or even more depending if Megahalems or any other like megashadow,Super mega, Venomous X/XRT push and pull

I`m talking about this bcuz I have one NH D14
post #6 of 7

Dude. Look You have a natural. Don't waste any time or energy with exhaust fans. Your big aluminum case comes with empty spaces where steel cases have grills. Those of us with steelies have to buy a special nibbler to get rid of our rear grills, and here Lian Li has done it for you.



Look at item 2 in my sig. If heatsink fans can draw that much air through a case, why bother with exhaust fans?



Instead, put a 140mm fan in your five-slot 5.25 bay. That will even give you moar intake, some of it in a direct shot to your D14.



If you r-e-e-e-ally want an exhaust fan, put a third fan on the D14 (Noctua will send you the hardware free if you ask them and include a copy of your invoice in the request). Then you will replicate my rig from item 2.



Oh. Be sure to remove all the unused slot covers from your backplane.



Have fun!

alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
alpha updated
(19 items)

secundus
(14 items)


CPUMotherboardGraphicsRAM
i7 4790k Gigabyte GA-Z97X Gaming-7 Intel HD4600 Crucial Ballistix Sport Very Low Profile 8GB Ki...
Hard DriveCoolingOSMonitor
Samsung 840 EVO 500GB Prolimatech Megahalems Rev. C Windows 8.1 Home Premium 64-bit Acer K242HL
KeyboardPowerCaseMouse
Dell SK-8110 (PS/2) Seasonic X460 Fanless motherboard tray from CM ATCS 840 Logitech MX 1100
Mouse PadAudio
Dell Creative SoundBlaster X-Fi MB3
CPUMotherboardGraphicsRAM
i7 860 Gigabyte GA P55M UD2 ZOTAC/NVidia GTX 650 Ti 2GB 4x4GB G.Skill Ripjaws DDR3-1333 CAS9
Hard DriveOptical DriveCoolingOS
Samsung 1TB Spinpoint F3 7200.12 Plextor 24x DVD burner Cooler Master Hyper Z600R Win7 64-bit
MonitorKeyboardPowerCase
Dell E207WFP 20-inch flat panel Logitech Wireless 510 Seasonic X-650 fully modular 80+ Gold Lian Li PC-7FN
MouseMouse PadAudio
Wireless Mouse WACOM Intuos 3 generic
  hide details
Reply
post #7 of 7

Oh yes. Here's a Lian Li:
