Quad Tec Direct Die Block on the Ivy Bridge/Sandy Bridge (I5 3570K and 2500k Tested) - Page 6
post #52 of 64
6/10/12 at 8:23am
- Klinkey
- WaterCooler
-
- Joined: Dec 2010
- Location: Australia
- Posts: 1,452
- Rep: 40 (Unique: 38)
- Select All Posts By This User
a) are these for sale?
b) where does all the heat go...
b) where does all the heat go...
Green Lantern
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| 1090T @ 4Ghz | Gigabyte GA-890FXA-UD5 REV 2.0 | Radeon HD 4350 Asus | Kingston HyperX @1600mhz 6-8-6-20-2T |
| Hard Drive | Optical Drive | OS | Power |
| Seagate 1TB | 24x DVD | Windows 7 Ultimate | XFX Proseries Core edition 650w |
| Case | Mouse | Mouse Pad | |
| Coolermaster HAF 932 Advanced | Razer DeathadderV2 | Razer Omega Speed | |
| View all | |||
|
Green Lantern
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| 1090T @ 4Ghz | Gigabyte GA-890FXA-UD5 REV 2.0 | Radeon HD 4350 Asus | Kingston HyperX @1600mhz 6-8-6-20-2T |
| Hard Drive | Optical Drive | OS | Power |
| Seagate 1TB | 24x DVD | Windows 7 Ultimate | XFX Proseries Core edition 650w |
| Case | Mouse | Mouse Pad | |
| Coolermaster HAF 932 Advanced | Razer DeathadderV2 | Razer Omega Speed | |
| View all | |||
post #53 of 64
6/10/12 at 9:48am
- xxbassplayerxx
- SLAPPA DAT BASS MON!
-
- Joined: Jun 2009
- Location: Louisville, Kentucky
- Posts: 18,719
- Trader Rating: 43
-
- Select All Posts By This User
The heat goes directly into the waterblock and is exhausted out of the radiator.
Bench Stuffs
(34 items) |
ITX Daily Driver
(12 items) |
|
| CPU | CPU | CPU | CPU |
|---|---|---|---|
| Intel Core i7 920 | Intel Core i7 Extreme 965 | Intel Core i7 Extreme 980X | Intel Core i7 3770K |
| Motherboard | Graphics | Graphics | Graphics |
| Gigabyte X58A-OC / Gigabyte Z77X-UD4H | BFG GTX 280 | Diamond HD 4890 XOC | ATI HD 4890 |
| Graphics | Graphics | Graphics | Graphics |
| Sapphire HD 4870X2 | Asus HD 4870 1GB | Asus HD 4850 1GB | Diamond HD 3870 512MB |
| Graphics | Graphics | Graphics | Graphics |
| MSI GTX 280 | EVGA GTX 280 | EVGA GTX 275 | EVGA 9800GTX+ |
| Graphics | Graphics | Graphics | Graphics |
| EVGA 8800 GTS 512MB | EVGA 8800 GTS 512MB | BFG 8800 GTS 320MB | MSI GT 210 512MB |
| RAM | RAM | Hard Drive | Hard Drive |
| Corsair 2000 7-8-7 Hypers | Kingston HyperX 2000 9-9-9 BBSE | Kingston SSD Now! 128GB | Patriot Torqx 2 32GB |
| Hard Drive | Optical Drive | Cooling | OS |
| Seagate 80GB | Samsung CD/DVD+-RW | XPSC Rasa + EK VGA + HWLabs Black Ice GTX 360 +... | W7 Pro x64 SP1 |
| Monitor | Keyboard | Power | Case |
| Dell 22" @ 1680x1050, Acer 22" 1680x1050 | Ducky DK9008G2 Pro, Cherry Brown Switches | Corsair AX1200 | Dimastech Easy V2.5! <3 |
| Mouse | Mouse Pad | ||
| Logitech G5 Battlefield 2142 Edition | Puretrak Stealth | ||
| View all | |||
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Intel Core i5 3570K | Asus P8Z77-I Deluxe | Diamond HD 5870 | Corsair Dominator |
| Hard Drive | Hard Drive | OS | Monitor |
| Corsair Force Series 3 120GB | Sansung F3 1TB | Windows 7 Professional x64 | 2x Dell 22", 1x Acer 22" Eyefinity Enabled |
| Keyboard | Power | Case | Mouse |
| Ducky DK9008G2 Pro | Seasonic G-Series 450W Gold | White Bitfenix Prodigy | Logitech G5 BF2142 Edition |
| View all | |||
|
Bench Stuffs
(34 items) |
ITX Daily Driver
(12 items) |
|
| CPU | CPU | CPU | CPU |
|---|---|---|---|
| Intel Core i7 920 | Intel Core i7 Extreme 965 | Intel Core i7 Extreme 980X | Intel Core i7 3770K |
| Motherboard | Graphics | Graphics | Graphics |
| Gigabyte X58A-OC / Gigabyte Z77X-UD4H | BFG GTX 280 | Diamond HD 4890 XOC | ATI HD 4890 |
| Graphics | Graphics | Graphics | Graphics |
| Sapphire HD 4870X2 | Asus HD 4870 1GB | Asus HD 4850 1GB | Diamond HD 3870 512MB |
| Graphics | Graphics | Graphics | Graphics |
| MSI GTX 280 | EVGA GTX 280 | EVGA GTX 275 | EVGA 9800GTX+ |
| Graphics | Graphics | Graphics | Graphics |
| EVGA 8800 GTS 512MB | EVGA 8800 GTS 512MB | BFG 8800 GTS 320MB | MSI GT 210 512MB |
| RAM | RAM | Hard Drive | Hard Drive |
| Corsair 2000 7-8-7 Hypers | Kingston HyperX 2000 9-9-9 BBSE | Kingston SSD Now! 128GB | Patriot Torqx 2 32GB |
| Hard Drive | Optical Drive | Cooling | OS |
| Seagate 80GB | Samsung CD/DVD+-RW | XPSC Rasa + EK VGA + HWLabs Black Ice GTX 360 +... | W7 Pro x64 SP1 |
| Monitor | Keyboard | Power | Case |
| Dell 22" @ 1680x1050, Acer 22" 1680x1050 | Ducky DK9008G2 Pro, Cherry Brown Switches | Corsair AX1200 | Dimastech Easy V2.5! <3 |
| Mouse | Mouse Pad | ||
| Logitech G5 Battlefield 2142 Edition | Puretrak Stealth | ||
| View all | |||
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Intel Core i5 3570K | Asus P8Z77-I Deluxe | Diamond HD 5870 | Corsair Dominator |
| Hard Drive | Hard Drive | OS | Monitor |
| Corsair Force Series 3 120GB | Sansung F3 1TB | Windows 7 Professional x64 | 2x Dell 22", 1x Acer 22" Eyefinity Enabled |
| Keyboard | Power | Case | Mouse |
| Ducky DK9008G2 Pro | Seasonic G-Series 450W Gold | White Bitfenix Prodigy | Logitech G5 BF2142 Edition |
| View all | |||
post #54 of 64
6/14/12 at 11:00am
- 8800GT
- Graphics Card Aficionado
-
- Joined: May 2009
- Location: Niagara Falls, Canada
- Posts: 1,117
- Rep: 43 (Unique: 39)
- Reviews: 1
- Select All Posts By This User
Too bad you don't have a better 2500k...i'd love to see the temps at 1.6v @ 5.4ghz but judging by this, theyd probably never break 50. Makes me laugh at intel's stock cooler, of which my 2500k gets to 80c @ 4.2ghz
Sandy-Bridge
(14 items) |
| CPU | Motherboard | Graphics | Graphics |
|---|---|---|---|
| Intel Core i5 2500K 6.0 GHZ | Gigabyte Z68A-D3H-B3 | Powercolor PCS+ 7870 MYST | EVGA GTX 460 1GB |
| RAM | Hard Drive | Hard Drive | Optical Drive |
| Mushkin Enhanced Blackline Frostbyte DDR3 | OCZ Agility 4 256GB | OCZ Agility 4 256GB | LG Super/Multi DVD+RW DL |
| Cooling | OS | Monitor | Keyboard |
| Cooler Master Hyper 212 EVO | Windows 7 Ultimate | Acer G235H | Logitech G11 Gaming Keyboard. |
| Power | Audio | ||
| Thermaltake TR2 RX 750W | JVC Analog AIS-150 | ||
| View all | |||
|
Sandy-Bridge
(14 items) |
| CPU | Motherboard | Graphics | Graphics |
|---|---|---|---|
| Intel Core i5 2500K 6.0 GHZ | Gigabyte Z68A-D3H-B3 | Powercolor PCS+ 7870 MYST | EVGA GTX 460 1GB |
| RAM | Hard Drive | Hard Drive | Optical Drive |
| Mushkin Enhanced Blackline Frostbyte DDR3 | OCZ Agility 4 256GB | OCZ Agility 4 256GB | LG Super/Multi DVD+RW DL |
| Cooling | OS | Monitor | Keyboard |
| Cooler Master Hyper 212 EVO | Windows 7 Ultimate | Acer G235H | Logitech G11 Gaming Keyboard. |
| Power | Audio | ||
| Thermaltake TR2 RX 750W | JVC Analog AIS-150 | ||
| View all | |||
post #55 of 64
7/5/12 at 4:36am
- Jefreynnv
- 733mhz
- Joined: Jan 2008
- Location: Riyadh, Saudi Arabia
- Posts: 133
- Rep: 0 (Unique: 0)
- Trader Rating: 18
- Select All Posts By This User
How much power does this draw? Will it run off the pci-e cable like the single TEC cooler?
Will a single Feser monsta 360 rad enough to exhaust that much load?
Pricing and availability for i7-3770k users?
Will a single Feser monsta 360 rad enough to exhaust that much load?
Pricing and availability for i7-3770k users?
Quad Monster 1
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 920 @4.7GHz / i7 950 @ stock for now | Gigabyte X58A-UD7 | 2 x EVGA 9800GX2 | 3 x 2GB OCZ Platinum DDR3-1866 |
| Hard Drive | Optical Drive | OS | Monitor |
| 2xVertex30gb RAID0, 2x750gb RAID 0, 1TB+500GBWD | Samsung DVD writer | Win 7 + XP (bencher) + Win7 (bencher) | dual Benq 22" Full HD |
| Keyboard | Power | Case | Mouse |
| MS Reclusa | Coolmax 1000W | Modded Thermaltake Kandalf LCS | MS silent mini mouse |
| View all | |||
|
Quad Monster 1
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 920 @4.7GHz / i7 950 @ stock for now | Gigabyte X58A-UD7 | 2 x EVGA 9800GX2 | 3 x 2GB OCZ Platinum DDR3-1866 |
| Hard Drive | Optical Drive | OS | Monitor |
| 2xVertex30gb RAID0, 2x750gb RAID 0, 1TB+500GBWD | Samsung DVD writer | Win 7 + XP (bencher) + Win7 (bencher) | dual Benq 22" Full HD |
| Keyboard | Power | Case | Mouse |
| MS Reclusa | Coolmax 1000W | Modded Thermaltake Kandalf LCS | MS silent mini mouse |
| View all | |||
post #56 of 64
7/5/12 at 4:57am
- Krow
- 733mhz
- Joined: Apr 2010
- Location: Edmonton AB, CA
- Posts: 322
- Rep: 22 (Unique: 18)
- Select All Posts By This User
Heat Transfer and Power Consumption @ 12V
0dt: 652W Pmax: 374W
10dt: 500W Pmax: 355W
20dt: 340W Pmax: 336W
30dt: 200W Pmax: 312W
40dt: 68W Pmax: 302W
50dt: n/a Pmax: n/a
Max Running Current: 31.2A
Compatibility: LGA1155
A 360 Monsta Rad is probably enough if the fans are very high static pressure. Even better if in Push/Pull. I currently run 2 TFC X-Changers in push, and my TEC Block and CPU are pumping about 700W into the air.
If you get the controller, it is designed to accept power from a 6pin PCIe Cable.
EDIT: Added more "exact" numbers. As exact as the charts will allow me to get.
Edited by Krow - 7/5/12 at 8:56am
0dt: 652W Pmax: 374W
10dt: 500W Pmax: 355W
20dt: 340W Pmax: 336W
30dt: 200W Pmax: 312W
40dt: 68W Pmax: 302W
50dt: n/a Pmax: n/a
Max Running Current: 31.2A
Compatibility: LGA1155
A 360 Monsta Rad is probably enough if the fans are very high static pressure. Even better if in Push/Pull. I currently run 2 TFC X-Changers in push, and my TEC Block and CPU are pumping about 700W into the air.
If you get the controller, it is designed to accept power from a 6pin PCIe Cable.
EDIT: Added more "exact" numbers. As exact as the charts will allow me to get.
Edited by Krow - 7/5/12 at 8:56am
Whitey!
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Phenom II x6 1090T BE | Crosshair IV Formula | HIS Radeon HD 5870 2GB | 4x2GB Corsair Dominator DDR3-1600 |
| Hard Drive | OS | Monitor | Keyboard |
| Corsair 32GB SSD, Seagate 1TB, Western Digital 1TB | Windows 7 Ultimate | SyncMaster 245B and SyncMaster 2343 | Logitech G15 v2 |
| Power | Case | Mouse | Mouse Pad |
| Antec 850W True Power, Meanwell 600W 24V | Painted CoolerMaster Half 932 | Logitech G5 Weighted Mouse | Steelseries Frosted Glass |
| View all | |||
|
Whitey!
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Phenom II x6 1090T BE | Crosshair IV Formula | HIS Radeon HD 5870 2GB | 4x2GB Corsair Dominator DDR3-1600 |
| Hard Drive | OS | Monitor | Keyboard |
| Corsair 32GB SSD, Seagate 1TB, Western Digital 1TB | Windows 7 Ultimate | SyncMaster 245B and SyncMaster 2343 | Logitech G15 v2 |
| Power | Case | Mouse | Mouse Pad |
| Antec 850W True Power, Meanwell 600W 24V | Painted CoolerMaster Half 932 | Logitech G5 Weighted Mouse | Steelseries Frosted Glass |
| View all | |||
post #57 of 64
7/6/12 at 12:17am
- Jefreynnv
- 733mhz
-
- Joined: Jan 2008
- Location: Riyadh, Saudi Arabia
- Posts: 133
- Rep: 0 (Unique: 0)
- Trader Rating: 18
- Select All Posts By This User
nice!
I'll surely get one of this with the controller when my budget affords me.
Thanks Krow and Mindchill!
I'll surely get one of this with the controller when my budget affords me.
Thanks Krow and Mindchill!
|
Quad Monster 1
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 920 @4.7GHz / i7 950 @ stock for now | Gigabyte X58A-UD7 | 2 x EVGA 9800GX2 | 3 x 2GB OCZ Platinum DDR3-1866 |
| Hard Drive | Optical Drive | OS | Monitor |
| 2xVertex30gb RAID0, 2x750gb RAID 0, 1TB+500GBWD | Samsung DVD writer | Win 7 + XP (bencher) + Win7 (bencher) | dual Benq 22" Full HD |
| Keyboard | Power | Case | Mouse |
| MS Reclusa | Coolmax 1000W | Modded Thermaltake Kandalf LCS | MS silent mini mouse |
| View all | |||
|
Quad Monster 1
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 920 @4.7GHz / i7 950 @ stock for now | Gigabyte X58A-UD7 | 2 x EVGA 9800GX2 | 3 x 2GB OCZ Platinum DDR3-1866 |
| Hard Drive | Optical Drive | OS | Monitor |
| 2xVertex30gb RAID0, 2x750gb RAID 0, 1TB+500GBWD | Samsung DVD writer | Win 7 + XP (bencher) + Win7 (bencher) | dual Benq 22" Full HD |
| Keyboard | Power | Case | Mouse |
| MS Reclusa | Coolmax 1000W | Modded Thermaltake Kandalf LCS | MS silent mini mouse |
| View all | |||
post #58 of 64
7/8/12 at 5:07pm

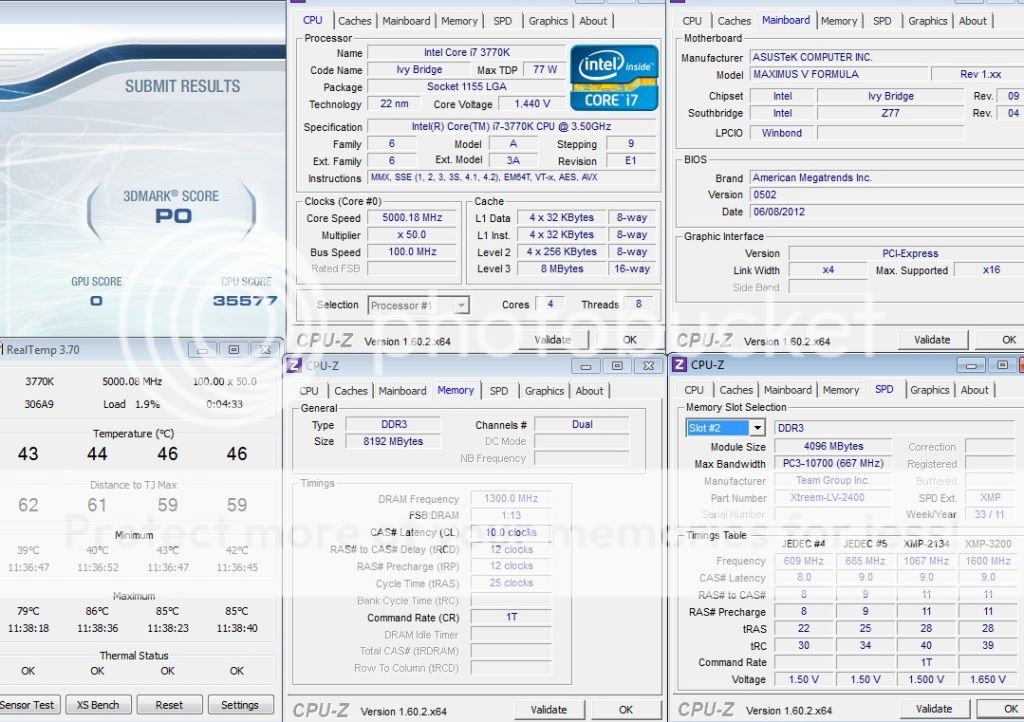

3770K L220B296 @ 5.0 GHz 1.44v[/b]
WC: EK HF + 2x RX360 + 12x GT + D5 + EK Top + EK X2 Ad 250 Res + EK FC7970
Ambient temp: 34C
Quad TEC replacing the EK HF:

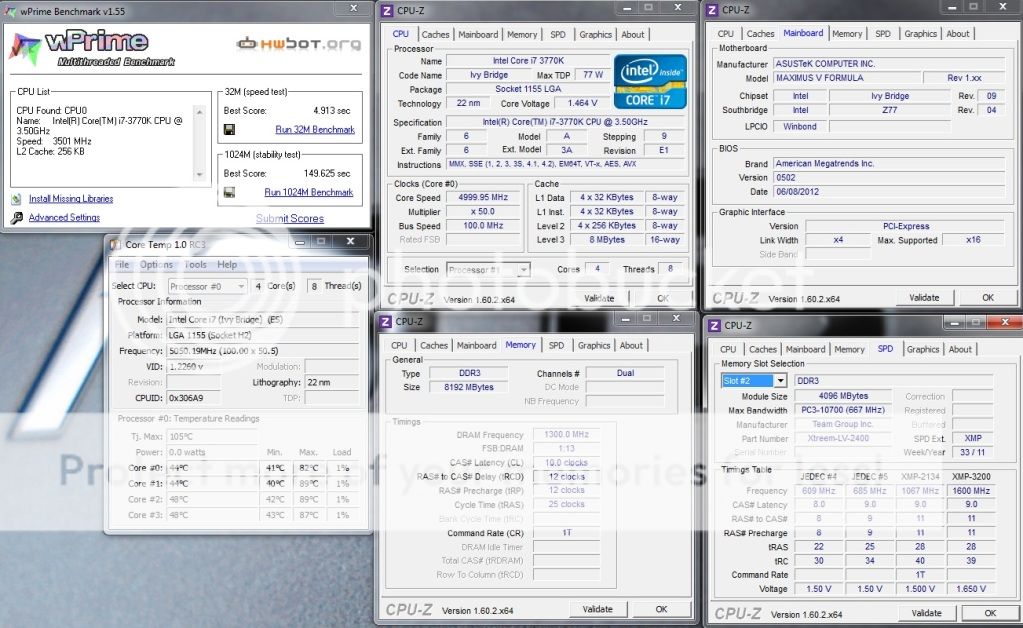

none Quad TEC:

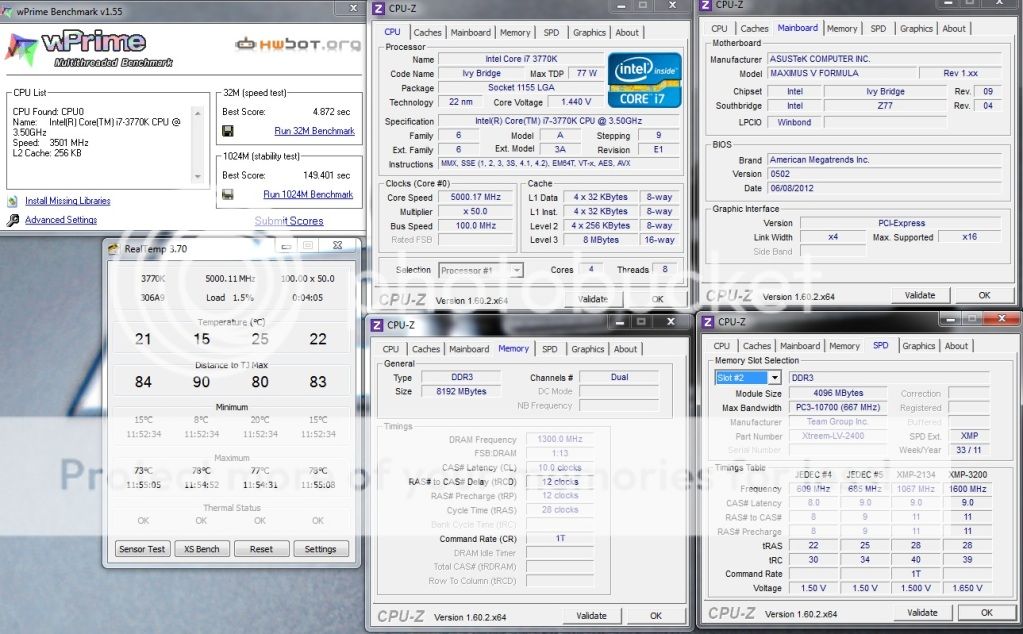

Quad TEC:
Those were short tests that showed an improvement over regular wc
Now testing LinX AVX edition:
None Quad TEC:
Quad TEC: Warning: Spoiler! (Click to show)
WC: EK HF + 2x RX360 + 12x GT + D5 + EK Top + EK X2 Ad 250 Res + EK FC7970
Ambient temp: 34C
[snapback]52820444[/snapback]
Quad TEC replacing the EK HF:
none Quad TEC:
Quad TEC:
Those were short tests that showed an improvement over regular wc
Now testing LinX AVX edition:
None Quad TEC:
Quad TEC: Warning: Spoiler! (Click to show)
The Quad decided to give up on LinX, i hit 105C
LittleDevil PC-V8 - WC 2 Loops
(19 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 3770K @ 5.0GHz | MVE | 3x 7970 | Corsair Dominator Platinum 2800 11-13-13-25-1T |
| RAM | RAM | RAM | Hard Drive |
| G.Skill RipZ 2400C9-11-10 | Team 2600C10 | G.Skill Pi 2200C7 | 2x Crucial M4 256GB raid0 |
| Hard Drive | Optical Drive | Cooling | OS |
| WD Caviar Black | Asus BR Burner 12X | Watercooling - dual loops | Windows 7 Ultimate x64 |
| Monitor | Keyboard | Power | Case |
| Dell U3011 | MS Sidewinder X6 | Corsair AX1200 | LD PC-V8 Reversed |
| Mouse | Mouse Pad | Audio | |
| Roccat Kone | Roccat Taito | Asus Xonar D2X | |
| View all | |||
|
LittleDevil PC-V8 - WC 2 Loops
(19 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| i7 3770K @ 5.0GHz | MVE | 3x 7970 | Corsair Dominator Platinum 2800 11-13-13-25-1T |
| RAM | RAM | RAM | Hard Drive |
| G.Skill RipZ 2400C9-11-10 | Team 2600C10 | G.Skill Pi 2200C7 | 2x Crucial M4 256GB raid0 |
| Hard Drive | Optical Drive | Cooling | OS |
| WD Caviar Black | Asus BR Burner 12X | Watercooling - dual loops | Windows 7 Ultimate x64 |
| Monitor | Keyboard | Power | Case |
| Dell U3011 | MS Sidewinder X6 | Corsair AX1200 | LD PC-V8 Reversed |
| Mouse | Mouse Pad | Audio | |
| Roccat Kone | Roccat Taito | Asus Xonar D2X | |
| View all | |||
post #59 of 64
7/8/12 at 6:10pm
- Krow
- 733mhz
-
- Joined: Apr 2010
- Location: Edmonton AB, CA
- Posts: 322
- Rep: 22 (Unique: 18)
- Select All Posts By This User
I don't want to jump a conclusion but it seems like the water temps got too high from the load of the Quad.
210W (GPU), depending on the stock voltage of your CPU it could be 150W - 180W. And then 300W for the Quad, gives a total of 660W - 690W for the rads to remove. That doesn't sound out of the ability of the radiators, but the water temp might have gotten so warm, that the block might have been high enough that the CPU's thermal resistance made core temps just shoot too high.
That the +300W from the block and the 34°C ambient seems like it pushed it over the edge.
EDIT:
I calculated (using this review to find the c/w of the radiators) water temp with the Quad Block at like 59.9°C (assuming you are using 1500rpm fans). That would give about (assuming the CPU load is 150W) 41°C or so Delta for the block, putting you at 17.9°C.
Without the block, I get a calculated water temp of 47.9°C.
Even with the heat generated from the block, it is still mathematically able to out preform your watercooling only solution. The only way I can think it wouldn't is because you were running with the humidity sensor on or there was a TEC failure.
Edited by Krow - 7/9/12 at 1:01am
210W (GPU), depending on the stock voltage of your CPU it could be 150W - 180W. And then 300W for the Quad, gives a total of 660W - 690W for the rads to remove. That doesn't sound out of the ability of the radiators, but the water temp might have gotten so warm, that the block might have been high enough that the CPU's thermal resistance made core temps just shoot too high.
That the +300W from the block and the 34°C ambient seems like it pushed it over the edge.
EDIT:
I calculated (using this review to find the c/w of the radiators) water temp with the Quad Block at like 59.9°C (assuming you are using 1500rpm fans). That would give about (assuming the CPU load is 150W) 41°C or so Delta for the block, putting you at 17.9°C.
Without the block, I get a calculated water temp of 47.9°C.
Even with the heat generated from the block, it is still mathematically able to out preform your watercooling only solution. The only way I can think it wouldn't is because you were running with the humidity sensor on or there was a TEC failure.
Edited by Krow - 7/9/12 at 1:01am
|
Whitey!
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Phenom II x6 1090T BE | Crosshair IV Formula | HIS Radeon HD 5870 2GB | 4x2GB Corsair Dominator DDR3-1600 |
| Hard Drive | OS | Monitor | Keyboard |
| Corsair 32GB SSD, Seagate 1TB, Western Digital 1TB | Windows 7 Ultimate | SyncMaster 245B and SyncMaster 2343 | Logitech G15 v2 |
| Power | Case | Mouse | Mouse Pad |
| Antec 850W True Power, Meanwell 600W 24V | Painted CoolerMaster Half 932 | Logitech G5 Weighted Mouse | Steelseries Frosted Glass |
| View all | |||
|
Whitey!
(13 items) |
| CPU | Motherboard | Graphics | RAM |
|---|---|---|---|
| Phenom II x6 1090T BE | Crosshair IV Formula | HIS Radeon HD 5870 2GB | 4x2GB Corsair Dominator DDR3-1600 |
| Hard Drive | OS | Monitor | Keyboard |
| Corsair 32GB SSD, Seagate 1TB, Western Digital 1TB | Windows 7 Ultimate | SyncMaster 245B and SyncMaster 2343 | Logitech G15 v2 |
| Power | Case | Mouse | Mouse Pad |
| Antec 850W True Power, Meanwell 600W 24V | Painted CoolerMaster Half 932 | Logitech G5 Weighted Mouse | Steelseries Frosted Glass |
| View all | |||
- Mindchi|l
- 333mhz
-
- Joined: Jun 2011
- Posts: 303
- Rep: 37 (Unique: 33)
- Trader Rating: 2
- Select All Posts By This User
Return Home
Back to Forum: Peltiers / TEC
- Quad Tec Direct Die Block on the Ivy Bridge/Sandy Bridge (I5 3570K and 2500k Tested)
Overclock.net › Forums › Cooling › Peltiers / TEC › Quad Tec Direct Die Block on the Ivy Bridge/Sandy Bridge (I5 3570K and 2500k Tested)
Currently, there are 1753 Active Users
(443 Members and 1310 Guests)
Recent Discussions
- › Cable Sleeving Gallery & Discussion 7 seconds ago
- › PaultanDesigns: THE DARK KNIGHT PC 24 seconds ago
- › [Ars] FiOS customer discovers the limits of “unlimited” data: 77TB... 1 minute ago
- › Want to buy a Wii U 1 minute ago
- › [Various] GTX 780 Reviews 2 minutes ago
- › GTX 770 or another MSI 660 ti PE? 2 minutes ago
- › Wii U sales explode +875%(Amazon UK) 3 minutes ago
- › [Build Log] "OvrSghtX2" - 900D rebuild! 3 minutes ago
- › Official NZXT Switch 810 thread 3 minutes ago
- › Congratulation AMD owner!! 3 minutes ago
View: New Posts | All Discussions
Recent Reviews
- › CORSAIR Dominator Platinum 16GB (4 x 4GB) 240-Pin DDR3 SDRAM DDR3... by TLHarrell
- › Cooler Master Hyper 212 EVO CPU Cooler (RR-212E-20PK-R1) by junhawng
- › Metro: Last Light - Standard Edition by boredgunner
- › Fractal Design Arc Midi R2 FD-CA-ARC-R2-BL-W Computer Case With... by Alan G
- › Wireless Stereo Headset by DoomDash
- › GIGABYTE Radeon HD 7870 GHz Edition GV-R787OC-2GD Video Card by VitalShot
- › Crucial Ballistix sport 16GB (2 x 8GB) 240-Pin DDR3 SDRAM DDR3 1600... by Fieldsweeper
- › Creative 70SB150000000 Sound Card by Fieldsweeper
- › ASUS PB Series PB278Q 27"" 5ms (GTG) WQHD Widescreen LED... by R3apR369
- › SilverStone Aluminum Body ATX Full Tower Computer Case TJ07B -... by R3apR369
View: More Reviews
New Articles
- › METRO 2033 STARTUP CRASH FIX WORKS by xiangelo
- › Why are DNS Servers Important? How to make... by exzacklyright
- › Titanium Backup Guide For Newbies by exzacklyright
- › How to install ADB (Android Debug Bridge) by exzacklyright
- › How to take ownership of a file, folder, or... by exzacklyright
- › How to disable the open file security warning... by exzacklyright
- › Clean and Make a USB Bootable Flash Drive for... by exzacklyright
- › Efficiency Trials by dava4444
- › How on EARTH Do I Build a Computer??... by dava4444
- › How to rip a Windows 7/8 Image using WinPE4.0... by RagingCain
View: New Articles | All Articles
Home | Reviews | Forums | Articles | My Profile
About Overclock.net | Join the Community | Advertise | Contact Us | All Staff
© 2013 Shogun Interactive Development Overclock.net is powered by Huddler Tech | FAQ | Support | Privacy | ToS | DMCA | Site Map
About Overclock.net | Join the Community | Advertise | Contact Us | All Staff
© 2013 Shogun Interactive Development Overclock.net is powered by Huddler Tech | FAQ | Support | Privacy | ToS | DMCA | Site Map
