Odd HD Tune Results....WD Black 750GB

post #1 of 4
6/21/12 at 1:52am
Thread Starter
Right now my PC is running off of the new Samsung 830 SSD I installed. So I decided to run HD tune tests on all my drives.

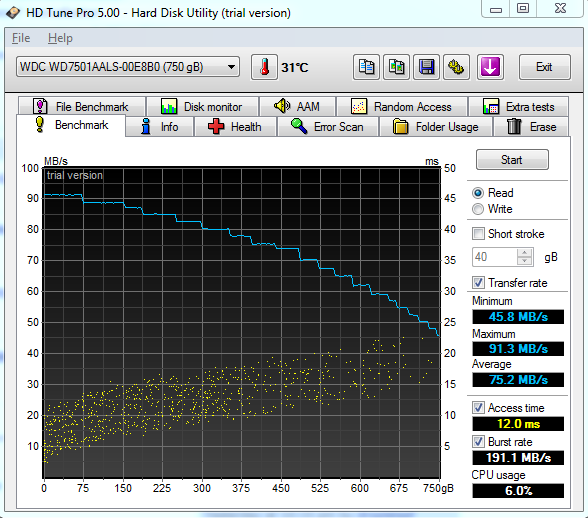

The Wester Digital Black was dissappointing. Does this have something to do with it being 75% full and split into 2 partitions

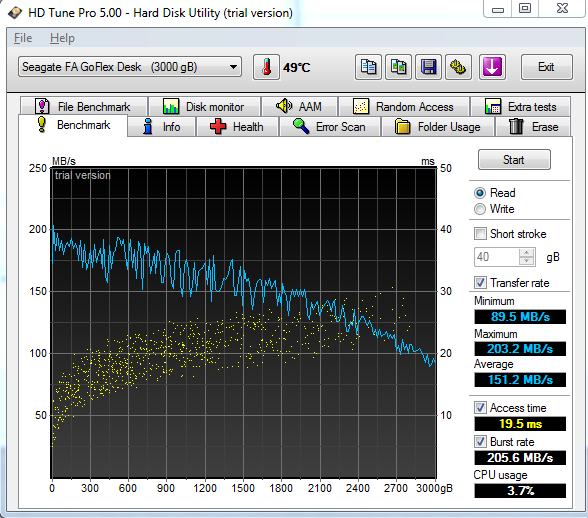

Seagate 3TB USB drive for comparison..

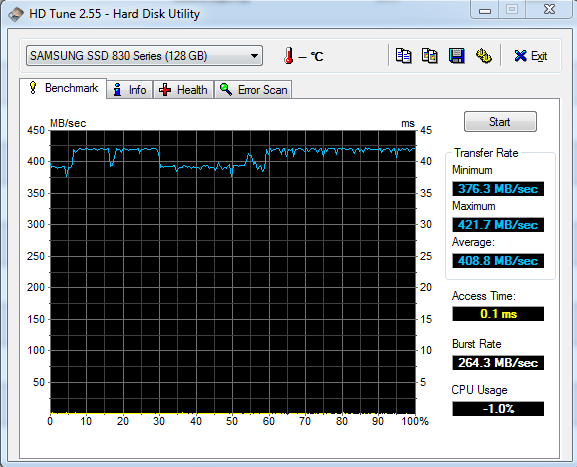

New Samsung 830 (I was still using PC during test) But also seems lsow in comparison to other tests I have seen

Cheap Upgrade
(10 items)

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 ATI Radeon HD 6970 Gskill 4x4gb DDR3 1600Mhz Sniper
Hard DriveCoolingOSMonitor
Western Digital Black 750GB Corsair H70 push/pull config Windows 7 Profession 64bit HP2311x 23inches of 1080p goodness
PowerCase
OCZ 700W ModXStream Smilidon Green (completly gutted)
View all
  hide details
Reply
Cheap Upgrade
(10 items)

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 ATI Radeon HD 6970 Gskill 4x4gb DDR3 1600Mhz Sniper
Hard DriveCoolingOSMonitor
Western Digital Black 750GB Corsair H70 push/pull config Windows 7 Profession 64bit HP2311x 23inches of 1080p goodness
PowerCase
OCZ 700W ModXStream Smilidon Green (completly gutted)
View all
  hide details
Reply
post #2 of 4
6/24/12 at 8:11pm
Quote:
Originally Posted by Infinitegrim View Post

The Wester Digital Black was dissappointing. Does this have something to do with it being 75% full and split into 2 partitions

Looks perfectly fine to me. 750GB Blacks are old. They're slower than 640GB/1TB/2TB Blacks, but faster than 500GB Blacks. It still has good access times. As an OS drive, it'd still probably be the better choice over a drive with 20ms access times. But now that you have an SSD... relegate it to personal storage and older games? WD Blacks are generally quite reliable; mine currently has most of my projects/pictures and stuff stored on it.
Quote:
Originally Posted by Infinitegrim View Post

Seagate 3TB USB drive for comparison..

Impressive sequential speeds. thumb.gif

Bad access times, though. Still, it might not matter much for games or other storage.
Quote:
Originally Posted by Infinitegrim View Post

New Samsung 830 (I was still using PC during test) But also seems lsow in comparison to other tests I have seen

HDTune isn't the best benchmark for SSDs. The RandomAccess test is more useful, or other benchmarks like CrystalDiskMark and AS SSD.
POSTS in 23 seconds.
(31 items)

POSTS in 2 seconds.
(14 items)

Boots in 29 seconds.
(13 items)

CPUMotherboardGraphicsRAM
Phenom II X6 1055T Saberooth 990FX eVGA GTX 560 SE 4x4GB Corsair Vengeance 1600mhz
Hard DriveHard DriveHard DriveHard Drive
Seagate 3TB 7200.14 - ST3000DM001-9YN166 WD Black 640GB - WD6401AALS WD Green 1.5TB - WD15EARS Hitachi 2TB 7200RPM - HDS723020BLA642
Hard DriveHard DriveHard DriveHard Drive
WD 2TB Green - WD20EARX WD 2TB Green - WD20EARS WD Blue 500GB - WD5000AAKS-00V6A0 WD Scorpio Black 500GB - WD5000BEKT-00KA9
Optical DriveOptical DriveOptical DriveCooling
Pioneer DVR-115DBK Samsung SH-S243D/BEBE LG GH22NS90 Coolit Eco R120
CoolingCoolingOSOS
Yate Loon Fans - D12SL-12-RED/BLACK Fractal Design 120mm Fan - FD-FAN-120 Windows 7 Ubuntu 10.04 LTS
MonitorKeyboardPowerCase
Samsung 2343BWX 23" (2048x1152) I-Rocks KR-6170-BK Corsair HX620 Fractal Design Define R3
MouseMouse PadAudioAudio
Razer Abyssus 3500DPI Mousepad + Desk Onboard Realtek® ALC 892 Cyber Acoustics CA-2992 2.0 Speakers
OtherOtherOther
Razer Krait 1600 DPI nGear G-C1601 Card Reader Pisen Card Reader
View all
CPUMotherboardGraphicsRAM
VIA Eden C7 1200mhz Jetway J7F4K1G2ES-LF VIA Onboard 512MB PC2-4200
Hard DriveOptical DriveCoolingOS
A-Data FlashDrive None Fanless Linux
MonitorKeyboardPowerCase
Headless None 65w Power Brick Antec ISK300-65
MouseAudio
None Onboard VIA
View all
CPUMotherboardGraphicsRAM
Barton XP-M 2400+ FJQ4C Asus A7N8X-E Deluxe 256MB BFG 7800GS OC 2x512MB Samsung PC3200
Hard DriveOSMonitorKeyboard
Raptor 74GB/Seagate 120GB Windows 2000 Pro 60hz 17" CRT Brandless PS2 Keyboard
PowerMouse
Antec Neo HE 550w Logitech G5
View all
  hide details
Reply
POSTS in 23 seconds.
(31 items)

POSTS in 2 seconds.
(14 items)

Boots in 29 seconds.
(13 items)

CPUMotherboardGraphicsRAM
Phenom II X6 1055T Saberooth 990FX eVGA GTX 560 SE 4x4GB Corsair Vengeance 1600mhz
Hard DriveHard DriveHard DriveHard Drive
Seagate 3TB 7200.14 - ST3000DM001-9YN166 WD Black 640GB - WD6401AALS WD Green 1.5TB - WD15EARS Hitachi 2TB 7200RPM - HDS723020BLA642
Hard DriveHard DriveHard DriveHard Drive
WD 2TB Green - WD20EARX WD 2TB Green - WD20EARS WD Blue 500GB - WD5000AAKS-00V6A0 WD Scorpio Black 500GB - WD5000BEKT-00KA9
Optical DriveOptical DriveOptical DriveCooling
Pioneer DVR-115DBK Samsung SH-S243D/BEBE LG GH22NS90 Coolit Eco R120
CoolingCoolingOSOS
Yate Loon Fans - D12SL-12-RED/BLACK Fractal Design 120mm Fan - FD-FAN-120 Windows 7 Ubuntu 10.04 LTS
MonitorKeyboardPowerCase
Samsung 2343BWX 23" (2048x1152) I-Rocks KR-6170-BK Corsair HX620 Fractal Design Define R3
MouseMouse PadAudioAudio
Razer Abyssus 3500DPI Mousepad + Desk Onboard Realtek® ALC 892 Cyber Acoustics CA-2992 2.0 Speakers
OtherOtherOther
Razer Krait 1600 DPI nGear G-C1601 Card Reader Pisen Card Reader
View all
CPUMotherboardGraphicsRAM
VIA Eden C7 1200mhz Jetway J7F4K1G2ES-LF VIA Onboard 512MB PC2-4200
Hard DriveOptical DriveCoolingOS
A-Data FlashDrive None Fanless Linux
MonitorKeyboardPowerCase
Headless None 65w Power Brick Antec ISK300-65
MouseAudio
None Onboard VIA
View all
CPUMotherboardGraphicsRAM
Barton XP-M 2400+ FJQ4C Asus A7N8X-E Deluxe 256MB BFG 7800GS OC 2x512MB Samsung PC3200
Hard DriveOSMonitorKeyboard
Raptor 74GB/Seagate 120GB Windows 2000 Pro 60hz 17" CRT Brandless PS2 Keyboard
PowerMouse
Antec Neo HE 550w Logitech G5
View all
  hide details
Reply
post #3 of 4
6/24/12 at 10:40pm
Thread Starter
Oh ok, I honestly thought that 750gb Black was supposed to be faster then that. I have older harddrives that are faster. I was disappointed in teh results.

That Seagate drive is actually USB 3.0, which might have something to do with the access times. I honestly thought there was something wrong with it because I was only getting 60-80mb/s transfer speeds, but now I know why, that 750gb WD black was the slow drive. Now I get around 200mb/s through USB 3.0:D



As for my SSD, I've seen HD tune tests for my exact SSD that have an average near 490-500MB/s
Cheap Upgrade
(10 items)

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 ATI Radeon HD 6970 Gskill 4x4gb DDR3 1600Mhz Sniper
Hard DriveCoolingOSMonitor
Western Digital Black 750GB Corsair H70 push/pull config Windows 7 Profession 64bit HP2311x 23inches of 1080p goodness
PowerCase
OCZ 700W ModXStream Smilidon Green (completly gutted)
View all
  hide details
Reply
Cheap Upgrade
(10 items)

CPUMotherboardGraphicsRAM
i5 2500k Asus P8P67 ATI Radeon HD 6970 Gskill 4x4gb DDR3 1600Mhz Sniper
Hard DriveCoolingOSMonitor
Western Digital Black 750GB Corsair H70 push/pull config Windows 7 Profession 64bit HP2311x 23inches of 1080p goodness
PowerCase
OCZ 700W ModXStream Smilidon Green (completly gutted)
View all
  hide details
Reply
post #4 of 4
6/24/12 at 10:58pm
The 7501AALS uses 3x250GB platters, which is why it's so slow compared to more modern drives. That Seagate external uses 1TB platters, and most 7200RPM/5400RPM drives now use at least 500-750GB platters.

I wondered if WD would ever update their 500/640/750GB drives to single-platter designs, but they don't seem to have. Still, reliability is on their side, so there might be something to it - sticking with the same design.
Quote:
Originally Posted by Infinitegrim View Post

As for my SSD, I've seen HD tune tests for my exact SSD that have an average near 490-500MB/s
Perhaps you need to fiddle with the block sizes in the settings?

Were those benchmarks run on empty drives? Empty drives bench faster, since the controller can return zeros rather than actually bothering to read the NAND.
