post #31 of 43
Thread Starter
20120811 Update - More sleeving....

So, two of the pins broke. But with a bit of inginuity and solder combined with an old PSU I fixed the cables.

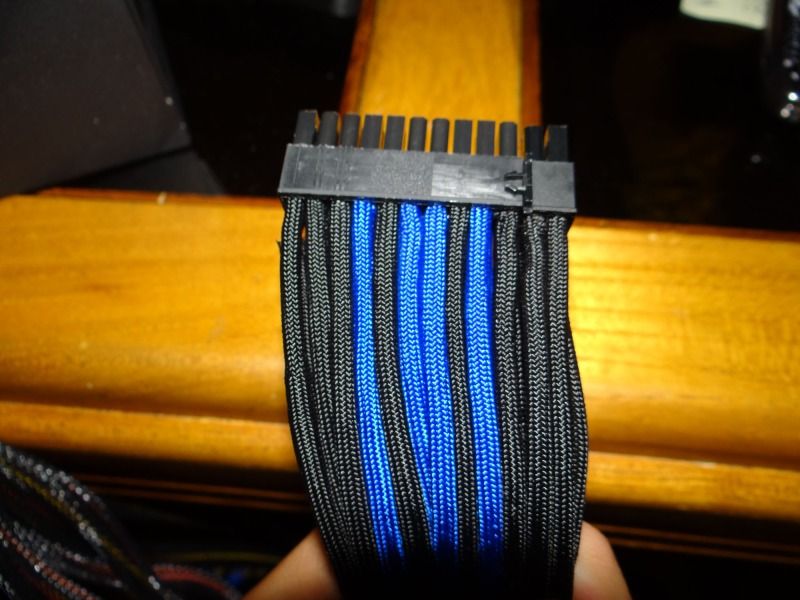

And finally the ATX connector is complete. Not bad for my first time if I say so myself. Lutro0 eat your heart out lol JK tongue.gif. I owe it all to his tutorials thumb.gif

Night Shark
