Guide: Adding Screws to the Achieva Shimian to Fix Back Light Bleed.

post #1 of 26
Thread Starter
This is just a little guide to help give you an idea of what you're doing when attempting to fix back light bleed (BLB) on the Achieva Shimian.

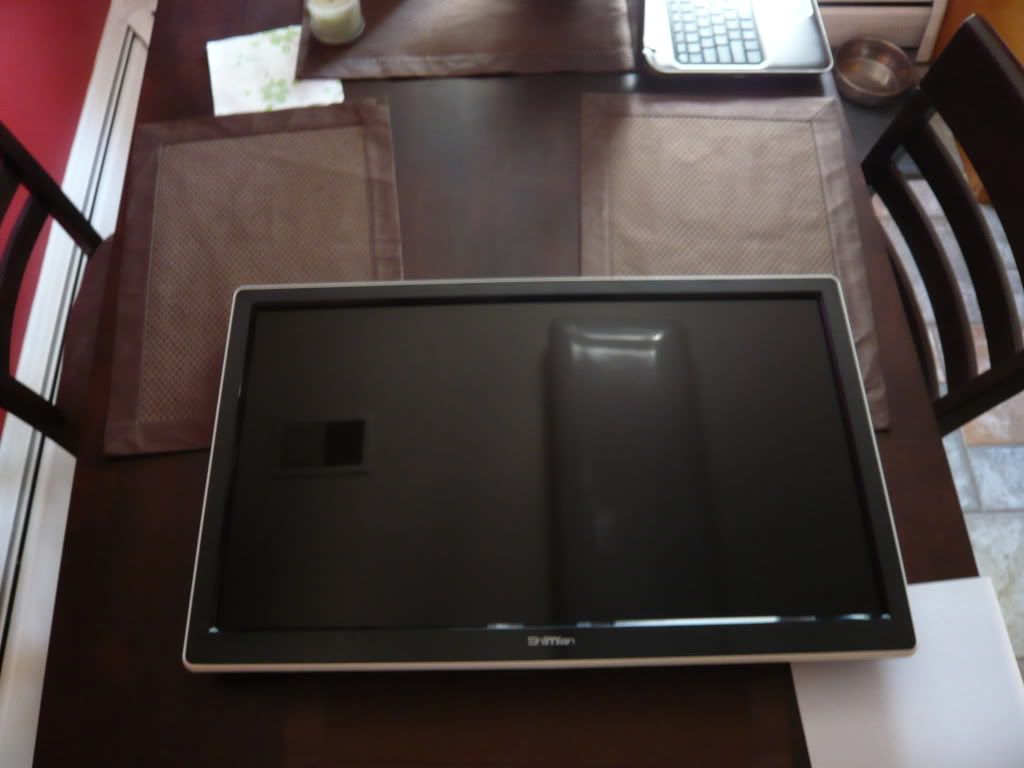

1) Take the stand off the monitor or monitor off your wall mount and place it on a flat surface. You going to want it to be in a fairly clean environment and the height of the surface should allow you to get some decent leverage on the monitor.


2) You're going to want a piece of paper that you can slide under the edge of the bezel to protect the display from you're hands/fingers while you pull off the outer bezel.

A quick note here, it wont actually slide under very far, but that's ok.

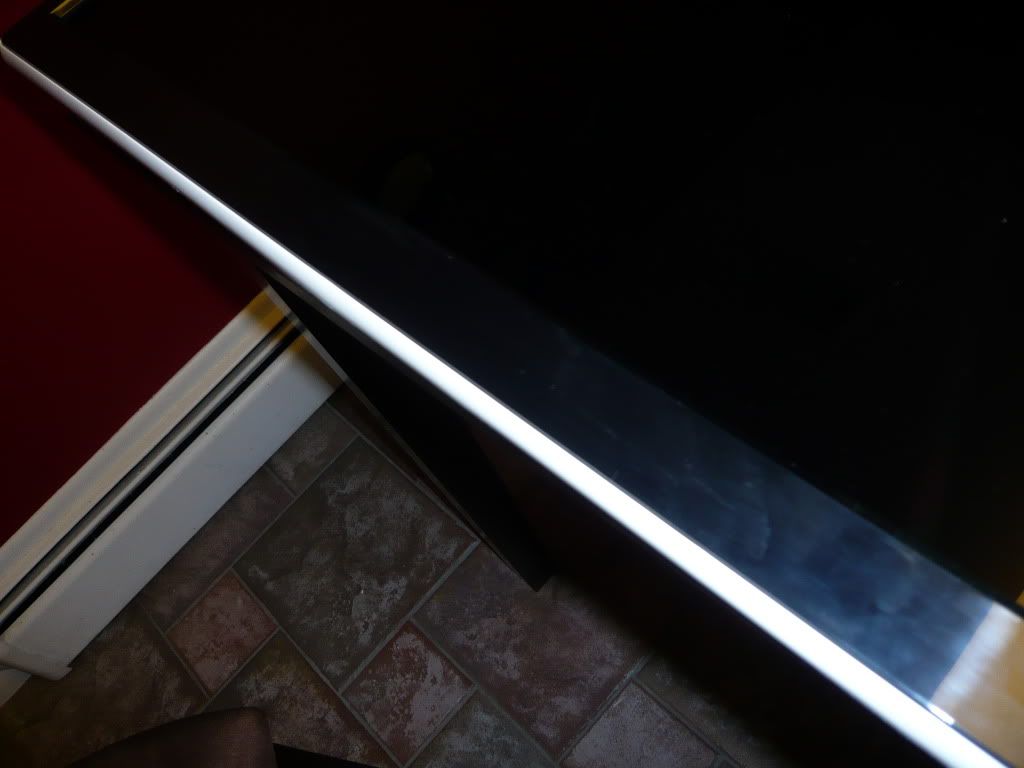

As you can see in the photo the bottom edge of mine was loose to begin with. This was due to a broken screw hole piece that I'll show you later. For me this was the obvious place to start. But it was just as easy to just pull up on the bezel from the screen side of the other edges. You want to apply firm consistent pressure. Just keep pulling at it till you feel the tape give away and the plastic clips pop out. This will feel kinda like you broke the plastic, but that's ok. It's just the tabs popping out. Do one full side at a time until you've done them all and removed the bezel.

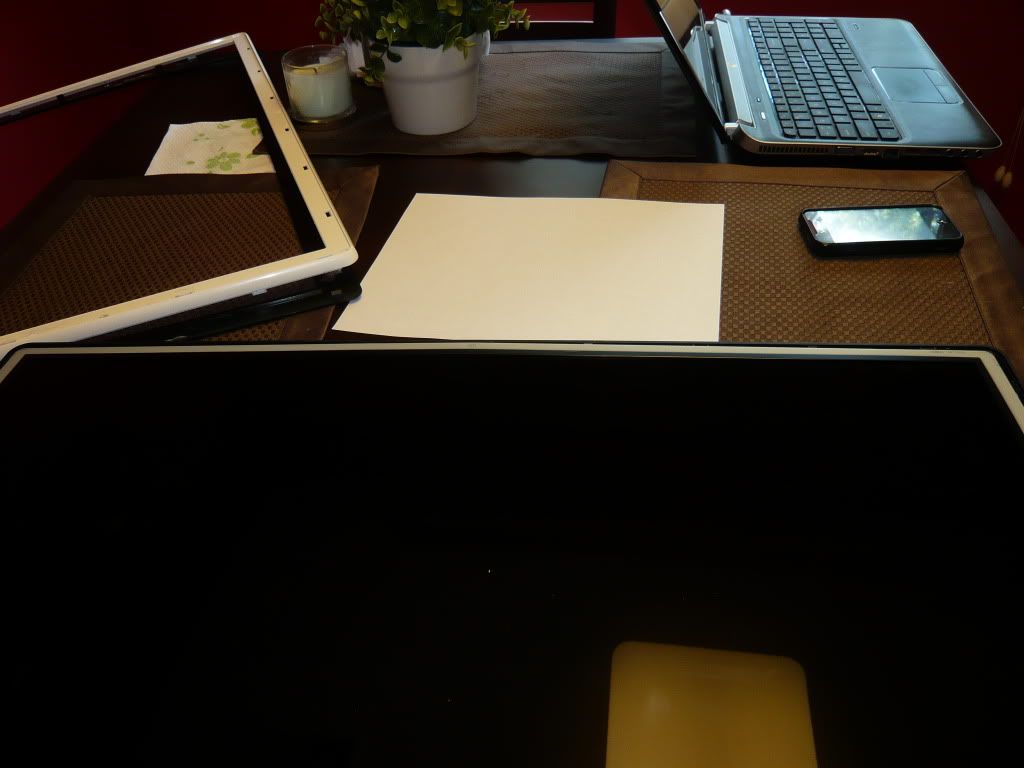

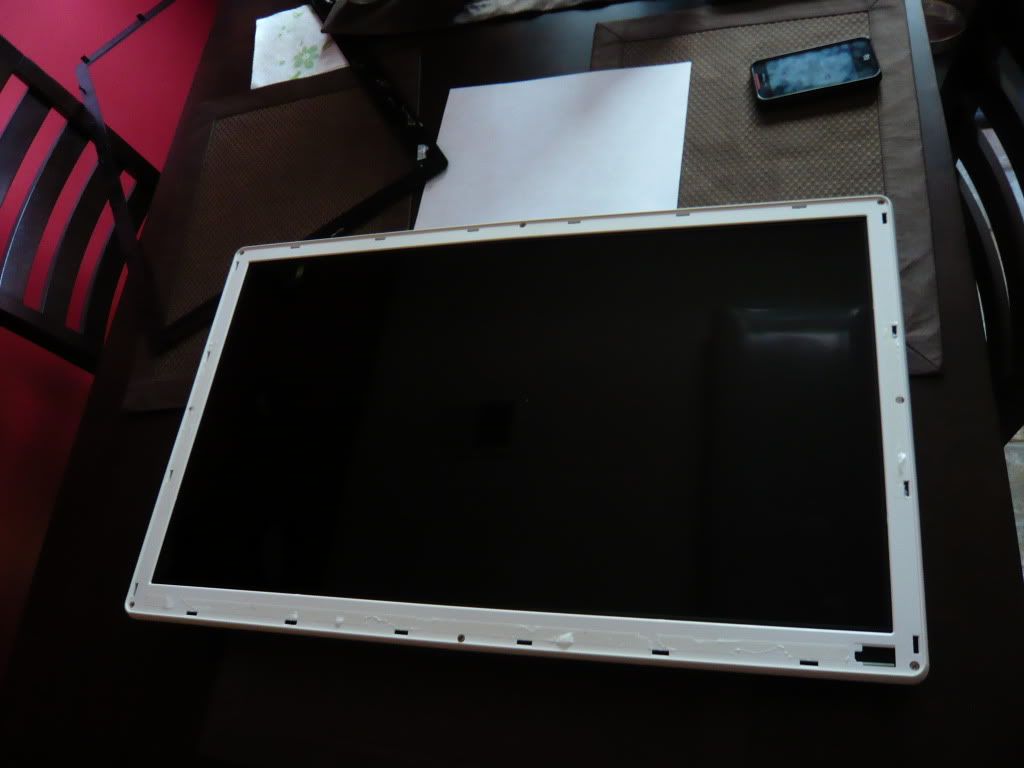

This is what it looks like with the bezel removed.

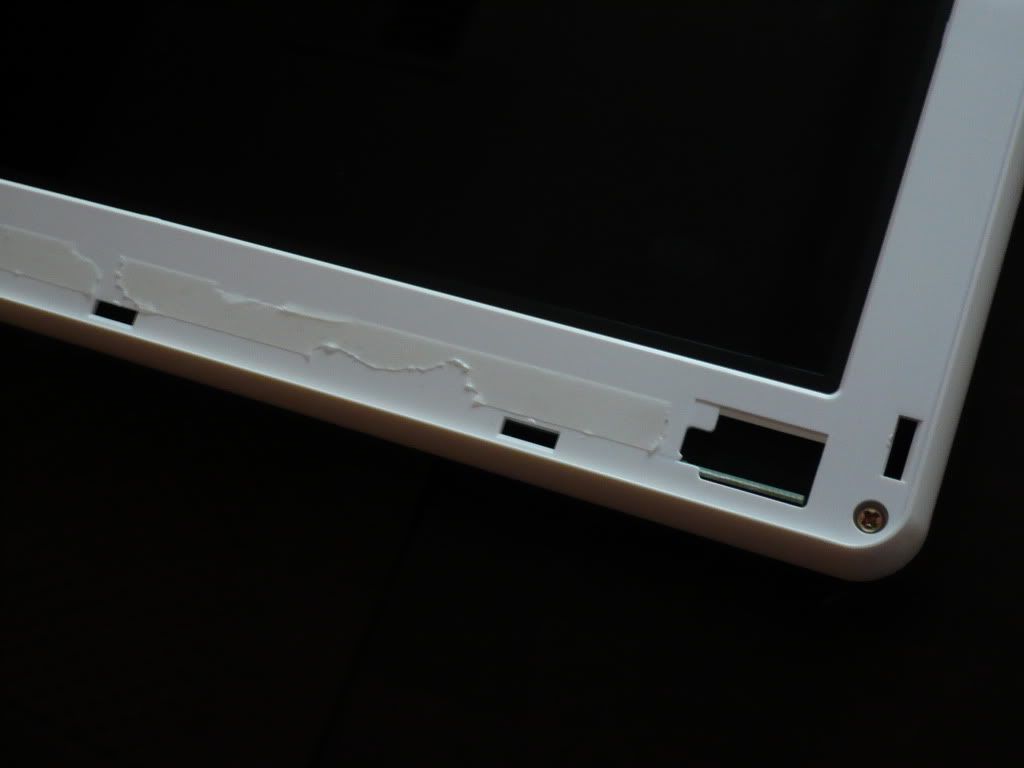

As you can see it's just some tape and plastic clips holding it on. Mine also had no tape at all at the top. doh.gif

3) Next there are 8 screws holding the white frame to the back of the monitor. Remove all 8 of these. One thing you're going to want to do is try to avoid touching the tape as you want it to be as sticky as possible when putting it back together. After you've removed the screws the frame is still held in place by plastic tabs. If you gently pull the frame away from the side the clip is on they pop right out very easily.

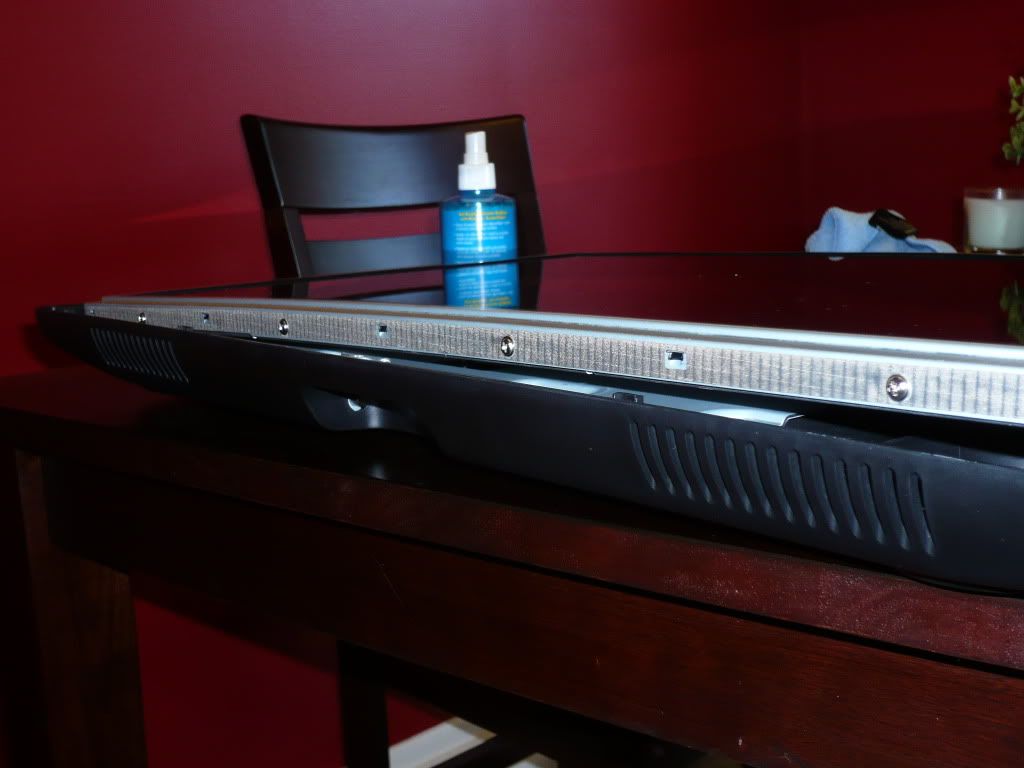

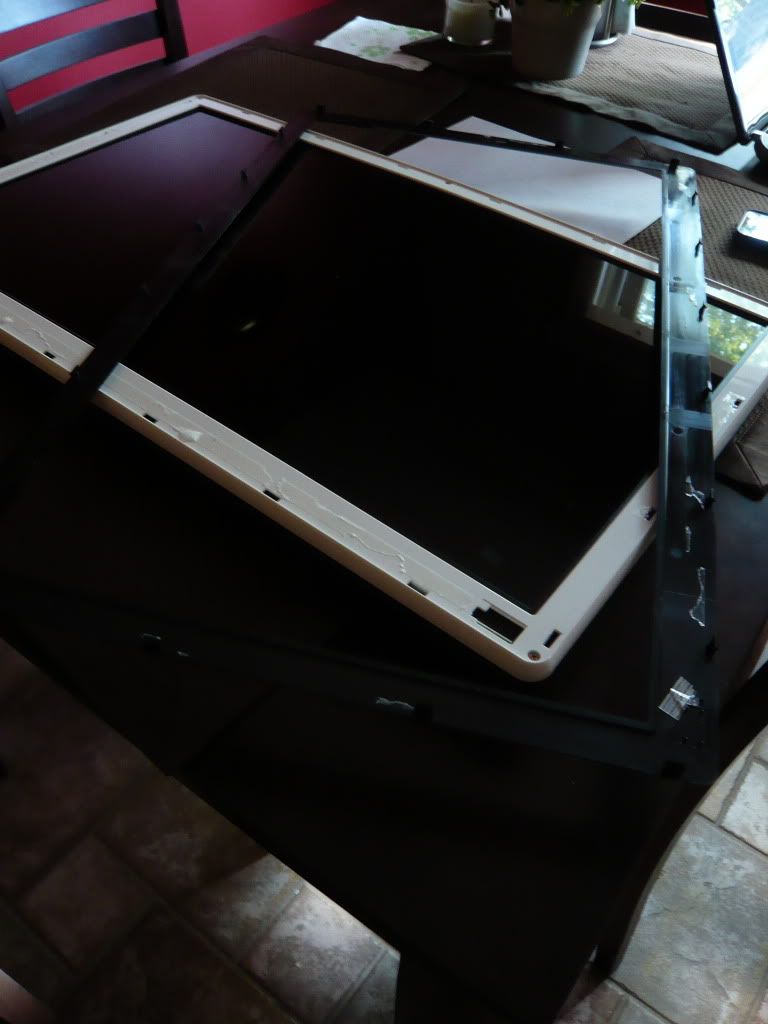

With the white frame removed you now have access to the panel itself. As you can see there is a serious bit of warping at the top middle of mine. This causes light bleed to either side. I couldn't figure out a way to easily bend that back without risking damage to the display. If someone knows of a way please post below.


4) Our main goal here is not to bend the metal back, but to put screws into the holes that already exist to tighten the frame up around the whole panel. As you can see in the photo you want to carefully lift the panel up and kinda turn it just a couple degrees so it rests on the edge of the back frame. FYI there was about 3 inches of play in my wiring. Lift yours up and check it out before getting carried away moving the panel around.
This will give you access to the screw holes that they aren't utilizing during production. In the photo I've already put the screws in. There are 4 on the bottom and four across the top.


I went to Lowes to try to find screws but they didn't have anything even close. So..
I used screws that were left over from my case! They are very short and this is a close up of the ones I'm talking about:

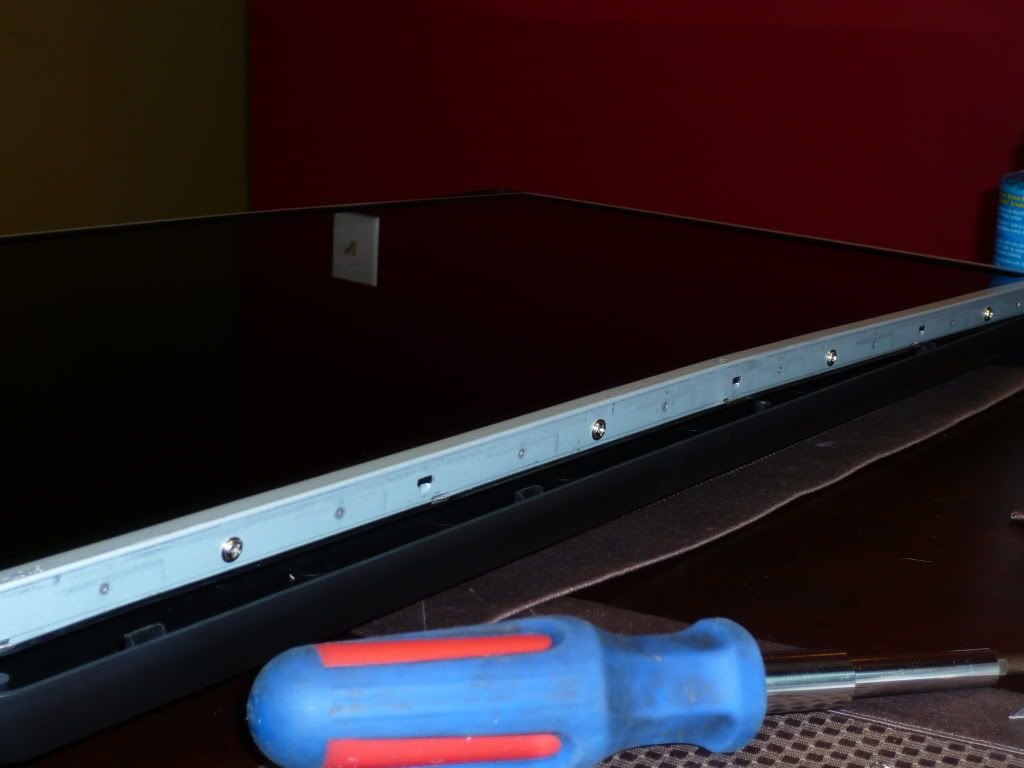

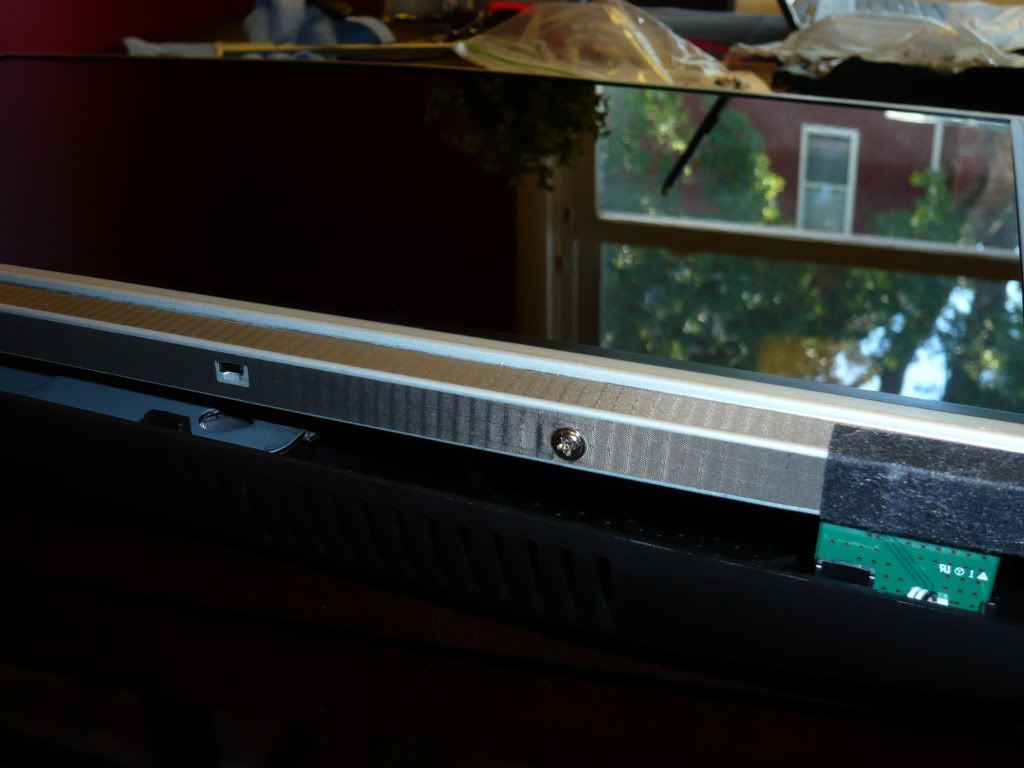

Top edge.

You're going to want hold onto opposite side of the panel as you screw them in. Be very careful not to slip with your screwdriver.

5) Reverse the process. Set the panel back into the back frame, put the white frame back on, install all 8 screws, reapply the black bezel pushing down firmly all around the bezel making sure it is completely snapped back together.

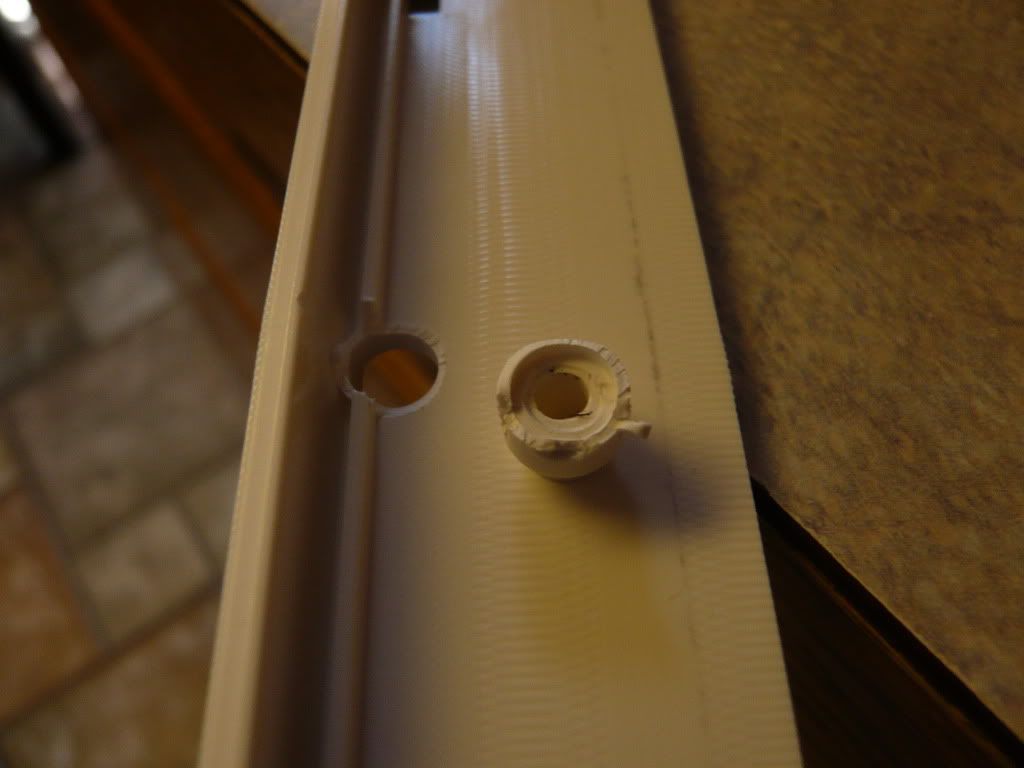

This is why my bottom edge wasn't tight. I was able to super glue this back in place and it's perfect now.



I didn't like the Shimian thing on the front as I feel like it cheapens it. I used nail polish remover with acetone and it came right off. Unfortunately as you can see it almost looks like it melted the black plastic. It's really odd and I don't know why it did that. It's not horribly noticeable, but still be careful with the nail polish remover!

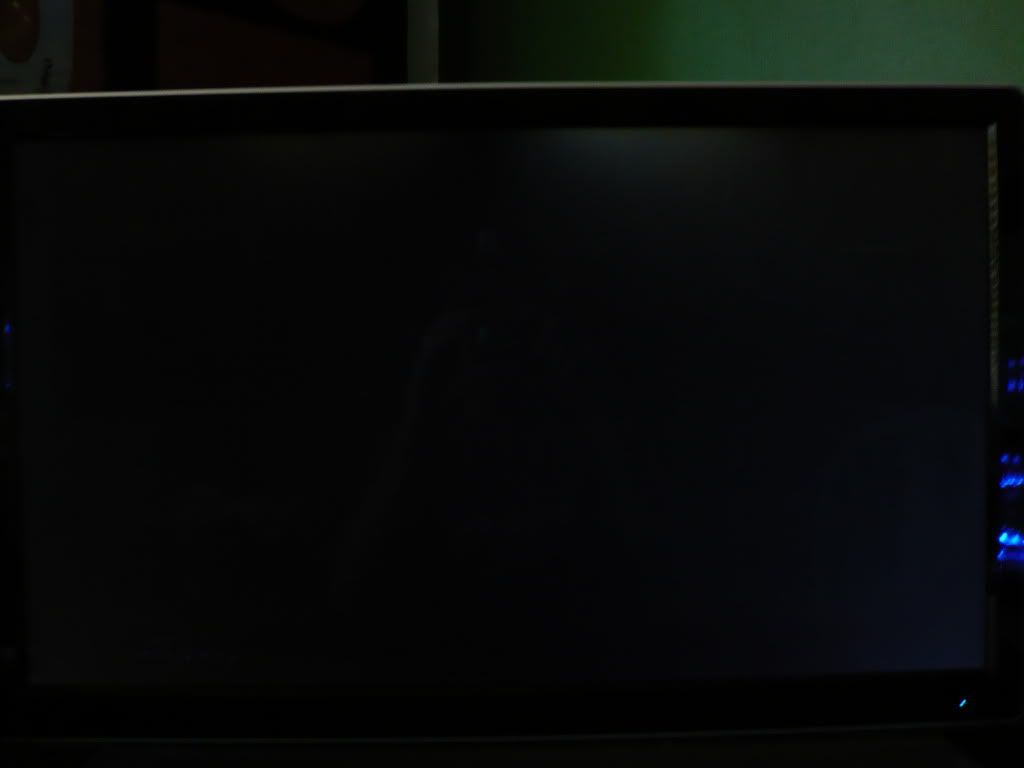

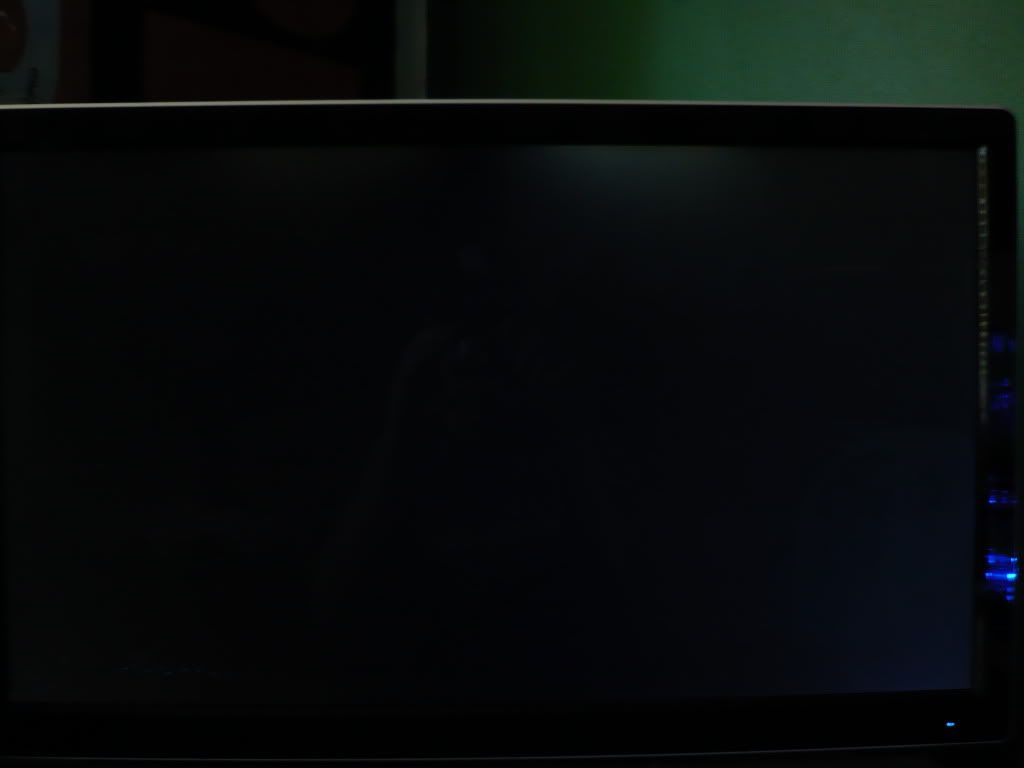

As you can see there is still light bleed at the top where the frame is warped. However the bottom is nearly perfect now and I'm super happy considering this cost me $0 to do.


Please post comments or suggestions! And if someone knows how to bend that top warp back please post that!

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply
post #2 of 26
This is a fantastic article. It really helps everyone who needs to do this. I have a question though.

My monitor has a ton of yellow light bleed coming from all corners. When I push on that area of the monitor, it becomes eve more yellow. It's clear to me, that the reason it is happening, is because that area of the screen is being pushed down more then say the middle.

Would adding more screws help this, or would loosening some, and adding more to the middle be the solution?
post #3 of 26
Thread Starter
Well you can't remove screws because there aren't any there to begin with. However I may be possible to bend the from out slightly from the screen. I would put a piece of paper on the screen again to protect it and pull up gently on the metal edge. GL!

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply
post #4 of 26
I personally went with actually bending the panel frame to straighten it out. It was just as bent as yours, and it did the trick. This is a great guide though to help others, and I wish I had this guide to work with when I opened mine.

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply
post #5 of 26
Thread Starter
Quote:
Originally Posted by h220wnzj00 View Post

I personally went with actually bending the panel frame to straighten it out. It was just as bent as yours, and it did the trick. This is a great guide though to help others, and I wish I had this guide to work with when I opened mine.

Ok how did you bend it back straight? What tools did you use if any? I really wanted to do that, but I just couldn't see how.

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply
post #6 of 26
Quote:
Originally Posted by num1son View Post

Ok how did you bend it back straight? What tools did you use if any? I really wanted to do that, but I just couldn't see how.

I gripped it firmly with my hands and bent it back reallllly slowly. Use just enough force to get it to start bending back. Don't use too much strength. The metal is pretty stiff though, so chances if breaking anything are really slim

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply
post #7 of 26
Thread Starter
Quote:
Originally Posted by h220wnzj00 View Post

I gripped it firmly with my hands and bent it back reallllly slowly. Use just enough force to get it to start bending back. Don't use too much strength. The metal is pretty stiff though, so chances if breaking anything are really slim

Did you take that metal "frame" off the panel? I just cant see being able to bend it enough with it attached to the panel. Maybe I'll take it back apart in the morning and try again.

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply
post #8 of 26
Quote:
Originally Posted by num1son View Post

Did you take that metal "frame" off the panel? I just cant see being able to bend it enough with it attached to the panel. Maybe I'll take it back apart in the morning and try again.

You can definitely bend it back without taking the panel off. Just be careful

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply

CPUMotherboardGraphicsRAM
i7 930 @ 4.13 MSI X58 Pro-E Sapphire HD7970 OC 6GB Corsair XMS3 1600C7
Hard DriveHard DriveHard DriveOptical Drive
Samsung 840 Pro 512GB Samsung F3 1TB Crucial M500 480GB Samsung 22x DVDRW
OSMonitorKeyboardPower
Windows 10 Shimian QH270-Lite Tesoro Durandal Ultimate Antec TPN-750 Blue
CaseMouseMouse PadAudio
NZXT Phantom White Red Logitech G502 Proteus Func 1030 Asus Xonar Essence STX
Other
Emotiva Airmotiv 4
  hide details
Reply
post #9 of 26
Thread Starter
I gave it a shot today but with no success. O'well it's not that bad anyway.

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply

Test Rig
(14 items)


CPUMotherboardGraphicsRAM
Q6600 ASUS P5N-T EVGA GT 430 Patriot PDC24G6400ELK
Hard DriveOptical DriveCoolingCooling
Western Digital Caviar Blue 1 TB LG Blu Ray/HD DVD Enzotech SCW-REV.A Swiftech MCR320-QP-K x2
OSMonitorKeyboardPower
Windows7 Proffesional 64bit Acer 23" LCD Logitech G15 Corsair GS600
CaseMouse
NZXT Phantom White Custom Mods Logitech G5
CPUMotherboardGraphicsRAM
2500K ASUS P8P67 EVO Calibre GTX 480 Corsair Vengence
Hard DriveOptical DriveCoolingOS
Vertex 2 LG DVD What ever is being tested Windows 7 professional 64bit
MonitorKeyboardPowerCase
Acer 23" Generic High Power Astro PT 700w Antec 900/TBD
MouseMouse Pad
ooold Microsoft POS Wood
CPUMotherboardGraphicsRAM
3770K Gigabyte G1.Sniper 3 SLI GTX Titans Samsung Green 30nm 16GB
Hard DriveHard DriveCoolingOS
Vertex 3 240GB raid0 WD Caviar Black 1TB Dual Loop Water Cooling Windows7
MonitorMonitorKeyboardPower
Achieva Shimian 27" 1440p Acer 23" 1080p Razer Blackwidow Ultimate Mech Enermax Max Revo 1350
CaseMouseMouse PadAudio
Enermax Fulmo GT Razer Naga EVGA Titan pad Logitec 5.1
  hide details
Reply
post #10 of 26
I need more details about removing the frame, I dont whant to damage the monitor.

Thx thumb.gif
Gaming
(9 items)


CPUMotherboardGraphicsRAM
Intel Core i5-760@4 GHz ASUS P7P55D LE ASUS GTX 670 DirectCU II 12 GB
OSMonitorPowerMouse
Windows 7 Shimian QH270-Lite 27" Corsair GS700W Logitech G9
  hide details
Reply
Gaming
(9 items)


CPUMotherboardGraphicsRAM
Intel Core i5-760@4 GHz ASUS P7P55D LE ASUS GTX 670 DirectCU II 12 GB
OSMonitorPowerMouse
Windows 7 Shimian QH270-Lite 27" Corsair GS700W Logitech G9
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Monitors and Displays
Overclock.net › Forums › Components › Monitors and Displays › Guide: Adding Screws to the Achieva Shimian to Fix Back Light Bleed.
