TBH I'm quite curious myself what causes the solution to turn blue as it happens to both the 360 and 240 rads. Wonder does anybody has the same outcome with black ice rads
post #12 of 45
Quote:
Originally Posted by CRViper View Post

TBH I'm quite curious myself what causes the solution to turn blue as it happens to both the 360 and 240 rads. Wonder does anybody has the same outcome with black ice rads

The blue coloring is normal, its a result of the vinegar/cleaning solution reacting with the copper!
lil nugget
(12 items)

16Tb FreeNAS
(8 items)


CPUMotherboardGraphicsRAM
Intel Core i7 3770k Maximus V Gene EVGA GTX 780 SC ACX 16gb Samsung Green 30nm
Hard DriveHard DriveHard DriveCooling
Samsung F3 WD Caviar Green Intel 320 Noctua NH-D14
OSMonitorPowerCase
Win7 Pro SyncMaster SA700 120hz AX 650 Silverstone TJ08-e
CPUMotherboardGraphicsRAM
Intel Celeron G530 Intel BOXDH67CLB3 LGA 1155 Intel H67 hd2000 (Headless System) 16gb samsung 30nm
Hard DriveOSPowerCase
seagate barracuda green 7200 2tb (x8) RAID 10 FreeNAS 8.2 corsair cx430 rosewill challenger u3
  hide details
Reply
lil nugget
(12 items)

16Tb FreeNAS
(8 items)


CPUMotherboardGraphicsRAM
Intel Core i7 3770k Maximus V Gene EVGA GTX 780 SC ACX 16gb Samsung Green 30nm
Hard DriveHard DriveHard DriveCooling
Samsung F3 WD Caviar Green Intel 320 Noctua NH-D14
OSMonitorPowerCase
Win7 Pro SyncMaster SA700 120hz AX 650 Silverstone TJ08-e
CPUMotherboardGraphicsRAM
Intel Celeron G530 Intel BOXDH67CLB3 LGA 1155 Intel H67 hd2000 (Headless System) 16gb samsung 30nm
Hard DriveOSPowerCase
seagate barracuda green 7200 2tb (x8) RAID 10 FreeNAS 8.2 corsair cx430 rosewill challenger u3
  hide details
Reply
post #13 of 45
Looking good, man. I just put a 360 rad into my rig...totally forgot to flush it. Crap.
post #14 of 45
Thread Starter
Quote:
Originally Posted by kdon View Post

The blue coloring is normal, its a result of the vinegar/cleaning solution reacting with the copper!
ah i see!
Quote:
Originally Posted by Jewremy View Post

Looking good, man. I just put a 360 rad into my rig...totally forgot to flush it. Crap.
LoL can always drain & change the fluid in ur loop i guess? Always good to do some maintenance once in a while smile.gif
Edited by CRViper - 8/30/12 at 3:31pm
post #15 of 45
Thread Starter
Casing

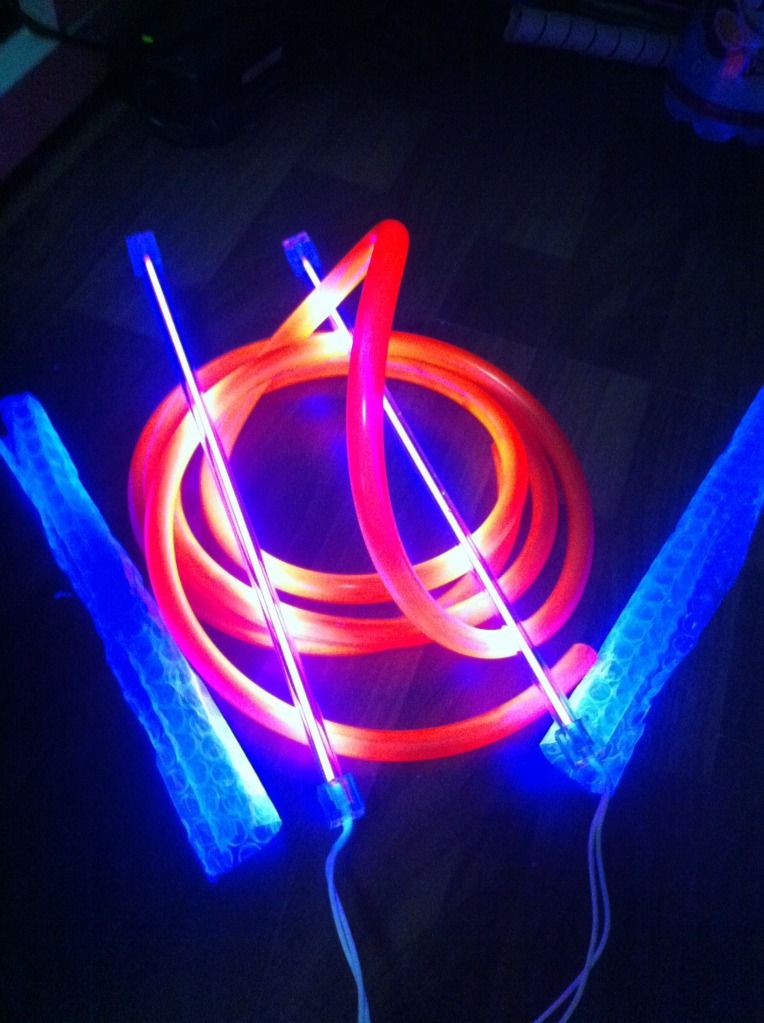

Bought some fans for rad and proper airflow. Will slowly fit these on the casing and radiator when i have the M4 35mm screws.... Also tested the UV cathod tubes with UV reactive tubings.
LoL 1 of my fren on facebook mentioned that UV tubes are damaging to our eyes and i wonder how much truth is there in it

Got hold of some power tools and started removing the top and middle rack of the NZXT switch for cutting


Middle rack removed as well... will only do cutting tmr to allow some airflow on the top rad.


Finally all the racks stripped bare


VGA
Next will proceed to replace the stock cooler on Asus GTX 670 DCU II with EK waterblock.

VGA card in stock condition


Card stripped of stock cooler


Old TIM cleaned off..


New TIM and thermopads applied


Very shiny polished EK waterblock =)


Final product

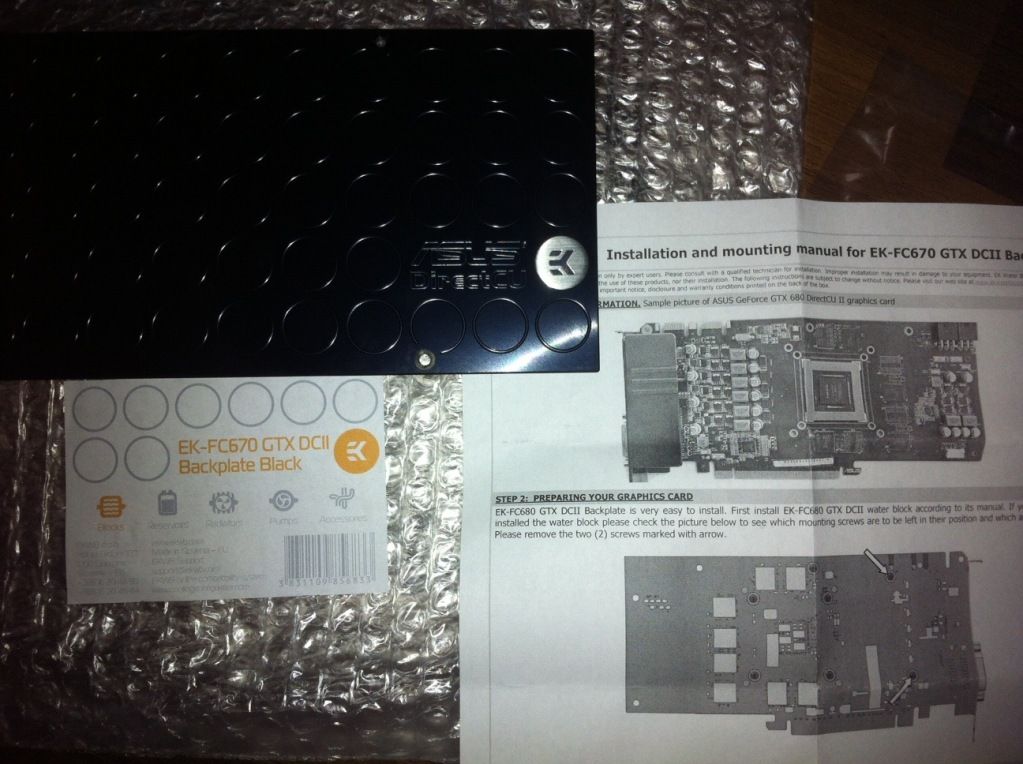

After im done with the waterblock for the VGA, when i was trying to fit the backplate then i realised EK has sent me the wrong backplate.... they placed the GTX 680 DCU blackplate inside the GTX670 DCU packaging... already emailed them and will wait for their reply and see what they say. Only problem here is i wonder who's gonna pay for the shipping for the wrong backplate back and the new backplate to me... Kinda expensive to fly metal plates across the globe!


CPU
Next would be CPU waterblock replacement. Looks like the only issue here is to figure how best to orientate the waterblock so it'll be easier to hide the LED wires. Decided to let the LEDs be plugged in from the bottom

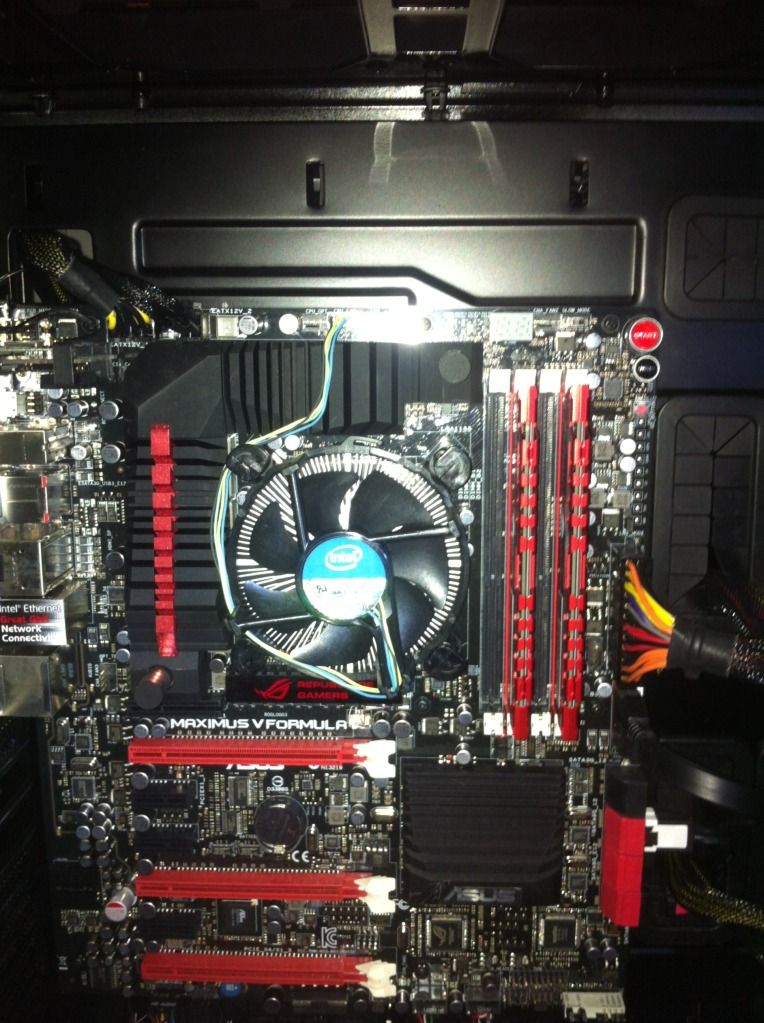

Default cooler

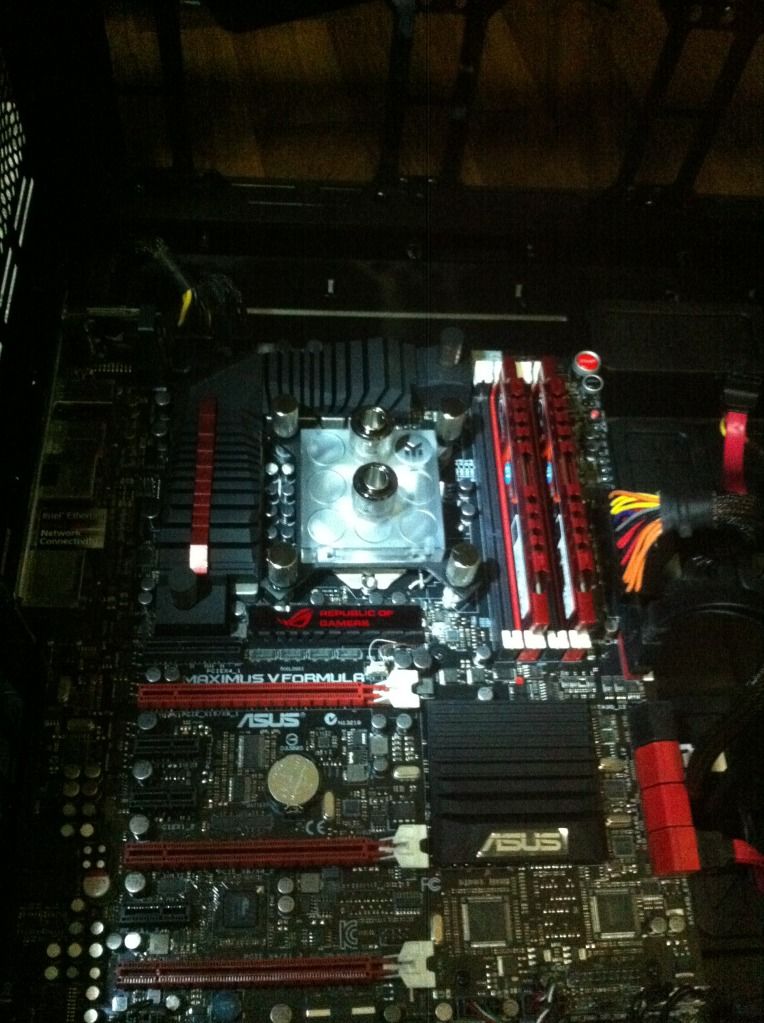

EK CPU waterblock
