caps and replacing parts on boards

post #1 of 26
9/24/12 at 5:21am
Thread Starter
hey i just brought 4 more cards to play with.
1st how do you pick which cap to buy? lol

i got 2 x 7800gtx and 2 x 6800gt.

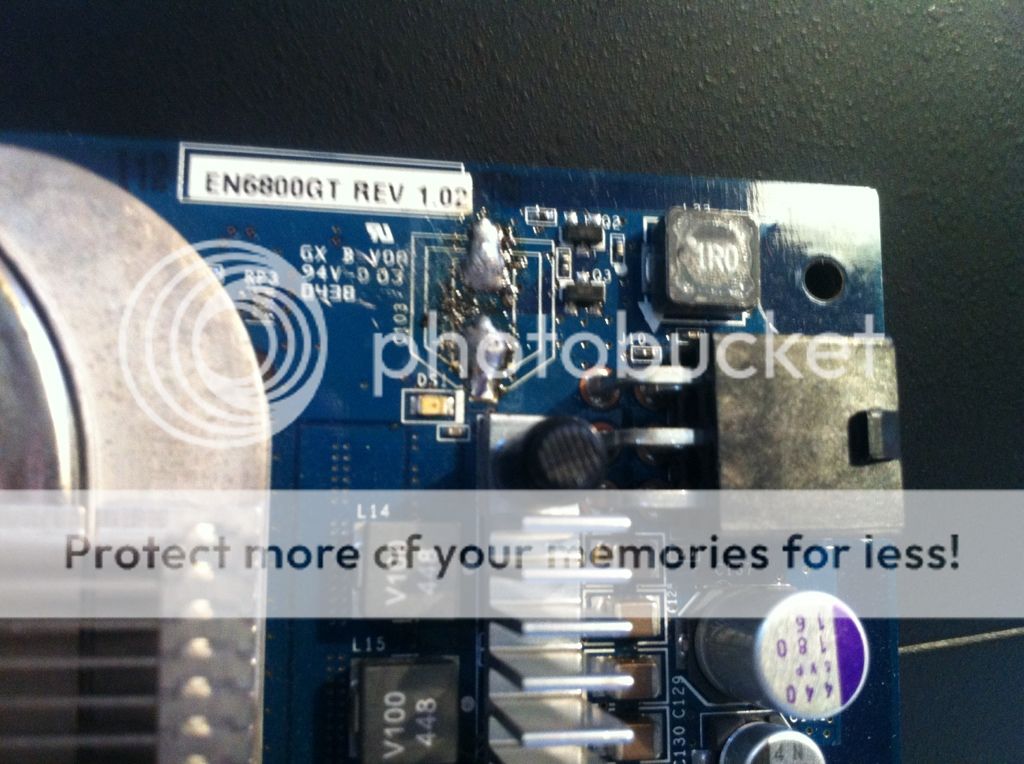

one of the 6800's is missing a cap
^^ no i did not do this solder work lol ^^
the other one still has it on their with
" 450
svp
330
16 "
so 16v 450uf? or how does one read a cap haha

also a 7800gtx got damaged in shipping ( due to not being wrapped properly )
i can measure what i need off the other card ( if that helps )
how do i know what to replace it with? sorry haha gotta learn somehow i guess.


the 2 that got knocked off are near the black dots, and one of the small 3 pin black chips ( again sorry not sure how to tell what things are ect ) got knocked semi off, holding on by 1 pin lol.

all of these are going to be vmodded also lol.

i dont have most of my stuff with me atm, but if i could order caps/vrs for the mods, gonna grab a DMM next time down at the store as always needed a second one lol..

also wanting to do cap mods on these 4 if all goes well haha.
how do i know what caps to put on their? ect (:


sorry for nooobieness tongue.gif

cheers liight
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
post #2 of 26
9/24/12 at 6:17am
  • Joined: Apr 2006
  • Location: NCAL
  • Posts: 14,760
  • Rep: 878 (Unique: 537)
  • Trader Rating: 19
  • Folding Team Rank: 431
  •
    Name Team Rank Points / May Work Units / May
    cl3p20 431 6,098,380 / 0 17,667 / 1
    A member of the Overclock.net HWBot Team
  • Select All Posts By This User

@ lighthead - if the positions are marked/labeled with a "Cxxx" number.. they you are dealing with a Cap. The size of the small SMD type is not sooo important as the connection itself. If you have another damaged GPU you can safely pull a similar sized SMD type cap .. it will do just fine.



**As for the top pic.. looks to be an input cap. These are typically 12v.. yours appears to be 330uf @ 12v. Whit the uf value is good to increase.. its more important to increase the cap size itself. I recommend replacing any 12v with a 16v cap for better results.

daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
post #3 of 26
9/24/12 at 6:41am
Thread Starter
cheers looking around i have a 9800gt that passed away.

on the board as can see in pic ( 2nd one, 7800gtx ) C505.
the 9800gt has C536 and C502, would it matter if over rather then under?

and also has a cap 16v 470uF cap?

and yeah hoping to replace most/all the caps on these cards ( well add onto ) when order in some haha smile.gif
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
post #4 of 26
9/24/12 at 6:44am
  • Joined: Apr 2006
  • Location: NCAL
  • Posts: 14,760
  • Rep: 878 (Unique: 537)
  • Trader Rating: 19
  • Folding Team Rank: 431
  •
    Name Team Rank Points / May Work Units / May
    cl3p20 431 6,098,380 / 0 17,667 / 1
    A member of the Overclock.net HWBot Team
  • Select All Posts By This User

The position of the SMD your stealing makes no matter... only physical size [as this is the only visual indicator of potential in SMD type caps] .. basically anything that is close to the same size physically will do the job.



and 470uf @ 16v is just right :) ... if you have more, those surface mounts are easy as pie to rip out and replace.

daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
post #5 of 26
9/24/12 at 5:47pm
Thread Starter
ahk thanks biggrin.gif

the 9800 has 4 of those 16v caps, 2 x 6.3v 1500uf and 4 x 4v 1000uf lol.
proably just order enough todo all 4 cards rolleyes.gif ?
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
post #6 of 26
9/24/12 at 5:56pm
Off topic - this is why I love love love OCN so much. The amount of knowlege here that is freely shared for the asking is just mindboggling.
Assimilator
(15 items)

Portage
(8 items)

CPUMotherboardGraphicsRAM
AMD FX-8350 Gigabyte GA-990FXA-UD5 MSI R7770 PE1GD5/OC Radeon HD 7770 GHz Edition Corsair Vengeance LP
Hard DriveHard DriveCoolingOS
SAMSUNG 840 Series  Seagate  Corsair CWCH60 Arch Linux x86-64
MonitorKeyboardPowerCase
HP 2009m Logitech Kingwin KX-1000 Cooler Master HAF 912
MouseAudio
Logitech Trackman Marble Altec Lansing 2.1
View all
CPUMotherboardGraphicsRAM
E350 Asus eeepc HD6310 Mushkin Enhanced
Hard DriveOSMonitorKeyboard
Seagate Windows 7 Home Premium 12.1" 1366x768 chicklet
View all
  hide details
Reply
Assimilator
(15 items)

Portage
(8 items)

CPUMotherboardGraphicsRAM
AMD FX-8350 Gigabyte GA-990FXA-UD5 MSI R7770 PE1GD5/OC Radeon HD 7770 GHz Edition Corsair Vengeance LP
Hard DriveHard DriveCoolingOS
SAMSUNG 840 Series  Seagate  Corsair CWCH60 Arch Linux x86-64
MonitorKeyboardPowerCase
HP 2009m Logitech Kingwin KX-1000 Cooler Master HAF 912
MouseAudio
Logitech Trackman Marble Altec Lansing 2.1
View all
CPUMotherboardGraphicsRAM
E350 Asus eeepc HD6310 Mushkin Enhanced
Hard DriveOSMonitorKeyboard
Seagate Windows 7 Home Premium 12.1" 1366x768 chicklet
View all
  hide details
Reply
post #7 of 26
9/24/12 at 6:03pm
Thread Starter
Quote:
Originally Posted by z3r0_k00l75 View Post

Off topic - this is why I love love love OCN so much. The amount of knowlege here that is freely shared for the asking is just mindboggling.

thumb.gif haha yeah biggrin.gif gotta love ocn and the people here ect
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
post #8 of 26
9/25/12 at 5:33am
  • Joined: Apr 2006
  • Location: NCAL
  • Posts: 14,760
  • Rep: 878 (Unique: 537)
  • Trader Rating: 19
  • Folding Team Rank: 431
  •
    Name Team Rank Points / May Work Units / May
    cl3p20 431 6,098,380 / 0 17,667 / 1
    A member of the Overclock.net HWBot Team
  • Select All Posts By This User

I need pics when you start please :) .. thats my reward.. living vicariously through others mods now.. cheers.gif

daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
post #9 of 26
9/26/12 at 12:55am
Thread Starter
Quote:
Originally Posted by CL3P20 View Post

I need pics when you start please smile.gif .. thats my reward.. living vicariously through others mods now.. cheers.gif

haha of course smile.gif
only thing is have to get my soldering iron from dads frown.gif so will be about 13 days lol
untill then their sitting ontop of a box taunting me frown.gif

also going to try repair that 5750 i b0rked haha...
and got to work out the vmod's for these cards wink.gif.




will post when find more info on vmods ect (:
a question i did have is whats the best way to mount the cap onto this 6800? doesnt come though the otherside ( surface mount) o.O
Edited by Liighthead - 9/26/12 at 1:02am
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
-=name goes here v4=-
(13 items)

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
View all
  hide details
Reply
post #10 of 26
9/26/12 at 5:52am
  • Joined: Apr 2006
  • Location: NCAL
  • Posts: 14,760
  • Rep: 878 (Unique: 537)
  • Trader Rating: 19
  • Folding Team Rank: 431
  •
    Name Team Rank Points / May Work Units / May
    cl3p20 431 6,098,380 / 0 17,667 / 1
    A member of the Overclock.net HWBot Team
  • Select All Posts By This User

Ohh.. Primarion on Volterra.. fun stuff :)



**For surface mount caps.. just pull off the old and land the new to the left over pads.. thumb.gif



FYI - OCP and vMEM for 7800.. vcore is easy enough to find







Volterra IC - vcore



daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
daily dosage
(15 items)

MSI Z77 M-Power Big Bang - Testing with CL3P20
(26 photos)

CPUMotherboardGraphicsRAM
i7 930 Gigabyte X58A-OC MSI 6950 TFIII PE/OC 3x2 Mushkin Redline PC3-16000
CoolingMonitorPowerCase
Zalman CNPS10x Panasonic 37" 1080p Plasma HCG900w X-gamer Aspire
View all
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: General Volt Mods
Overclock.net › Forums › Volt Mods › General Volt Mods › caps and replacing parts on boards
