Point Of View GT520 Nvidia Pencil Mod Help?

post #1 of 10
9/29/12 at 3:33pm
Thread Starter
I need help doing a pencil mod on an old GT520. I can't seem to find the resistor on this card. Here are a few images, I'll upload more pics if needed











Edited by bdds13 - 9/29/12 at 4:13pm
Reply
Reply
post #2 of 10
9/29/12 at 5:38pm
Thread Starter
Nevermind I got it working now smile.gif. I'm getting nice increases in OC. I can OC up to 30mhz more.
Reply
Reply
post #3 of 10
10/7/12 at 8:29pm
Sorry for the late reply. Care to share what you found for others who may be looking in the future?
The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
post #4 of 10
10/8/12 at 12:44am
Thread Starter
No problem. Unfortunately I gave my card to my brother, I bought a 430 now. But I remember correctly I pencil moded this circled area:



And I actually got more than 30mhz, I got about 70mhz more in core clock and 50mhz and memory.
Reply
Reply
post #5 of 10
1/16/13 at 12:51am
Since your such a genius pure and simple lol *My Man* *Pound It*

Maybe you could figure out which one I need to pencil mod on my MCP67M-A2 (7150M) I'm limited to 1.2v and 555mhz from 425mhz and if i could get 50Mhz+ I'd be hella happy smile.gif






Edited by chris89 - 1/16/13 at 1:02am
Reply
Reply
post #6 of 10
1/16/13 at 1:02am
There's a lot more going on, on a laptop motherboard. Need to back the pics up a little bit and get more of the board in the shots.
The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
post #7 of 10
1/16/13 at 1:32am
No problem and I appreciate your time sir smile.gif



Edited by chris89 - 1/16/13 at 8:29pm
Reply
Reply
post #8 of 10
1/24/13 at 8:48pm

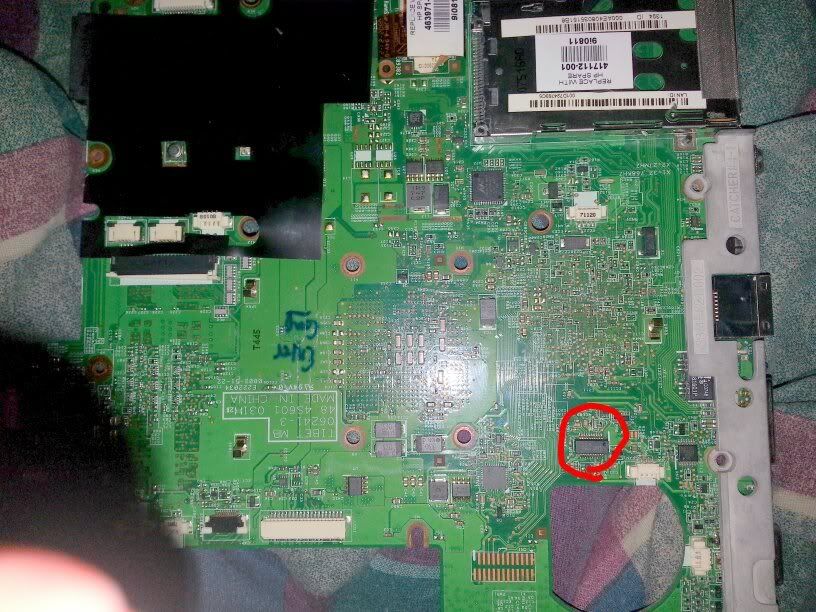

What are the #'s off this ic?

Sorry it took me so long.....

The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
The slaughter house
(13 items)

CPUMotherboardGraphicsRAM
E8400, E8600, 980BE T2RS+, P5E3, TA890FXE 8800GTS's,GTX's,GS,Ultra's,9600GT Lots of D9's and some crap DDR3
Hard DrivePowerCase
Seagate 250GB + 80GB WD for benching TT 875w, Corsair 650TX Custom bench station
View all
  hide details
Reply
post #9 of 10
1/24/13 at 11:28pm
Based on the board layout, this single inductor, dual mosfet, and cap next to the inductor, looks like the vrm for that nvidia chip. The other two large inductors are most likely for the cpu. The control chips is a SC411 http://www.semtech.com/images/datasheet/sc411.pdf . The typical layout is very sinple, and given the sparse # of components around the chip, the resistors marked in blue are most likely the ones setting the voltage at the FB pin. You would need to test to see if one of them has connection to the output of the vrm, and if the other has a connection to ground.


Edited by just_nuke_em - 1/24/13 at 11:34pm
On a whim, 8.37Ghz
(18 items)

Cecilia 2.0
(15 items)

CPUMotherboardGraphicsRAM
FX-8120, and a bunch more AM3/AM2+ Crosshair V, Crosshair IV Lots of green Dominator GT
RAMRAMHard DriveCooling
Dominator GT Perfect Storm M4 64Gb Dihydrogen monoxide, Carbon dioxide, Liquid Nit...
CoolingCoolingOSPower
OCN Marksman pot k|ngp|n F1 Dark pot Stripped Xp Antec 1200W HCP
Case
Dimastech Hard
View all
CPUMotherboardGraphicsRAM
2600K @ 4.8g's with lots of v's Maximus IV Extreme P67 580 SLI 1866mhz RipjawX
Hard DriveCoolingCoolingOS
Intel ssd, some 1Tb F3s Di-hydrogen Monoxide I don't allow air cooling in my house Win7
PowerCase
XFX 850 Phobya WaCoolT Test Bench
View all
  hide details
Reply
On a whim, 8.37Ghz
(18 items)

Cecilia 2.0
(15 items)

CPUMotherboardGraphicsRAM
FX-8120, and a bunch more AM3/AM2+ Crosshair V, Crosshair IV Lots of green Dominator GT
RAMRAMHard DriveCooling
Dominator GT Perfect Storm M4 64Gb Dihydrogen monoxide, Carbon dioxide, Liquid Nit...
CoolingCoolingOSPower
OCN Marksman pot k|ngp|n F1 Dark pot Stripped Xp Antec 1200W HCP
Case
Dimastech Hard
View all
CPUMotherboardGraphicsRAM
2600K @ 4.8g's with lots of v's Maximus IV Extreme P67 580 SLI 1866mhz RipjawX
Hard DriveCoolingCoolingOS
Intel ssd, some 1Tb F3s Di-hydrogen Monoxide I don't allow air cooling in my house Win7
PowerCase
XFX 850 Phobya WaCoolT Test Bench
View all
  hide details
Reply
post #10 of 10
1/25/13 at 4:56am
Totally missed that one when I was looking from my phone last night. Best way to know for sure, would be to measure the voltage on the mosfets and compare to the voltage directly under the GPU core.
