" Got Wood " A total timber case project - Page 2

post #11 of 78
Thread Starter
thanks guys i got the timber at a wood show its a local timber the dark red one is Jarrah with a Birdseye defect (a disease in the timber creates the effect of small birdseyes in the grain) and the orange looking one is sheoak i have built stuff before using the same timbers

this is what i can be possesed to do

Grandfather clock in Jarrah


half round table in sheoak



but enough of that and back to the computer case

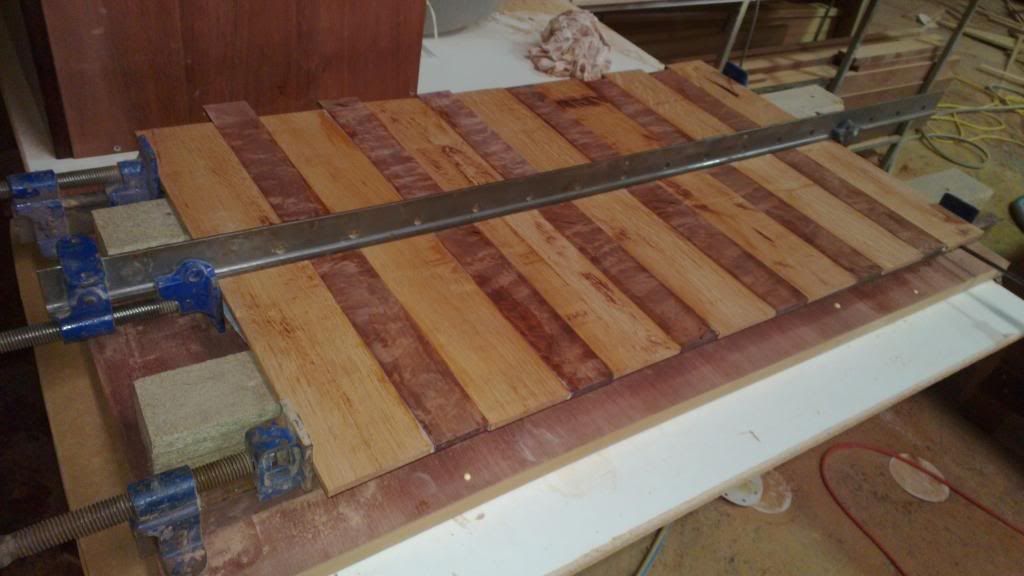

anyhow i sliced up a heap of sheoak and jarrah into 9mm slices to make a large panel that will form most of my internal structure and glued them together under clamps
