UPDATE: Obviously some large changes have been made. Long story short I wasn't happy with overall look of the computer so I went for a completely different look. Luckily some sweet deals came along the way of swapping everything over to the new setup.

First to come was the Asus Maximus V Extreme and my 3770K(pictured previously). Then it became obvious that the blue themed Corsair ram and psu had to go. What arrived in place of those items was the Corsair Dominator Platinum 2133 mhz ram and the Corsair AX860 power supply.





Second choice I made was to do away with the Swiftech Apogee Drive II. I was tired of dealing with the PWM control problems so I went with a Alphacool VPP655 pump with the HF top and a EK Supremacy CPU block. The pump is manually adjustable and the EK block looks amazing.



Here you can see the new setup starting to come together. Notice every fan has been replaced with Schythe Gentle Typhoon AP-14 fans. They are truly quieter than any fan I have used to date and perform better at all fan speeds as well.




Here is the finished product for now. I reused the EK reservoir for the time being. This will most likely be extended and moved down onto the pump and make the top of the res the inlet. The outlet for the pump travels all the way up to the CPU block for now. Once I incorporate the video cards into the loop the current pump outlet decision will make more sense.

Edited by FunwithOC - 9/1/13 at 3:29pm
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
post #13 of 18
That is what I call a clean build... I really love it smile.gif
If you are planning to cool them GPUs as well you could probably stick the 120x45mm rad where you have got the exhaust and another 120 maybe 140x45mm rad on the bottom where you have got the pump at the moment, moving the pump on top of the rad... smile.gif
P.S. Very good choice of rads and fans, not so good with the CPU block, I would personally go with Koolance CPU-380i or Phobya UC2, but now I have been stuck with Supremacy too wink.gif
Edited by chrisf4lc0n - 9/1/13 at 3:38pm
Viggen Blue
(28 items)


CPUMotherboardGraphicsRAM
Intel Core i5 4670K@4.5GHz Asrock Z87 Extreme4 ATI Radeon Sapphire R9 290X GPU@1200MHz RAM@125... 16GB 2133MHz Patriot Viper Black Mamba 3
Hard DriveHard DriveOptical DriveCooling
2x OCZ Agility 3 64GB in RAID 0 Corsair Force 3 120GB Pioneer DVR-219L Laing DDC-1+T Plus Ultra Pump (18W) with EK CSQ...
CoolingCoolingCoolingCooling
Lamptron FC2 Fan Controller Alphacool Cape Corp Coolplex Pro 25 LT Reservoir EK-FC R9-290X Phobya Xtreme Nova 1080 with 4x (push only) Sil...
CoolingCoolingCoolingCooling
Mayhems Pastel Blueberry Coolant XSPC EX 280 with 4x (push/pull) Yate Loons D14S... Alphacool NexXxos XT45 140mm Full Copper with 2... Alphacool NexXxos XT45 Full Copper 240mm with 4...
CoolingCoolingOSMonitor
Alphacool NexXxoS ST30 Full Copper 120mm with 2... EK Supremacy CPU Acetal Nickel Waterblock Windows 7 64bit Hanns-G HS233
MonitorKeyboardPowerCase
Toshiba Regza 32" CM Storm Quickfire Rapid (Black Cherry MX Switc... OCZ ZX Series 850W NZXT Switch 810 Black
MouseMouse PadAudioOther
Roccat Kone XTD CM Storm Speed RX Small Sound Blaster Z Phobya Coolant and Ambient temperature monitors
  hide details
Reply
Viggen Blue
(28 items)


CPUMotherboardGraphicsRAM
Intel Core i5 4670K@4.5GHz Asrock Z87 Extreme4 ATI Radeon Sapphire R9 290X GPU@1200MHz RAM@125... 16GB 2133MHz Patriot Viper Black Mamba 3
Hard DriveHard DriveOptical DriveCooling
2x OCZ Agility 3 64GB in RAID 0 Corsair Force 3 120GB Pioneer DVR-219L Laing DDC-1+T Plus Ultra Pump (18W) with EK CSQ...
CoolingCoolingCoolingCooling
Lamptron FC2 Fan Controller Alphacool Cape Corp Coolplex Pro 25 LT Reservoir EK-FC R9-290X Phobya Xtreme Nova 1080 with 4x (push only) Sil...
CoolingCoolingCoolingCooling
Mayhems Pastel Blueberry Coolant XSPC EX 280 with 4x (push/pull) Yate Loons D14S... Alphacool NexXxos XT45 140mm Full Copper with 2... Alphacool NexXxos XT45 Full Copper 240mm with 4...
CoolingCoolingOSMonitor
Alphacool NexXxoS ST30 Full Copper 120mm with 2... EK Supremacy CPU Acetal Nickel Waterblock Windows 7 64bit Hanns-G HS233
MonitorKeyboardPowerCase
Toshiba Regza 32" CM Storm Quickfire Rapid (Black Cherry MX Switc... OCZ ZX Series 850W NZXT Switch 810 Black
MouseMouse PadAudioOther
Roccat Kone XTD CM Storm Speed RX Small Sound Blaster Z Phobya Coolant and Ambient temperature monitors
  hide details
Reply
post #14 of 18
Thread Starter
Quote:
Originally Posted by chrisf4lc0n View Post

That is what I call a clean build... I really love it smile.gif
If you are planning to cool them GPUs as well you could probably stick the 120x45mm rad where you have got the exhaust and another 120 maybe 140x45mm rad on the bottom where you have got the pump at the moment, moving the pump on top of the rad... smile.gif
P.S. Very good choice of rads and fans, not so good with the CPU block, I would personally go with Koolance CPU-380i or Phobya UC2, but now I have been stuck with Supremacy too wink.gif

Thank you for the kind words! I really appreciate it! Alphacool makes some seriously nice products...I can tell you like them as well. smile.gif The main reason I chose the EK cpu block is because they make the "Naked Ivy" add-on for it. After I do some benchmarking I plan to delid my 3770k to give the Naked mount a try.

The choice on additional radiators is still up in the air. Your suggestions are right on point of what I've had running through my mind. There will for sure be a second radiator mounted in the top of the case. With minor modification the Alphacool XT45 240mm rad will fit with one set of fans. Depending on how my temps looks after that I may go for additional rad space.

Another interesting idea I have running around in my head is to change over to the Fractal Arc XL. This case supports 360mm rad mounting in the top without modification in addition to 240mm rad mounting in the front. Just depends on when they are released to the US.
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
post #15 of 18
I am also thinking about delidding my Haswell, but somehow I do not feel too comfortable with a blade in one hand and nearly 200 quid chip in the other... frown.gif
Edited by chrisf4lc0n - 9/2/13 at 7:45am
Viggen Blue
(28 items)


CPUMotherboardGraphicsRAM
Intel Core i5 4670K@4.5GHz Asrock Z87 Extreme4 ATI Radeon Sapphire R9 290X GPU@1200MHz RAM@125... 16GB 2133MHz Patriot Viper Black Mamba 3
Hard DriveHard DriveOptical DriveCooling
2x OCZ Agility 3 64GB in RAID 0 Corsair Force 3 120GB Pioneer DVR-219L Laing DDC-1+T Plus Ultra Pump (18W) with EK CSQ...
CoolingCoolingCoolingCooling
Lamptron FC2 Fan Controller Alphacool Cape Corp Coolplex Pro 25 LT Reservoir EK-FC R9-290X Phobya Xtreme Nova 1080 with 4x (push only) Sil...
CoolingCoolingCoolingCooling
Mayhems Pastel Blueberry Coolant XSPC EX 280 with 4x (push/pull) Yate Loons D14S... Alphacool NexXxos XT45 140mm Full Copper with 2... Alphacool NexXxos XT45 Full Copper 240mm with 4...
CoolingCoolingOSMonitor
Alphacool NexXxoS ST30 Full Copper 120mm with 2... EK Supremacy CPU Acetal Nickel Waterblock Windows 7 64bit Hanns-G HS233
MonitorKeyboardPowerCase
Toshiba Regza 32" CM Storm Quickfire Rapid (Black Cherry MX Switc... OCZ ZX Series 850W NZXT Switch 810 Black
MouseMouse PadAudioOther
Roccat Kone XTD CM Storm Speed RX Small Sound Blaster Z Phobya Coolant and Ambient temperature monitors
  hide details
Reply
Viggen Blue
(28 items)


CPUMotherboardGraphicsRAM
Intel Core i5 4670K@4.5GHz Asrock Z87 Extreme4 ATI Radeon Sapphire R9 290X GPU@1200MHz RAM@125... 16GB 2133MHz Patriot Viper Black Mamba 3
Hard DriveHard DriveOptical DriveCooling
2x OCZ Agility 3 64GB in RAID 0 Corsair Force 3 120GB Pioneer DVR-219L Laing DDC-1+T Plus Ultra Pump (18W) with EK CSQ...
CoolingCoolingCoolingCooling
Lamptron FC2 Fan Controller Alphacool Cape Corp Coolplex Pro 25 LT Reservoir EK-FC R9-290X Phobya Xtreme Nova 1080 with 4x (push only) Sil...
CoolingCoolingCoolingCooling
Mayhems Pastel Blueberry Coolant XSPC EX 280 with 4x (push/pull) Yate Loons D14S... Alphacool NexXxos XT45 140mm Full Copper with 2... Alphacool NexXxos XT45 Full Copper 240mm with 4...
CoolingCoolingOSMonitor
Alphacool NexXxoS ST30 Full Copper 120mm with 2... EK Supremacy CPU Acetal Nickel Waterblock Windows 7 64bit Hanns-G HS233
MonitorKeyboardPowerCase
Toshiba Regza 32" CM Storm Quickfire Rapid (Black Cherry MX Switc... OCZ ZX Series 850W NZXT Switch 810 Black
MouseMouse PadAudioOther
Roccat Kone XTD CM Storm Speed RX Small Sound Blaster Z Phobya Coolant and Ambient temperature monitors
  hide details
Reply
post #16 of 18
Thread Starter
Quote:
Originally Posted by chrisf4lc0n View Post

I am also thinking about delidding my Haswell, but somehow I do not feel to comfortable with a blade in one hand and nearly 200 quid chip in the other... frown.gif

Haha I know exactly what you mean. It's pretty sketchy.
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
My System
(17 items)


CPUMotherboardGraphicsRAM
Intel 3770k Asus Maximus V Extreme GTX 670 FTW 2GB x2 SLI Corsair Dominator Platinum 8gb
Hard DriveCoolingCoolingCooling
Samsung 830 128gb Alphacool VPP655 pump Alphacool UT60 240mm Radiator EK Supremacy cpu block
CoolingOSMonitorPower
Schythe Gentle Typhoon AP-14 fans Windows 7 64-bit Asus 24" LED Corsair AX860
Case
Corsair 550d
  hide details
Reply
post #17 of 18
Thread Starter
Ok so I got a little ballsy today and decided to delid the 3770k. I used the razor blade method simply because I couldn't get to a vise today.

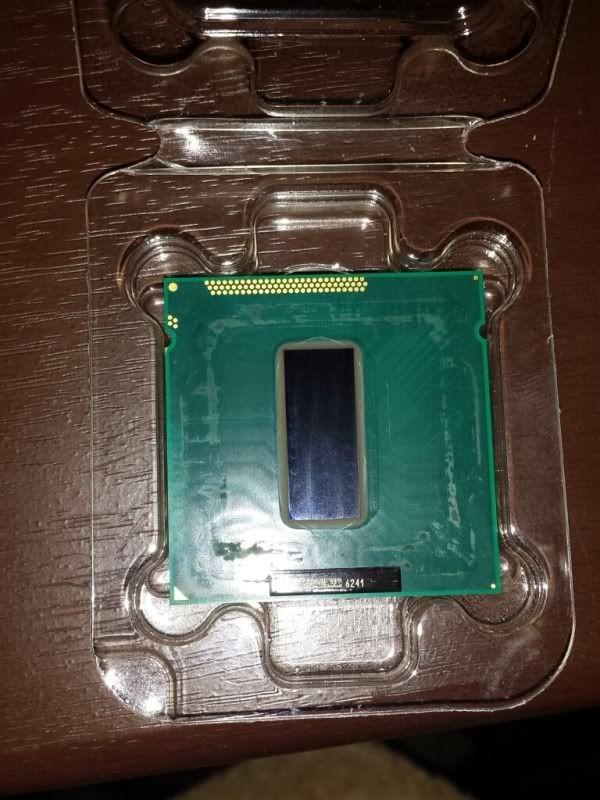

Here is the 3770k with the lid off:

All cleaned up and ready for paint(CLU):

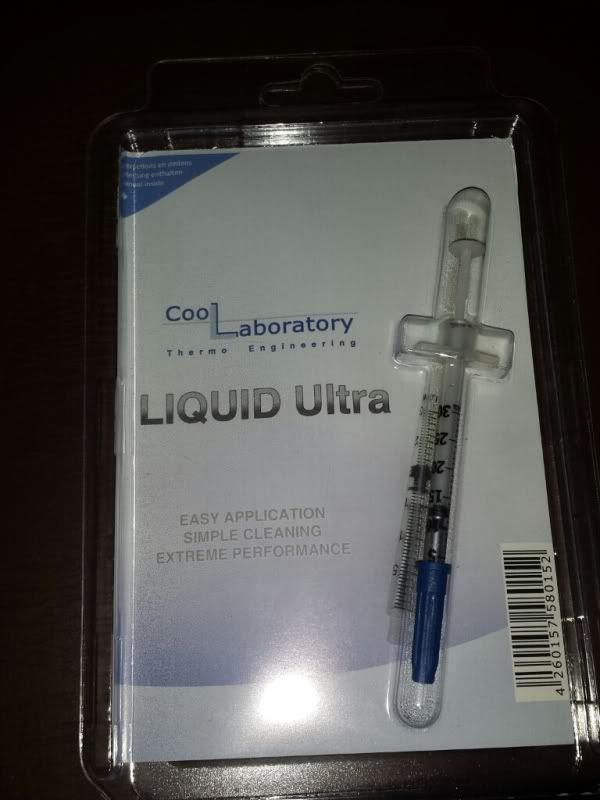

And of course I forgot to take a picture of the CLU before applying the IHS. rolleyes.gif

Back together:

Testing:
Both tests were done at 4.8Ghz with 1.352V Vcore. Thermal compound used between the IHS and waterblock was Gelid GC-Extreme. Temperature readings were taken with RealTemp and stress testing was provided by Prime95(small FFTs). Prior to delid, max recorded core temp was 85 degrees C. After delid, max recorded core temp was 65 degrees C. An honest 20 degree drop in overall temp. Needless to say I am very pleased.



OOPS:
This is where the interesting part gets told. Before adding the CLU and putting the IHS back on I attempted to use the "Naked Ivy" mounting system.

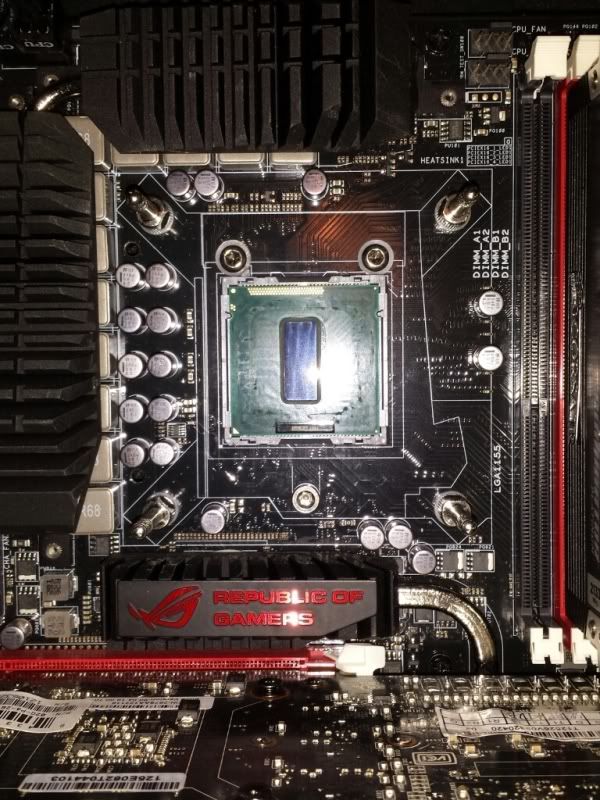

If you look close, the CPU hold down cage is gone. This is required to allow the waterblock to touch the CPU itself. So I applied a rice grain of Gelid GC-Extreme thermal compound and installed the waterblock. Upon firing up the computer, I was met with constant reboots and BSODs. Decided to take it back apart and inspect. Found about 7 bent CPU pins...doh.gif Naturally I was like what am I going to do now. 30 minutes passed and I managed to straighten the pins with a very small screw driver and flash light. thumb.gif
