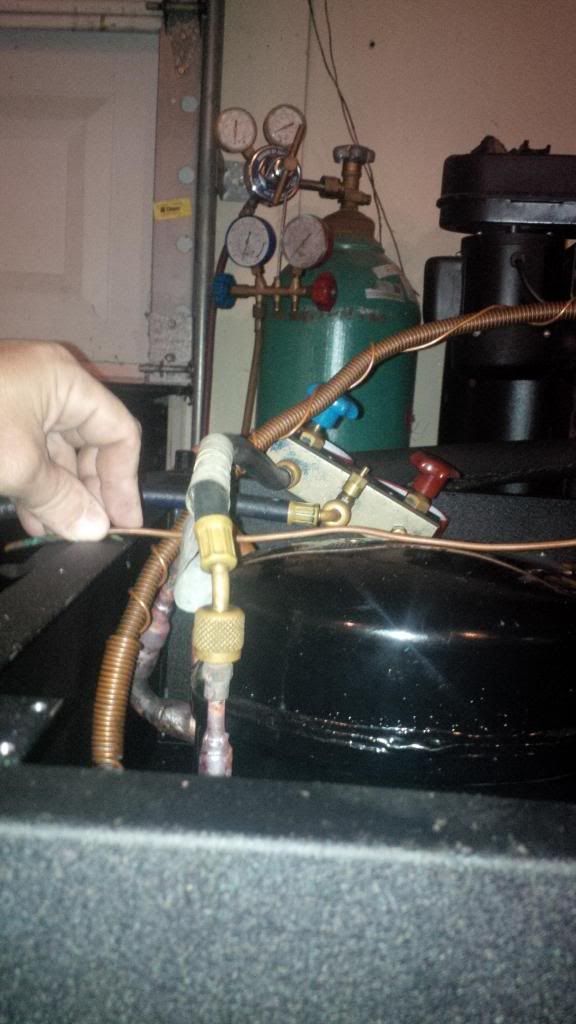

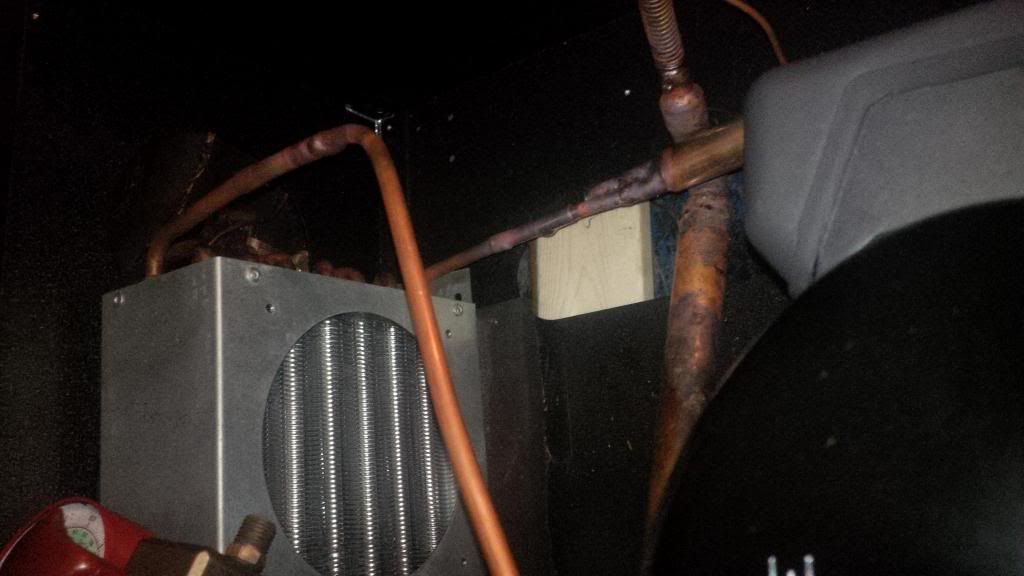

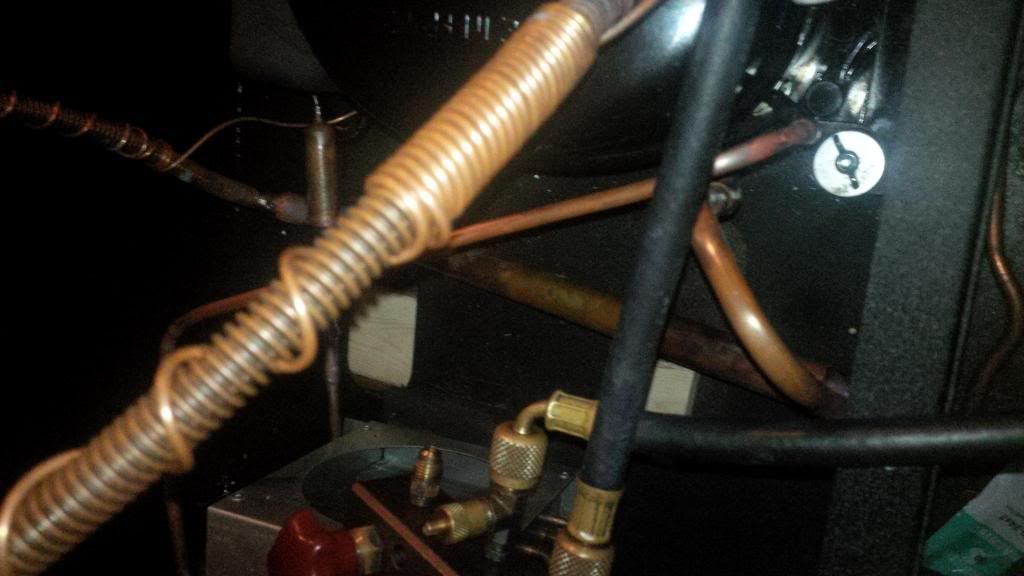

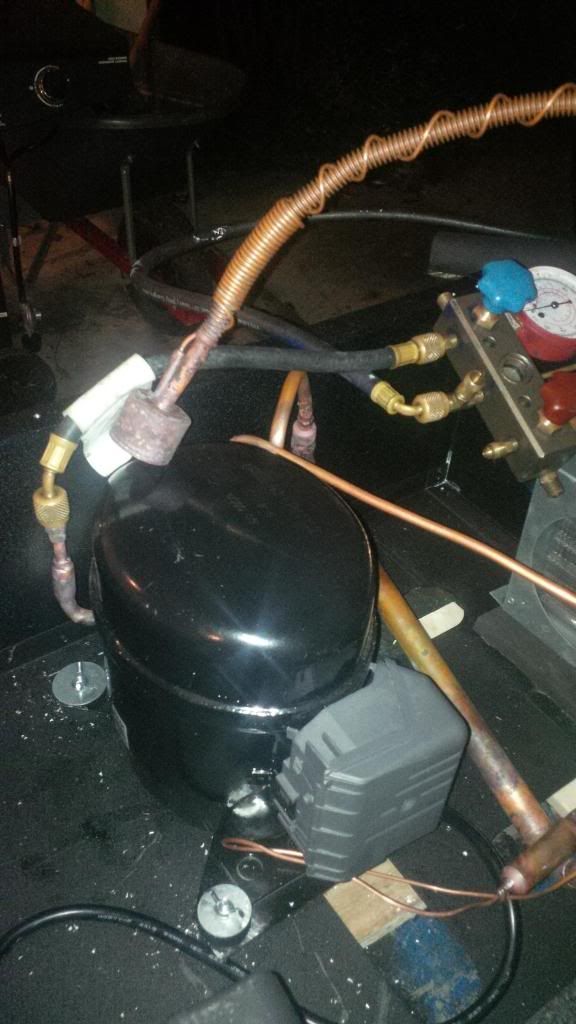

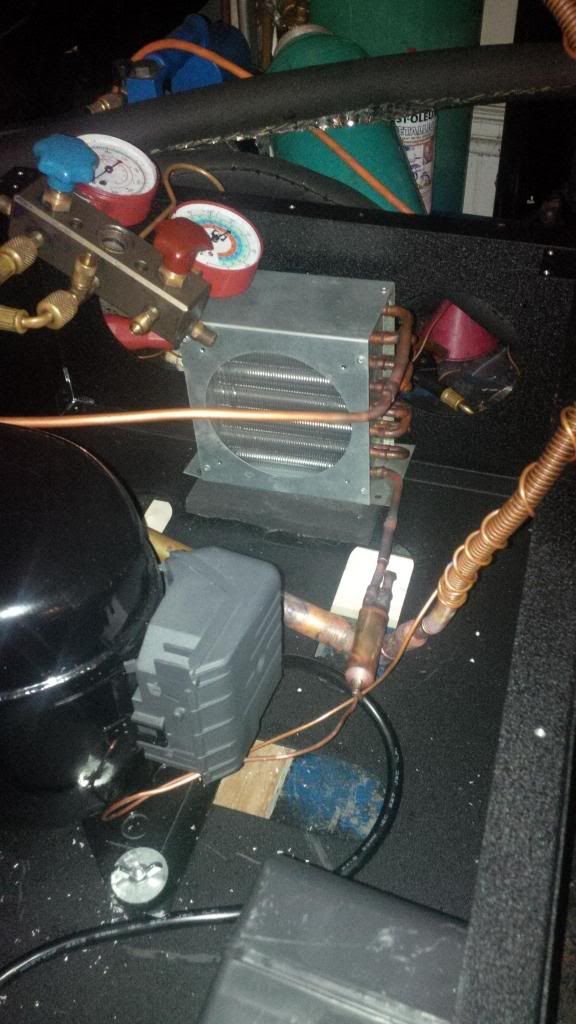

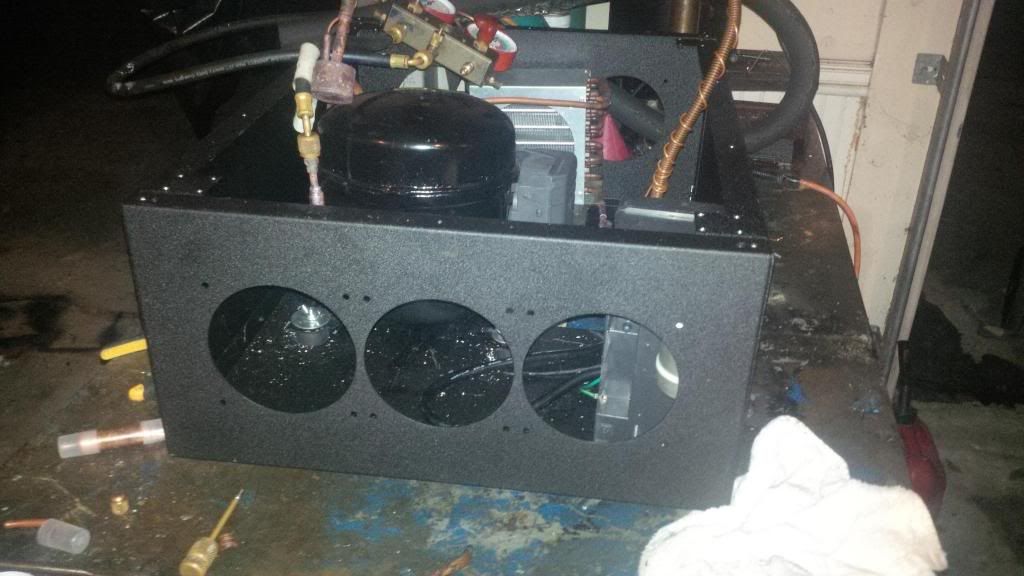

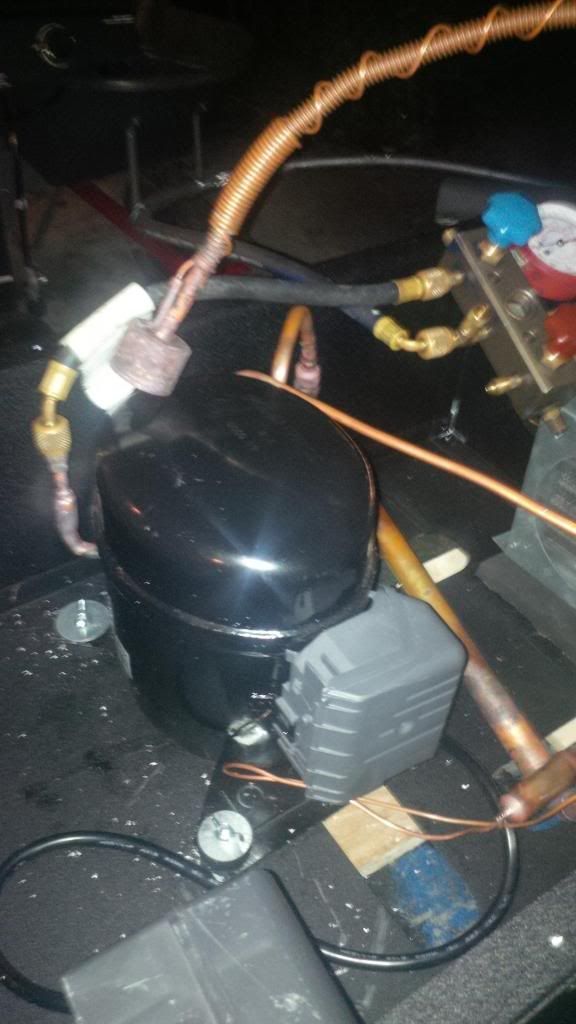

Building a SS into a pedestal. I was given the entire bottom of the pedestal so I have lots of room.

Still need to polish, paint, insulate, load test, and wire in on/off electrical.


But all major SS work is complete and its under vacuum smile.gif

My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #2 of 25
Thread Starter
A little ice...










Work still to do...
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #3 of 25
Thread Starter
Red case fans have been ordered and also Temp Display.
Will take picts once dremel done and hardware mounted.
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #4 of 25
Thread Starter
Red case fans have been ordered and also Temp Display.
Will take picts once dremel done and hardware mounted.
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #5 of 25
Thread Starter
Will do the wiring cleanup, case cleanup, touchup painting, sleeving and start load testing today...

My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #6 of 25
Thread Starter
Now for the tedious load testing in my furnace room. I have to do this inside during the summer months since its so blaster hot in Georgia.

I have a couple different load testers one designed up to 290 watts and the heavy duty designed up to 400 watts. I will be using the heavy duty and aiming for a completly frozen load tester with Ice. I have a themalcouple drilled in the center of the load tester right between the two heating cartridges. This is over kill but its fun to see that I can over power the two heaters.

Its going to be later before I show load test results because im sure ill have to reclaim, trim the cap tube, re-vacuum recharge and try again before I get things to the spot I want them to be.









My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #7 of 25
Thread Starter
Oh yeah forgot to mention the white gizmo with the temp display on it will be hard wired to turn on the power to the customers PSU. Its programmable so the power will not be routed to the PSU unless the top of the suction line directly above the evap is -30c or colder. This is simply a safety mechanism to insure the CPU wont have power unless its in the frozen temp zone.

Since I don't have the PSU to test with I have it controlling a light so I can visually verify that things are working correctly.
Edited by Sdumper - 9/2/13 at 12:40pm
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsGraphics
i5 2500k Biostar TZ77XE4 6950 6950
RAMHard DriveCoolingOS
8gb - DDR3 main: 120gb SSD 830 + 3 1tb drives Air Win7
MonitorPowerCase
3 x DELL ST242OL  OCZ 900W Lian-Li Custom
  hide details
Reply
post #8 of 25
It's looking nice how long do you think it will need until it's done?
Prime gaming rig.
(18 items)


CPUMotherboardGraphicsGraphics
I5-2500k Gigabyte Z77X UD3H r9 280x r9 280x
RAMHard DriveHard DriveOptical Drive
Kingston Hyper X Segate barrcauda  Samsung EVO 840 120 GB model N/A
CoolingOSMonitorKeyboard
Hyper 212+ Windows 8 64 bit Sanyo LED TV 24' Roccat Ryos MK Glow
PowerCaseMouseAudio
OCZ modXtream pro 700W Corsair something (old) Roccat Kone XTD Logitech G930
Other
NZXT Sentry 2
  hide details
Reply
Prime gaming rig.
(18 items)


CPUMotherboardGraphicsGraphics
I5-2500k Gigabyte Z77X UD3H r9 280x r9 280x
RAMHard DriveHard DriveOptical Drive
Kingston Hyper X Segate barrcauda  Samsung EVO 840 120 GB model N/A
CoolingOSMonitorKeyboard
Hyper 212+ Windows 8 64 bit Sanyo LED TV 24' Roccat Ryos MK Glow
PowerCaseMouseAudio
OCZ modXtream pro 700W Corsair something (old) Roccat Kone XTD Logitech G930
Other
NZXT Sentry 2
  hide details
Reply
post #9 of 25
Thread Starter
Hopefully it will be ready by tomorrow but that may not be the case.

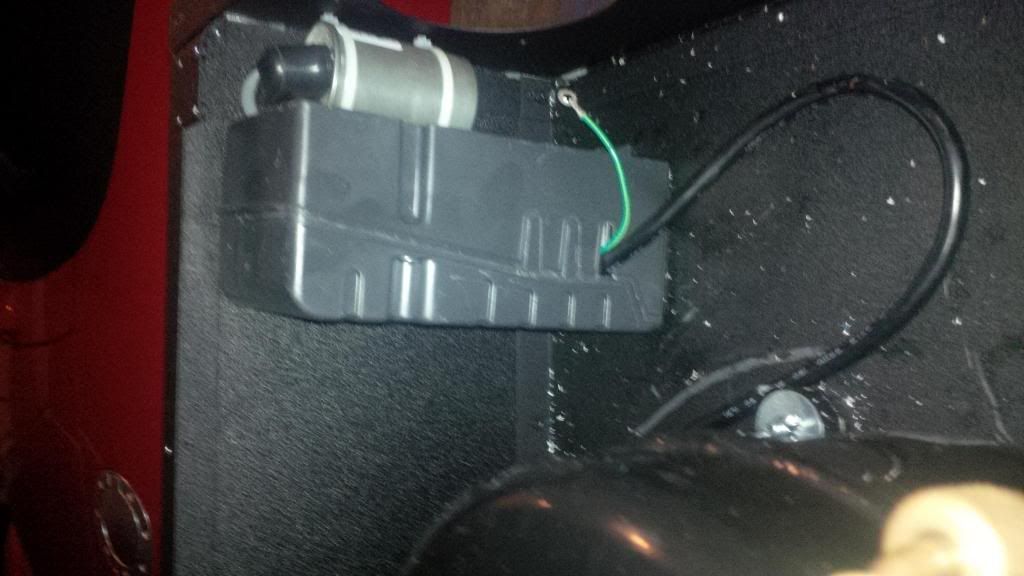

Im using a different compressor than I normally use and also a different size cap tube.

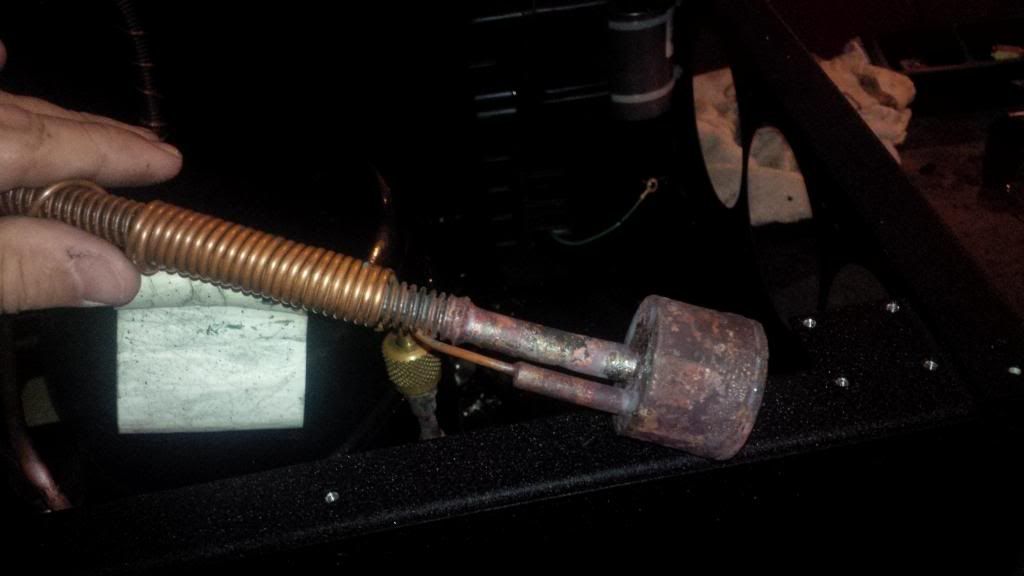

I had to completely replace the cap tube because I went to short in search of load balancing and I dont like to splice cap tube. Im now at 10.6 feet of .040 and will trim as needed until I reach a respectable balance of load versus burst benching.
