Bitfenix Prodigy M Midnight Black build - Page 2

post #11 of 32
Thread Starter
Alright! USPS just delivered my WIFI hardware smile.gif



Just waiting on FedEx to deliver my Corsair PSU which is supposed to be sometime this afternoon biggrin.gif
post #12 of 32
Thread Starter
Got PSU and as usual, another problem comes up, it fits but its pushing the bottom GPU up a little hard...


I am now thinking to get a different PSU bracket that is shorter than the one provided by bitfenix.

So far this is what I have in mind:
http://www.silverpcs.com/product_info.php?products_id=823

post #13 of 32
Thread Starter
So the mount for the PSU That Bitfenix offers was enough, I didn't realize a cable under it was making it a bit taller, still after removing the cable I had to carefully squeeze the video card in.

Also, cable management omg... Cable management will kick you in your kidney, it took me around 2 hours to organize my cables and this is the best I could do.



After this, I wanted to give the computer a 1st try before I start working in the most difficult part (fitting the hard drives)

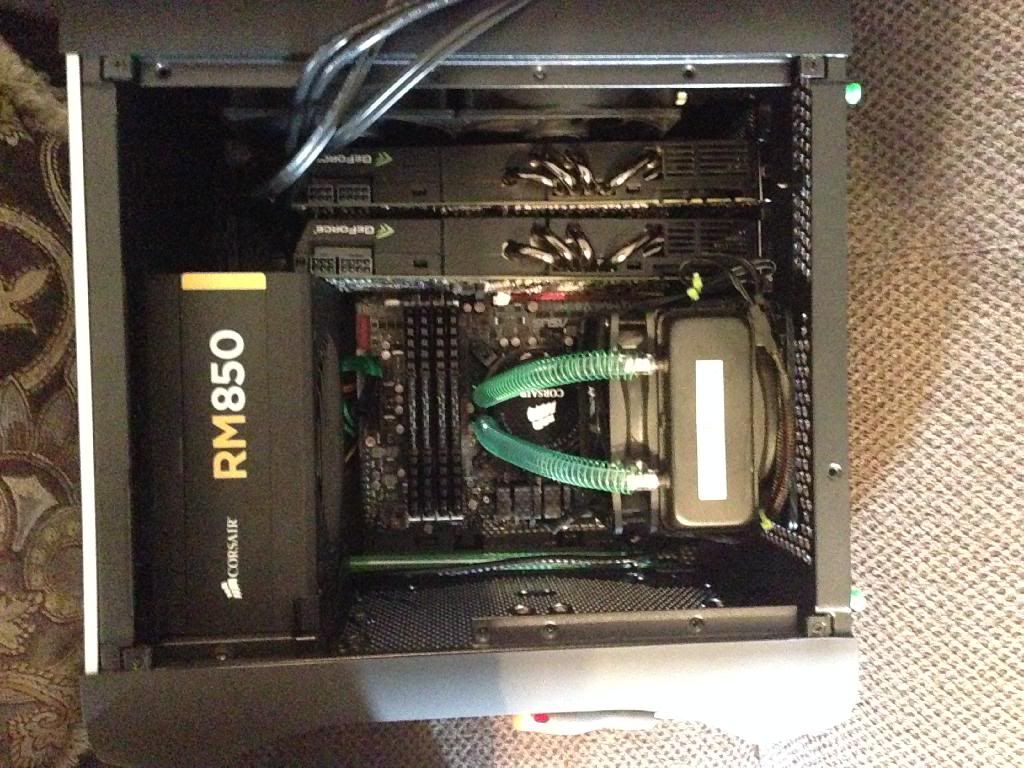

Here it is on my testing station smile.gif



As soon as I fit the hard drives I will post how it happened.
Edited by blucable - 4/7/14 at 6:27am
post #14 of 32
RM850 isn't exactly compact you know smile.gif Really nice job so far.
post #15 of 32
Thread Starter
Quote:
Originally Posted by Allanitomwesh View Post

RM850 isn't exactly compact you know smile.gif Really nice job so far.
I know! just waiting on my 230mm fan to arrive so I can start figuring out the hard drives.
post #16 of 32
You really are putting alot in there smile.gif Props
post #17 of 32
Thread Starter
Alright! So I am back! Sadly the 230mn fan did not make any significant changes in the temperature of the GPUs which that was what I was concerned about. Instead I am using the space to install my 2x 2TB hard drives and a 120mm exhaust fan. So how did I fit 2 HDDs in there along with a 120mm fan? Here it goes:

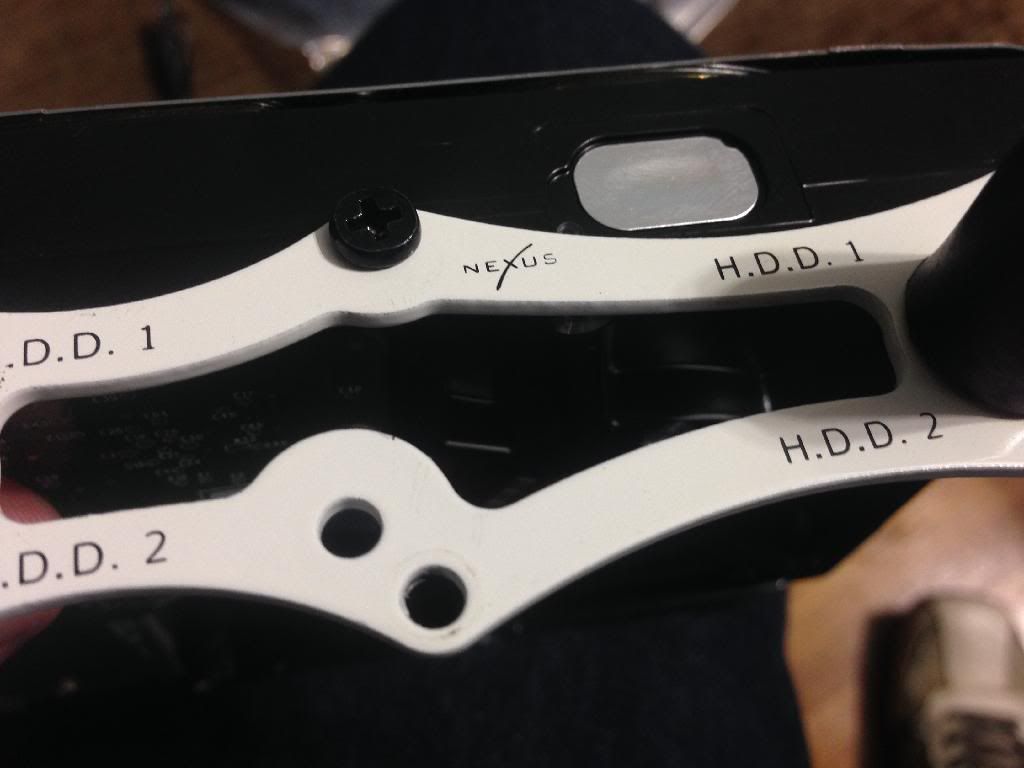

I got ne these cool looking brackets from ebay along with a solid state drive.

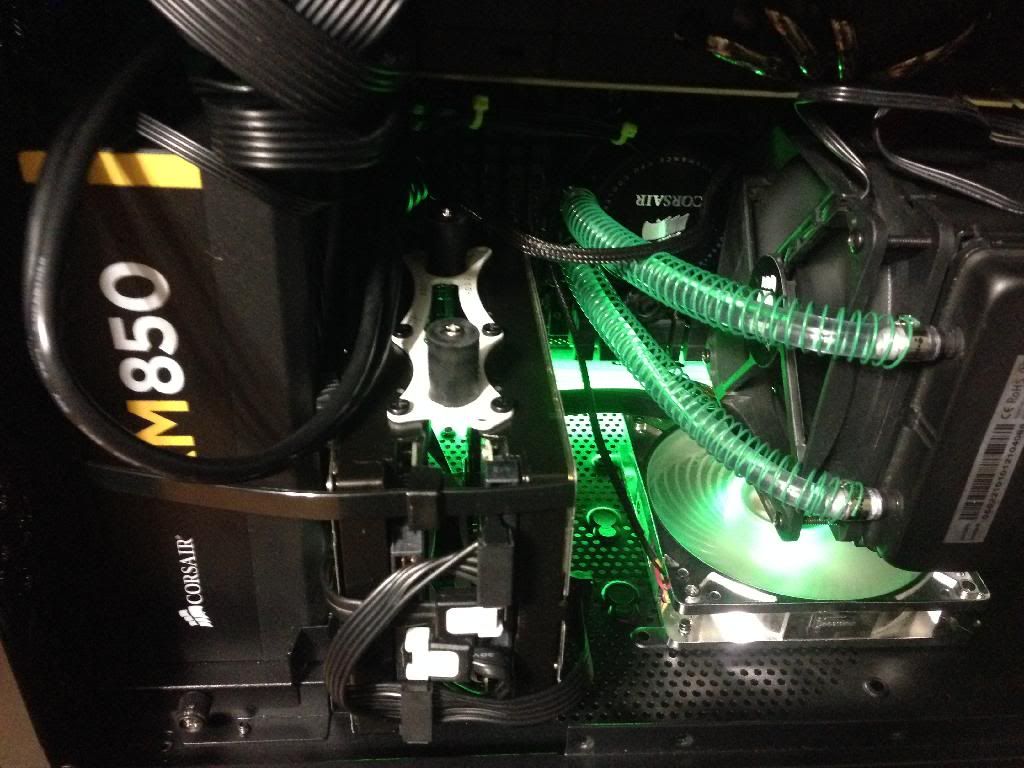

The final product looks like this, I don't think I could have done better with such a little space.


As of now what is left to do in this project is:

- Make a window on the side panel.
- Install the Intel 180GB ssd for the OS and an additional 320GB western digital hdd @ 7200rpm dedicated to paging files only.
- Improve cable management.

I will keep you guys posted.
Edited by blucable - 4/12/14 at 11:53am
post #18 of 32
Thread Starter
Alright I just drew some lines on the right panel (left panel) just to make sure I will cut the window hole right in the middle.


Oh snap! I forgot to get me duck tape, looks like I am making another trip to town right now.
post #19 of 32
Release the dremelz!
post #20 of 32
Thread Starter
Quote:
Originally Posted by Allanitomwesh View Post

Release the dremelz!

Man! what type of metal did they use to make this case? it is haaaaaaaaaaaaaaaard!!!! it killed my dremel blade and still I was not able to do anything, I am going to Lowes today to get me about 3 blades, this case is hard to cut.
