Mounting fans to the flex bay

post #1 of 8
Thread Starter
I want to mount some fans in the flex bay but without using the radiator, so I purchased some radiator screws 6-32 30mm but the problem is I need some nuts that fit this type of screw and struggling to find some in the UK any help would be appreciated, thanks.
post #2 of 8
All the CL FlexBay rad mounts use very thin aluminum, much thinner than the top and side(lateral) radiator mounts, and they transmit noise easily and readily even when using the donut grommets CL provides.

All that noise is absorbed nicely when using fans and a radiator filled with coolant, BUT if you use the FlexBay rad mounts with NO radiator and just for fans you will have quieter overall operation if you go with soft silicon fan grommets instead of hard screws.

If you wish to keep the fans quiet up to 40% to 75% PWR depending on which fans you have chosen, get a set of these soft silicon grommets for each fan.

Why would you want to hard-mount a component that produces rotational noise energy? headscratch.gif







http://www.performance-pcs.com/nexus-ultra-soft-silicone-fan-mounts-set-of-4.html


Also, this soft fan grommet by Acousti.com I believe are available in the UK if you cannot find the Nexus brand, the Acousti are softer than the Nexus brand, so I use them with lighter weight fans. Using these with heavy fans ie: over 300grams will overwhelm these grommets and you will still have some noise. The Nexus work better overall.


http://www.acoustiproducts.com/en/ultra_soft_fan_mounts.asp


If you are using closed-frame fans, these Akasa on the left work well, the Lamptron brand on the right are hard plastic NOT soft silicon as they appear to be and they transmit noise energy almost as well as metal screws, so not recommended.



Edited by iBruce - 2/12/17 at 4:26am

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply
post #3 of 8
Thread Starter
Fantastic information iBruce this has helped a lot, ordered some right away, thanks 😀
post #4 of 8
These are cheap and you get 36 of them for $6 but the catch is you'll need needle nose pliers to properly attach them to the fans as they are on the short side and can't be pulled through like the long ones can.

They work great though.

I only broke 6 of them when installing but they are so cheap and you get so many it isn't an issue.

CPUMotherboardGraphicsGraphics
i7-5930k ASUS X99-Deluxe Gigabyte GTX980 G1 Gaming Gigabyte GTX980 G1 Gaming
RAMHard DriveHard DriveHard Drive
G.SKILL Ripjaws 4 Series 16GB Samsung 840 Pro 256GB Sandisk Ultra II 960 GB WD Black HDD 2TB
Hard DriveHard DriveOptical DriveCooling
WD Black HDD 1TB WD Blue HDD 500GB LG Bluray Drive/Rewriter Corsair H105
OSMonitorMonitorMonitor
Windows 10 Pro 64bit  Acer XB270HU 2560x1440 144Hz G-Sync BenQ GW2765 2560x1440 60Hz BenQ GW2765 2560x1440 60Hz
KeyboardPowerCaseMouse
Corsair K95 RGB Cherry MX Brown EVGA Supernova 1000 P2 CaseLabs S8S Corsair Scimitar
AudioOtherOther
Sennheiser PC 350 SE Freedom WSGF Edition Ultimate Desk Stand v1 Custom Built Sit/Stand Desk w/ UPLIFT Height Ad...
  hide details
Reply

CPUMotherboardGraphicsGraphics
i7-5930k ASUS X99-Deluxe Gigabyte GTX980 G1 Gaming Gigabyte GTX980 G1 Gaming
RAMHard DriveHard DriveHard Drive
G.SKILL Ripjaws 4 Series 16GB Samsung 840 Pro 256GB Sandisk Ultra II 960 GB WD Black HDD 2TB
Hard DriveHard DriveOptical DriveCooling
WD Black HDD 1TB WD Blue HDD 500GB LG Bluray Drive/Rewriter Corsair H105
OSMonitorMonitorMonitor
Windows 10 Pro 64bit  Acer XB270HU 2560x1440 144Hz G-Sync BenQ GW2765 2560x1440 60Hz BenQ GW2765 2560x1440 60Hz
KeyboardPowerCaseMouse
Corsair K95 RGB Cherry MX Brown EVGA Supernova 1000 P2 CaseLabs S8S Corsair Scimitar
AudioOtherOther
Sennheiser PC 350 SE Freedom WSGF Edition Ultimate Desk Stand v1 Custom Built Sit/Stand Desk w/ UPLIFT Height Ad...
  hide details
Reply
post #5 of 8
They are cheap for a reason, I've used them, they are hard rubber, probably the scrap rubber from tire manufacturing.

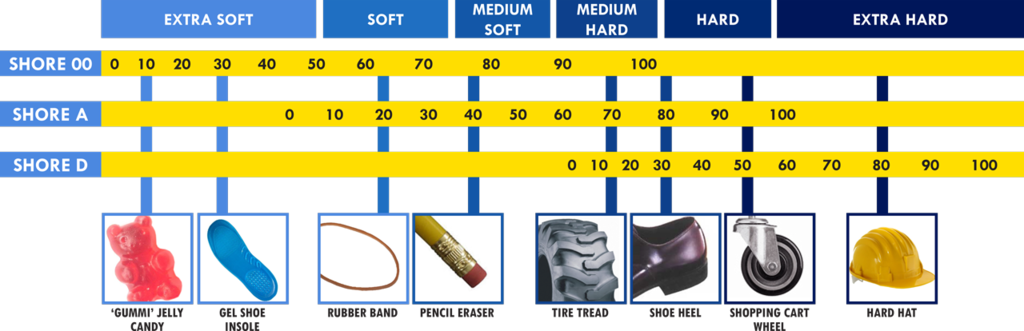

The density of noise absorbing materials is measure in durometers. Its a measure of softness and hardness.


The fact that you need pliers to pull the rubber fan screw through the fan holes should tell you something about their hardness. Softer more noise absorbing materials can be pulled through with your fingers. smile.gif


Those hard rubber fan screws/ fan plugs are basically the same durometer as the CaseLabs hard rubber feet that arrive with your order, maybe slightly softer just to give some relative idea.


It just depends on the weight overall mass of your fans, your normal working rpms, and your sensitivity to noise, whether you want to spend more on the Nexus pure silicon grommets or less on the hard rubber fan screws.


My builds are both work rigs so silence inaudibility is important, but if noise is not an issue, you can use radiator metal screws or metal fan screws that are even less expensive. No one can decide what's best for your build except you, we can only throw out options for you. thumb.gif


https://www.smooth-on.com/page/durometer-shore-hardness-scale/



.
Edited by iBruce - 2/12/17 at 11:59am

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply
post #6 of 8
I wouldn't describe these as "hard rubber", they are pretty flexible as far as I can tell and the stretch pretty well.

The reason for using pliers is not because they are hard to pull by hand but that the stems are not long enough to even have room to do it by hand on the fan side of them. There just isn't room to get my fat fingers in there.

CPUMotherboardGraphicsGraphics
i7-5930k ASUS X99-Deluxe Gigabyte GTX980 G1 Gaming Gigabyte GTX980 G1 Gaming
RAMHard DriveHard DriveHard Drive
G.SKILL Ripjaws 4 Series 16GB Samsung 840 Pro 256GB Sandisk Ultra II 960 GB WD Black HDD 2TB
Hard DriveHard DriveOptical DriveCooling
WD Black HDD 1TB WD Blue HDD 500GB LG Bluray Drive/Rewriter Corsair H105
OSMonitorMonitorMonitor
Windows 10 Pro 64bit  Acer XB270HU 2560x1440 144Hz G-Sync BenQ GW2765 2560x1440 60Hz BenQ GW2765 2560x1440 60Hz
KeyboardPowerCaseMouse
Corsair K95 RGB Cherry MX Brown EVGA Supernova 1000 P2 CaseLabs S8S Corsair Scimitar
AudioOtherOther
Sennheiser PC 350 SE Freedom WSGF Edition Ultimate Desk Stand v1 Custom Built Sit/Stand Desk w/ UPLIFT Height Ad...
  hide details
Reply

CPUMotherboardGraphicsGraphics
i7-5930k ASUS X99-Deluxe Gigabyte GTX980 G1 Gaming Gigabyte GTX980 G1 Gaming
RAMHard DriveHard DriveHard Drive
G.SKILL Ripjaws 4 Series 16GB Samsung 840 Pro 256GB Sandisk Ultra II 960 GB WD Black HDD 2TB
Hard DriveHard DriveOptical DriveCooling
WD Black HDD 1TB WD Blue HDD 500GB LG Bluray Drive/Rewriter Corsair H105
OSMonitorMonitorMonitor
Windows 10 Pro 64bit  Acer XB270HU 2560x1440 144Hz G-Sync BenQ GW2765 2560x1440 60Hz BenQ GW2765 2560x1440 60Hz
KeyboardPowerCaseMouse
Corsair K95 RGB Cherry MX Brown EVGA Supernova 1000 P2 CaseLabs S8S Corsair Scimitar
AudioOtherOther
Sennheiser PC 350 SE Freedom WSGF Edition Ultimate Desk Stand v1 Custom Built Sit/Stand Desk w/ UPLIFT Height Ad...
  hide details
Reply
post #7 of 8
I'm so glad I'm done in this forum.

Hooray! smile.gif

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel 6800K from Siliconlottery binned at 4.4GH... Rampage V Edition 10, OH DEAR GOD! :) EVGA 980 KingPin Gskill TridentZ DDR4 3200MHz 14 latency 32GB Qu...
Hard DriveCoolingOSKeyboard
Samsung 960 EVO 250GB NVMe SSD with AquaCompute... EK-R5E10 monoblock, EK-XTOP REVO Plexi, EK-RES ... Windows 10 64-Bit Happy Hacking HHKB Professional 2 Type - S whit...
PowerCaseMouseMouse Pad
Seasonic Prime Titanium 850watt  CaseLabs Mercury S8S two-tone gunmetal interior... Logitech MX Master wireless Bluetooth in Gray a... Razer solid Aluminum
CPUMotherboardGraphicsRAM
Intel 6700K 4.8GHz binned and delidded, absolut... Asus Maximus VIII Extreme, all original red acc... AMD WX 4100 Workstation Card Gskill TridentZ DDR4 3200MHz latency 14-14-14-3...
Hard DriveCoolingOSKeyboard
Intel 750 NVMe SSD 400GB  EK D5 XRES REVO pump top/res with white res top... Windows 10 64-Bit HHKB Pro 2 Type-S white frame, white gray PBT ...
PowerCaseMouseMouse Pad
Seasonic Snow Silent 750watt Platinum CaseLabs Mercury S8 Open Air Bench all gunmetal... Logitech MX Master in gray and white Razor Manticor Aluminum
AudioOther
Dell monitor soundbar from 2009 horrible : ( Hardware Labs satin white Multiport radiators i...
  hide details
Reply
post #8 of 8
For what is worth, if people are suggesting alternative mounting solutions for anti-vibration, Noctua also makes them - http://noctua.at/en/products/accessories/na-sav2 . These are also available in 5 different CHROMAX line colors - http://noctua.at/en/products/product-line-chromax . I personally bought a kit of the white colored ones to go along with white edge cushions (which will be used on a Noctua IPPC 140mm, 2000rpm 24v--at-12v to be the rear exhaust of my Mercury S8's main chamber) and they seem to be softer and stretchable by hand without any trouble. Here's a review from Overclockers that confirms they are silicone, sourced from the announcement press release, as well as an overall review of the product itself - http://www.overclockers.com/noctua-24-volt-fans-and-chromax-review/

This is actually the first set of anti vibration fan mounts of this sort I've picked up so I can't compare to the others mentioned here, but at least in basic tests they do seem to avoid transferring rotational vibration and noise. As it seems that Noctua tends to be pretty well regarded, if any others seem to be not working for you, and you can't get easily ahold of those iBruce suggests. I am unsure the composition of the Noctua maybe its worth giving these a try as they come from a good brand and may be easy to find at computing specialty shops as well as Amazon and the like.

Oh, for Amazon Prime members, they are sold as "add-on' items inexpensively, so buy them when you pick up something else!
Edited by Xaeos - 2/12/17 at 4:48pm
