My fanbox, verison 2.0

post #1 of 9
Thread Starter
Some of you may have seen my first box mod, featuring 2x2 80mm fans. That thread is here. This baby is fanbox2.0, featuring the same fans, but at a 1x3 config.

My stereo overheats in the summer, and it's starting to get hot here. There is a slot in the side of my stereo that is about 200mm by 50mm. I could have used three (or one even) 50mm fans, but that is not cool, loud, not cheap, and doesn't move much air. So I used three 80mm fans with a step down box (240x80 to 200x50). Picture time.

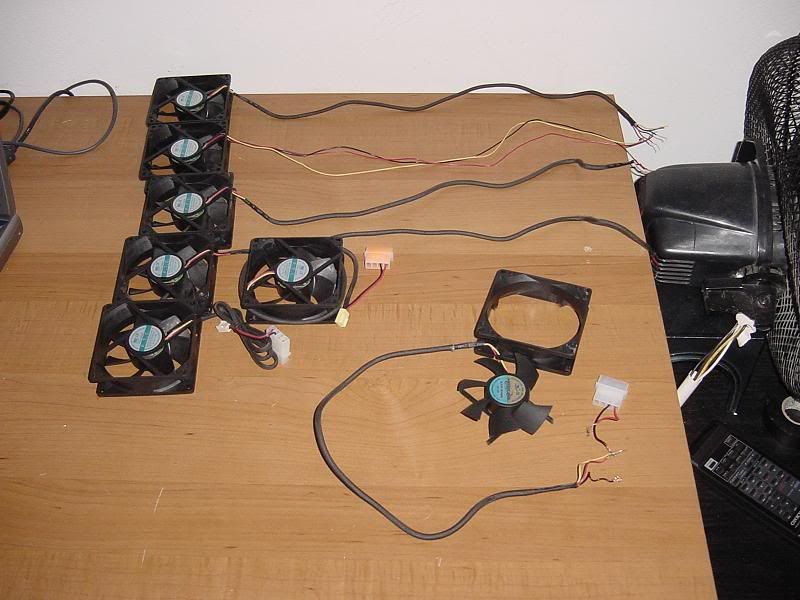

Fans to be used.

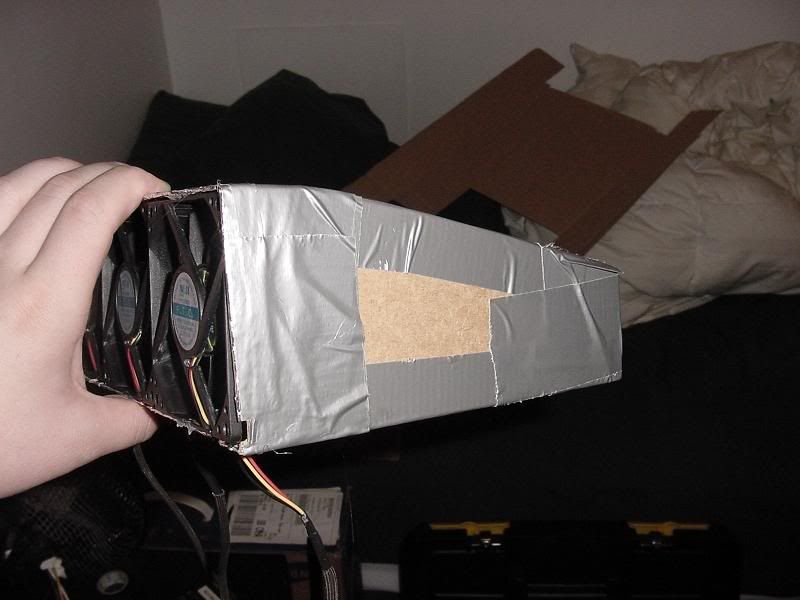

Installed the fans the wrong way But look at the great wiring job.

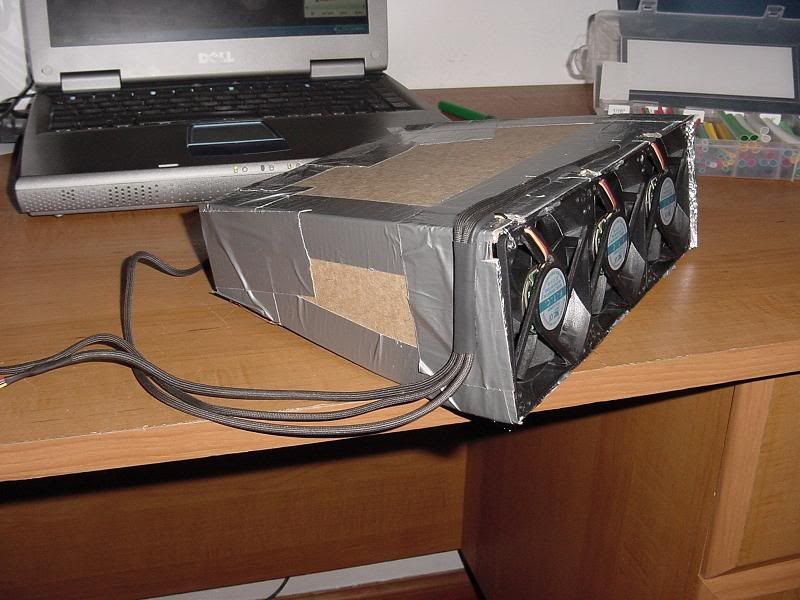

Another picture showing the design.

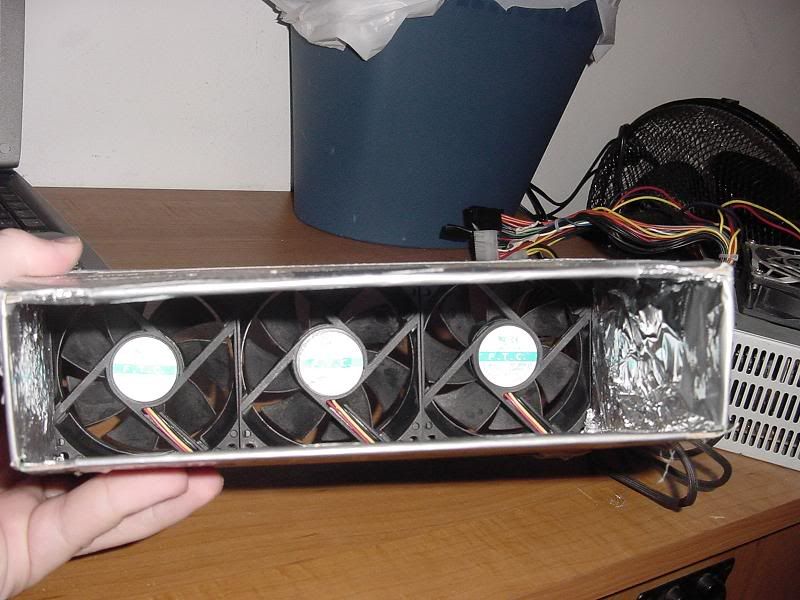

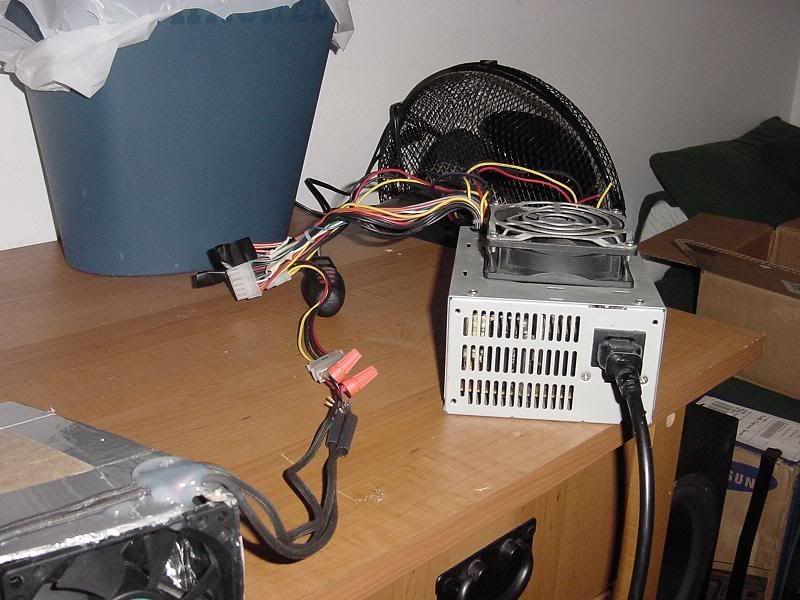

Installed the right way, and the PSU I used for low (under 200) wattage testing.

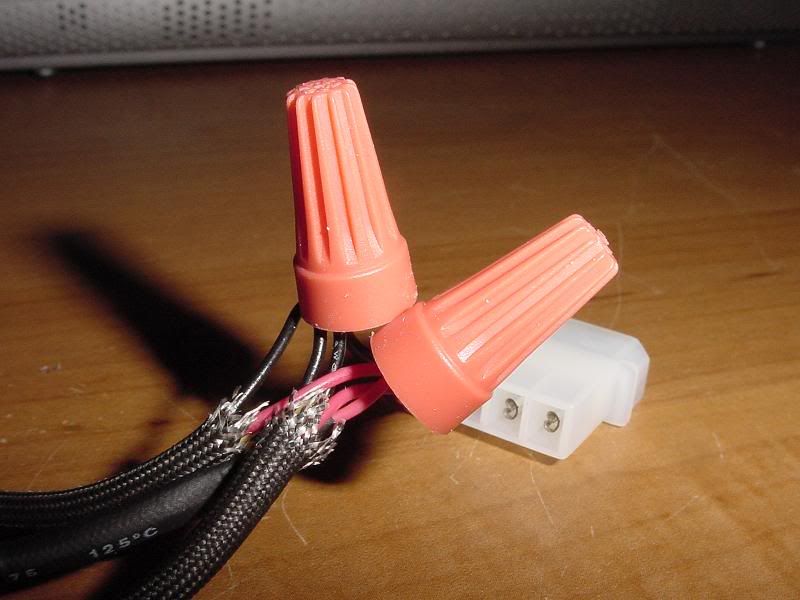

Closeup of wiring job.


The inside.

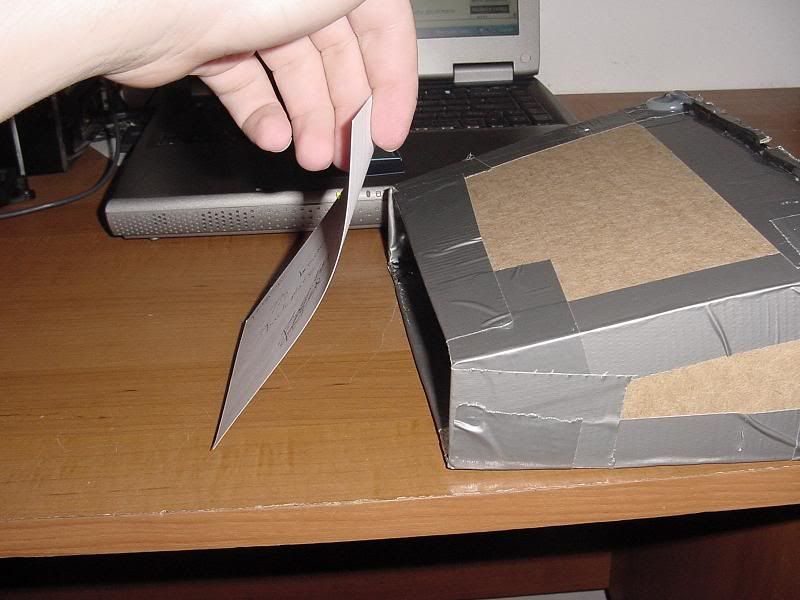

It works!



I also have a video attached showing how well it works, please check it out.
The Fox Box
