Onkyo SE-200PCI

post #1 of 15
Thread Starter
I just stumbled across this sound card at AudioCubes, does anybody have experience with it? Seems to have a decent feature set and PCB.

http://www.audiocubes.com/product/On...dio_Board.html
Morpheus Mini
(7 items)


CPUMotherboardGraphicsRAM
i7-6700T SN970 GTX 960 Crucial CT102464BF160B
Hard DriveOSAudio
Samsung 850 Evo M.2 Windows 10 Pro MOTU Audio Express
  hide details
Reply
Morpheus Mini
(7 items)


CPUMotherboardGraphicsRAM
i7-6700T SN970 GTX 960 Crucial CT102464BF160B
Hard DriveOSAudio
Samsung 850 Evo M.2 Windows 10 Pro MOTU Audio Express
  hide details
Reply
post #2 of 15
Whoa. I never knew they made soundcards. That would go great with my Onkyo A-RV401.
The Fox Box
(16 items)

Macbook Pro
(10 items)


CPUMotherboardGraphicsRAM
Intel 3930K ASUS P9X79 ASUS GTX 570 DCII 4 x 4GB G.Skill Sniper 1600MHz LV
Hard DriveOptical DriveCoolingOS
Intel 330 - 180GB LG HDDVD & Blu Ray Reader Cooler Master Hyper 612 Windows 7 Ultimate 64bit
MonitorMonitorKeyboardPower
HP ZR30w Samsung 2243BWX Ducky! PCP&C 750w Silencer (coppa)
CaseMouseMouse PadAudio
Lian Li PC-E8 G9x S&S Steel Onkyo Receiver/Design Acoustics 2.1 system
CPUGraphicsRAMHard Drive
Core i5 2410M HD 3000 8GB 120GB SSD
Optical DriveOSOSOS
Super Drive OSX 10.7.2 Win 7 Enterprise (In VB) Ubuntu 10.04 (In VB)
MonitorPower
13" 1280x800 65w Magsafe
CPUMotherboardRAMHard Drive
Q9300 Gigabyte P35 8GB DDR2 2TB WD
Hard DriveHard DriveHard DriveHard Drive
2TB WD 2TB Seagate 1.5TB Seagate 1.5TB Seagate
Hard DriveHard DriveHard DriveOptical Drive
1TB Hitachi 1TB Hitachi 500GB WD DVD-RW
OSMonitorKeyboardPower
Win Server 2012 Headless/15" touchscreen Apple mini USB PC P&C 500W
  hide details
Reply
The Fox Box
(16 items)

Macbook Pro
(10 items)


CPUMotherboardGraphicsRAM
Intel 3930K ASUS P9X79 ASUS GTX 570 DCII 4 x 4GB G.Skill Sniper 1600MHz LV
Hard DriveOptical DriveCoolingOS
Intel 330 - 180GB LG HDDVD & Blu Ray Reader Cooler Master Hyper 612 Windows 7 Ultimate 64bit
MonitorMonitorKeyboardPower
HP ZR30w Samsung 2243BWX Ducky! PCP&C 750w Silencer (coppa)
CaseMouseMouse PadAudio
Lian Li PC-E8 G9x S&S Steel Onkyo Receiver/Design Acoustics 2.1 system
CPUGraphicsRAMHard Drive
Core i5 2410M HD 3000 8GB 120GB SSD
Optical DriveOSOSOS
Super Drive OSX 10.7.2 Win 7 Enterprise (In VB) Ubuntu 10.04 (In VB)
MonitorPower
13" 1280x800 65w Magsafe
CPUMotherboardRAMHard Drive
Q9300 Gigabyte P35 8GB DDR2 2TB WD
Hard DriveHard DriveHard DriveHard Drive
2TB WD 2TB Seagate 1.5TB Seagate 1.5TB Seagate
Hard DriveHard DriveHard DriveOptical Drive
1TB Hitachi 1TB Hitachi 500GB WD DVD-RW
OSMonitorKeyboardPower
Win Server 2012 Headless/15" touchscreen Apple mini USB PC P&C 500W
  hide details
Reply
post #3 of 15
Quote:
Originally Posted by Chipp View Post
I just stumbled across this sound card at AudioCubes, does anybody have experience with it? Seems to have a decent feature set and PCB.

http://www.audiocubes.com/product/On...dio_Board.html
looks very funny
Gaming PC
(15 items)

Dell M6400 ($90)
(14 items)

HTC 10
(9 items)

CPUMotherboardGraphicsRAM
i5 4690K (Delidded) MSI Z97 MPOWER AC MAX EVGA 980 Ti Hybrid  2x CMY16GX3M2A2400C11R
Hard DriveHard DriveHard DriveCooling
A-DATA SP900 2x ST2000DM001-1ER164 ASMedia® ASM1061 (External) swiftech h320
OSMonitorMonitorPower
Stripped Win 10 x64 15063 *M* SAMSUNG LS24F350 *S* LG 22MP48HQ Corsair RM850w
CaseMouseAudio
Corsair Obsidian 750D Corsair Harpoon RGB Fiio E7
CPUMotherboardGraphicsRAM
Intel Core 2 Duo P8700 Dell 076V94 (Intel Q43) Quadro FX 2700M 2x Samsung M471B5773CHS-CH9
Hard DriveHard DriveOptical DriveCooling
WDC WD2500BJKT-75F4T0 TOSHIBA MQ01ACF032 HT-DT-ST DVD +-RW GS20N 2x Heat-pipe-sink + fans
OSMonitorKeyboardPower
Win 10 x64 15063 Super Lite Edition 1440x900 @ 100hz Dell + Numpad 95w
Mouse Pad
Dell Touchpad
CPUGraphicsRAMHard Drive
Qualcomm Snapdragon 820 MSM8996 [OC] Adreno 530 2x 2GB LPDDR4 32 GB eMMC Flash
CoolingOSMonitorKeyboard
Passive Android 7.0 2.51.617.1 Super LCD 5: 2560x1440 (565 PPI) Sony Xperia Keyboard
Power
3,000 mAh Battery
  hide details
Reply
Gaming PC
(15 items)

Dell M6400 ($90)
(14 items)

HTC 10
(9 items)

CPUMotherboardGraphicsRAM
i5 4690K (Delidded) MSI Z97 MPOWER AC MAX EVGA 980 Ti Hybrid  2x CMY16GX3M2A2400C11R
Hard DriveHard DriveHard DriveCooling
A-DATA SP900 2x ST2000DM001-1ER164 ASMedia® ASM1061 (External) swiftech h320
OSMonitorMonitorPower
Stripped Win 10 x64 15063 *M* SAMSUNG LS24F350 *S* LG 22MP48HQ Corsair RM850w
CaseMouseAudio
Corsair Obsidian 750D Corsair Harpoon RGB Fiio E7
CPUMotherboardGraphicsRAM
Intel Core 2 Duo P8700 Dell 076V94 (Intel Q43) Quadro FX 2700M 2x Samsung M471B5773CHS-CH9
Hard DriveHard DriveOptical DriveCooling
WDC WD2500BJKT-75F4T0 TOSHIBA MQ01ACF032 HT-DT-ST DVD +-RW GS20N 2x Heat-pipe-sink + fans
OSMonitorKeyboardPower
Win 10 x64 15063 Super Lite Edition 1440x900 @ 100hz Dell + Numpad 95w
Mouse Pad
Dell Touchpad
CPUGraphicsRAMHard Drive
Qualcomm Snapdragon 820 MSM8996 [OC] Adreno 530 2x 2GB LPDDR4 32 GB eMMC Flash
CoolingOSMonitorKeyboard
Passive Android 7.0 2.51.617.1 Super LCD 5: 2560x1440 (565 PPI) Sony Xperia Keyboard
Power
3,000 mAh Battery
  hide details
Reply
post #4 of 15
It looks hardcore
Studio Computer
(14 items)


CPUMotherboardGraphicsRAM
Core i7 6700k Asus ROG Maximus VIII Ranger Sapphire Radeon R9 290 2x 8GB GSkill Ripjaws DDR4-3000
Hard DriveCoolingOSMonitor
2x 120GB HyperX 3K SSD RAID0 CM Hyper 212 EVO Ubuntu 64 15.04/Win 7 Pro 64 30" Yamakasi Korean IPS
KeyboardPowerCaseMouse
CM Storm Cherry Browns XFX 750W BE Azza Solano MX518
AudioAudio
Tascam US-1800 KRK Rokit 8 G2 + KRK KNS8400
  hide details
Reply
Studio Computer
(14 items)


CPUMotherboardGraphicsRAM
Core i7 6700k Asus ROG Maximus VIII Ranger Sapphire Radeon R9 290 2x 8GB GSkill Ripjaws DDR4-3000
Hard DriveCoolingOSMonitor
2x 120GB HyperX 3K SSD RAID0 CM Hyper 212 EVO Ubuntu 64 15.04/Win 7 Pro 64 30" Yamakasi Korean IPS
KeyboardPowerCaseMouse
CM Storm Cherry Browns XFX 750W BE Azza Solano MX518
AudioAudio
Tascam US-1800 KRK Rokit 8 G2 + KRK KNS8400
  hide details
Reply
post #5 of 15
I didnt know they made soundcards
Navi
(13 items)


CPUMotherboardGraphicsRAM
Conroe e6400 Gigabyte GA-965P-DS3 EVGA 7800 GTX KO 2 GB G.Skill F2-6400PHU2-2GBHZ
OSMonitorKeyboardPower
Windows 7 Hyundai L90D+ Saitek Eclipse PC Power & Cooling 510
CaseMouseMouse Pad
Lian Li PC-60 Plus Logitech G5 Ratpadz GS
  hide details
Reply
Navi
(13 items)


CPUMotherboardGraphicsRAM
Conroe e6400 Gigabyte GA-965P-DS3 EVGA 7800 GTX KO 2 GB G.Skill F2-6400PHU2-2GBHZ
OSMonitorKeyboardPower
Windows 7 Hyundai L90D+ Saitek Eclipse PC Power & Cooling 510
CaseMouseMouse Pad
Lian Li PC-60 Plus Logitech G5 Ratpadz GS
  hide details
Reply
post #6 of 15
Like a jungle of caps!
Computard
(13 items)


CPUMotherboardGraphicsRAM
Q6600 G0 @ 3.6Ghz 24/7 P5K Deluxe EVGA GTX 260 55NM 2x2GB G.Skill 4GBPQ DDR2 8000
Hard DriveOptical DriveOSMonitor
2x320gb[Raid0] + Seagate 7200.11 1TB Samsung WriteMaster SATA Windows XP Pro ASUS VH242H
KeyboardPowerCaseMouse
Saitek Gaming keyboard Corsair 750TX Gigabyte Aurora 570 Razer DeathAdder
Mouse Pad
Steelseries Qck
  hide details
Reply
Computard
(13 items)


CPUMotherboardGraphicsRAM
Q6600 G0 @ 3.6Ghz 24/7 P5K Deluxe EVGA GTX 260 55NM 2x2GB G.Skill 4GBPQ DDR2 8000
Hard DriveOptical DriveOSMonitor
2x320gb[Raid0] + Seagate 7200.11 1TB Samsung WriteMaster SATA Windows XP Pro ASUS VH242H
KeyboardPowerCaseMouse
Saitek Gaming keyboard Corsair 750TX Gigabyte Aurora 570 Razer DeathAdder
Mouse Pad
Steelseries Qck
  hide details
Reply
post #7 of 15
While it's a very nice sound card using Wolfson's highest end DAC, the WM8740, it's not worth the $200 in my opinion as I'd rather get an Auzentech X-Meridian for the C-Media CMI8788 Oxygen HD chipset features or an external DAC for better sound quality overall. For those who are interested, though the Onkyo SE-200 is designed for the Japanese market it uses the VIA Envy24HT chipset, so you'll be able to download English chipset drivers from VIA Arena.

CPUMotherboardGraphicsRAM
Intel Core 2 Duo 2.0GHz --- Nvidia GeForce 9400M 2GB DDR2-667
Hard DriveOptical DriveOSMonitor
Hitachi 120GB 5400RPM --- Mac OS X 10.6 Snow Leopard ---
KeyboardPowerCaseMouse
--- --- --- ---
Mouse Pad
---
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel Core 2 Duo 2.0GHz --- Nvidia GeForce 9400M 2GB DDR2-667
Hard DriveOptical DriveOSMonitor
Hitachi 120GB 5400RPM --- Mac OS X 10.6 Snow Leopard ---
KeyboardPowerCaseMouse
--- --- --- ---
Mouse Pad
---
  hide details
Reply
post #8 of 15
sorry if i wake an old thread back up,

Onkyo SE-200 is a very excellent audiophile soundcard, but to get the maximum result, u have to test it on a very good audio setup too!

i might have to disagree with rakukojin, this card is better than X-meridian.

SE-200 has a warm yet bold vocal characteristic, better sound separation, and superior sound staging.
it has more connectivity than it's little brother (SE-90): 7.1 analog, Optical Line In/Out, Mic line in.

tested in these audio setup:
1. Modified Quad 11L speakers


2. Custom UTP Cat 6/Cabel Interconnect

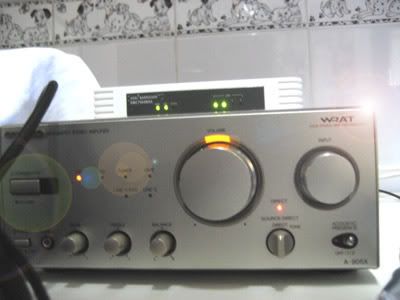

3. Onkyo Amps

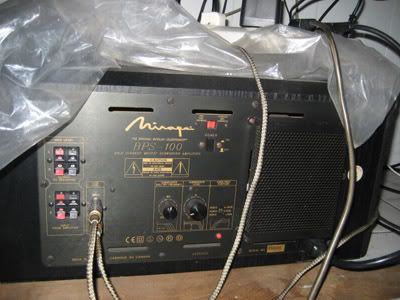

4. Mirage Bipolar BPS-100 Subwoofer


Trust me, If u're an audiophile wannabe and trying to find a better Sound quality and sound reproduction... Buy Onkyo..

*edited*
thx chipp, that sub is not mine, most of those stuffs are not mine anyway
just happened to be there when my friends doin the review
Crab Juice!!!
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 4Ghz Gigabyte X58A-UD7 PowerColor 5870 Gskill 2x 6GB kit DDR3 2000 PC16000
Hard DriveOptical DriveOSMonitor
13.42TB of WDC storage SATA LiteOn DVDRW Windows 7 Ultimate 64Bit 240S1SB + P2370
KeyboardPowerCaseMouse
Filco tenkeyless cherry brown switch CM 850W modular CM Stacker 830 Logitech MX Revolution + Roccat Kone
Mouse Pad
Razer Destructor
  hide details
Reply
Crab Juice!!!
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 4Ghz Gigabyte X58A-UD7 PowerColor 5870 Gskill 2x 6GB kit DDR3 2000 PC16000
Hard DriveOptical DriveOSMonitor
13.42TB of WDC storage SATA LiteOn DVDRW Windows 7 Ultimate 64Bit 240S1SB + P2370
KeyboardPowerCaseMouse
Filco tenkeyless cherry brown switch CM 850W modular CM Stacker 830 Logitech MX Revolution + Roccat Kone
Mouse Pad
Razer Destructor
  hide details
Reply
post #9 of 15
Thread Starter
Are you sure you don't mean bipolar? Bandpass is commonly associated with one-note-wonders and Walmart spinners.
Morpheus Mini
(7 items)


CPUMotherboardGraphicsRAM
i7-6700T SN970 GTX 960 Crucial CT102464BF160B
Hard DriveOSAudio
Samsung 850 Evo M.2 Windows 10 Pro MOTU Audio Express
  hide details
Reply
Morpheus Mini
(7 items)


CPUMotherboardGraphicsRAM
i7-6700T SN970 GTX 960 Crucial CT102464BF160B
Hard DriveOSAudio
Samsung 850 Evo M.2 Windows 10 Pro MOTU Audio Express
  hide details
Reply
post #10 of 15

SE-90(left), SE-200(right)


SE-90(above), SE-200(below)


caps on SE-200

Quote:
SE-200 specification:
Signal-noise ratio: 115dB (2ch ANALOG OUT)
Frequency characteristic: 0.3Hz~88kHz( 2ch ANALOG OUT , +0/-3dB )
Line output level: 2.0V rms
Digital IN sampling frequency: 32, 44.1 and 48, 88.2, 96kHz
Digital OUT sampling frequency :32, 44.1 and 48, 88.2, 96kHz, 176.4, 192kHz
Hardware requirement:
-Corresponding type: PCI (above Ver.2.1) the PC/AT compatible machine which has the bus slot
-OS: Windows®2000 Professional (above SP3) / XP (above SP1) Japanese edition
-CPU: Intel®Pentium®Ⅲ above 800MHz
-Memory: 128 MB or more
-In addition: CD-ROM drive
Input terminal:
-ANALOG IN X 2 (stereo RCA, internal connection)
-DIGITAL IN X 1 (light)
-MIC X 1 (φ 3.5mm monaural) Output terminal:
-2ch ANALOG OUT X 1 (stereo RCA) -DIGITAL OUT X 1 (light)
-7.1ch ANALOG OUT X 1 (Front L/R and Center, Surround L/R, Surround Back L/R and Subwoofer)
Size: H22 x W121 x D163 mm

1. VLSC (Vector Linear Shaping Circuitry), is a circuit developed by onkyo corporation, used on hi-end audio devices which disperse all the noise distortion produced by D/A signal conversion process.

2. SE-200 is equipped with wolfson WM8740 DAC, and OS-con condenser.
highest frequency 192Khz, 24-bit.

3. for multichannel usage, I was informed that SE-200 has oscillation frequency error ±10PPM (1/1000000), these low jitter oscillator will produce superior sound separation, and better staging thus making the sound richer than ever.
Crab Juice!!!
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 4Ghz Gigabyte X58A-UD7 PowerColor 5870 Gskill 2x 6GB kit DDR3 2000 PC16000
Hard DriveOptical DriveOSMonitor
13.42TB of WDC storage SATA LiteOn DVDRW Windows 7 Ultimate 64Bit 240S1SB + P2370
KeyboardPowerCaseMouse
Filco tenkeyless cherry brown switch CM 850W modular CM Stacker 830 Logitech MX Revolution + Roccat Kone
Mouse Pad
Razer Destructor
  hide details
Reply
Crab Juice!!!
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 4Ghz Gigabyte X58A-UD7 PowerColor 5870 Gskill 2x 6GB kit DDR3 2000 PC16000
Hard DriveOptical DriveOSMonitor
13.42TB of WDC storage SATA LiteOn DVDRW Windows 7 Ultimate 64Bit 240S1SB + P2370
KeyboardPowerCaseMouse
Filco tenkeyless cherry brown switch CM 850W modular CM Stacker 830 Logitech MX Revolution + Roccat Kone
Mouse Pad
Razer Destructor
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Sound Cards and Computer Audio
Overclock.net › Forums › Components › Sound Cards and Computer Audio › Onkyo SE-200PCI
