Here is what I got so far,I started out with lexan sheets
I cut them using a drill powered band saw with the drill run in reverse
then I drew out what I needed cut out

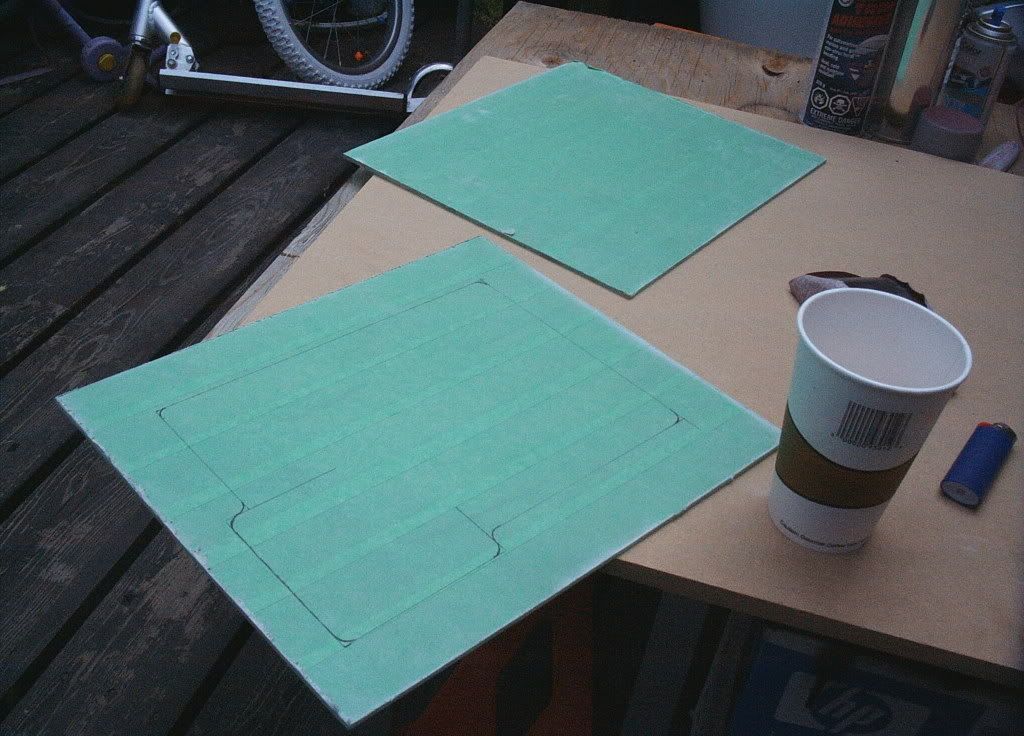

And here is what I got accomplished so far

Now all I need to do is,
-cut another panel slightly bigger than the cut out on the top panel
-cut fan holes,hole for cable and switch
-wire fans to USB cable
