help OCing

post #1 of 12
Thread Starter


I can't get past FSB of 230. My old ram (corsair Value select) I was at 312 before I stopped. All I have changed was the ram. What does the FSB/DRAM CPU/18 mean?
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
post #2 of 12

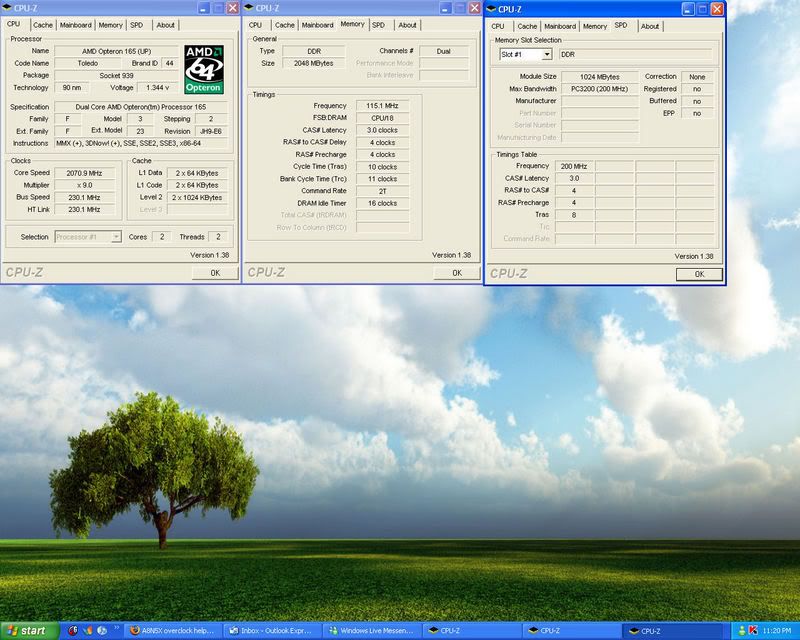

CPU/18 is the divider which you have your current RAM excessively underclocked and that is apparent by the 115.5 frequency showing ion CPU-Z.
Are you set @ 100MHz... ie.DDR200? That what it looks like to me!

On the CPU voltage, you may need about 0.1v bump up on the CPU for higher OCing. Whatch your full load temps ak keep the max below 50c.

CPUMotherboardGraphicsRAM
X4 965 ASUS M4A79 Deluxe 9800GTx2 2x2G OCZ Reapers
Hard DriveOptical DriveOSMonitor
500G WD Black LiteOn CD/DVD R/W Win7 64 22'' ws Acer AL2223W
KeyboardPowerMouse
MS KU462 Natural SS DA750 MS 5 button
  hide details
Reply

CPUMotherboardGraphicsRAM
X4 965 ASUS M4A79 Deluxe 9800GTx2 2x2G OCZ Reapers
Hard DriveOptical DriveOSMonitor
500G WD Black LiteOn CD/DVD R/W Win7 64 22'' ws Acer AL2223W
KeyboardPowerMouse
MS KU462 Natural SS DA750 MS 5 button
  hide details
Reply
post #3 of 12
Thread Starter
in the bios I have it set at 200mhz
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
post #4 of 12
Quote:
Originally Posted by Damage82 View Post
in the bios I have it set at 200mhz
You have the Bus running at 230MHz. You are effectively running the memory at half the Bus speed. So your divider is either set to 1/2, 100MHz or DDR200.

Quote:
Originally Posted by Damage82 View Post
I can't get past FSB of 230.
A few things can cause this:

Have you lowered your HT multiplier to 4?
Are your PCI and PCIe speeds locked (at 33MHz and 100MHz I think, in that order)?
Is your hard drive plugged in the SATA ports provided by the northbridge, rather than those provided by a different chip? (Some of those 'different chips' hate overclocking)

If you have an nForce 4 chipset, you won't need to increase chipset voltage up until 400MHz-ish.
post #5 of 12
Thread Starter
Thanks for the info, this is what I know
HT is at 3 as of now
PCIe is at auto?
I have 2 SATA harddrives

Just not understanding why since installing another harddrive and a different set of ram, my OC is limited?
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
post #6 of 12
Thread Starter
bump
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
post #7 of 12
Thread Starter


latest



This was with the corsair ram
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
Main
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X4 840T MSI K9A2 CF-F ATI HD4870X2  4gb OCZ SLI(2X2gb)
Hard DriveOptical DriveOSMonitor
Maxtor 250gb + 500gb SATA LG Blu-Ray/HD-DVD SATA Win7 64bit 19" wide Samsung
PowerMouse
CoolMaster 650W Logitech Laser cordless
  hide details
Reply
post #8 of 12
Good to see that your problems were sorted.
post #9 of 12
Thread Starter
they weren't, that last pic was with the old ram, still can't OC high with my new set
