Lapped vs. Un-lapped CPU

post #1 of 22
Thread Starter
What does lapping mean? What does it do?
post #2 of 22
It's the process of sanding your IHS (Integrated Heat Spreader) or HSF (Heatsink Fan) to a mirror finish. It's objective is to make the IHS/HSF as flat and smooth as possible for MAXIMUM contact between the IHS and Heatsink. It can drop your CPU temps anywhere from 2-5C, sometimes more!
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
Sandy Beach
(14 items)


CPUMotherboardGraphicsRAM
2500K @ 4.5GHz/1.32v P8P67-PRO [BIOS 1704] MSI GTX780 TFIV G.Skill 4x4GB DDR3-1600 (8-8-8-24-1T)
Hard DriveCoolingOSMonitor
512GB 850EVO, WD Black 1TB & ES.2 1TB & Cuda 3TB XSPC Rasa w/ RS240 Windows 7 Ultimate x64 Dell SX2210
KeyboardPowerCaseMouse
Filco Ninja w/ Browns SilverStone Strider Plus 750W [Sleeved] Custom Stacker 832 Logitech G500
Mouse Pad
Steelseries 4HD
  hide details
Reply
post #3 of 22
make something flat,

like make your cpu flat with high grit sandpaper.
My dem Laptop!
(13 items)


CPUMotherboardGraphicsRAM
Intel Moblie Core 2 Duo P8700 OEM Clevo M860TU GeForce GTX 260M OEM DDR3 2GB
OS
Window 7
  hide details
Reply
My dem Laptop!
(13 items)


CPUMotherboardGraphicsRAM
Intel Moblie Core 2 Duo P8700 OEM Clevo M860TU GeForce GTX 260M OEM DDR3 2GB
OS
Window 7
  hide details
Reply
post #4 of 22
I do not kno about smooth but I know that you have to make it flat.I do not think that if it doesn't become a mirror it will not be as good as if it would have. I mean scratchy or not its the same as long as its flat. The problem is that CPU IHS is NOT flat. Some CPU have the center deeper and the newest are opposite since th center is raised a bit. THe flatness on both IHS and heatsink will indeed give better performance but make sure to not much as much thermal paste since the primary job of the thermal paste is to fill up the gap between the IHS and the heatsink which lapping has removed.I never make them mirror like and both mine and my friends who I did it dropped 4-5C. Mine actually 5 but i bet it will drop more if I reseat the heatsink and add less thermal paste.

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply
post #5 of 22
Sand base with 600.
Sand base with 800.
Sand base with 1000.
Sand base with 1200.
Sand base with 1500.
Sand base with 2000.
Sand base with 2500.

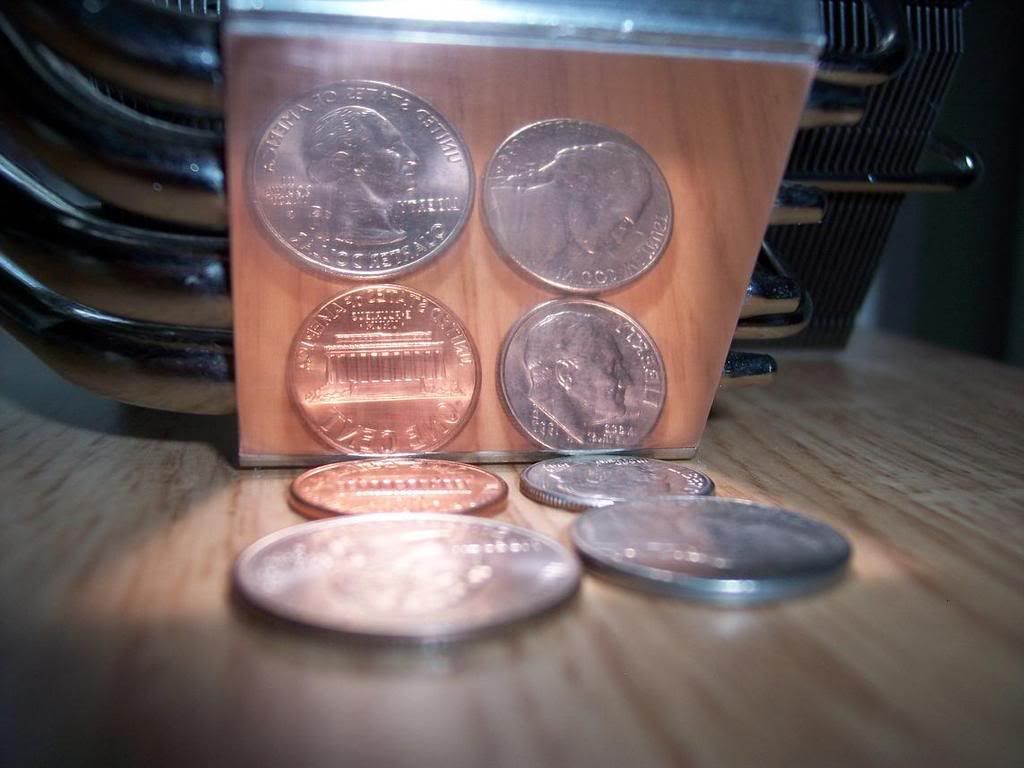

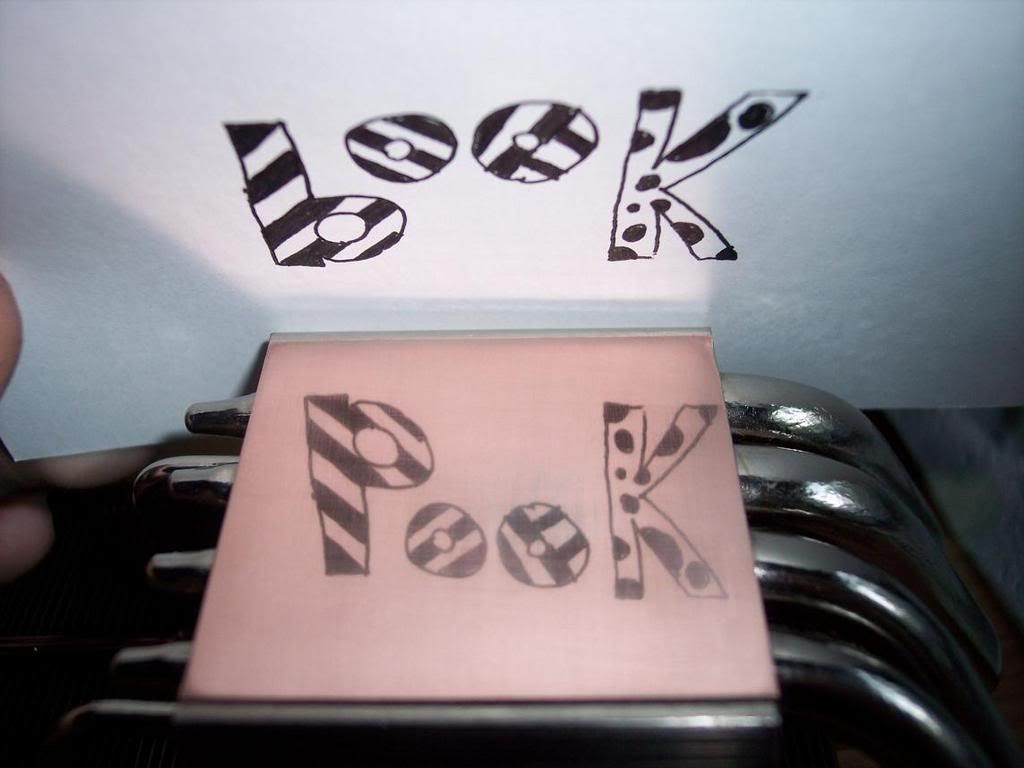

Mine:




My little brother did the sign.
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
2 OP pls nerf
(12 items)


CPUMotherboardGraphicsRAM
i5 6400 Skylake Asus Z170-E ATX Asus GTX 1060 6GB GeIL 8GB DDR4 3600
Hard DriveHard DriveCoolingOS
Sandisk 480GB SSD Western Digital EZRX 3TB Cryorig H7 Windows 10 Pro x64
PowerAudioAudioAudio
Silverstone 500w Gold Lepai LP-2020A+ AudioSource LS100 Polk Audio PSW111
  hide details
Reply
post #6 of 22
Lol. The thinnest I use is your thicker. Yeap I only lap with 600. Too bored to look around for the 2500 or something.

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply
post #7 of 22
Quote:
Originally Posted by weltall View Post
Lol. The thinnest I use is your thicker. Yeap I only lap with 600. Too bored to look around for the 2500 or something.
1500 grit at walmart. In the auto section, near touch-up paint.
Alienware 17 R2
(10 items)


CPUGraphicsGraphicsGraphics
i7 4710hq NVIDIA GeForce GTX 970M Intel HD 4600 Zotac GeForce GTX 1070 on Alienware Graphics Am...
RAMHard DriveOSMonitor
16GB DDR3-3200 750GB Crucial MX300 SSD Windows 10 Home 64-bit 27" ASUS
KeyboardMouse
Logitech G710 Logitech G602
  hide details
Reply
Alienware 17 R2
(10 items)


CPUGraphicsGraphicsGraphics
i7 4710hq NVIDIA GeForce GTX 970M Intel HD 4600 Zotac GeForce GTX 1070 on Alienware Graphics Am...
RAMHard DriveOSMonitor
16GB DDR3-3200 750GB Crucial MX300 SSD Windows 10 Home 64-bit 27" ASUS
KeyboardMouse
Logitech G710 Logitech G602
  hide details
Reply
post #8 of 22
Quote:
Originally Posted by KSIMP88 View Post
1500 grit at walmart. In the auto section, near touch-up paint.
ooo thats why I could not find any when I asked for bronze.. now it figues. Thanks for the info!

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel® Core™ i5-2310 Pegatron Cleveland 2AB6 Dual-X R9 280X 3G D5 Corsair Value Select 2GB VS2GB1333D3 x4
Hard DriveHard DriveHard DriveOptical Drive
Samsung SSD 850 EVO 500GB Seagate Barracuda ST31000333AS 1TB Western Digital Red NAS WD30EFRX 3TB Plextor PX820-SA
CoolingOSOSMonitor
Xilence M403 Windows 7 Home Premium 64bit Windows 10 Home 64bit LG 23MP65
MonitorKeyboardPowerCase
Acer AL1714 Logitech Cordless Desktop S520 Thermaltake Toughpower XT 750W Hewlett Packard P7 case
Mouse
Natec Genesis GX77
  hide details
Reply
post #9 of 22
My Rig
(13 items)


CPUMotherboardGraphicsRAM
i-4790k GA-Z97X-UD5H-BK eVGA GTX 970 FTW 8GB G.Skill Trident X
Hard DriveOSMonitorPower
Intel 180GB SSD Windows 7 Pro Dell Ultrasharp 24" eVGA 850 G2
Case
Corsair 750D
  hide details
Reply
My Rig
(13 items)


CPUMotherboardGraphicsRAM
i-4790k GA-Z97X-UD5H-BK eVGA GTX 970 FTW 8GB G.Skill Trident X
Hard DriveOSMonitorPower
Intel 180GB SSD Windows 7 Pro Dell Ultrasharp 24" eVGA 850 G2
Case
Corsair 750D
  hide details
Reply
post #10 of 22
Thread Starter
Quote:
Originally Posted by The Pook View Post
Sand base with 600.
Sand base with 800.
Sand base with 1000.
Sand base with 1200.
Sand base with 1500.
Sand base with 2000.
Sand base with 2500.
are these the different types of sand paper?
which is the best to use?
i plan on getting a brand new q6600 quad core, is this lapping thing good with any CPU? is it good to lap even though the product may be brand new?
how long should u sand for to get the best results?
