Looking good Cyber!
So are you going to make the side panel swing open or something? I would assume you would need to keep it attached somehow seeing as the Rad. is hanging off of it
Also, I was going to suggest some of the Evercool fans for case fans (if plan on adding any), I got some of these and they are really great fans, I have two on my second computer that have been going strong for over a year and $10 for a fan with filter isn't bad; 80CFM @ ~25DBA too btw

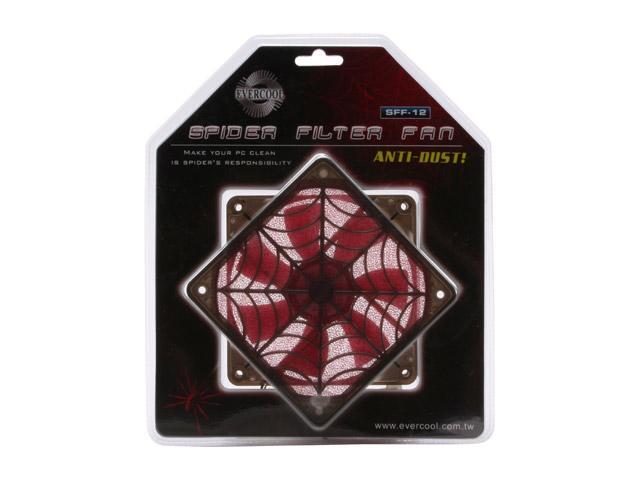

Evercool Spider Fan
