post #1 of 91
Thread Starter
Completed picture





This is gonna be my entry to a comp, objective is to make a SFF (small form factor) case, within specific size requirements and able to accommodate all the usual components.
Its about the design of the case and not practicality of it so temps etc dont come into the equation...Here we go then:

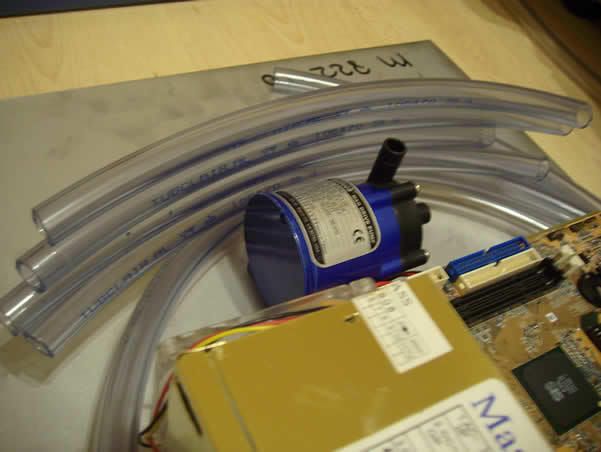

First heres 16m of tubing

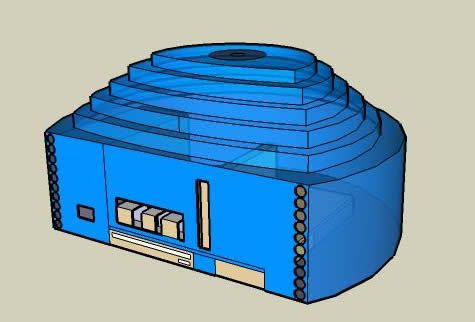

There will be 10 rows of tubing stacked on top of each other all connected via 2 x 10 port manifolds, you get the idea from the pic:


Rear of case, made from acrylic (if budget permits, alternatively its gonna be aluminium or steel as I can get it for free).
1 x Hard Drive and 1 x DVD Drive underneath the mobo. PSU to the side of the mobo

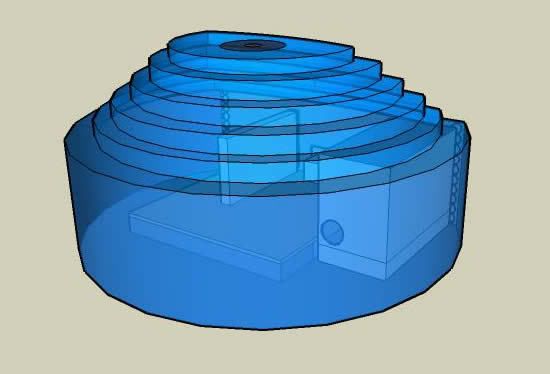

Tubing will coil into a spiral at the top (may change)

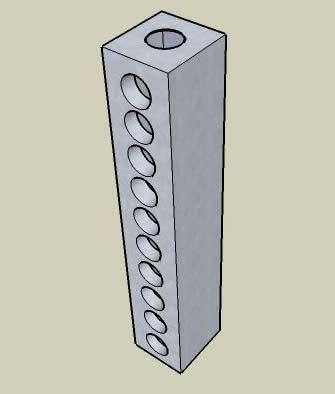

I will be making 2 x 10 Port Manifolds to put at rear of case, where the holes are in the backplate, water will be able to flow through all the tubes:


------------------------------------------------------------------

UPDATE #1

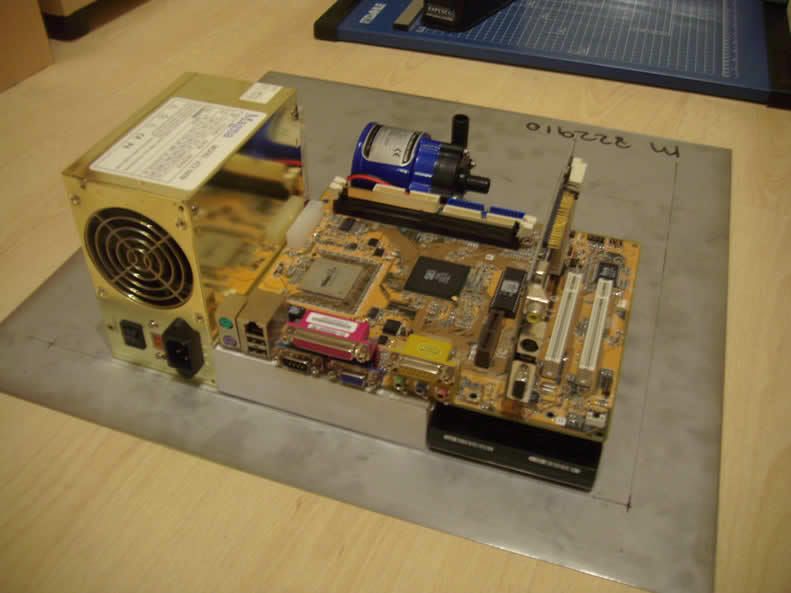

This is the layout for the components, notice my cardboard cut-out DVD writer under the mobo tray, also underneath is a 3.5" Hard drive with some stand-offs in to keep everything level

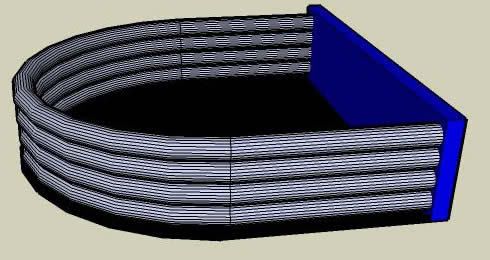

A quick mock up of tubing coils (im not using this tubing, its just that I dont wanna start cutting the other tubing till my manifolds are complete).


-------------------------------------------------------------------------------------------------
Update 2

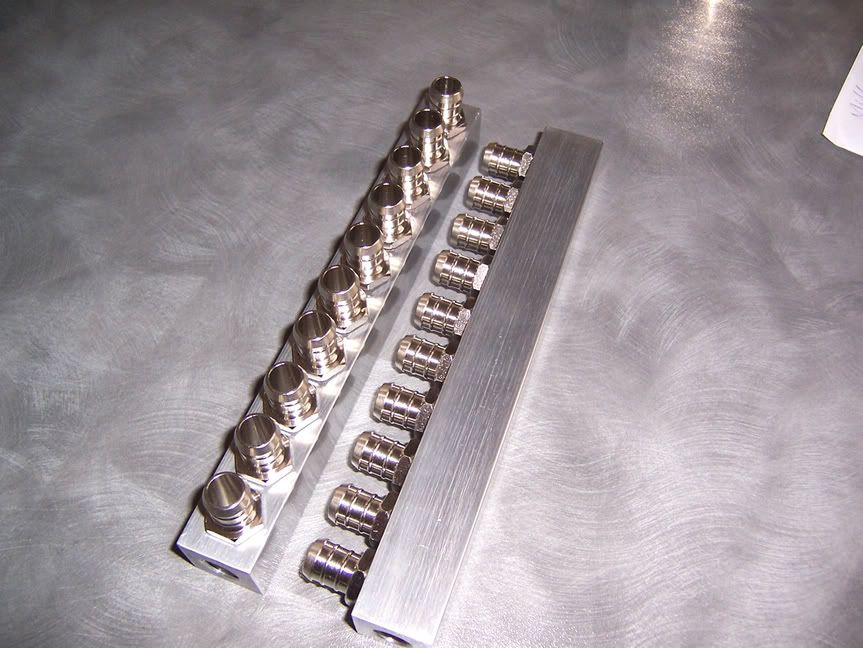

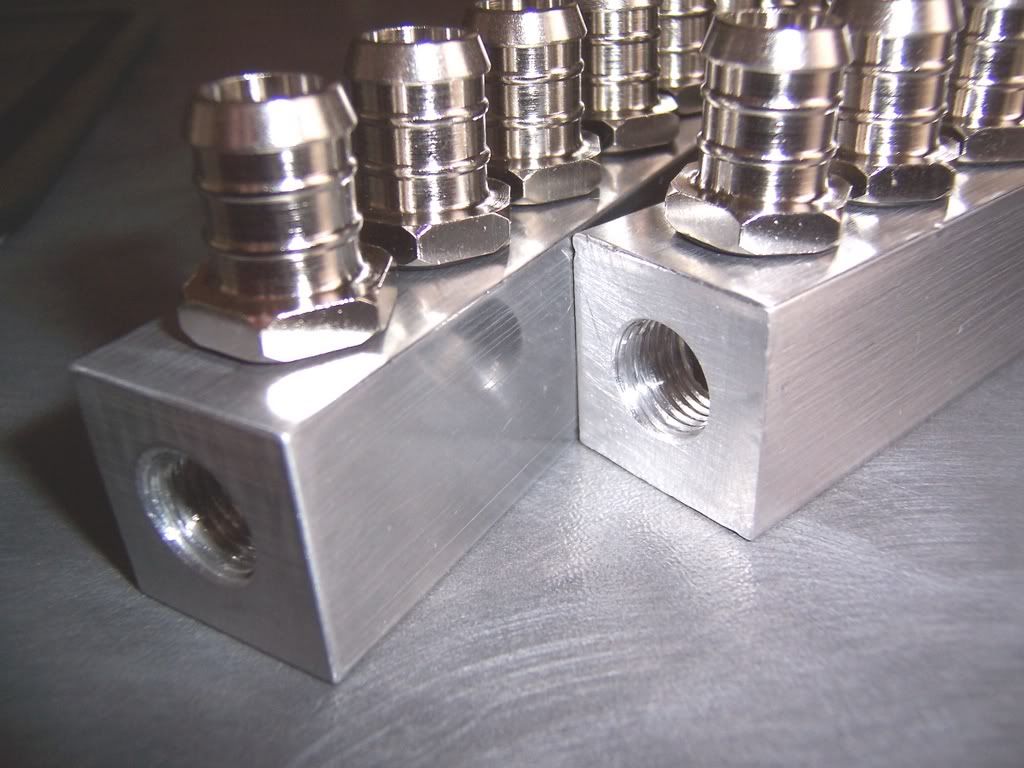

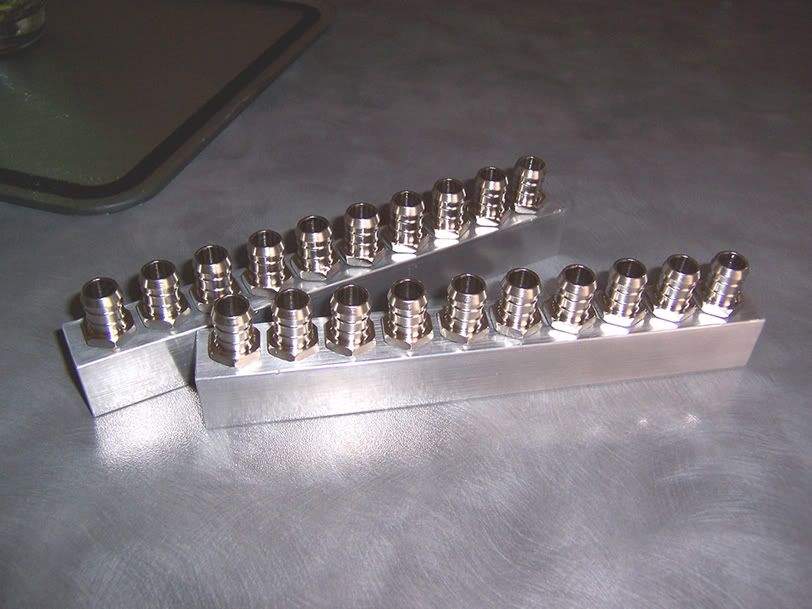

Well I just got some pics off the Manifolds from Rob (WCUK) and wooo they looks sweet :-)
So a massive thankyou to Rob and his friend with the milling machine for doing these for me.

Heres the pics:





Comments & Suggestions welcome!
I Will edit accordingly as I progress thru it, next update shud be the weekend I think.
